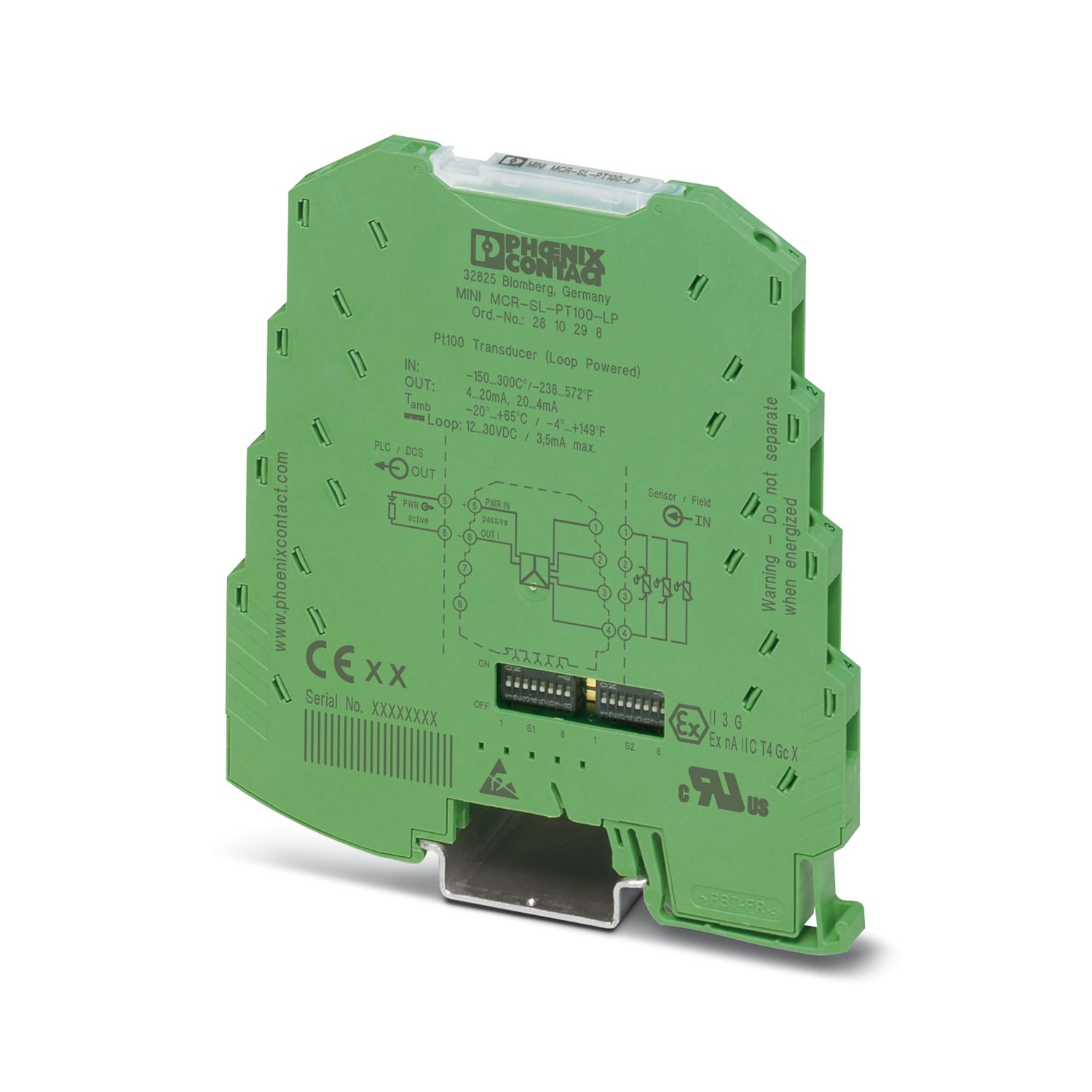

MINI MCR-SL-PT100-LP - Temperature measuring transducer - 2810298

Product properties

Product type	Temperature transmitter
Product family	MINI Analog
Insulation characteristics
Overvoltage category	II
Pollution degree	2

Electrical properties

Rated insulation voltage	30 V AC
Rated insulation voltage		50 V DC
Electrical isolation	Basic insulation in accordance with EN 61010
Linearity error	< 0.05 % (for full measuring range)
Test voltage, input/output/supply	1.5 kV AC (50 Hz, 60 s)
Step response (0–99%)	< 200 ms
Maximum temperature coefficient	< 0.02 %/K
Transmission error in the set measuring range	((90 K / set measuring range [K]) + 0.05)%
Transmission error in the full measuring range	≤ 0.25 %
Supply
Designation	Loop-powered
Supply voltage range	12 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption	< 4.5 mA (without signal current)
Power consumption	< 150 mW (without signal current)

Input data

Signal
Number of inputs	1
Input signal	Temperature
Measurement
Number of inputs	1
Configurable/programmable	Yes, preconfigured
Sensor types (RTD) that can be used	Pt 100 (IEC 60751/EN 60751)
Temperature measuring range	min. 50 K
Sensor type:	-150 °C ... 300 °C (configurable)
Sensor input current	1 mA (constant)
Max. permissible overall conductor resistance	10 Ω (Per cable)
Connection technology	2-, 3-, 4-conductor
Error detection limit (short-circuit)	< 30 Ω
Error detection limit (underrange)	30 Ω ≤ (start span - 2.5% span)
Error detection limit (overrange)	(end span + 2.5% span) ≤ approx. 254 Ω
Error detection limit (wire break)	> approx. 254 Ω

Output data

Signal
Number of outputs	1
Configurable/programmable	Yes, preconfigured
Current output signal	4 mA ... 20 mA
	20 mA ... 4 mA
Max. current output signal	23 mA (output limit)
Load/output load current output	(U_supply- 12 V) / 22 mA
Ripple	< 20 mV_PP (at 500 Ω)
Behavior in the event of a sensor error	configurable

Connection data

Connection method	Screw connection
Stripping length	12 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	26 ... 12

Dimensions

Material specifications

Color	green (RAL 6021)
Housing material	PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-20 °C ... 65 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)

Approvals

EMC data

Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2
Note	When being exposed to interference, there may be minimal deviations.
Noise emission
Standards/regulations	EN 61000-6-4
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Comments	Safety measures must be taken to prevent electrostatic discharge.
Electromagnetic HF field
Designation	Electromagnetic RF field
Standards/regulations	EN 61000-4-3
Typical deviation from the measuring range final value	5 %
Fast transients (burst)
Designation	Fast transients (burst)
Standards/regulations	EN 61000-4-4
Typical deviation from the measuring range final value	5 %
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Comments	Criterion B
Conducted interference
Designation	Conducted interferences
Standards/regulations	EN 61000-4-6
Typical deviation from the measuring range final value	5 %

Standards and regulations

Electrical isolation	Basic insulation in accordance with EN 61010

Mounting

Mounting type	DIN rail mounting
Mounting position	any

Item number	2810298
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	DK1135
Catalog page	Page 106 (C-7-2015)
GTIN	4046356151986
Weight per piece (including packing)	115 g
Weight per piece (excluding packing)	67.6 g
Customs tariff number	85437090
Country of origin	DE
