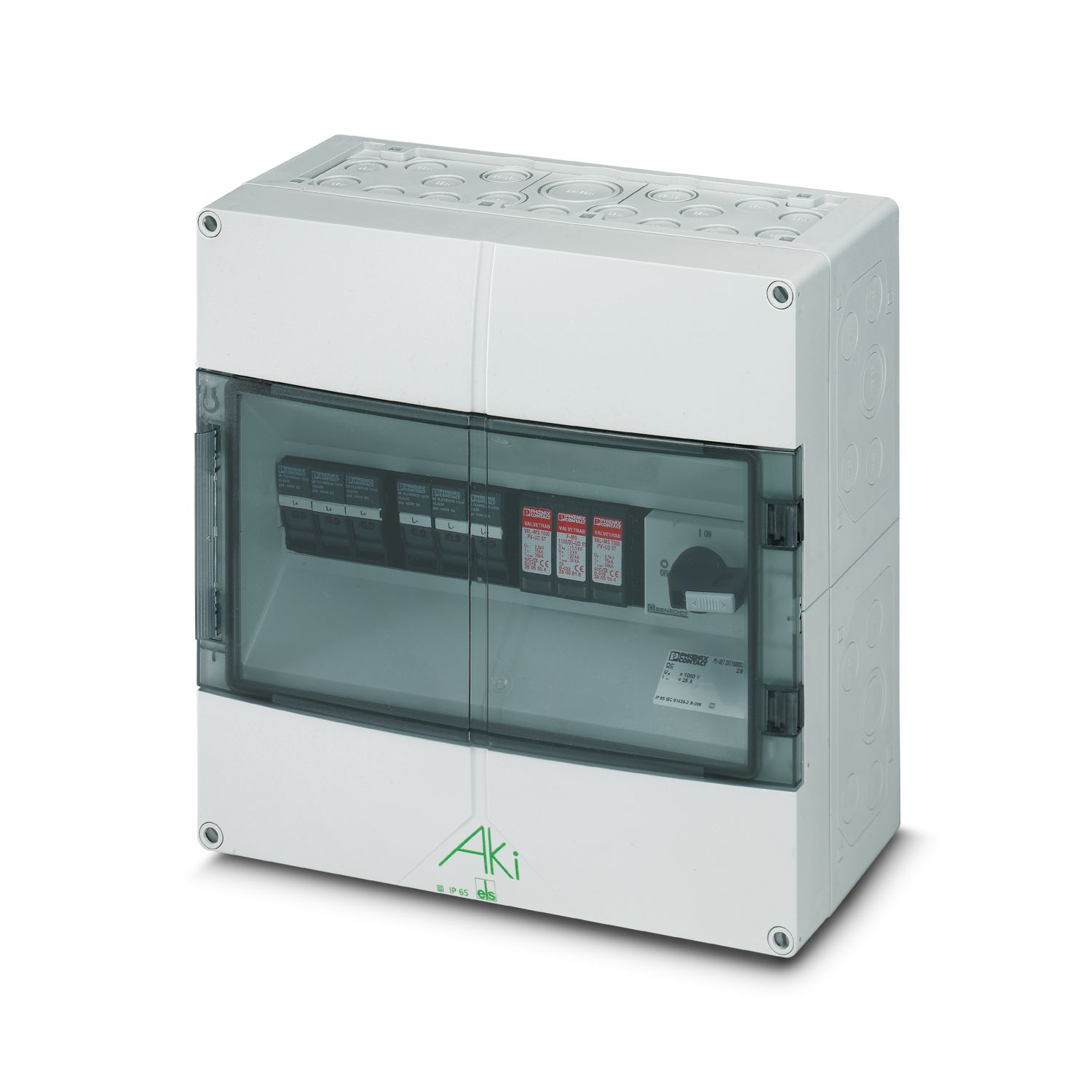

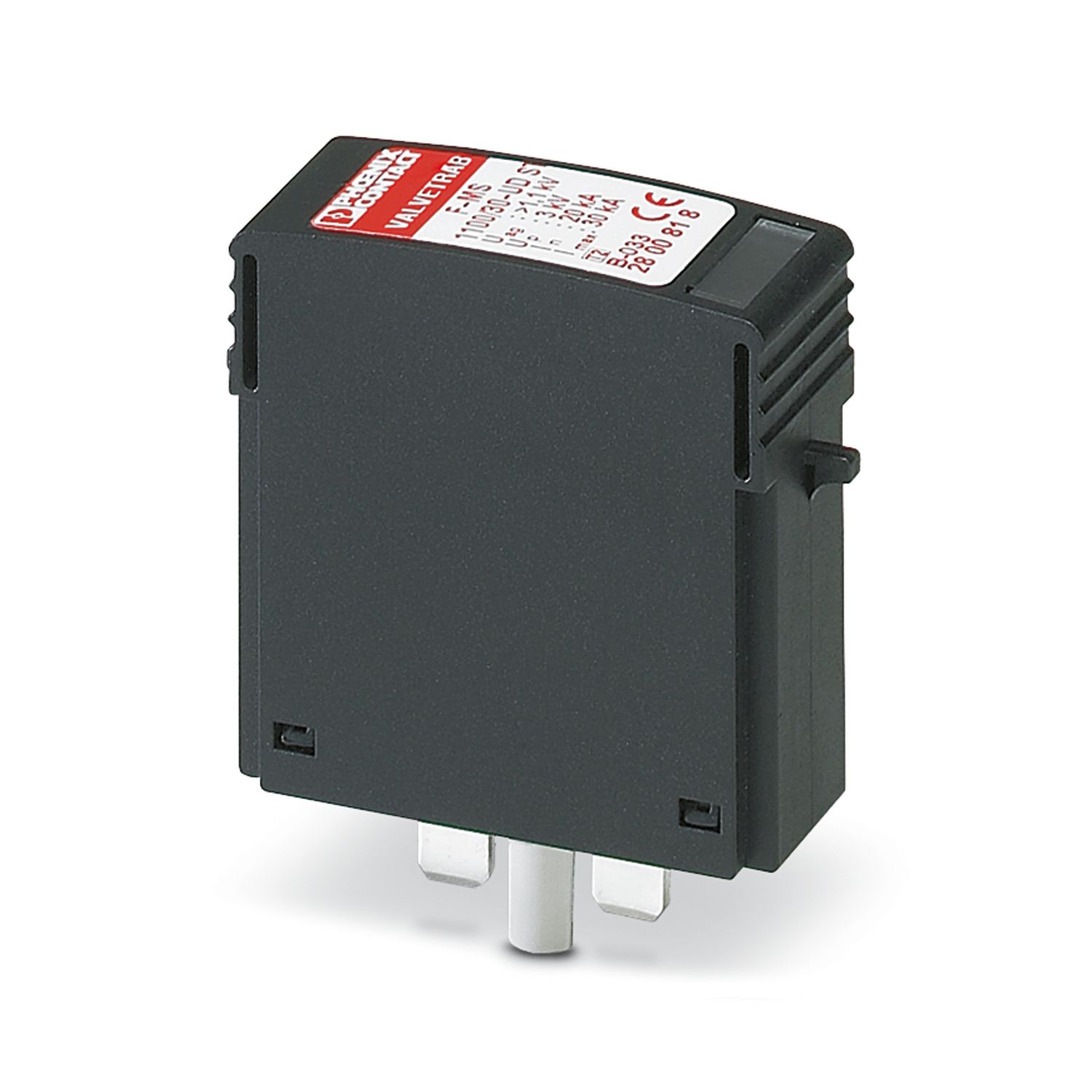

PV-SET 3ST/1000DC/32A-F-SPD-SD - Surge protection device set - 2800760

Product properties

IEC test classification	II
EN type	T2
Type	Installation housing
Surge protection fault message	optical
Insulation characteristics
Overvoltage category	III
Pollution degree	2

Electrical properties

Nominal voltage U_N	850 V DC (Solar generator)
Fuse	PV FUSE 10,3x38

Dimensions

Material specifications

Flammability rating according to UL 94	V2
Cover material	Polycarbonate, transparent
Housing material	Polycarbonate, glass-fiber-reinforced

Protective circuit

Maximum continuous voltage U_C	1000 V DC
Protective conductor current I_PE	≤ 1 µA
Standby power consumption P_C	≤ 1 mW
Nominal discharge current I_n (8/20) µs	15 kA
Maximum discharge current I_max (8/20) µs	30 kA
Voltage protection level U_p (L+) - (L-)	5 kV
Voltage protection level U_p (L+/L-) - PE	3 kV
Response time t_A	≤ 25 ns
Protective circuit DC voltage side (DC)
Rated surge voltage resistance U_imp	6 kV
Short-circuit current I_SCSTC	25 A DC
Open circuit voltage U_OCSTC	850 V DC (Solar generator)
Maximum discharge current I_max (8/20) µs	30 kA
Response time t_A	≤ 25 ns
Nominal discharge current I_n (8/20) µs	15 kA
Maximum continuous operating voltage U_CPV	1000 V DC
Protective conductor current I_PE	≤ 1 µA
Voltage protection level U_p (L+) - (L-)	5 kV
Voltage protection level U_p (L+/L-) - PE	3 kV
Standby power consumption P_C	≤ 1 mW

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65
	IP65
Ambient conditions	A, B
Ambient temperature (operation)	-20 °C ... 40 °C

Standards and regulations

Mounting

Item number	2800760
Packing unit	1 pc
Minimum order quantity	5 pc
Note	Made to order (non-returnable)
Product key	CL132E
GTIN	4046356647922
Weight per piece (including packing)	2,965 g
Weight per piece (excluding packing)	2,965 g
Customs tariff number	85363030
Country of origin	DE

PV-SET 3ST/1000DC/32A-F-SPD-SD - Surge protection device set

2800760

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
