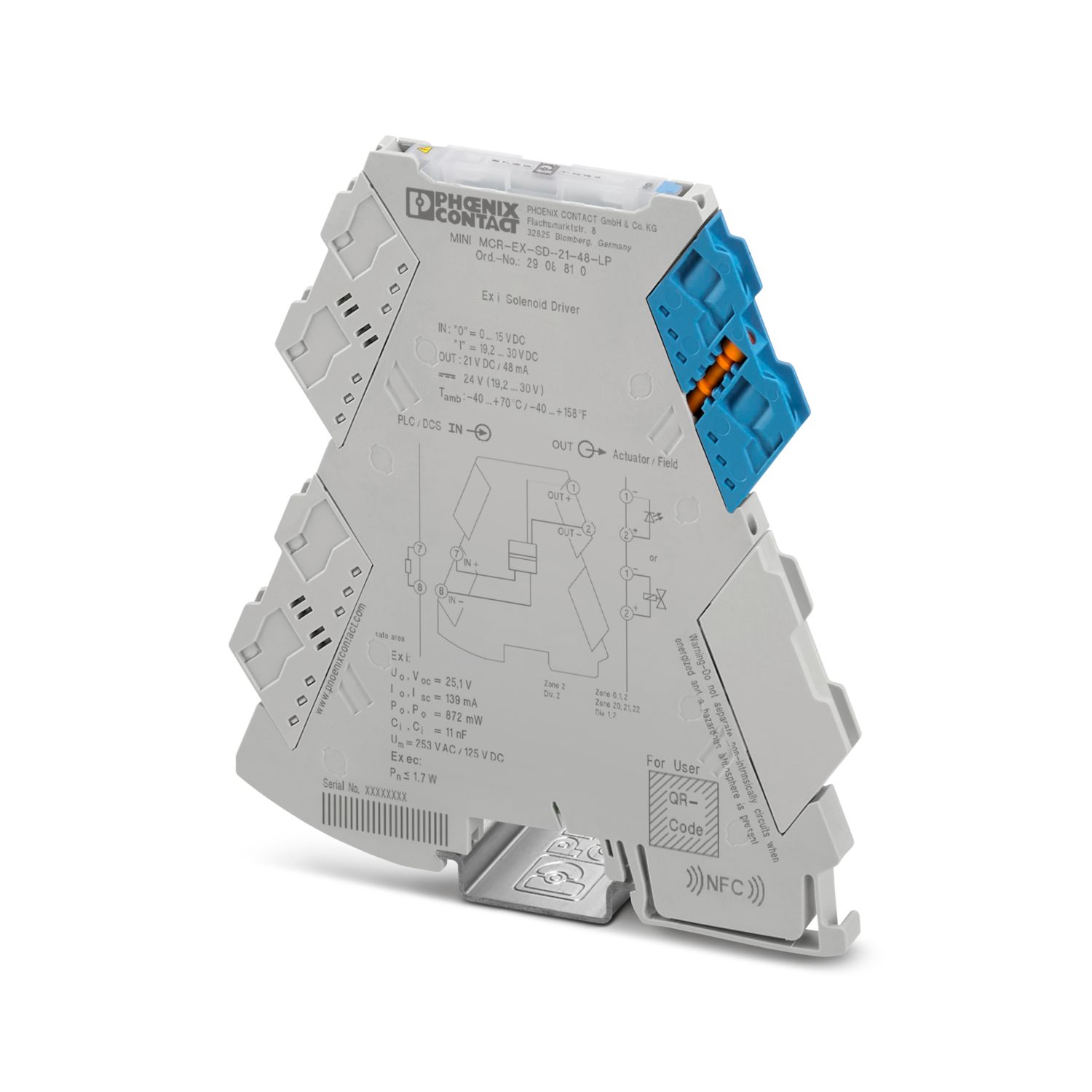

MINI MCR-EX-SD-21-48-LP - Solenoid driver - 2908810

Product properties

Product type	Solenoid driver
Product family	MINI Analog Pro

Electrical properties

Electrical isolation
Overvoltage category	II (≤ 5000 m)
Pollution degree	2 (≤ 5000 m)
Electrical isolation Input/output IEC/EN 61010-1
Standards/regulations	IEC/EN 61010-1
Rated insulation voltage	300 V_rms
Test voltage	2.5 kV AC (50 Hz, 60 s)
Insulation	Double/reinforced insulation
Electrical isolation Input/output IEC/EN 60079-11
Standards/regulations	IEC/EN 60079-11
Rated insulation voltage	265 V_rms
Electrical isolation Input/output IEC/EN 60079-7
Standards/regulations	IEC/EN 60079-7
Rated insulation voltage	251 V_rms
Supply
Supply voltage range	loop-powered, no external supply necessary
Power consumption	< 1.7 W

Input data

Signal: Voltage
Number of inputs	1
Voltage input signal	19.2 V DC ... 30 V DC (24 V DC, -20 % ... +25 %)

Output data

Signal: Voltage
Number of outputs	1
Output voltage	≥ 12.2 V DC (48 mA)
Output resistor	≥ 181 Ω (Internal resistance R_i)
Current limitation	> 48 mA
Response time	< 50 ms
Non-load voltage	> 21 V DC
Short-circuit-proof	yes

Connection data

Connection method	Screw connection
Stripping length	10 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 1.5 mm² (with ferrule)
	0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12 (flexible)
Tightening torque	0.5 Nm ... 0.6 Nm

Ex data

Ex installation (EPL)	Gc
Ex installation (EPL)		Div. 2
Ex i circuits (EPL)	Ga
		Da
		Ma
		Div. 1
Safety data
Max. internal inductance L_i	negligible
Max. internal capacitance C_i	11 nF
Max. output voltage U_o	25.1 V
Max. output current I_o	139 mA
Max. output power P_o	872 mW
Safety-related maximum voltage U_m	253 V AC
Safety-related maximum voltage U_m		125 V DC
IIA (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	10 mH / 2.92 µF
IIB/IIIC (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	5 mH / 819 nF
IIC (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	1.5 mH / 97 nF
I (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	15 mH / 4.84 µF

Dimensions

Width	6.2 mm
Height	109.81 mm
Depth	119.2 mm

Material specifications

Color	gray (RAL 7042)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Altitude range (IEC/EN 61010-1)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	300 V_rms (Input/output)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	300 V_rms (Input/output)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	150 V_rms (Input/output)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 60079-11)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Safety-related maximum voltage U_m	121 V AC
Safety-related maximum voltage U_m		110 V DC
Rated insulation voltage	150 V_rms (Input/output)
Altitude range (IEC/EN 60079-11)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Safety-related maximum voltage U_m	33 V AC/DC
Rated insulation voltage	60 V_rms (Input/output)
Altitude range (IEC/EN 60079-11)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Safety-related maximum voltage U_m	33 V AC/DC
Rated insulation voltage	60 V_rms (Input/output)
Altitude range (IEC/EN 60079-7)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	162 V_rms (Input/output)
Altitude range (IEC/EN 60079-7)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	60 V_rms (Input/output)
Altitude range (IEC/EN 60079-7)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	60 V_rms (Input/output)

Approvals

CE
Certificate	CE-compliant
ATEX
Identification	 II (1) G [Ex ia Ga] IIC
		 II (1) D [Ex ia Da] IIIC
		 II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
		 I (M1) [Ex ia Ma] I
Certificate	TÜV 21 ATEX 8651 X
IECEx
Identification	[Ex ia Ga] IIC
		[Ex ia Da] IIIC
		Ex ec [ia Ga] IIC T4 Gc
		[Ex ia Ma] I
Certificate	IECEx TUR 21.0043 X
CCC / China-Ex
Identification	[Ex ia Ga] IIC
		[Ex ia Da] IIIC
		Ex ec [ia Ga] IIC T4 Gc
Certificate	2023122310116238
UL, USA/Canada
Identification	UL 61010-2-201 Listed
		Class I, Div. 1, Groups A, B, C, D
		Class II, Div. 1, Groups E, F, G
		Class III, Div. 1
		Class I, Zone 0, 1, 2, Groups IIC, IIB, IIA
		Class I, Div. 2, Groups A, B, C, D T4
		Class I, Zone 2
		AEx ec [ia Ga] IIC T4 Gc; AEx ec [ia IIIC Da] IIC T4 Gc
		Ex ec [ia Ga] IIC T4 Gc X; Ex ec [ia IIIC Da] IIC T4 Gc X
		Class I, Zone 0, [AEx ia Ga] IIC, [Ex ia Ga] IIC X
		Class I, Zone 20, [AEx ia Da] IIIC, [Ex ia Da] IIIC X
Certificate	, C.D.-No 097285872
UL, USA/Canada
Identification	UL 61010-2-201 Listed
Certificate	, C.D.-No 097285872
Shipbuilding approval
Certificate	DNV TAA00003FZ
Safety Integrity Level (SIL, IEC 61508)
Identification	3
INMETRO
Identification	[Ex ia Ma] I
		[Ex ia Ga] IIC
		[Ex ia Da] IIIC
		Ex ec [ia Ga] IIC T4 Gc
Certificate	DNV 23.0189 X
Shipbuilding data
Temperature	B
Humidity	B
Vibration	A
EMC	A
Enclosure	Required protection according to the Rules shall be provided upon installation on board

EMC data

Electromagnetic compatibility	Tested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21
Noise immunity	IEC/EN 61000-6-2
	IEC/EN 61326-3-2
Noise emission
Standards/regulations	IEC/EN 61000-6-4

Standards and regulations

GB Standard
Standards/regulations	GB/T 3836.1
	GB/T 3836.3
	GB/T 3836.4

Mounting

Item number	2908810
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DK1224
GTIN	4055626357577
Weight per piece (including packing)	118.5 g
Weight per piece (excluding packing)	118.5 g
Customs tariff number	85437090
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	de384f35-a4af-4294-801f-200b95b36717
