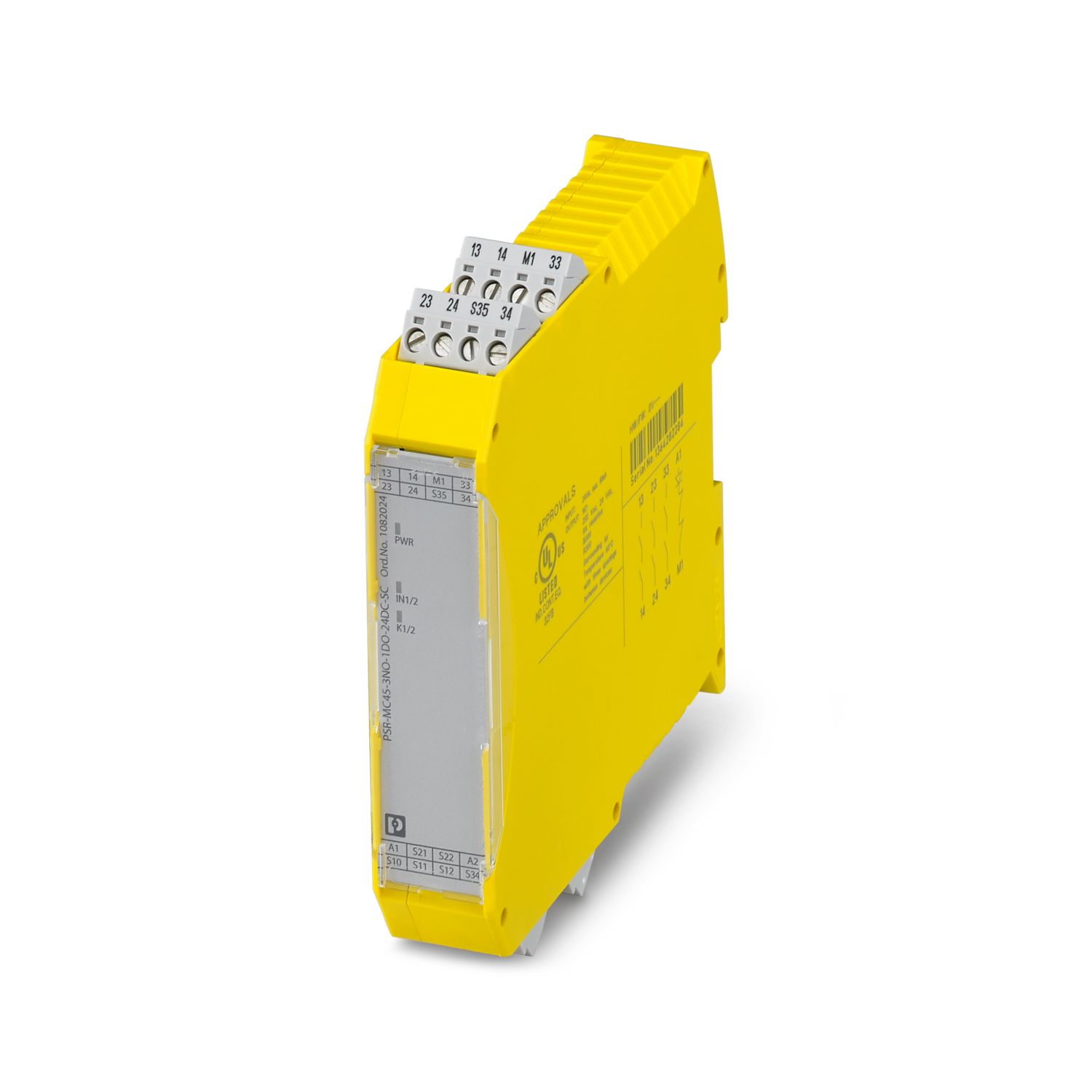

PSR-MC45-3NO-1DO-24DC-SC - Safety relays - 1082024

Notes

Note on application
Note on application	Only for industrial use

Product properties

Product type	Safety relays
Product family	PSRmini

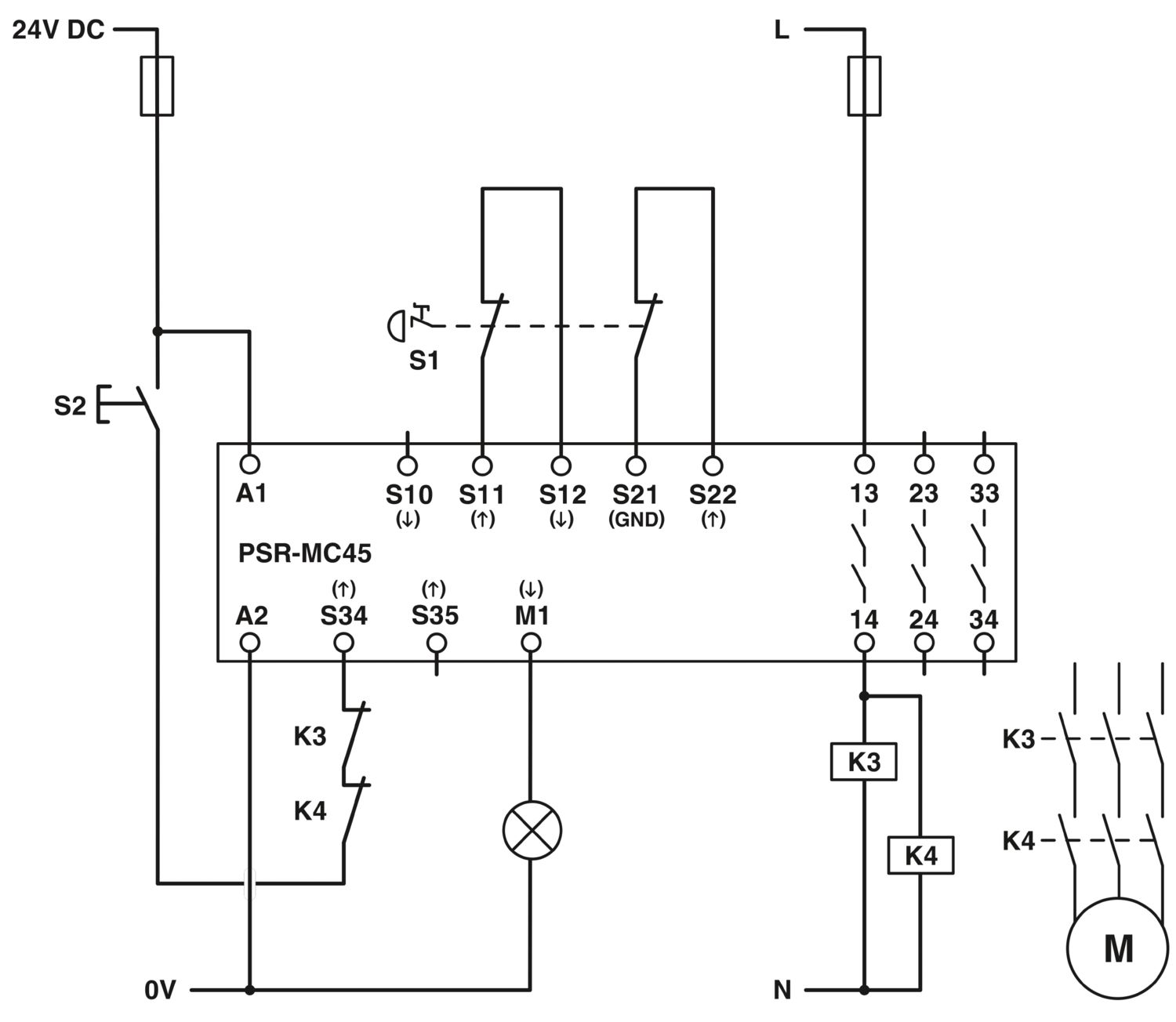

Application	Emergency stop
		Safety door
		Transponder
		Light grid
Control	1 and 2 channel
Relay type	Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Insulation characteristics
Overvoltage category	II
Degree of pollution	2
Times
Typical response time	< 100 ms (automatic start)
Typical response time		< 100 ms (manual, monitored start)
Typ. starting time with U_s	< 100 ms (when controlled via A1)
Typical release time	< 20 ms (on demand via the sensor circuit)
Typical release time		< 20 ms (when controlled via A1; applicative deactivation via A1/A2 is not permitted)
Restart time	< 1 s (Boot time)
Recovery time	500 ms (following demand of the safety function)

Electrical properties

Maximum power dissipation for nominal condition	17.21 W (at U_B = 30 V , I_L² = 72 A²)
Nominal operating mode	100% operating factor
Rated insulation voltage	250 V AC
Rated surge voltage/insulation	Basic insulation 4 kV between all current paths
Rated surge voltage/insulation		Basic insulation 4 kV between all current paths and housing
Supply
Designation	A1/A2
Rated control circuit supply voltage U_S	19.2 V DC ... 30 V DC
Rated control circuit supply voltage U_S	24 V DC -20 % / +25 % (provide external protection)
Rated control supply current I_S	typ. 75 mA
Power consumption at U_S	typ. 1.8 W
Inrush current	typ. 2.2 A (Δt = 300 µs at U_s)
Filter time	1 ms (at A1 in the event of voltage dips at U_s)
Protective circuit	Serial protection against polarity reversal
Protective circuit		Suppressor diode 33 V

Input data

Digital: Sensor circuit (S10, S12, S22)
Description of the input	safety-related sensor inputs
Description of the input		NPN (S10, S12), PNP (S22)
Number of inputs	3
Input voltage range "0" signal	0 V ... 5 V (S10, S12)
Input voltage range "1" signal	19.2 V ... 30 V
Input current range "0" signal	0 mA ... 2 mA (S10, S12)
Inrush current	< 5 mA (typ. with U_S at S10/S12, Δt = 500 µs)
Inrush current		> -5 mA (typ. with U_S at S22/0 V, Δt = 500 µs)
Filter time	max. 3 ms (Test pulse width of low test pulses)
		> 1 s (Test pulse rate for low test pulse)
		Where test pulse width < 1 ms: test pulse rate = 5 x test pulse width
		max. 1 ms (Test pulse width, high test pulse)
		> 100 ms (Test pulse rate, high test pulse)
		Unless test pulses are safety-related, they should be disabled.
Concurrence	∞
Max. permissible overall conductor resistance	150 Ω
Protective circuit	Suppressor diode 38.6 V
Current consumption	< 4 mA (typ. with U_S at S10/S12)
Current consumption		> -15 mA (typ. with U_S at S22/0 V)
Digital: Start circuit (S34, S35)
Description of the input	non-safety-related
Description of the input		NPN
Number of inputs	2
Input voltage range "1" signal	19.2 V DC ... 30 V DC
Inrush current	< 10 mA (typ. with U_S, Δt = 500 µs)
Max. permissible overall conductor resistance	150 Ω
Protective circuit	Suppressor diode 38.6 V
Current consumption	2.5 mA (typ. with U_S at S34)
Current consumption		1 mA (typ. with U_S at S35)

Output data

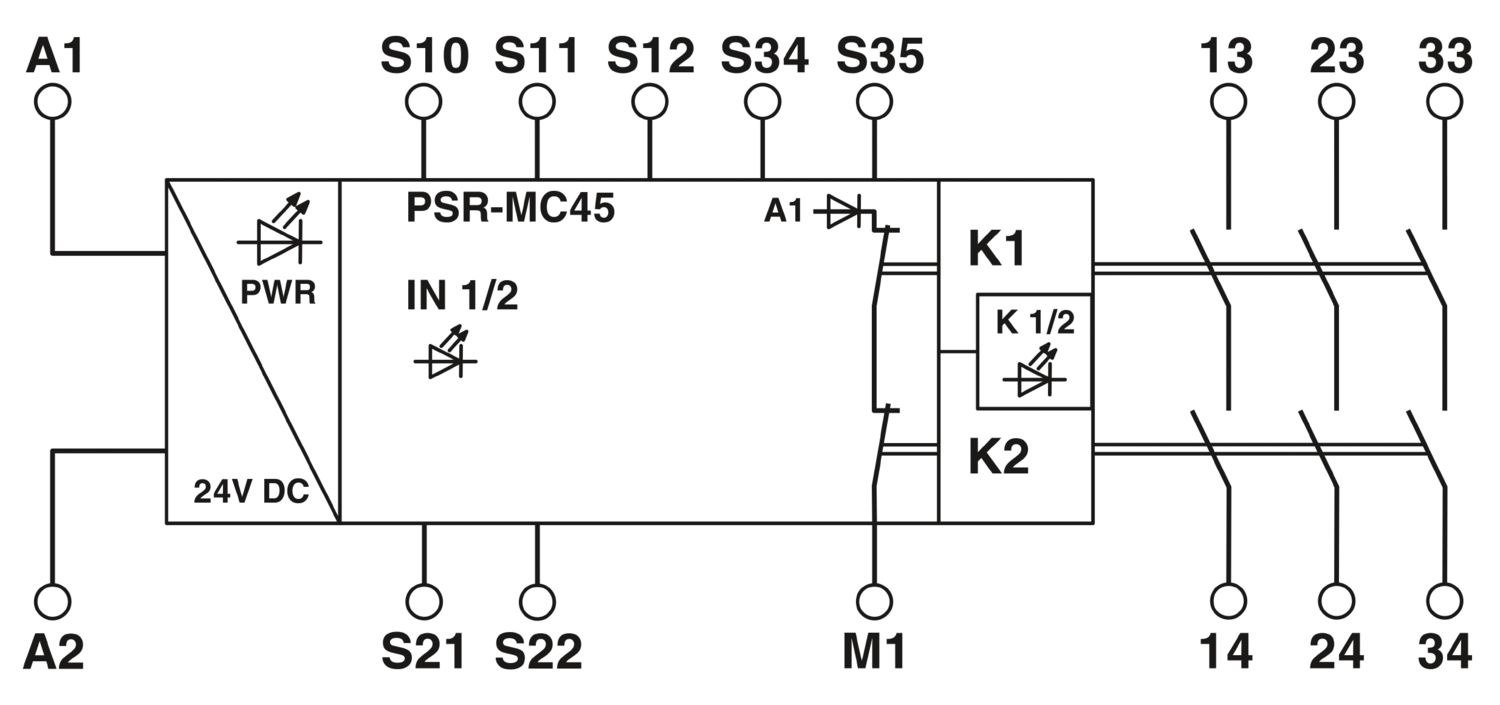

Relay: Enabling current paths (13/14, 23/24, 33/34)
Output description	2 N/O contacts each in series, safety-related, floating
Number of outputs	3
Contact switching type	3 enabling current paths
Contact material	AgSnO₂
Switching voltage	min. 5 V AC/DC
Switching voltage		max. 250 V AC/DC (Observe the load curve)
Switching capacity	min. 50 mW
Inrush current	min. 10 mA AC/DC
Inrush current		max. 6 A
Limiting continuous current	6 A
Sq. Total current	72 A² (observe derating)
Switching frequency	0.5 Hz
Mechanical service life	10x 10⁶ cycles
Output fuse	6 A gL/gG
Signal: M1
Output description	PNP
Output description		non-safety-related
Number of outputs	1
Voltage	approx. 23 V DC (U_s - 1 V)
Current	max. 100 mA
Maximum inrush current	1 A (Δt = 5 ms at U_s)
Switching frequency	0.5 Hz (ohmic)
Protective circuit	33 V suppressor diode
Short-circuit protection	Yes

Connection data

Connection technology
pluggable	yes
Conductor connection
Connection method	Screw connection
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 12
Stripping length	7 mm
Screw thread	M3
Tightening torque	0.5 Nm ... 0.6 Nm

Signaling

Status display	2 x LED (green)
Operating voltage display	1 x LED (green)

Dimensions

Width	22.5 mm
Height	112.4 mm
Depth	114.5 mm

Material specifications

Color (Housing)	yellow (RAL 1018)
Housing material	PA

Characteristics

Safety data
Stop category	0
Safety data: EN ISO 13849
Category	4
Performance level (PL)	e (5 A DC13; 8760 switching cycles/year or 5 A AC15; 2190 switching cycles/year)
Safety data: IEC 61508 - High demand
Safety Integrity Level (SIL)	3
Safety data: IEC 61508 - Low demand
Safety Integrity Level (SIL)	3
Safety data: EN IEC 62061
Safety Integrity Level (SIL)	3

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Min. degree of protection of inst. location	IP54
Ambient temperature (operation)	-40 °C ... 60 °C (observe derating)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Maximum altitude	≤ 2000 m (Above sea level)
Max. permissible humidity (storage/transport)	75 % (on average, 85% infrequently, non-condensing)
Max. permissible relative humidity (operation)	75 % (on average, 85% infrequently, non-condensing)
Shock	15g for Δt = 11 ms (continuous shock: 10g for Δt = 16 ms)
Vibration (operation)	10 Hz ... 150 Hz, 2g

Approvals

CE
Identification	CE-compliant

Mounting

Mounting type	DIN rail mounting
Assembly note	See derating curve
Mounting position	vertical or horizontal

Item number	1082024
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DNA181
GTIN	4055626812144
Weight per piece (including packing)	235.1 g
Weight per piece (excluding packing)	185.26 g
Customs tariff number	85371098
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	9caed86c-f44e-4749-8766-aab9634c9540
