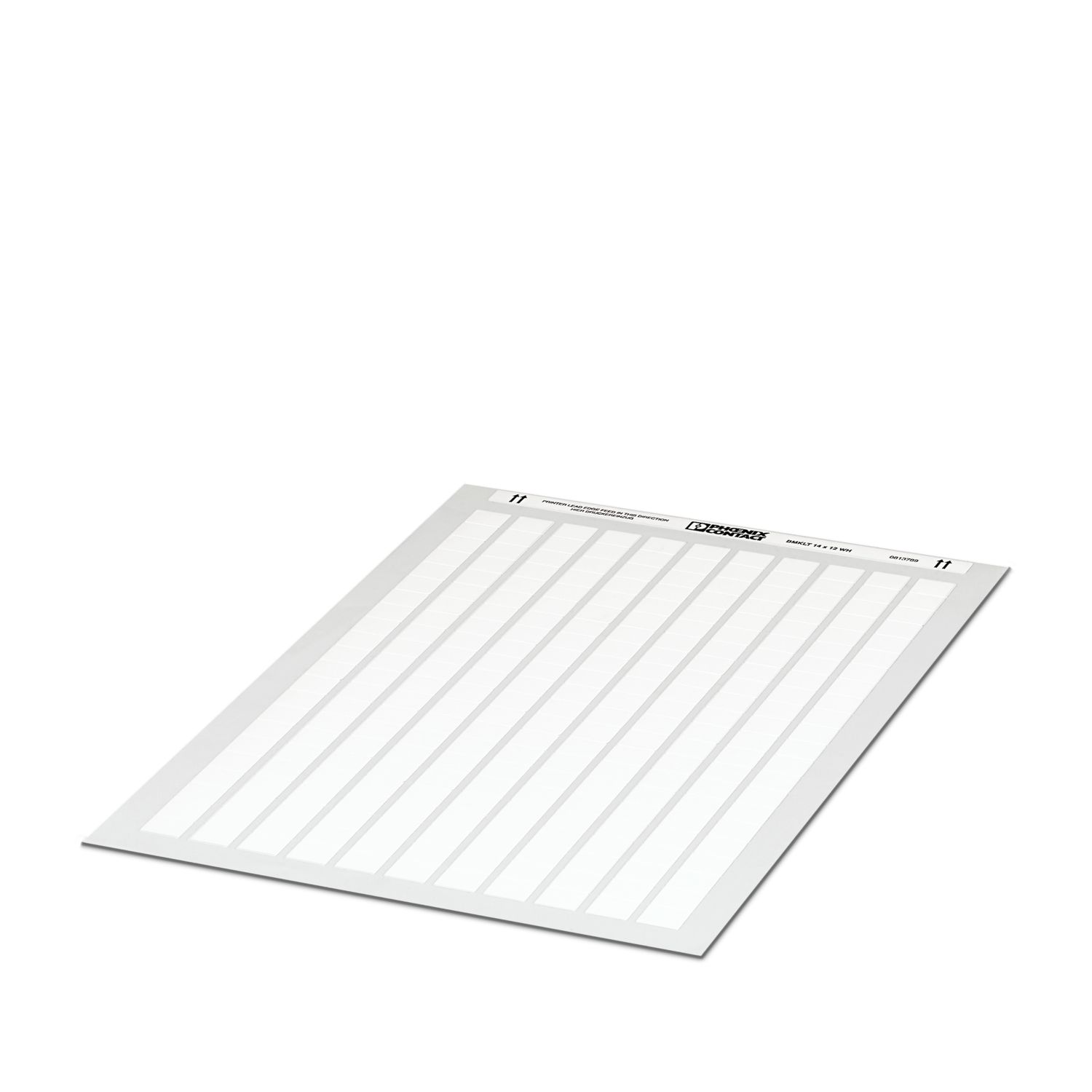

BMKLT 14X12 WH - Label sheet, DIN A4 - 0813789

Product properties

Product type	Device marking
Marking
Number of individual labels	242
Number of individual labels per row	11

Mounting

Mounting type	adhesive

Material specifications

Environmental and real-life conditions

Test for substances that would hinder coating with paint or varnish
Result	Test passed
UV resistance
Specification	ISO 4892-2:2013-03 (following)
Result	Test passed
Test duration	96 h
Wipe resistance of inscriptions
Specification	DIN EN 61010-1 (VDE 0411-1):2011-07
Specification		DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]	Test passed
n-Hexane [CAS No. 110-54-3]	Test passed
Water + Petroleum ether [CAS No. 64742-82-1]	Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification	DIN 50018:2013-05
Result	Test passed
Climate level	AHT 1.0 S
Cycles	2
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-40 °C ... 100 °C
Recommended storage conditions	21 °C / 50 % relative humidity.

Dimensions

Width	14 mm
Length	12 mm

Standards and regulations

Wipe resistance	DIN EN 61010-1 (VDE 0411-1)

Notes

Item number	0813789
Packing unit	2 pc
Minimum order quantity	2 pc
Product key	BG2414
GTIN	4017918966904
Weight per piece (including packing)	32.3 g
Weight per piece (excluding packing)	32.3 g
Customs tariff number	39199080
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

BMKLT 14X12 WH - Label sheet, DIN A4

0813789
