HC-D 7-KML-51/M1PG11/ALU
-
Housing
1773297
Coupling housing, with single locking latch, height: 60.5 mm, with screw connection, 1 x Pg11, zinc die-cast
Product details
| General | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
| Product type | Housing with locking latch |
| Housing type | Coupling housings |
| Application | Standard |
| Type | D7 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg11 |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | with |

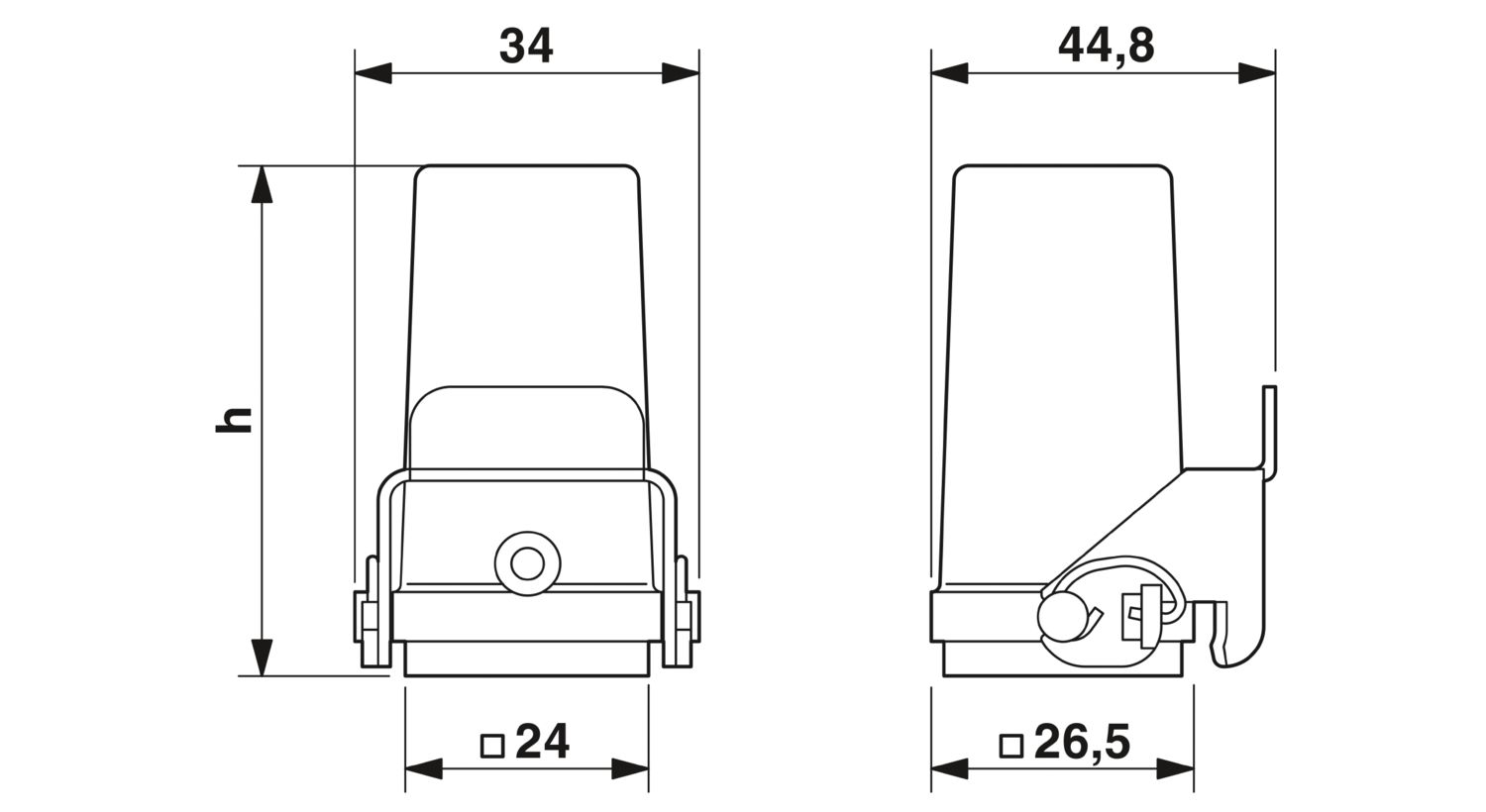

| Dimensional drawing |
|
| Width | 34 mm |
| Height | 61 mm |
| Length | 26.5 mm |
| Wrench size, union nut | 18 mm |
| Material Screw connection | Brass, nickel-plated |
| Seal material Cable seal | NBR |
| Housing material | Die-cast zinc |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Steel, galvanized |
| Mechanical data | |
| Type of the screw connection | 1x Pg11 |
| Locking type | Latch |
| External cable diameter Cable 1 | 7.5 mm ... 12.5 mm |
| External cable diameter | 7.5 mm ... 12.5 mm |
| Ambient conditions | |
| Degree of protection | IP54 |
| IP65 (with sealing screw) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
