HC-B 16-TFL-H-O1STM40G
-
Housing
1460126

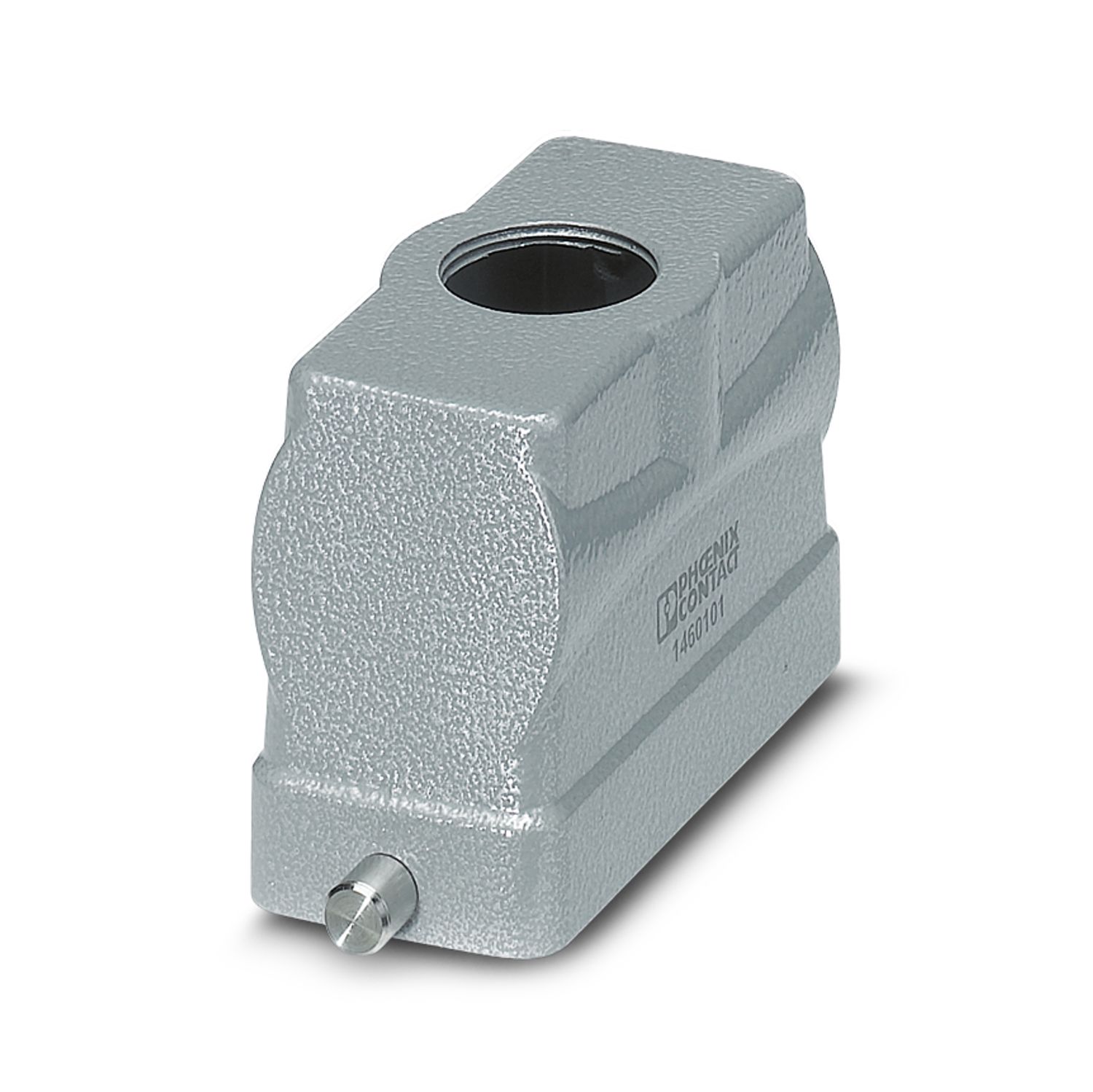

HEAVYCON B16 sleeve housing, for single locking latch, height: 76 mm, with 1 x M40 thread, straight cable outlet
Product details
| General | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B16 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M40 |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 43 mm |
| Height | 76 mm |
| Length | 94 mm |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Mechanical data | |
| Type of the screw connection | 1x M40 |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
