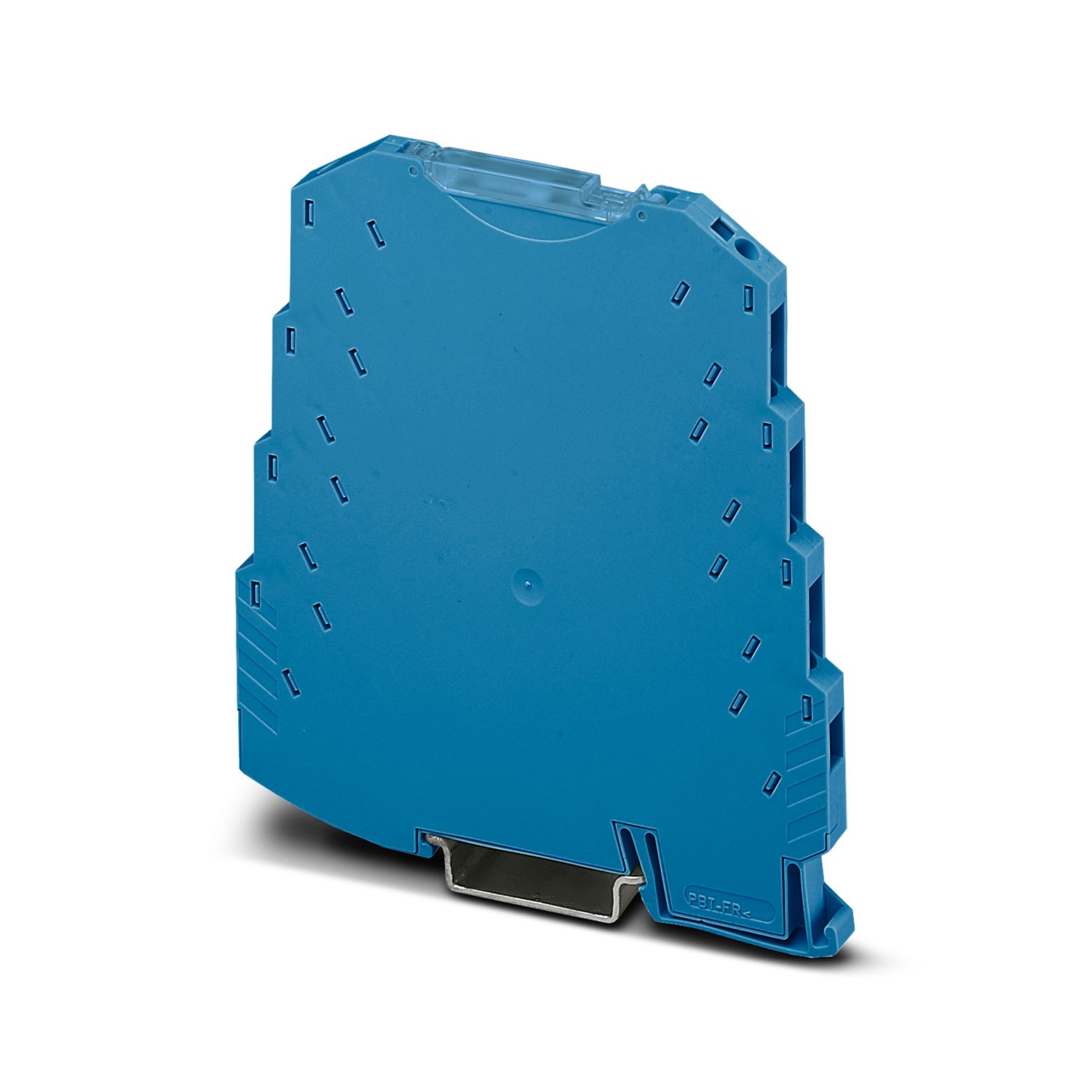

DIN rail housing, Complete housing, tall design, with spring-cage connection, width: 6.3 mm, height: 93.1 mm, depth: 101.2 mm, color: blue (similar RAL 5015), cross connection: without bus connector
| Assembly note | Please observe the application note in the download area. |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
| Product type | Complete housing |
| Housing type | DIN rail housing |
| Housing series | ME-MAX |
| Product family | ME MAX 6,2.. |
| Number of positions | 8 |
| Max. number of positions | 8 (pitch: 3.5 mm) |
| Number of rows | 4 |
| Type | Complete housing, tall design |
| Ventilation openings present | no |
| Pin layout | Linear pinning |
| Connection method | Spring-cage connection |
| Dimensional drawing |
|
| Width | 6.3 mm |
| Height | 93.1 mm |
| Depth | 101.2 mm |
| Depth from top edge of DIN rail | 95 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Housing) | blue (RAL 5015) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing material | PBT |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
| Number of PCB holders | 1 |
| Type of PCB mount | Latching |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | DIN rail mounting |
| Pin layout | Linear pinning |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Use group B | ||||
| 300 V | 8 A | 24 - 12 | ||
| Use group D | ||||
| 300 V | 8 A | 24 - 12 | ||
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Use group B | ||||
| 300 V | 8 A | 24 - 12 | ||
| Use group D | ||||
| 300 V | 8 A | 24 - 12 | ||
