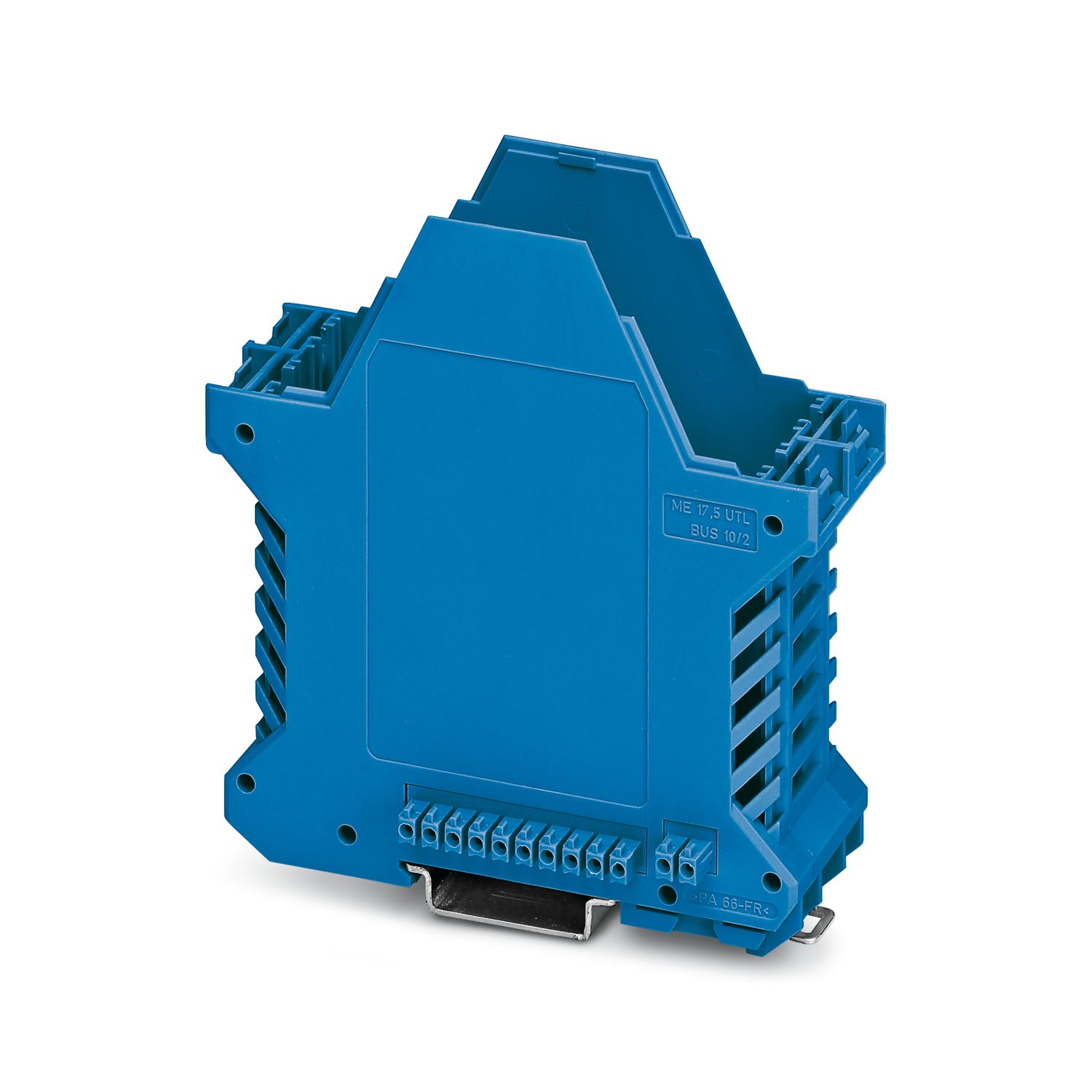

ME 35 UT/BUS/10+2 BU - Electronics housing

2202465

Component housing

Product details

Technical data

Product properties

Housing type	Component housing

Material specifications

Housing material	PA

Environmental and real-life conditions

Power dissipation single housing for 20 °C
Ambient temperature	20 °C
Reduction factor	1
Mounting position	vertical
Power dissipation	7.9 W
Power dissipation single housing for 30 °C
Ambient temperature	30 °C
Reduction factor	0.91
Mounting position	vertical
Power dissipation	7.2 W
Power dissipation single housing for 40 °C
Ambient temperature	40 °C
Reduction factor	0.81
Mounting position	vertical
Power dissipation	6.4 W
Power dissipation single housing for 50 °C
Ambient temperature	50 °C
Reduction factor	0.7
Mounting position	vertical
Power dissipation	5.5 W
Power dissipation single housing for 60 °C
Ambient temperature	60 °C
Reduction factor	0.57
Mounting position	vertical
Power dissipation	4.5 W
Power dissipation single housing for 70 °C
Ambient temperature	70 °C
Reduction factor	0.49
Mounting position	vertical
Power dissipation	3.9 W

Commercial data

Item number	2202465
Packing unit	10 pc
Minimum order quantity	100 pc
Note	Made to order (non-returnable)
Product key	ACHAAB
GTIN	4055626121789
Weight per piece (including packing)	66.176 g
Weight per piece (excluding packing)	66.176 g
Customs tariff number	85369010
Country of origin	DE

Environmental product compliance

Can be mounted on the DIN rail

With integrated or DIN-rail-mountable bus connector as an option

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
