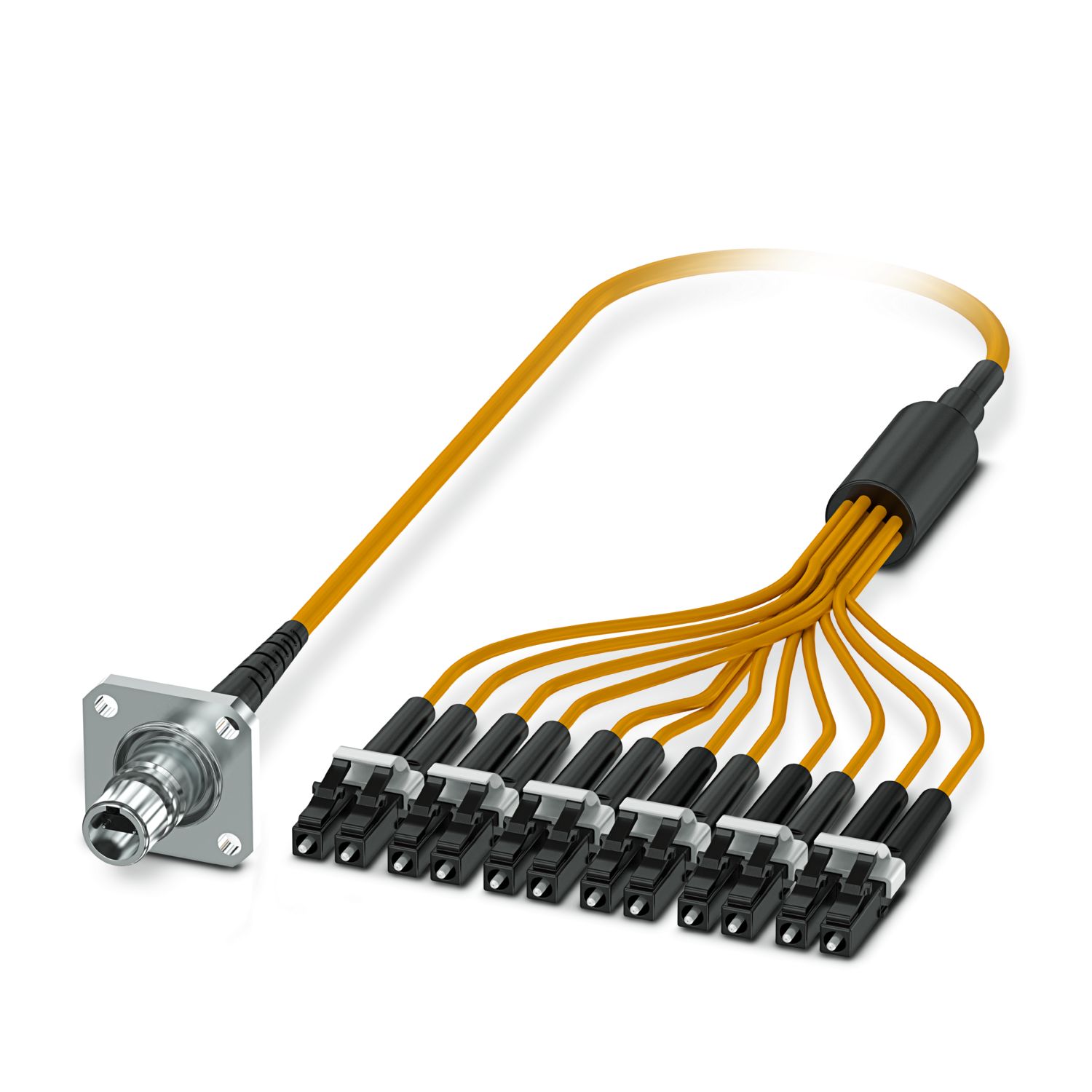

Robust 12-position LC receptacle, Q-ODC-12 to Q-ODC-12, push-pull interlocking, degree of protection: IP68
FOC-OS12-LCD6-GF02/2
-
Distributor cable
1419643
12-insert LC receptacles, type: circular connector, degree of protection: IP68, number of positions: 4
Product details
| Product type | Data cable preassembled |
| Sensor type | Ethernet |
| Number of positions | 12 |
| No. of conductors | 12 |
| Attenuation | typ. 0.15 dB |
| max. 0.35 dB | |
| Transmission medium | Multi-mode fiberglass |
| Tensile strength short-term/long-term | 30 N |
| Flammability rating according to UL 94 | V0 |
| Ferrule material | Zirconia ceramics |
| Outer sheath, material | LSFH |
| Connection 1 | |
| Locking type | Push Pull |
| Insertion/withdrawal cycles | 500 (In the event of repeated cleaning) |
| Degree of protection | IP68 (IEC 60529) |
| IP68 | |
| Ambient temperature (operation) | -20 °C ... 70 °C (IEC 60794-1-2 F1) |
| Connection 2 | |
| Locking type | Push Pull |
| Material | Plastic |
| Degree of protection | IP20 (IEC 60529) |
| Cable length | 2 m |
| Cable weight | 3.00 kg/km |
| Cable type | Multimode fiberglass |
| Cable type | Zip cord, fiberglass |
| Cable abbreviation | 12-.../(ZN)H-...30 |
| External cable diameter | 7 mm |
| Outer sheath, material | LSFH |
| External sheath, color | orange |
| Wire diameter incl. insulation | 250 µm |
| Individual wire diameter | 250 µm |
| Tensile strength short-term/long-term | 30 N |
| Lateral pressure short term | 500.00 N/cm |
| Lateral pressure, long-term | 100.00 N/cm |
| Halogen-free | complying with IEC 60754-1/2 |
| FO cable | |
| Number of fibers | 12 |
| Fiber | 62.5/125 µm OM1 |
| Fiber type | Multimode fiberglass 62.5/125 µm |
| Transmission medium | Multi-mode fiberglass |
| Ambient conditions | |
| Degree of protection | IP68 |
| Ambient temperature (operation) | -40 °C ... 85 °C (IEC 61300-2-22) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C (IEC 60794-1-2 F1) |
| Ambient temperature (assembly) | -10 °C ... 50 °C (IEC 60794-1-2 F1) |
| Shock | 50g, in accordance with IEC 61300-2-9 |
| Item number | 1419643 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Product key | ABNHAB |
| GTIN | 4055626182551 |
| Weight per piece (including packing) | 95 g |
| Weight per piece (excluding packing) | 92 g |
| Customs tariff number | 85447000 |
| Country of origin | CN |
ECLASS
| ECLASS-13.0 | 27061003 |
ETIM
| ETIM 9.0 | EC002641 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
Your advantages
Compact design with MT ferrule
Push-pull interlocking
For extreme ambient conditions
