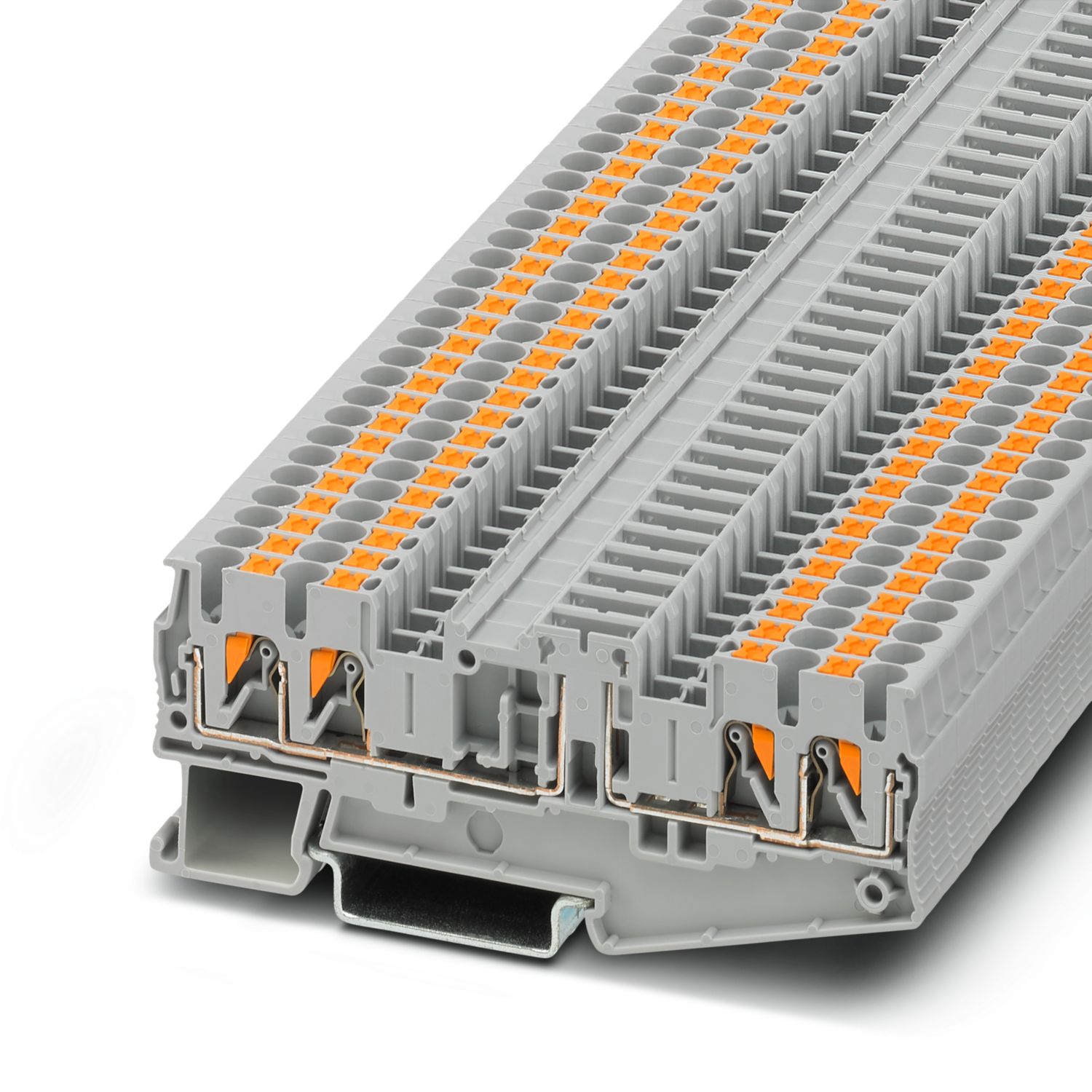

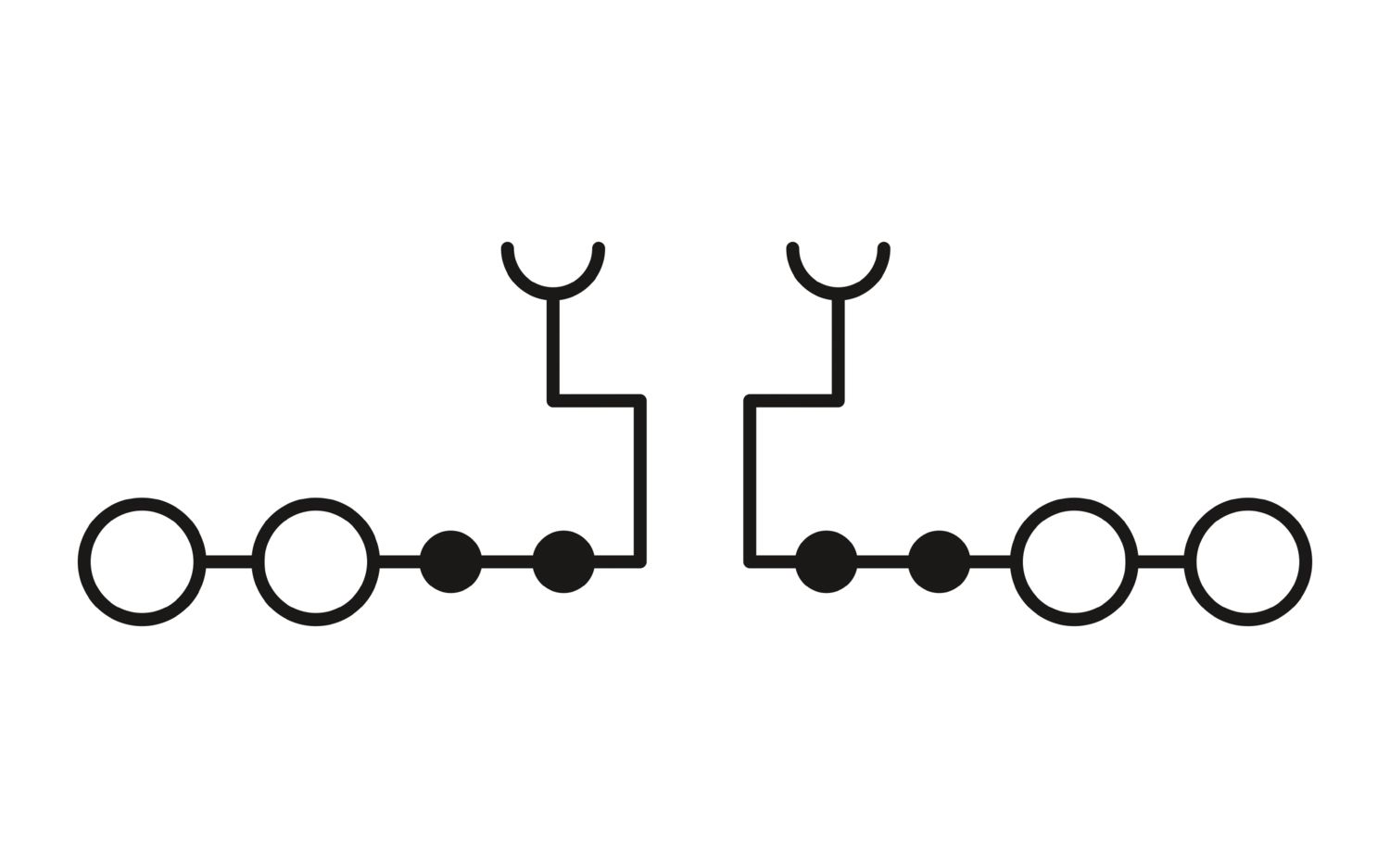

PT 2,5-QUATTRO-TGB - Disconnect terminal block

3210194

Disconnect terminal block, The max. load current must not be exceeded by the total current of all connected conductors.
Current and voltage are determined by the plug used., nom. voltage: 400 V, nominal current: 16 A, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray

Product details

General	The max. load current must not be exceeded by the total current of all connected conductors. Current and voltage are determined by the plug used.
General
Note	When establishing a connection on the open housing side of a feed-through modular terminal block of the same series and size, the block must be provided with a cover if the expected insulation voltage is >320 V.
	The max. load current must not be exceeded by the total current of all connected conductors.
	Current and voltage are determined by the component used.

Product type	Disconnect terminal block
Product family	PT
Area of application	Railway industry
	Machine building
	Plant engineering
Number of connections	4
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.77 W

Number of connections per level	4
Nominal cross section	2.5 mm²
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm²
Nominal current	16 A
Maximum load current	16 A (with 4 mm² conductor cross section, rigid)
Nominal voltage	400 V
Nominal cross section	2.5 mm²
Connection cross sections directly pluggable
Conductor cross section rigid	0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 2.5 mm²

Width	5.2 mm
End cover width	2.2 mm
Height	92.2 mm
Depth	35.2 mm
Depth on NS 35/7,5	36.7 mm
Depth on NS 35/15	44.2 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	7.3 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 2.5 mm²	0.3 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 35
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	9 rpm
Revolutions	135
Conductor cross section/weight	0.14 mm² / 0.2 kg
	2.5 mm² / 0.7 kg
	4 mm² / 0.9 kg
Result	Test passed

Aging
Temperature cycles	192
Result	Test passed
Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Pulse shape	Half-sine
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	3210194
Packing unit	50 pc
Minimum order quantity	50 pc
Product key	BE2232
Catalog page	Page 76 (C-1-2019)
GTIN	4046356693974
Weight per piece (including packing)	11.693 g
Weight per piece (excluding packing)	10.764 g
Customs tariff number	85369010
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	400 V	16 A		- 2.5

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
Only flexible conductors	300 V	20 A	26 - 12
Only rigid conductors	300 V	16 A	26 - 12
Use group C
Only flexible conductors	300 V	20 A	26 - 12
Only rigid conductors	300 V	16 A	26 - 12
Use group D
	600 V	5 A	26 - 12
Use group F
	400 V	20 A	26 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	400 V	16 A		0.2 - 2.5

Environmental product compliance

Compatible products

Accessories

Your advantages

In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

The compact design and front connection enable wiring in a confined space

Tested for railway applications

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PT 2,5-QUATTRO-TGB - Disconnect terminal block

3210194

Product details

ECLASS

ETIM

UNSPSC

DNV

IECEE CB Scheme

EAC

cULus Recognized

LR

BV

VDE Zeichengenehmigung

EAC

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PT 2,5-QUATTRO-TGB - Disconnect terminal block 3210194

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FBS 2-5 - Plug-in bridge 3030161

FBS 3-5 - Plug-in bridge 3030174

FBS 4-5 - Plug-in bridge 3030187

FBS 5-5 - Plug-in bridge 3030190

FBS 10-5 - Plug-in bridge 3030213

FBS 20-5 - Plug-in bridge 3030226

FBS 50-5 - Plug-in bridge 3038930

FBSR 2-5 - Plug-in bridge 3033702

FBSR 3-5 - Plug-in bridge 3001591

FBSR 4-5 - Plug-in bridge 3001592

FBSR 5-5 - Plug-in bridge 3001593

FBSR 10-5 - Plug-in bridge 3033710

FBS 2-5 BU - Plug-in bridge 3036877

FBS 3-5 BU - Plug-in bridge 3036880

FBS 4-5 BU - Plug-in bridge 3036893

FBS 5-5 BU - Plug-in bridge 3036903

FBS 10-5 BU - Plug-in bridge 3036916

FBS 20-5 BU - Plug-in bridge 3036929

FBS 50-5 BU - Plug-in bridge 3032114

RB ST (2,5/4)-1,5/S - Reducing bridge 3214356

RB ST 6-(2,5/4) - Reducing bridge 3030860

RB ST 10-(2,5/4) - Reducing bridge 3030873

RB ST 16-(2,5/4) - Reducing bridge 3030886

RB ST 35-(2,5/4) - Reducing bridge 3030899

RB ST (2,5/4)-1,5 - Reducing bridge 3038943

RB UT 6-ST(2,5/4) - Reducing bridge 3047264

RB UT 35-ST(2,5/4) - Reducing bridge 3047280

RB UT 10-ST(2,5/4) - Reducing bridge 3047086

RB UT 16-ST(2,5/4) - Reducing bridge 3047099

RB PTPOWER 35-ST(2,5/4) - Reducing bridge 3030900

ATP-ST QUATTRO - Partition plate 3030815

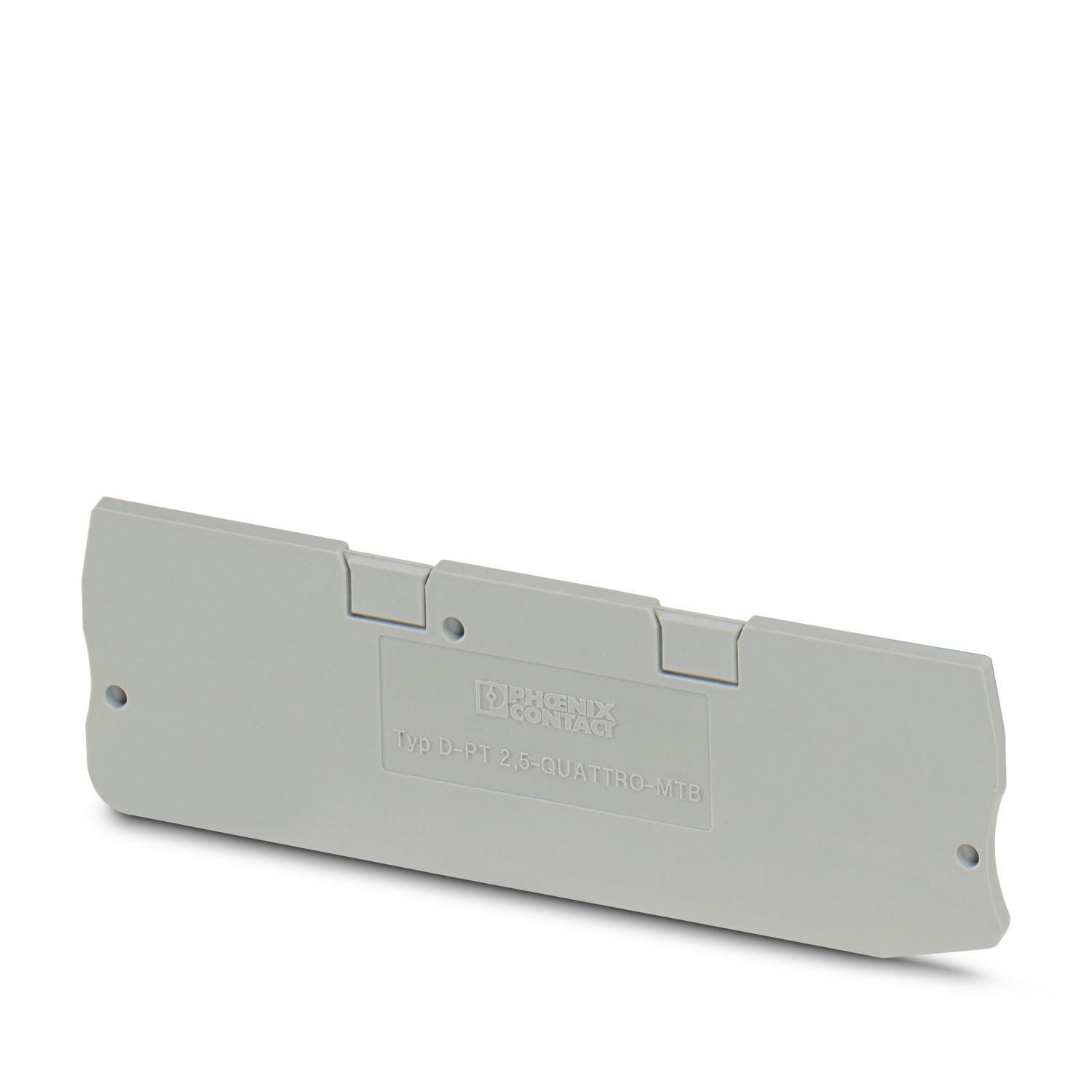

D-PT 2,5-QUATTRO-MTB - End cover 3210209
