PV-FI-X1F/M-S 4-6 PU1 - Connector

PV-FI-X1F/M-S 4-6 PU1 - Connector

1533034

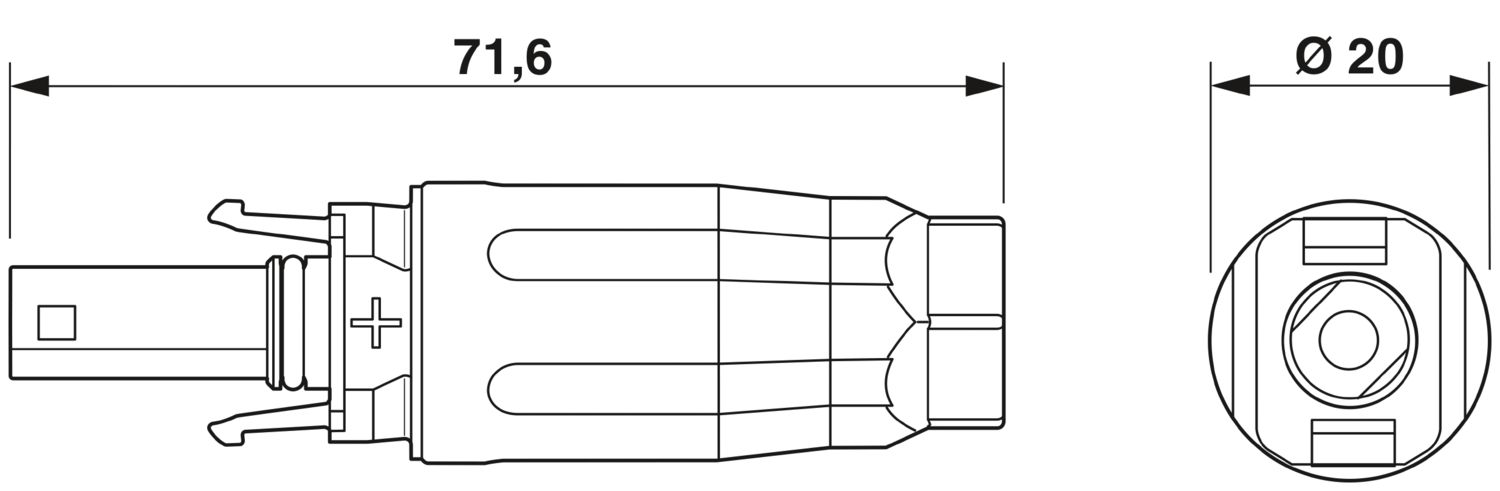

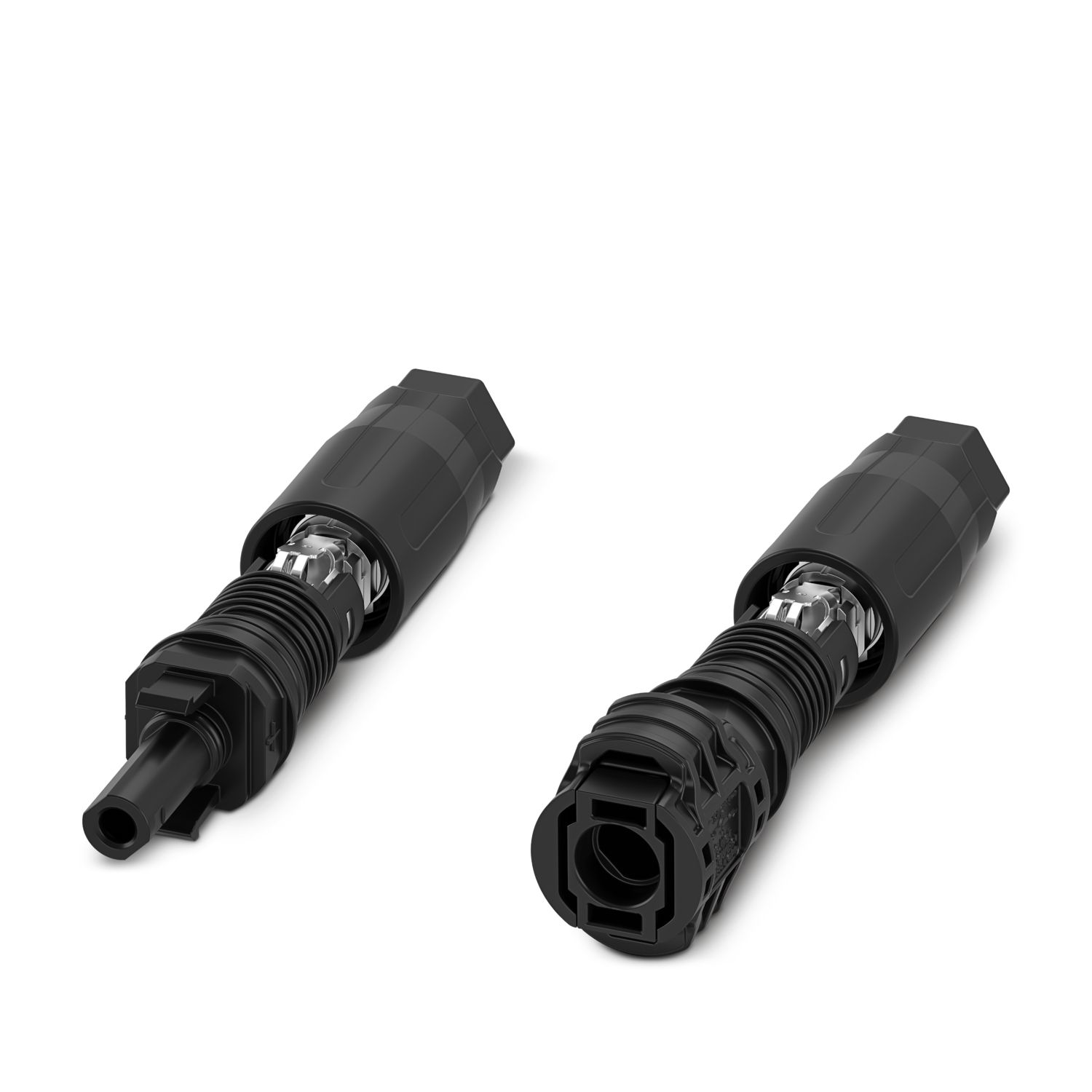

Photovoltaic PCB connector, product family: XLIX, connector, housing material: PC/PA, color: black, number of positions: 1, minimum conductor cross-section: 4 mm², rated current: 35 A, maximum conductor cross-section: 6 mm², rated current: 40 A, connection method: spring, contact switching type: socket plug

Product details

Expand all Collapse all

Technical data

Notes

Safety note
Safety note	• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
		• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
		WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
		• The products are suitable for applications in plant, controller, and electrical device engineering.
		• Assembled products may not be manipulated or improperly opened.
		• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
		• When using the product in direct connection with third-party manufacturers, the user is responsible.
		• For operating voltages > 50 V AC, conductive connector housings must be grounded
		• Ensure that the protective or functional ground has been properly connected.
		• Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product
		• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
		• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
		• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
		• Operate the connector only when it is fully plugged in and interlocked.
		• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
		• Observe the minimum bending radius of the cable. Lay the cable without twisting it.

Product properties

Product type	Photovoltaic connector
Number of positions	1
Insulation characteristics
Protection class	III
Degree of pollution	2

Electrical properties

Rated voltage (II/2)	1500 V
Rated surge voltage	16 kV
Rated surge voltage (III/2)	16 kV
Rated surge voltage (III/3)	16 kV
Rated current	35 A (4.0 mm²)
Rated current (6.0 mm²)	40 A (6.0 mm²)
Contact resistance	≤ 0.5 mΩ
Nominal voltage U_N	1500 V

Connection data

Connection method	Spring-cage
Stripping length	15 mm

Material specifications

Color	black
Flammability rating according to UL 94	V0
Insulating material	PC/PA
Contact surface	Sn
Contact material	Cu
Contact surface material	Sn

Cable/line

Cable type	PV cable
External cable diameter	5 mm ... 8 mm
Single wire, cross section	4 mm² 6 mm²
Cable pull-out force	> 80 N
Resistance to oil	no

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	50

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP66/IP68 (2 m / 24 h) (After connection)
Degree of protection		IP20 (Not plugged in)
Ambient temperature (operation)	-40 °C ... 85 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Ambient temperature (assembly)	-25 °C ... 50 °C
Resistance to oil	no

Standards and regulations

Resistance to oil	no

Commercial data

Item number	1533034
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	ABLJBA
GTIN	4067923002470
Weight per piece (including packing)	50.371 g
Weight per piece (excluding packing)	50.371 g
Customs tariff number	85359000
Country of origin	CN

Classifications

ECLASS

ECLASS-13.0

27440107

ETIM

ETIM 9.0

EC002635

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

QUICK WIREFOX 6 SC - Stripping pliers 1207637
SZF 1-0,6X3,5 - Screwdriver 1204517
