VS-P1222-P1226-C1021/... - Cable

VS-P1222-P1226-C1021/... - Cable

1609329

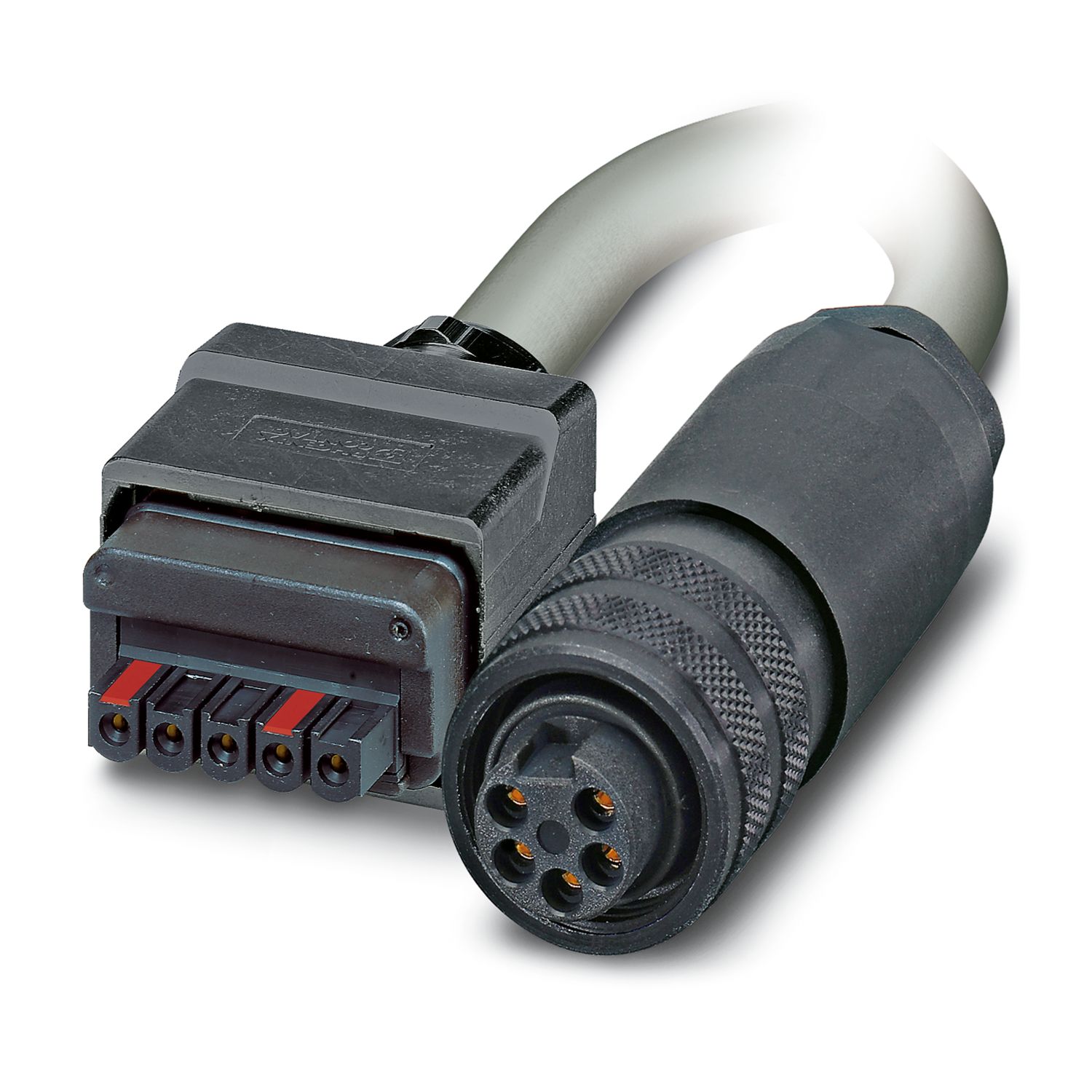

Cable, degree of protection: IP65, number of positions: 5, material: PA-GF/PBT, color: black, PROFINET/power, silver-grey RAL 7001

Product details

Expand all Collapse all

Technical data

Notes

General	This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA)

Product properties

Product type	Data cable preassembled
Sensor type	PROFINET/power
Number of positions	5
Shielded	no

Electrical properties

Rated voltage (III/3)	24 V
Rated current	16 A (at 20 °C)
Transmission medium	Copper

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	≥ 50

Material specifications

Color	black
Seal material O-ring	NBR
Seal material Cable seal	TPE
Housing material	PA-GF/PBT
Contact material	Copper alloy
Contact surface material	Gold over nickel
Contact carrier material	PA/PUR
Outer sheath, material	PVC
Conductor material	Bare Cu litz wires

Connector

Connection 1
Type	Plug straight MSTB
Locking type	Push Pull
Degree of protection	IP65
Connection 2
Type	Plug straight 7/8"-UNF
Degree of protection	IP65

Cable/line

PVC gray [PVC]
Number of positions	5
Shielded	no
Cable type	PVC gray [PVC]
Conductor cross section	1.5 mm²
External cable diameter	8.1 mm
Outer sheath, material	PVC
External sheath, color	silver-grey RAL 7001
Conductor material	Bare Cu litz wires
Smallest bending radius, fixed installation	40 mm
Smallest bending radius, movable installation	150 mm

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65
		IP67
		IP65
Ambient temperature (operation)	-40 °C ... 70 °C (cable, fixed installation)
		-5 °C ... 70 °C (Cable, flexible installation)
		Plug / socket

Commercial data

Item number	1609329
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	ABNOIA
Customs tariff number	85444290
Country of origin	DE
