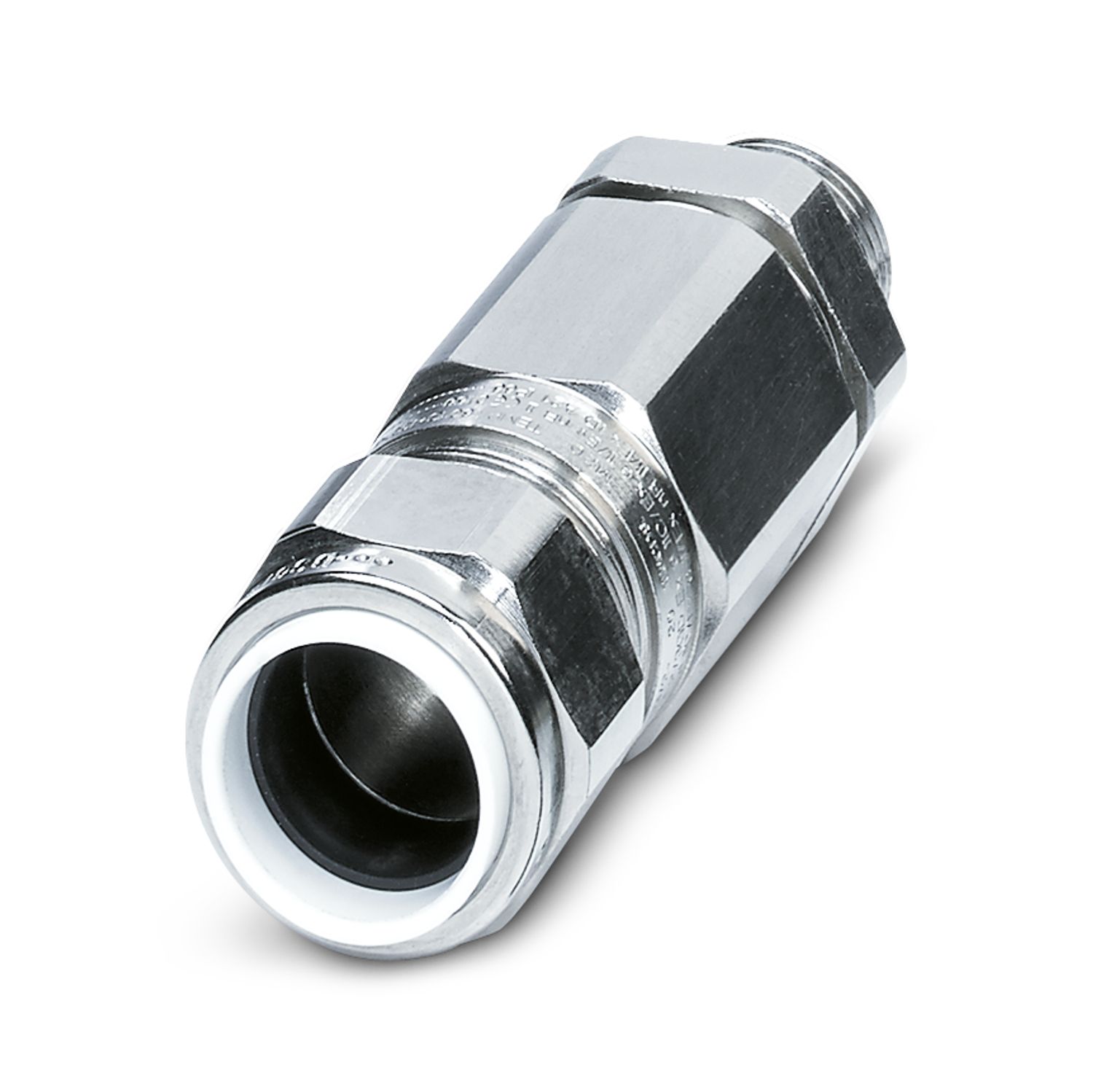

Cable gland, for armored cables (SWA / AWA / PWA / STA / SWB / ASA / CY / SY)
G-EDSWU-M32-L66L-STES-S
-
Cable gland
1411095
Cable gland, material for screw connection: Stainless steel 316L, application: Ex, external cable diameter 23.7 mm ... 33.9 mm, shielding: yes, connecting thread: M32 x 1.5, color: silver-colored
Product details
| Notes on the product family | with seal for conductor outer and inner jacket |
| Assembly note | With integrated grounding cones, sealed to IP66/IP67/IP68 thanks to the use of the A-SEW-32-P-W flat gasket (item 1411285) |
| If space is restricted at the fixing location of the screw connection, the armor can be attached at a location where there is more room to move. Final assembly can then be easily completed in the restricted space conditions at the fixing location of the screw connection. |
| Product type | Cable screw gland |
| Application | Ex |
| No. of conductors | 1 |
| Manufacturer | CMP |
| Manufacturer Designation | 32 TRITON CDS S. STEEL GLAND |
| Manufacturer product number | 32T3CDS1RA4 |
| Shielded | yes |
| Execution of the strain relief | D |
| Cable types that can be used | Depending on the material of the housing wall (SWA/AWA/PWA/STA/ASA/CY/SY/SWB) |
| Suited for EX-applications | yes |
| Category of shock impact | 8 |
| Cable diameter without cable sheath | 17 mm ... 26.3 mm |
| Cable diameter without armor | 17 mm ... 26.3 mm (Filler beneath the armor) |
| Design, Strain relief | D |

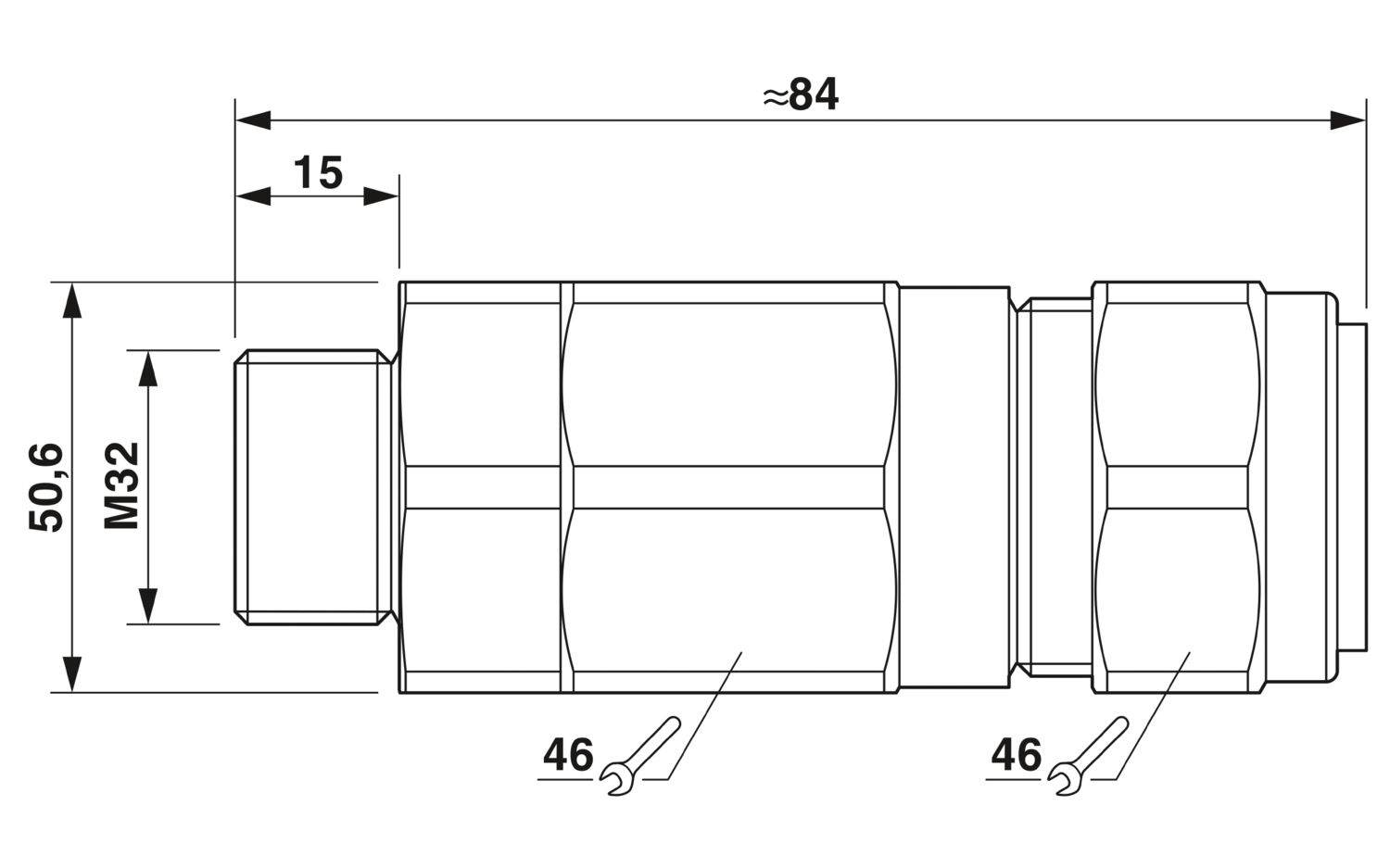

| Dimensional drawing |
|
| Length | 84 mm |
| Length of the connecting thread | 15 mm |
| Wrench size, union nut | 46 mm |
| Wrench size, support | 46 mm |
| Hexagon angular dimension | 50.6 mm |
| Thread type connection side | M32 x 1.5 |
| Thread pitch | 1.5 mm |
| Armor thickness | 1.6 mm ... 2 mm (Stepped cone side (SWA/...)) |
| 0 mm ... 1.2 mm (Grooved cone side (STA/...)) |
| Color | Steel/stainless steel color |
| Seal material Cable seal | EPDM |
| Material for screw connection | Stainless steel 316L |
| External cable diameter | 23.7 mm ... 33.9 mm |
| Ambient conditions | |
| Degree of protection | IP66 (using the corresponding A-SEW-...P-W flat gasket) |
| IP67 (using the corresponding A-SEW-...P-W flat gasket) | |
| IP68 (using the corresponding A-SEW-...P-W flat gasket) | |
| Ambient temperature (operation) | -60 °C ... 130 °C (static) |
| ATEX | Sira 13ATEX1073X |
| Sira 13ATEX4079X | |
| Ex II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da, Ex II 3G Ex nR IIC Gc, Ex I M2, Ex d I Mb, Ex e I Mb | |
| IECEx | IECEx SIR 13.0028X |
| Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb |
| EN Ex | |
| Standards/specifications | EN 60079-0, -1, -7, -15, -31 |
| IEC Ex | |
| Standards/specifications | IEC 60079-0, -1, -7, -15, -31 |
| Cable glands | |
| Standards/specifications | EN 50262 |
| Cable glands | |
| Standards/specifications | IEC 62444 |
| IEC Ex | |
| Standards/specifications | IEC 61241-0:2004 |
EAC Ex
Approval ID: RU C-GB.AA87.B.00487IECEx
Approval ID: IECEx SIR 13.0028XCSA
Approval ID: 101909_0_000CSAus
Approval ID: 101909_0_000ATEX
Approval ID: CML 18ATEX1326XATEX
Approval ID: CML 18ATEX4318X
Your advantages
If space is restricted at the fixing location of the screw connection, the armor can be attached at a location where there is more room to move. Final assembly can then be easily completed in the restricted space conditions at the fixing location of the screw connection.
Armor connected via PE cone
Weatherproof sealing material
