NLC-050-024X-08I-04QRX-05A
-
Base unit
2701056
24 V AC/DC Nanoline base unit. Equipped with 8 digital input and 4 relay output channels. Additional I/O channels can be added using a maximum of three I/O extension modules. Optional communication modules provide network or serial connectivity. Optional Operator Panel provides user interface. Programming is via nanoNavigator.
Free download available.
Downloads
Product details
| Product type | Base unit |
| Product family | Nanoline |
| INTERBUS-Master | |
| Number of supported branch terminals with remote bus branch | 3 (I/O modules) |
| System requirements | |
| Engineering tool | nanoNavigator 1 or 2 |
| Supply | |
| Supply voltage | 24 V AC/DC (Power available to the I/O and Communications modules) |
| Supply voltage range | 19 V DC ... 30 V DC |
| 19 V AC ... 26 V AC | |
| Power supply connection | Screw connection |
| Max. current consumption | 250 mA |
| Typical current consumption | 150 mA (@ 24 V AC/DC) |
| Real-time clock | |
| Realtime clock | Optional module |
| Digital: | |
| Input name | Digital inputs |
| Description of the input | EN 61131-2 type 1 NPN/PNP |
| Number of inputs | 8 |
| Connection method | Screw connection |
| Input voltage range "0" signal | 0 V AC/DC ... 5 V AC/DC |
| Input voltage range "1" signal | 15 V AC/DC ... 30 V AC/DC |
| Nominal input voltage UIN | 24 V AC/DC |
| Nominal input current at UIN | 5 mA DC (On) |
| Typical response time | 20 ms |
| Digital: | |

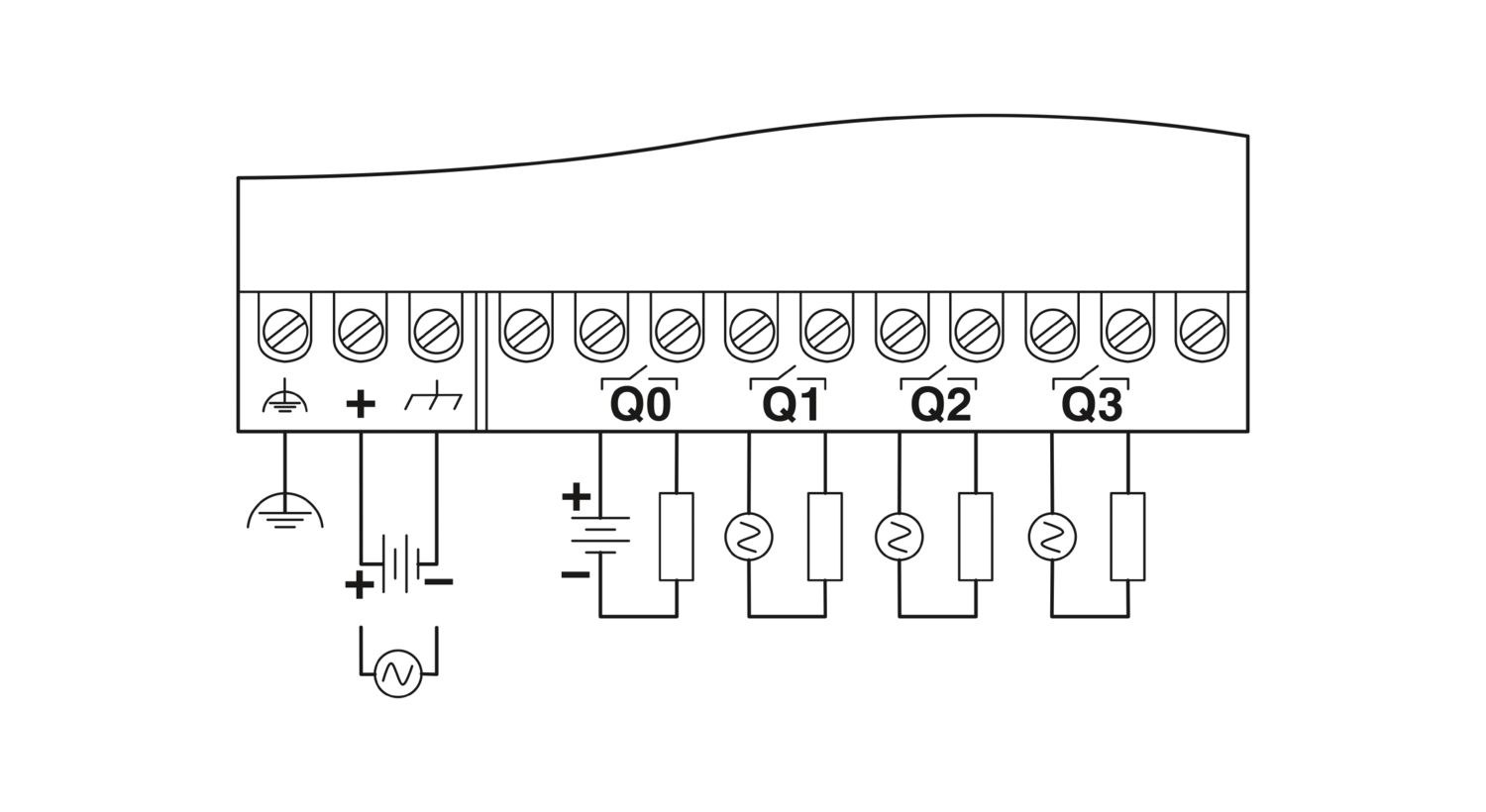

| Output name | Relay output |
| Output description | Relay output |
| Connection method | Screw connection |
| Number of outputs | 4 |
| Protective circuit | Short-circuit and overload protection |
| Maximum output current per channel | 5 A |
| Maximum output current per module / terminal block | 20 A |
| Maximum output current per module | 5 A |
| Nominal load, ohmic | 600 W (@ 24 ohms) |
| Maximum operating frequency with ohmic nominal load | 0.5 Hz |
| Signal delay | 10 ms (@ 20°C (excludes bounce)) |
| Connection method | Screw connection |
| Operator Panel | |
| Connection method | RJ45 / COMBICON |
| RS-232 | |
| Connection method | Slot 1 |
| USB | |
| Connection method | Slot 1 |
| Realtime Clock | |
| Connection method | Slot 2 |
| Dimensional drawing |
|
| Width | 80.5 mm |
| Height | 103.5 mm |
| Depth | 60 mm |
| Color | black |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 90 % |
| Permissible humidity (storage/transport) | 90 % |
| Mounting type | DIN rail mounting |
Your advantages
An operating panel can be optionally integrated in the basic unit or installed on a wall in a decentralized manner
Intuitive programming language with options for flowcharts and ladder diagrams
Basic unit has integrated digital inputs, relay outputs, and analog inputs, including high-speed counters
