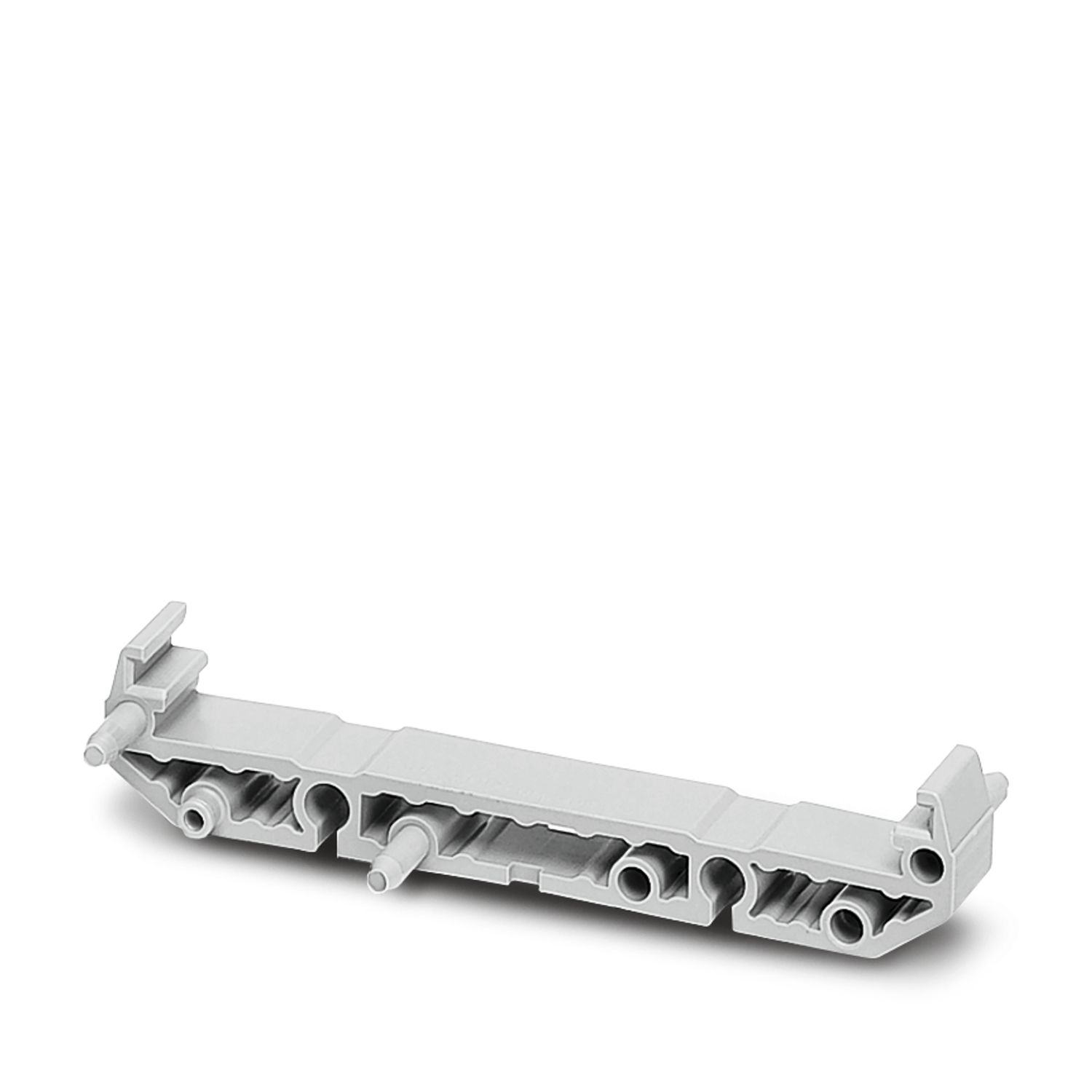

UMK-BE 11,25 KMGY - Base element

UMK-BE 11,25 KMGY - Base element

2199317

Electronic board base, plug-in module base element

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Component housing lower part
Housing type	Press-drawn section housings
Housing series	UMK
Product family	UMK BE
Ventilation openings present	no

Dimensions

Depth	15.5 mm
Length	11.25 mm
External dimensions
Profile width (external)	77 mm
Internal dimensions
Profile width (internal)	72.2 mm

Material specifications

Color (Housing)	light gray (RAL 7035)
Flammability rating according to UL 94	V2
Housing material	PA
Surface characteristics	untreated

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)	-40 °C ... 55 °C
Ambient temperature (assembly)	-5 °C ... 100 °C
Relative humidity (storage/transport)	80 %

Commercial data

Item number	2199317
Packing unit	10 pc
Minimum order quantity	250 pc
Note	Made to order (non-returnable)
Product key	ACHDCA
GTIN	4046356346214
Weight per piece (including packing)	4.71 g
Weight per piece (excluding packing)	4.7 g
Customs tariff number	84879090
Country of origin	PL

Classifications

ECLASS

ECLASS-13.0	27190601
ECLASS-15.0	27190601

ETIM

ETIM 9.0

EC002779

UNSPSC

UNSPSC 21.0

31261500

Approvals



UL Recognized

Approval ID: E240868

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
