cULus Recognized
Approval ID: E60425| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Use group B | ||||
| 300 V | 20 A | 26 - 12 | ||
| Use group C | ||||
| 300 V | 20 A | 26 - 12 | ||
| Use group D | ||||
| 600 V | 5 A | 26 - 12 | ||

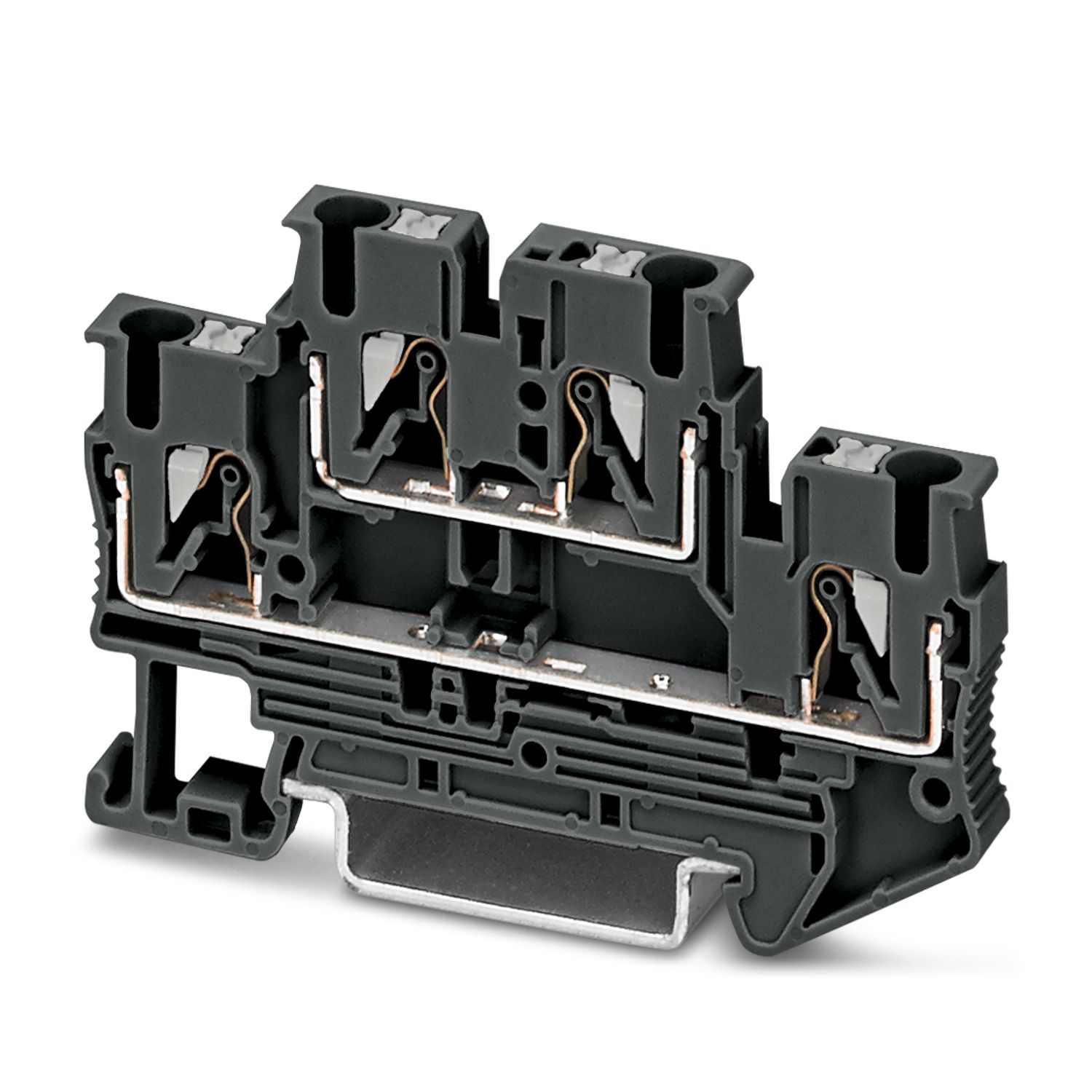

TBP 2,5/2L
-
Double-level terminal block
1574172
Double-level terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm2, cross section: 0.5 mm2 - 2.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: dark gray
Product details
Your advantages
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
