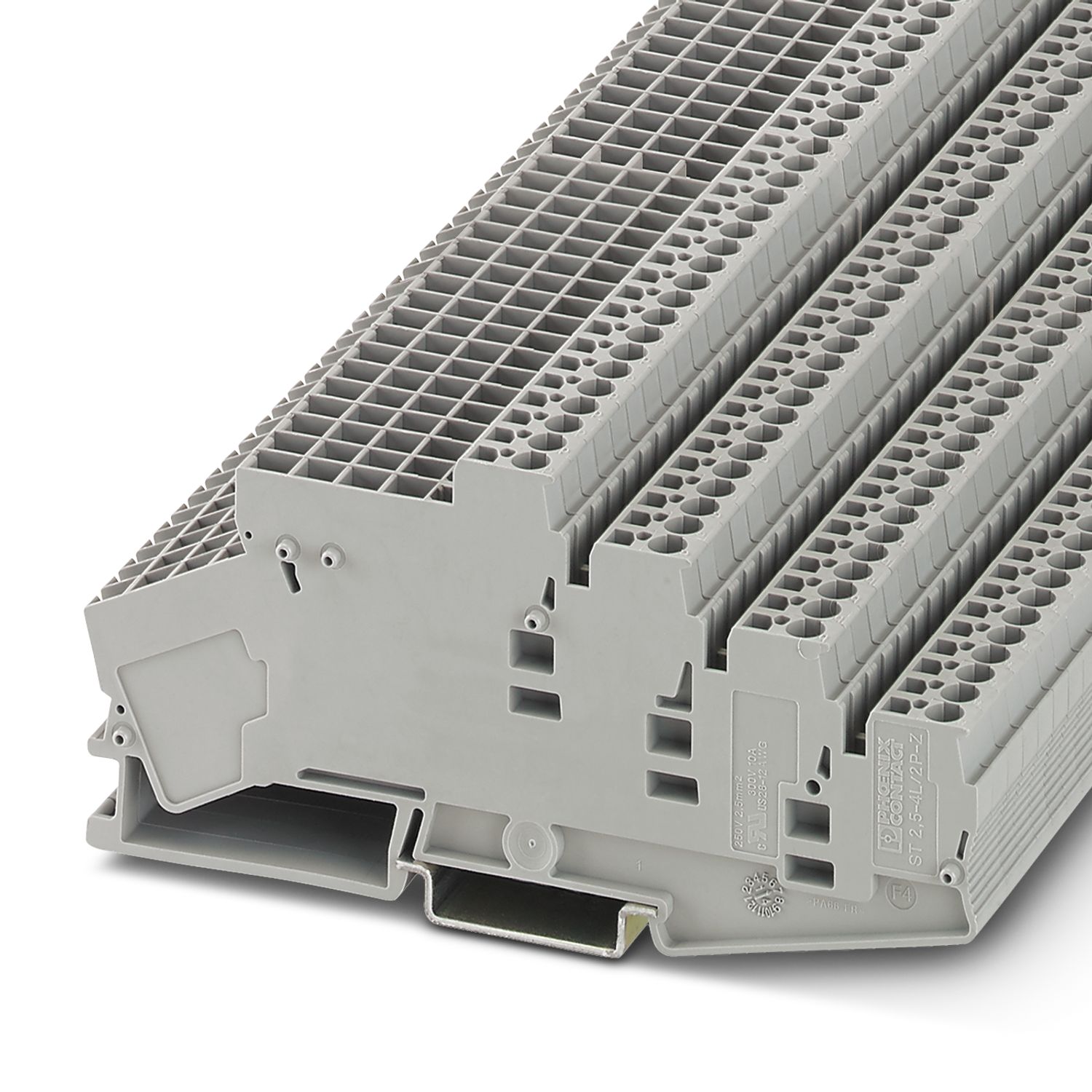

ST 2,5-4L/2P-Z - Multi-level terminal block

3041998

Multi-level terminal block, nom. voltage: 500 V, nominal current: 24 A, number of connections: 6, connection method: Spring-cage/plug-in connection, cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

This product needs further products for operation. Mandatory accessories

Product details

General	Current and voltage are determined by the plug used.

Product type	Plug-in terminal block

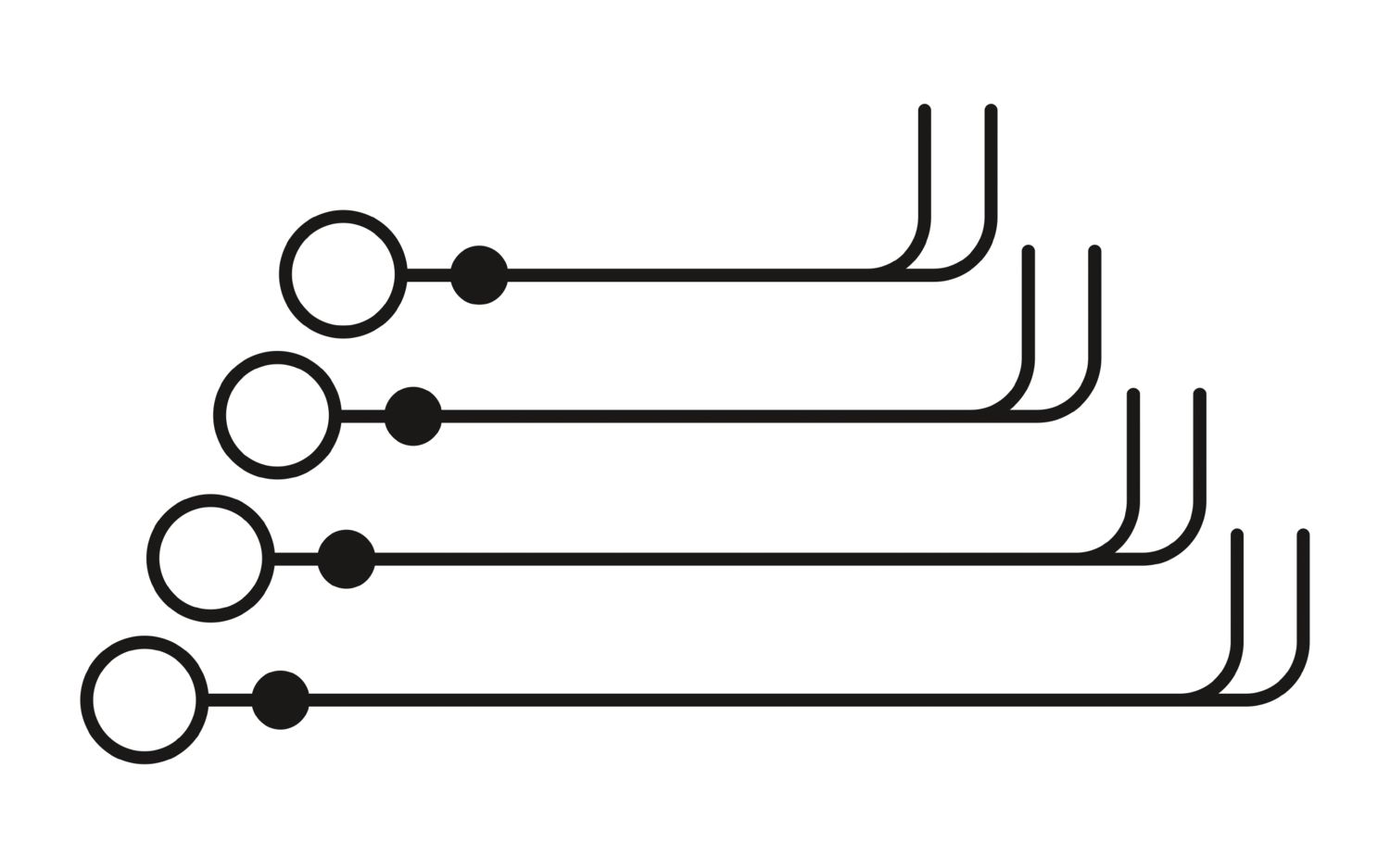

Number of connections	6
Number of rows	4
Potentials	4
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	4 kV
Maximum power dissipation for nominal condition	2.43 W

Number of connections per level	3
Level 1+2+3+4 bottom
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.08 mm² ... 4 mm²
Cross section AWG	28 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.08 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	28 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm²
Nominal current	24 A
Maximum load current	10 A (with a 2.5 mm² conductor cross section)
Nominal voltage	500 V

Width	5.2 mm
End cover width	2.2 mm
Height	120.5 mm
Depth on NS 35/7,5	59 mm
Depth on NS 35/15	66.5 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data
Open side panel	Yes

Ambient conditions
Ambient temperature (operation)	-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 61984

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	3041998
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE2
Product key	BE2141
Catalog page	Page 311 (C-1-2019)
GTIN	4017918980535
Weight per piece (including packing)	25.67 g
Weight per piece (excluding packing)	24.07 g
Customs tariff number	85369010
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Use group B
	300 V	10 A	28 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	10 A	28 - 12
Use group D
	300 V	10 A	28 - 12

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

Can be labeled at each terminal point

Design width of just 5.2 mm

Four feed-through levels

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

ST 2,5-4L/2P-Z - Multi-level terminal block

3041998

Product details

ECLASS

ETIM

UNSPSC

CSA

EAC

EAC

cULus Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

ST 2,5-4L/2P-Z - Multi-level terminal block 3041998

Product details

ECLASS

ETIM

UNSPSC

Compatible products

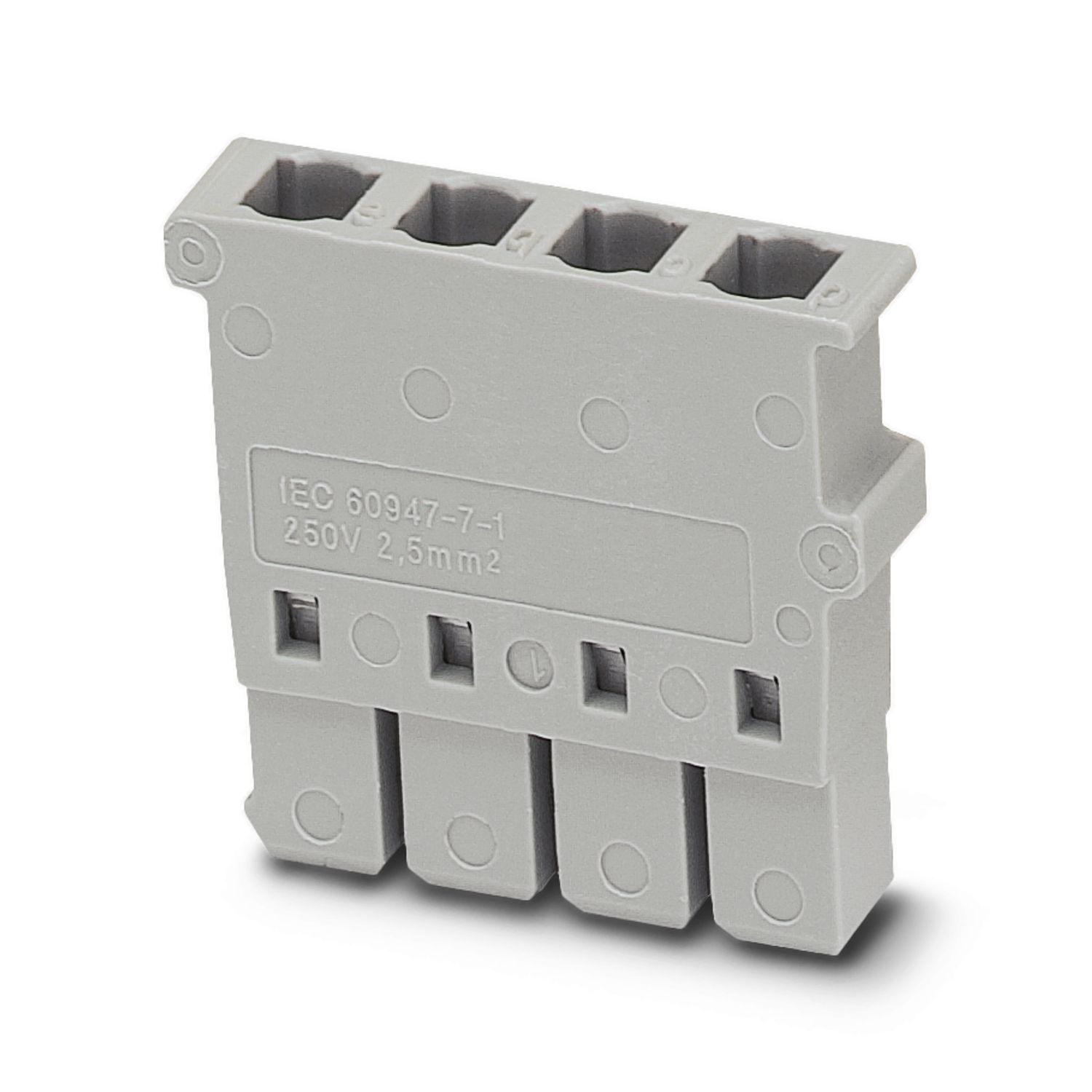

CP 2,5-4L - Connector housing 3041956

CP 2,5-4L-Z - Connector housing 3041943

STG-MTN 0,5-1,0 - Crimp contact 3190438

STG-MTN 1,5-2,5 - Crimp contact 3190506

CRIMPFOX MT 2,5 - Crimping pliers 1204038

AP-CP-H METER - Cover profile 3012315

D-CP-H 2,5-4L - End cover 3012320

DFS-CP-H 2,5-4L - Flange cover 3012317

DFS-CP 2,5-4L - Flange cover 3012321

DP-CP-H 2,5-4L - Spacer plate 3012319

CP-H 2,5-4L - Connector housing 3012313

CP-H 2,5-4L-Z - Connector housing 3012314

FBS 2-5 - Plug-in bridge 3030161

FBS 3-5 - Plug-in bridge 3030174

FBS 4-5 - Plug-in bridge 3030187

FBS 5-5 - Plug-in bridge 3030190

FBS 10-5 - Plug-in bridge 3030213

FBS 20-5 - Plug-in bridge 3030226

FBS 50-5 - Plug-in bridge 3038930

FBSR 2-5 - Plug-in bridge 3033702

FBSR 3-5 - Plug-in bridge 3001591

FBSR 4-5 - Plug-in bridge 3001592

FBSR 5-5 - Plug-in bridge 3001593

FBSR 10-5 - Plug-in bridge 3033710

FBS 2-5 BU - Plug-in bridge 3036877

FBS 3-5 BU - Plug-in bridge 3036880

FBS 4-5 BU - Plug-in bridge 3036893

FBS 5-5 BU - Plug-in bridge 3036903

FBS 10-5 BU - Plug-in bridge 3036916

FBS 20-5 BU - Plug-in bridge 3036929

FBS 50-5 BU - Plug-in bridge 3032114

RB ST (2,5/4)-1,5/S - Reducing bridge 3214356

RB ST 6-(2,5/4) - Reducing bridge 3030860

RB ST 10-(2,5/4) - Reducing bridge 3030873

RB ST 16-(2,5/4) - Reducing bridge 3030886

RB ST 35-(2,5/4) - Reducing bridge 3030899

RB ST (2,5/4)-1,5 - Reducing bridge 3038943

RB UT 6-ST(2,5/4) - Reducing bridge 3047264

RB UT 35-ST(2,5/4) - Reducing bridge 3047280

RB UT 10-ST(2,5/4) - Reducing bridge 3047086

RB UT 16-ST(2,5/4) - Reducing bridge 3047099

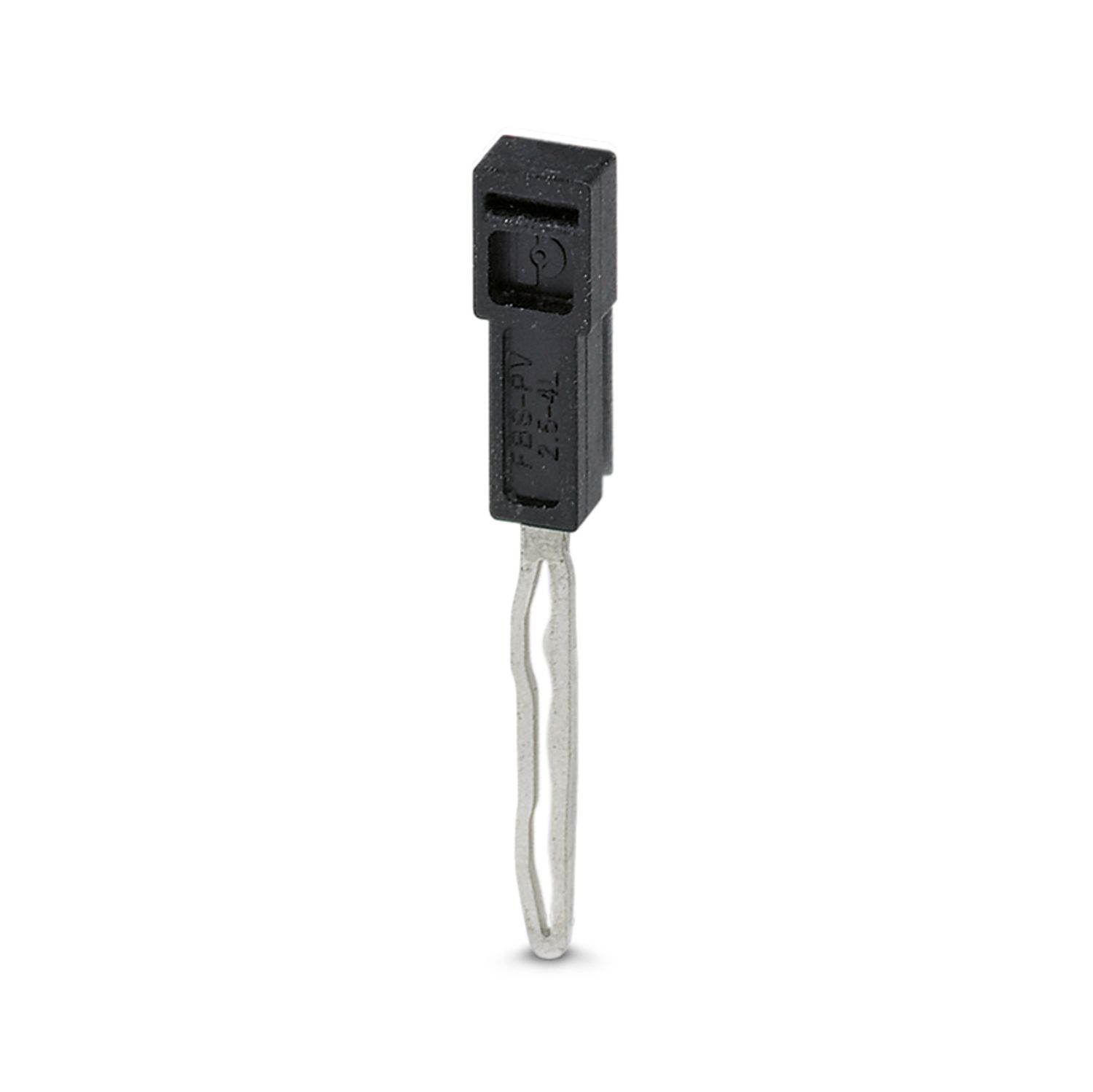

FBS-PV PT 2,5-4L - Potential bridge 3012318

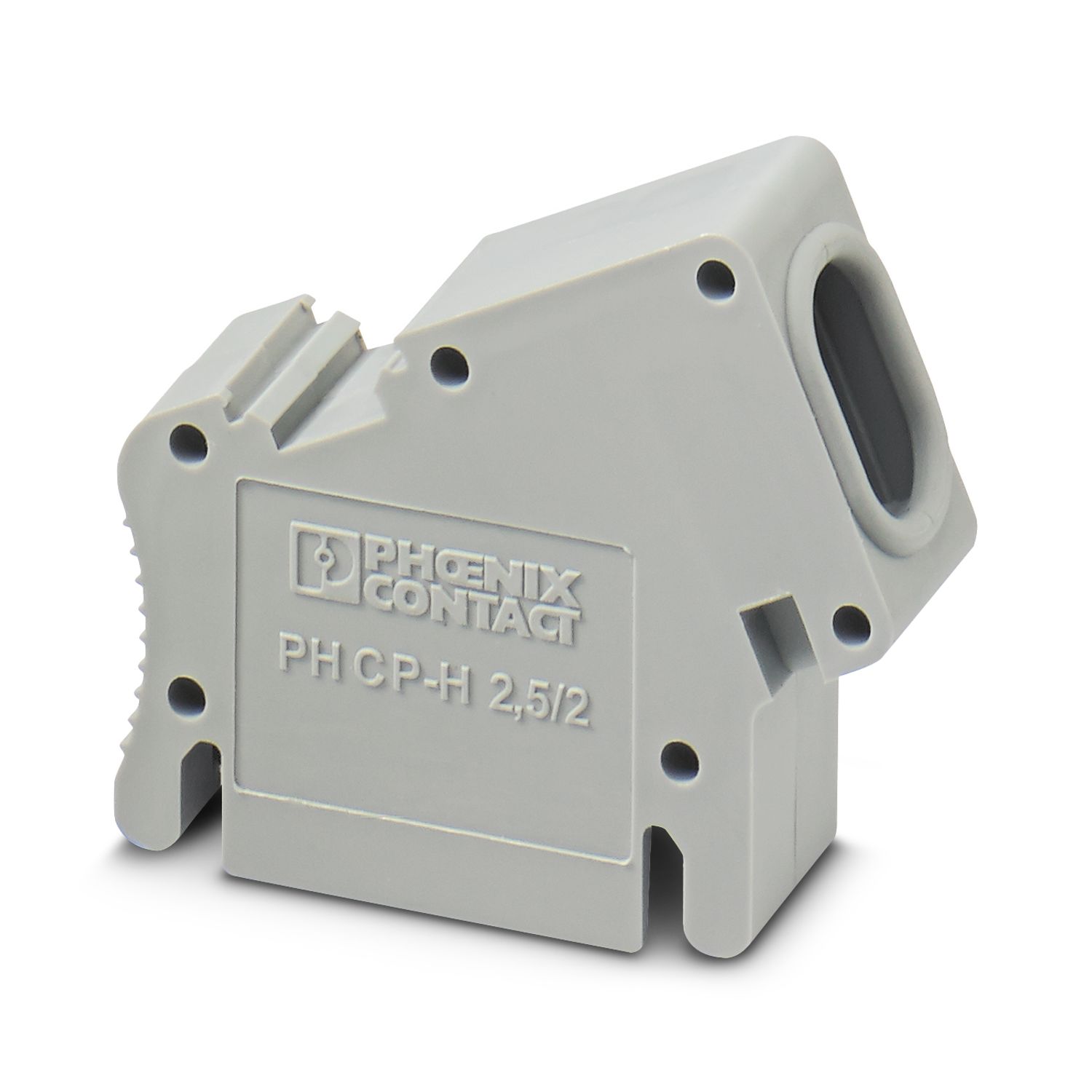

PH CP-H 2,5/2 - Cable housing 3012332

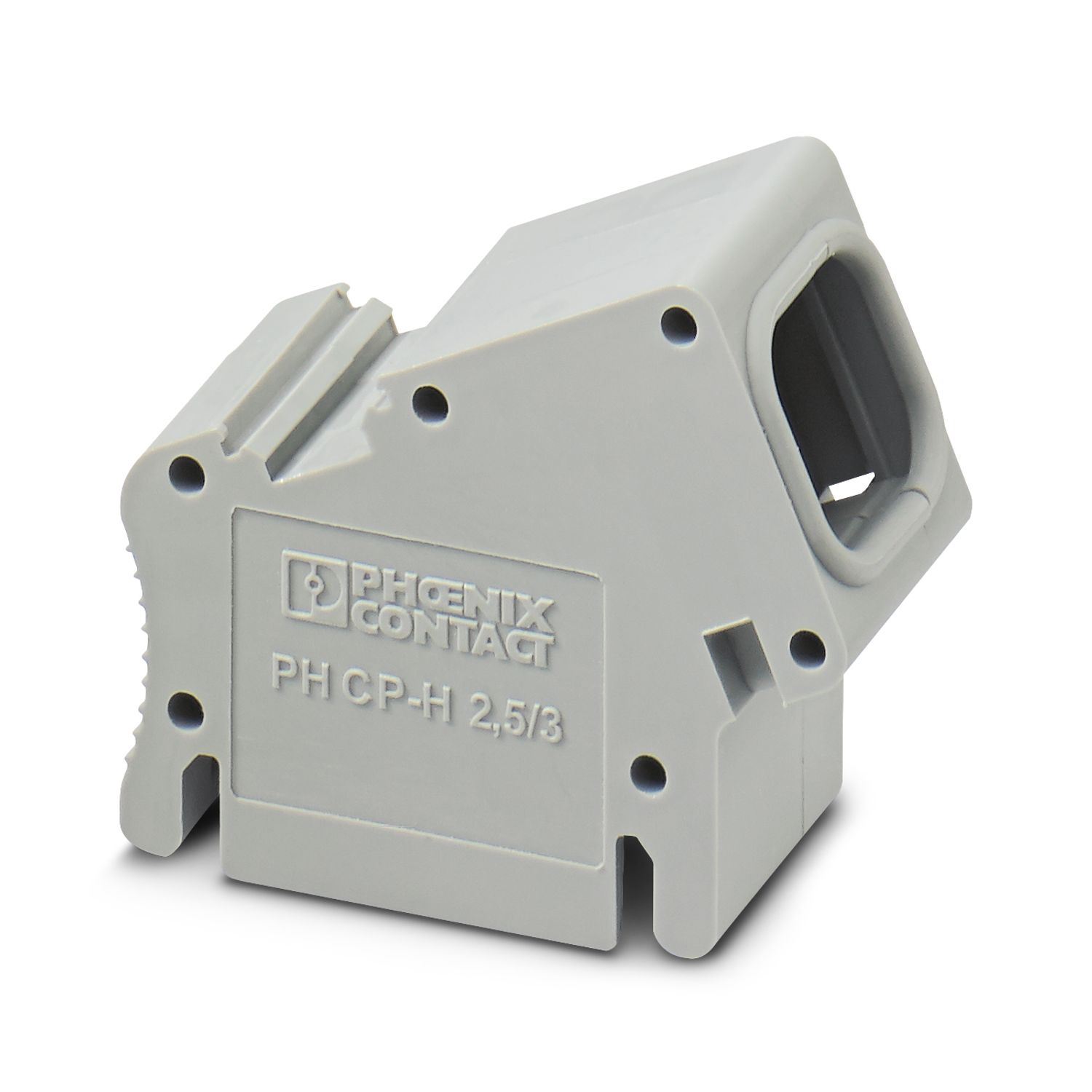

PH CP-H 2,5/3 - Cable housing 3012333

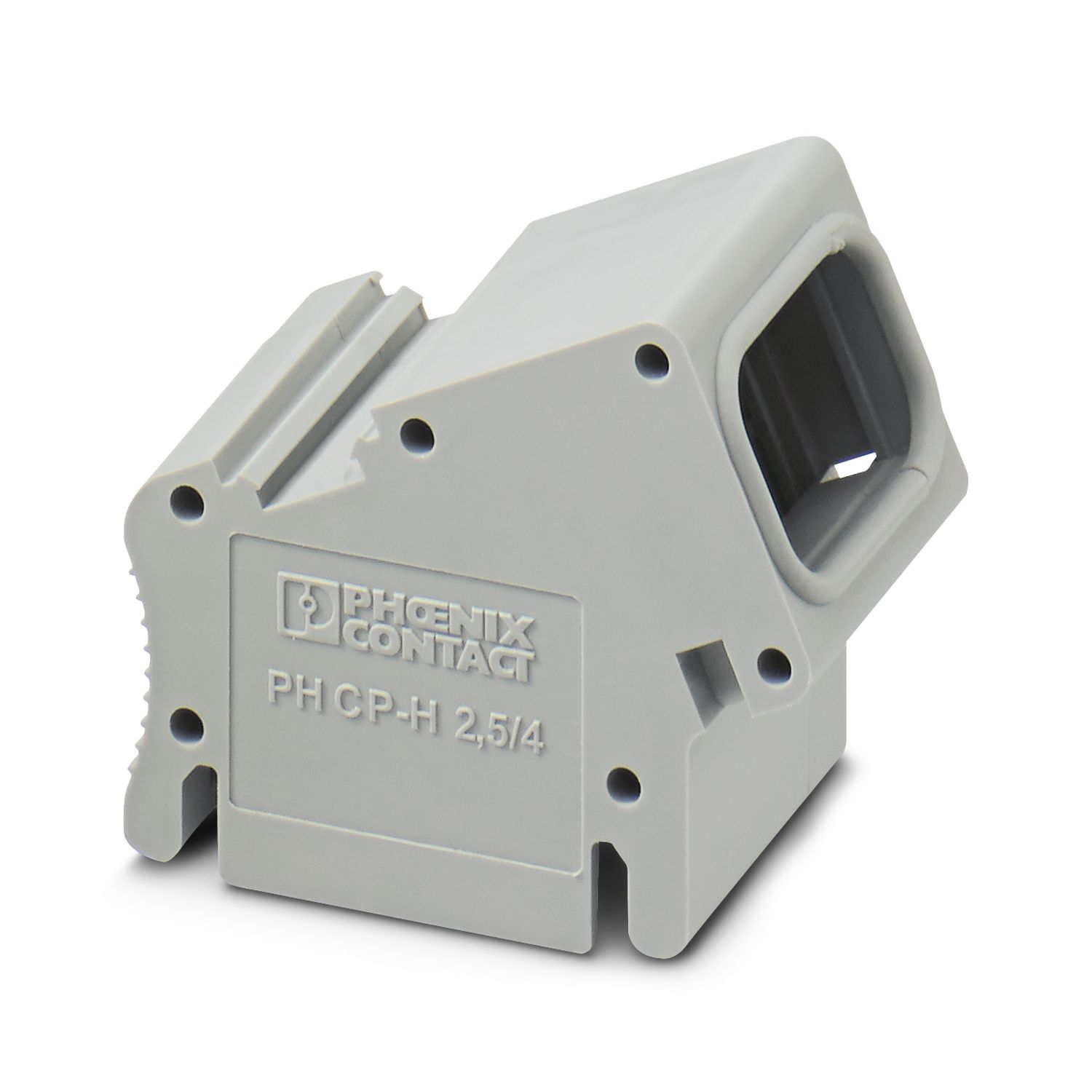

PH CP-H 2,5/4 - Cable housing 3012334

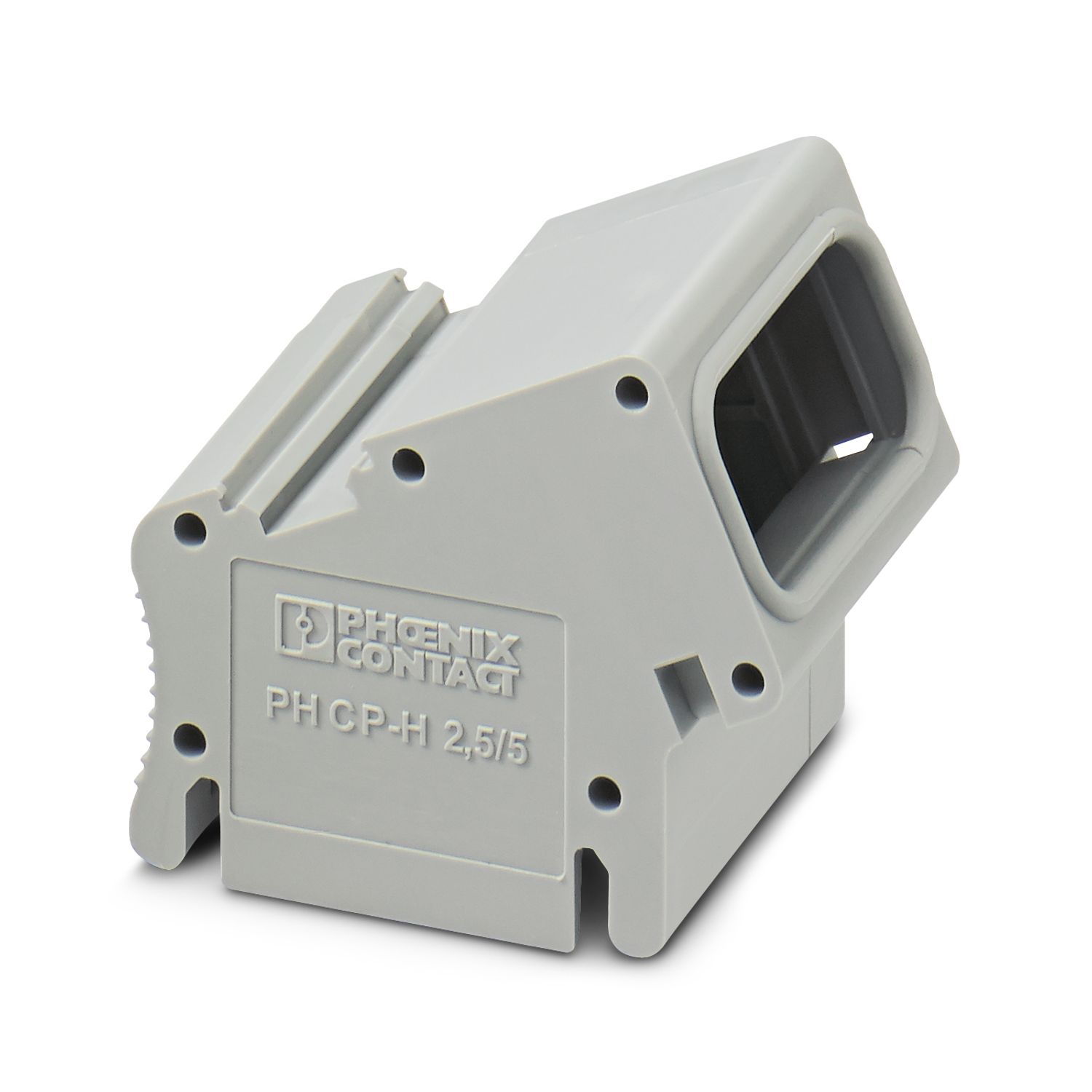

PH CP-H 2,5/5 - Cable housing 3012335

CEC 2,5 - Filler plug 3062757

WST 2,5 - Warning cover 3030941

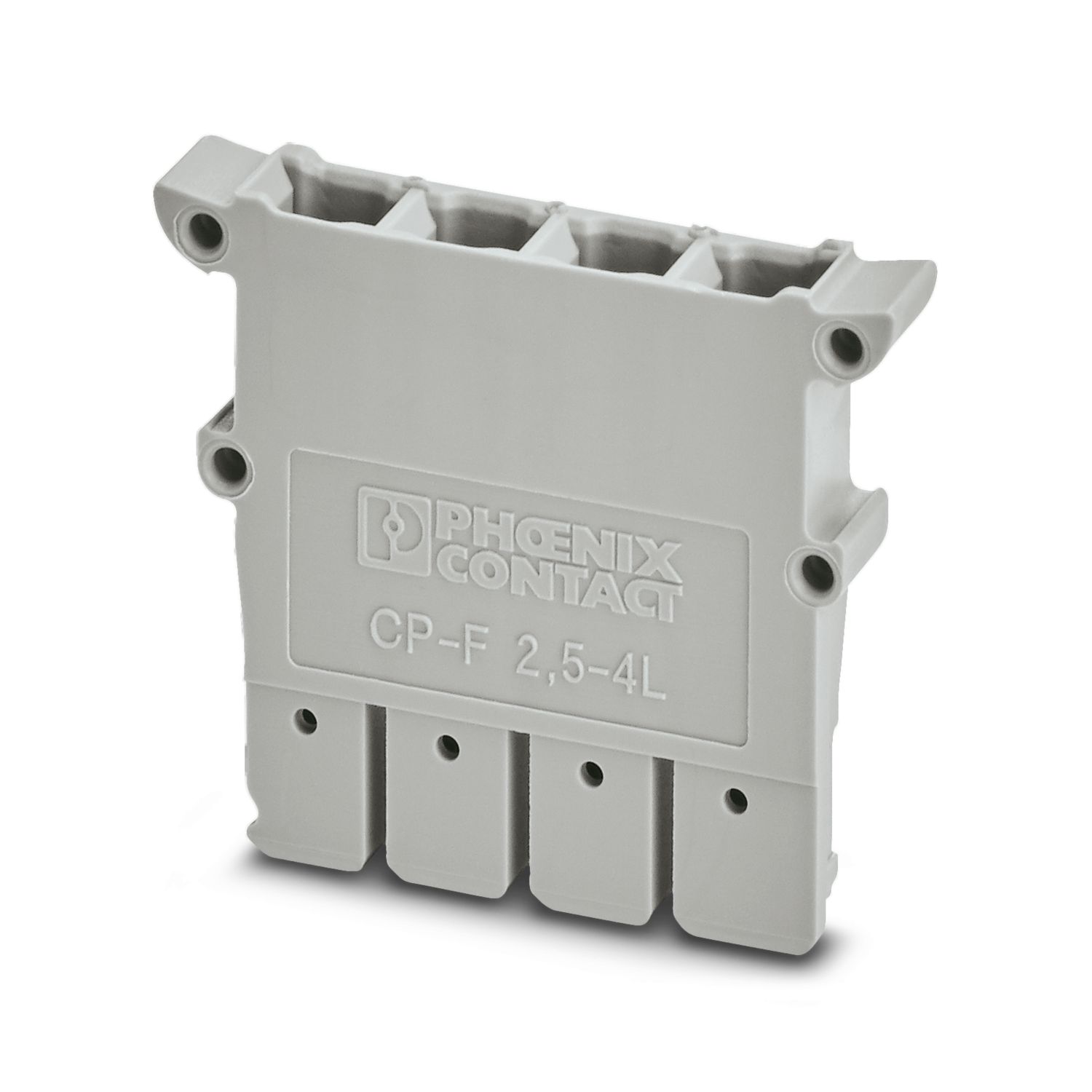

CP-F 2,5-4L - Connector housing 1025502

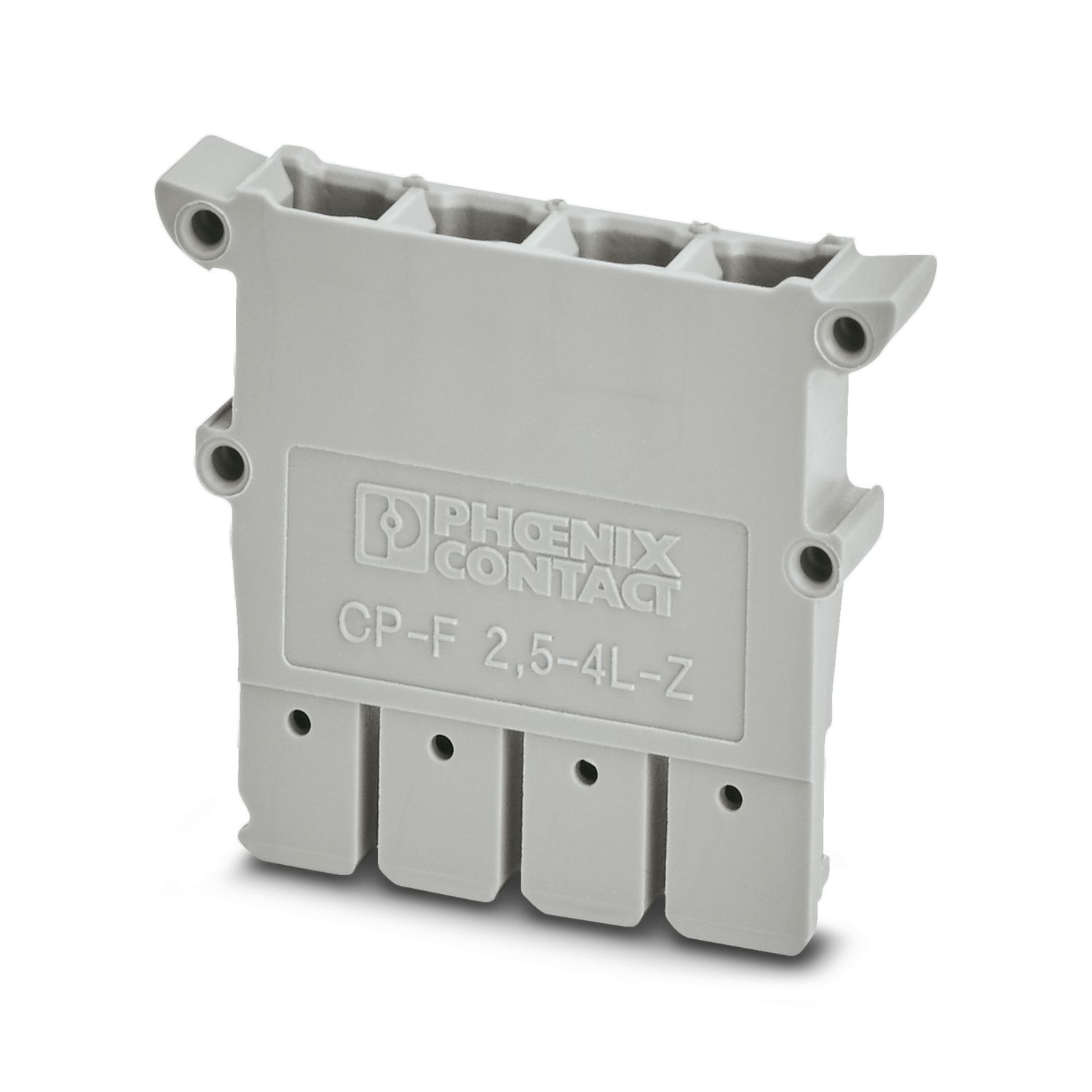

CP-F 2,5-4L-Z - Connector housing 1025503

LPO 2,5/E - Pick-off plug 3270516

LPO 2,5 - Pick-off plug 3270517

LPS-5/E - Service connector 3270520

LPS-5 - Service connector 3270521

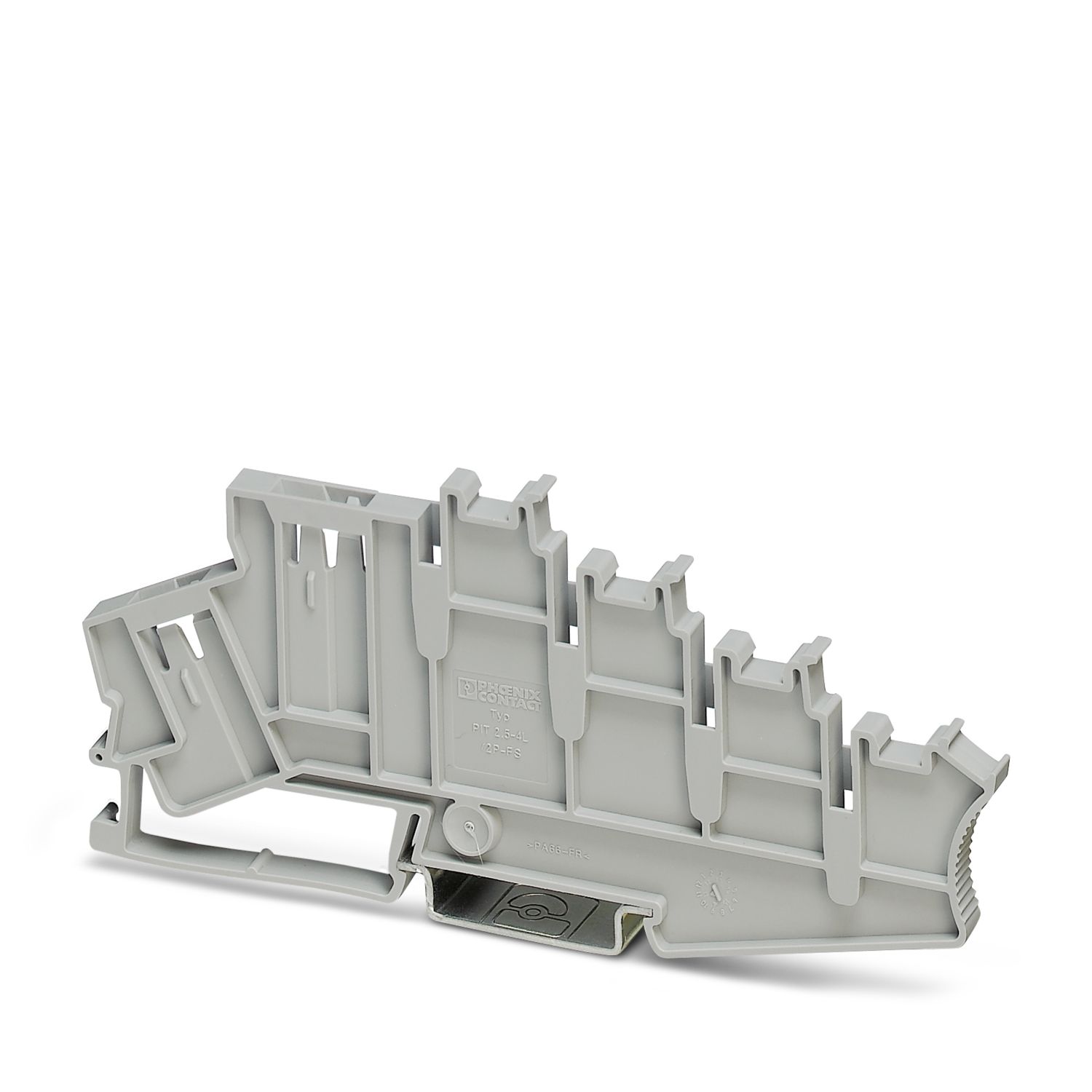

D-ST 2,5-4L/2P - End cover 3041927
