STG-MTN 0,5-1,0 - Crimp contact

3190438

Module socket contact, inserted in the PCC or HCC plug housing after crimping the conductor, for 0.5 mm² ... 1.0 mm² conductors

This product needs further products for operation. Mandatory accessories

Product details

Technical data

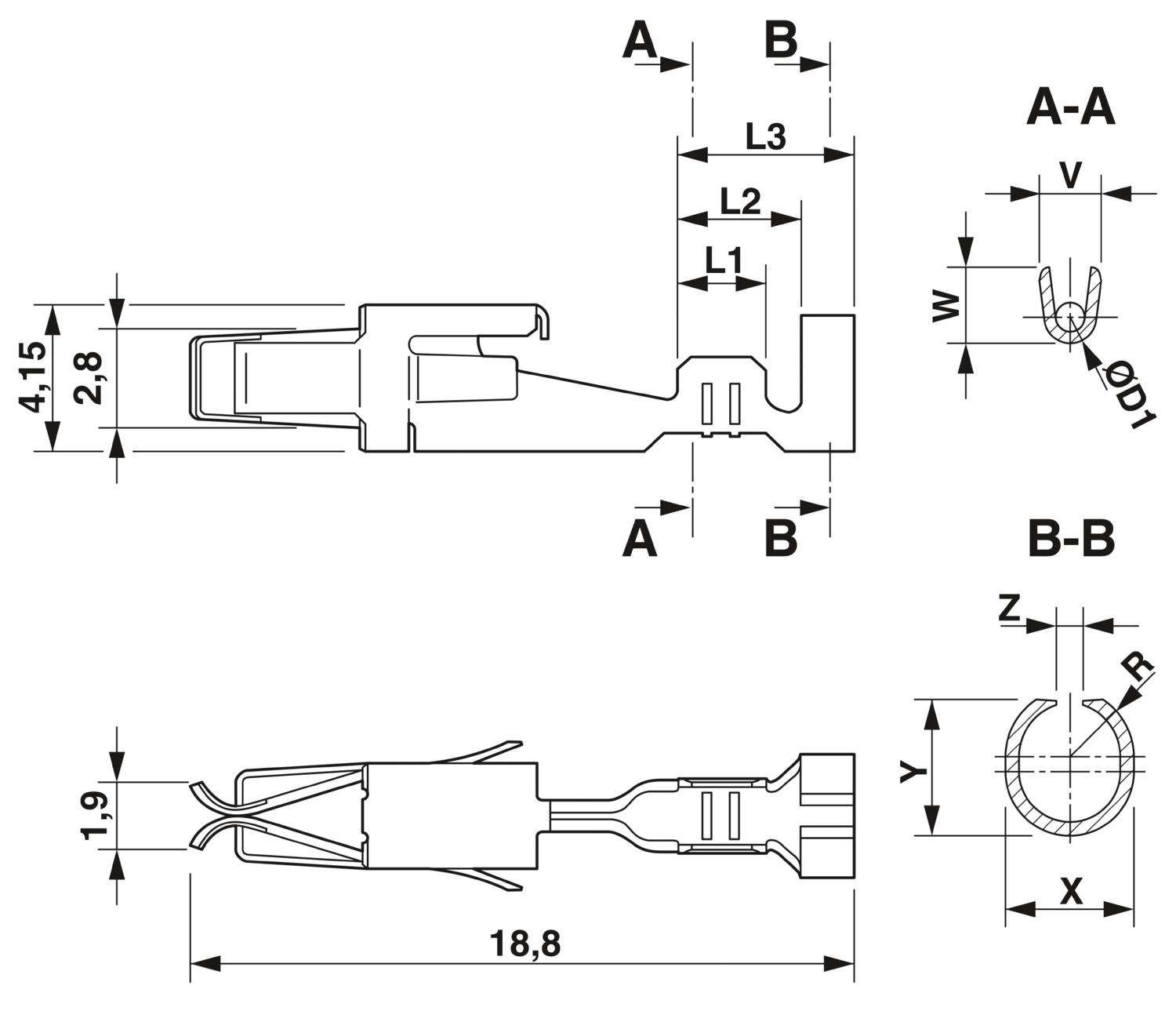

Dimensional drawing
Pitch	0 mm

Contact surface	Tin Sn
Contact surface material	Tin
Metal surface contact area (top layer)	Tin Sn)

Commercial data

Item number	3190438
Packing unit	100 pc
Minimum order quantity	100 pc
Sales key	ACE
Product key	AACCEG
Catalog page	Page 294 (C-1-2019)
GTIN	4017918093341
Weight per piece (including packing)	0.422 g
Weight per piece (excluding packing)	0.405 g
Customs tariff number	85366990
Country of origin	PL

Classifications

Environmental product compliance

Mandatory accessories

Accessories

China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
