Versatile connection technology, reliable connections: PCB terminal blocks and PCB connectors are fundamental components of all electronic devices. Our comprehensive portfolio includes the right connection technology for the transmission of signals, data, and power for almost any application. The product range includes PCB terminal blocks, PCB connectors, connectors, and high-current feed-through terminal blocks.

More information

Product Family

Your advantages

  • Very high degree of flexibility with versatile connection technologies such as screw connection or Push-in connection
  • Can be used in numerous applications and in a wide range of industries, thanks to a range of pitches and number of positions
  • Very high degree of reliability, thanks to high material quality
  • Long service life with fully developed contact geometries and surfaces
  • Expert support and advice from experienced product specialists for design-in projects
  • Customer-specific versions for individual solutions
PCB connectors and electronics housings
PCB connectors and electronics housings YouTube

PCB connectors and electronics housings: Connection technology for the future

Phoenix Contact provides you with versatile connection technology solutions in the form of PCB connectors, board-to-board connectors, and electronics housings that are available in different forms, colors, and connection options. Benefit from our extensive development and manufacturing expertise for your individual connection solution.

PCB terminal blocks

PCB terminal blocks for numerous applications in the process industry and industrial environments

PCB terminal blocks

PCB terminal blocks enable the easy and safe transmission of signals, data, and power directly to the PCB.

  • Conductor cross-sections from 0.14 to 95 mm2
  • Currents up to 232 A and voltages up to 1,000 V
  • Screw, spring, or insulation displacement connection
  • Pitch from 2.5 to 20 mm
PCB connectors from Phoenix Contact

PCB connectors with innovative connection technologies

PCB connectors

Our PCB connectors offer a universal, maintenance-friendly conductor connection for almost all device designs from a wide range of industries and markets.

  • Conductor cross-sections from 0.14 to 35 mm2
  • Currents up to 125 A and voltages up to 1,000 V
  • Screw, spring, lever, pierce, or crimp connection
  • Locking by means of latch mechanism systems or screw flanges
SPT modular series PCB terminal blocks

SPT modular series configurable PCB terminal blocks

SPT modular series PCB terminal blocks

SPT modular series configurable PCB terminal blocks supply your electronics with up to 1,500 V in a single connection block.

  • Electric strength of 24 to 1,500 V
  • Simple configuration of color spaces, individual position colors, and different cross-sections
  • Seamless digital process chain for the rapid development of the configured item, smooth production, and reliable delivery
  • 24/7 access to all configuration data, e.g., using the QR code on the product
High-current feed-through terminal blocks

High-current feed-through terminal blocks for flexible transmission solutions

High-current feed-through terminal blocks

With high-current feed-through terminal blocks, high currents and voltages can be transmitted safely and reliably through the housing panel.

  • Conductor cross-sections from 4 to 150 mm2
  • Currents up to 309 A and voltages up to 1,000 V
  • Screw, spring, T-LOX, or bolt connection
  • Panel thickness of 1 to 6 mm
Customer-specific PCB connections

Customer-specific PCB connections as a close-to-series product variant or completely new product development

Customer-specific PCB connections

In addition to the standard portfolio, Phoenix Contact also provides a wide variety of custom adaptations.

  • Color variants in black, light gray, gray, and blue
  • Customized printing
  • Coding for additional safety
  • Individual solutions on request
E-paper
The entire portfolio at a glance
Get an overview of the COMBICON product range. Find out how you can find the right connection technology to transmit signals, data, or power for your application.
Open the e-paper

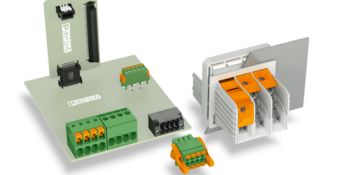

PCB assembled with different PCB terminal blocks and PCB connectors

Consistent connection technology in Industry 4.0

Industry 4.0 automation and production concepts require scalable and adaptable automation solutions. This enables the easy installation and removal of distributed modules. The same applies to the connection technology: the decisive factors for PCB terminal blocks and PCB connectors are a wide variety of connection technology and mounting options, as well as uniform interfaces for a consistent standard. This makes it possible to reduce maintenance and storage costs.

Connection technology for the transmission of data, signals, and power

Electronic devices in industrial applications are subject to constantly growing demands. The trend is toward miniaturization: space-saving terminal blocks and PCB connectors must allow for more electronics in the smallest possible space in the control cabinet or in other applications. The components need to be more compact and the connection technology needs be more powerful, resilient, and flexible.
Phoenix Contact meets these requirements with its comprehensive product portfolio. The IP20 connection technology enables device manufacturers to create optimum connections for data, signal, and power transmission. Boasting more than 10,000 different products, the comprehensive portfolio provides the right connection for every application.

Magnetic inductive flow meter with PCB connection technology
Servo controller with PCB connector
High-current feed-through terminal blocks for power up to 232 A/1000 V (IEC)
Magnetic inductive flow meter with PCB connection technology

As a device manufacturer, develop tailor-made transmission solutions for your application for common fieldbuses and Industrial Ethernet, e.g., consisting of hybrid connectors for simultaneous data and power transmission (Power over Ethernet). Versatile CAT5 cabling is also available.

Servo controller with PCB connector

For signal transmission, use Phoenix Contact’s portfolio for currents up to 8 A and voltages up to 300 V. Versions with shield connection are also available.

High-current feed-through terminal blocks for power up to 232 A/1000 V (IEC)

For high-power transmission, we offer PCB terminal blocks and PCB connectors with conductor cross-sections up to 95 mm² and up to 20 mm pitch. As a device manufacturer, versions with shield connection provide you with greater freedom.

Connectors and electronics housings

New device connection technology products Reliable connection in the device

As a leading manufacturer of connectors and electronics housings, Phoenix Contact is always working to find new solutions for the growing requirements placed on your industrial and infrastructure applications.

Discover our new device connection technology for the transmission of signals, data, and power as well as our versatile electronics housings.
