SAC-MR/0,1-116/2XBI-1L-Z SCO - Double valve connector adapter

1458499

Double valve connector adapter, Universal, 4-position, PUR/PVC, black RAL 9005, Plug angled M12 SPEEDCON, coding: A, on Valve connector BI (11 mm), with 1 LED, Wiring: Z diode and Valve connector BI (11 mm), with 1 LED, Wiring: Z diode, valve connector spacing: 0.1 m

Product details

Product type	Valve connector adapter
Sensor type	Universal
Number of positions	4
No. of cable outlets	1
Coding	A
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Tightening torque	0.6 Nm (Valve connector)

Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	24 V AC
	24 V DC
Nominal current I_N	4 A
Valve connector characteristics
Fixing screws	M3 x 29
Pulse power	40 W (at 100 µs square-wave pulse)
Terminal voltage	70 V (at 2 mA constant current)
Reverse voltage	50 V

Mechanical data
Insertion/withdrawal cycles	50 (Valve connector)

Flammability rating according to UL 94	HB
Seal material	TPU
Material housing valve plug	TPU
Contact material	CuSn
Contact surface material	Ni/Au
Contact carrier material	PA 6.6
Contact material	CuSn
Valve plug contact insert material	PA 6.6
Contact surface material	Sn
Material for screw connection	Zinc die-cast, nickel-plated

Status display	1 LED
Status display present	yes

Connection 1
Type	Plug angled M12 SPEEDCON
Locking type	SPEEDCON
Coding type	A
Connection 2
Type	Valve connector BI (11 mm)
Material	CuSn (Contact)
	Sn (Contact surface)
	PA 6.6 (Contact carrier)
	TPU (Housing)

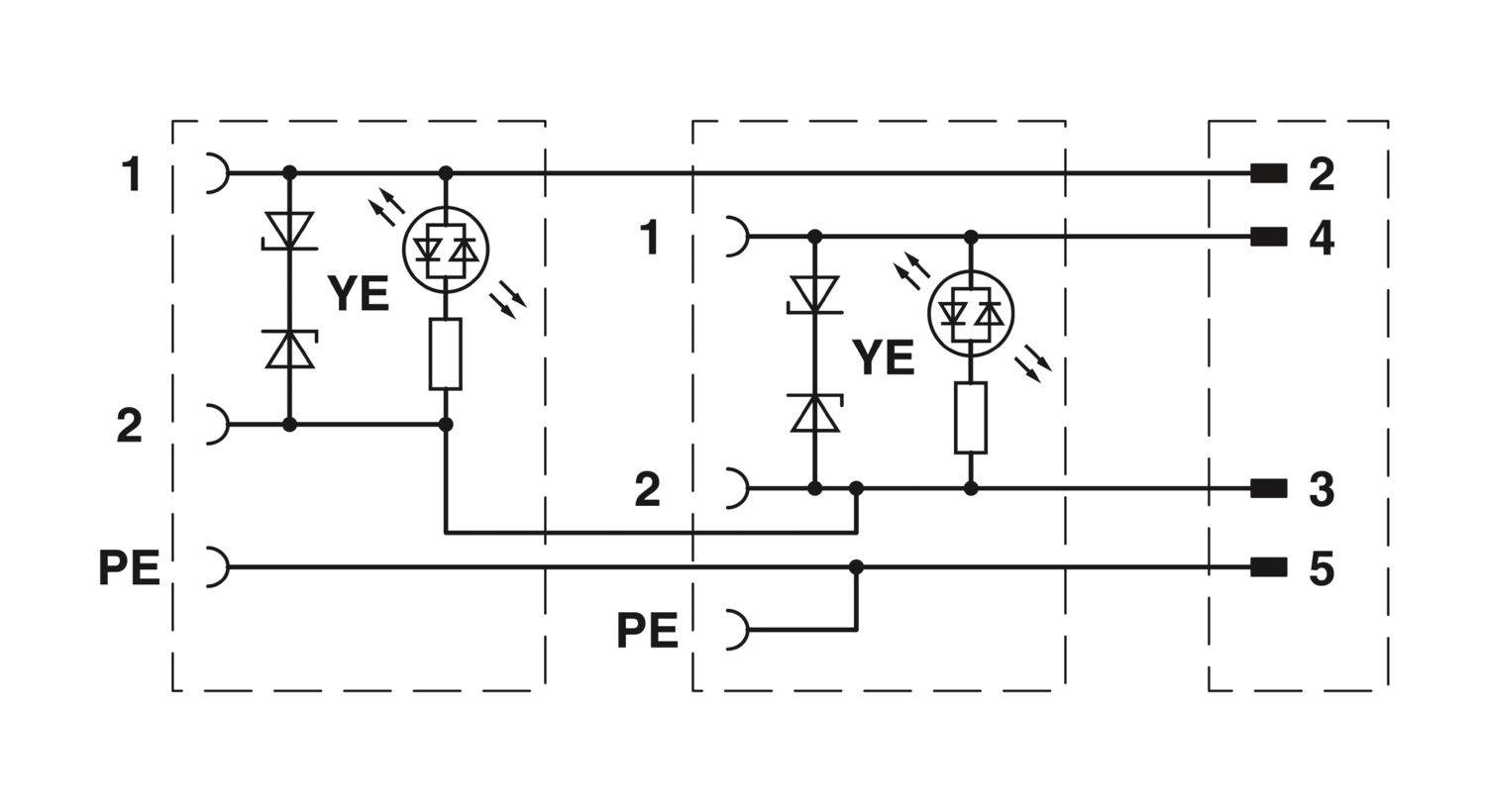

Protective circuit	Z diode
Connection 3
Type	Valve connector BI (11 mm)
Material	CuSn (Contact)
	Sn (Contact surface)
	PA 6.6 (Contact carrier)
	TPU (Housing)
Protective circuit	Z diode

Ambient conditions
Degree of protection	IP65
	IP67
Ambient temperature (operation) (Valve connector)	-25 °C ... 85 °C (Valve connector)

M12
Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101

Commercial data

Item number	1458499
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	BF07
Product key	AF1DRA
Catalog page	Page 259 (C-2-2019)
GTIN	4046356638944
Weight per piece (including packing)	57 g
Weight per piece (excluding packing)	57 g
Customs tariff number	85444290
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	24 V	4 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Easy and safe: 100 % electrically tested plug-in components

Efficient: control valves with two connections via a single connecting cable

Convenient: increased machine availability thanks to quick and easy diagnostics

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Diboron trioxide (CAS: 1303-86-2)
REACH candidate substance (CAS No.)		Lead monoxide (lead oxide) (CAS: 1317-36-8)
SCIP	ea1452f2-1e45-4109-bdbf-83630cef5027
