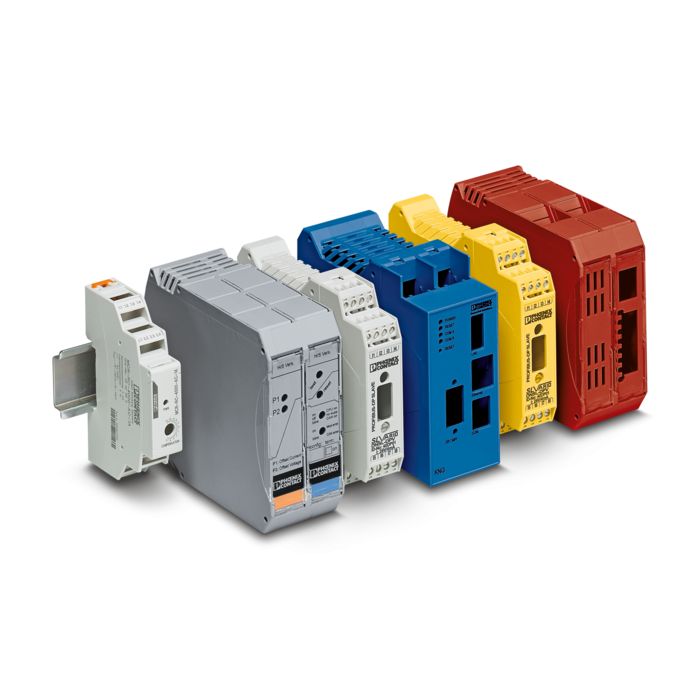

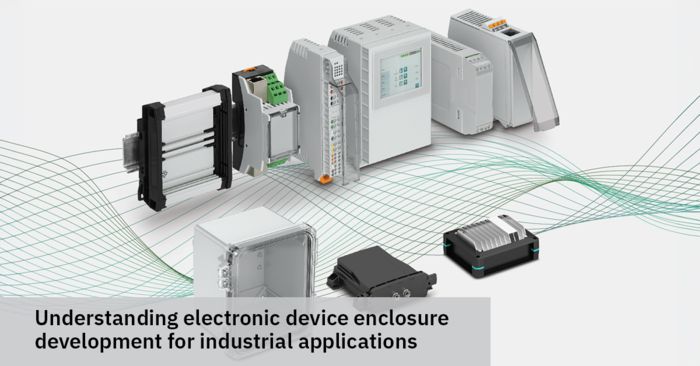

Electronics housings for the DIN rail and for field applications

Electronics housings come in a wide variety of shapes, colors, and functions. Whether on the DIN rail or in the control cabinet, as a wall housing or in field applications under harsh environmental conditions, the housings provide appropriate protection for your electronics. And the digital configurator features versatile options for integrating electronics housings into your individual applications. New developments are also possible.

More information

Your advantages

Personal support: One dedicated contact person for the duration of the entire project phase
Detailed design of your desired concept
Development of the ideal production concept and product qualification at our in-house laboratory
Certification of the solution for your application
Targeted project management right through to the start of series production

New products

ME-IO Slim housing system for compact controllers

Upper parts with Push-in connection for BC modular series electronics housings

Overview of the three sizes of the MCS Monitoring Case System

Connector for 8-position DIN rail connectors

PCB terminal blocks in two pitches for the ICS series

Large-volume OCS series outdoor housings

New size of lower housing part

For ICS series electronics housings

The 50 mm wide lower housing part provides the largest possible PCB surface in the ICS series and thus creates more space for the electronics it holds. In total, up to four PCBs and 20 connectors with up to 100 positions can be mounted in the housing.

Main features

Width: 50 mm
Height: 122 mm
Depth: 130.9 mm
Up to 20 connection openings

Your Advantages

More space for electronic components due to the enlarged PCB surface
Full compatibility with the ICS product portfolio with the new combination of existing dimensions
Integration of connectors on five connection levels due to a usable overall depth of 112 mm

To the product list

Housing system for compact controllers

For use with front connection technology

The ME-IO Slim is the efficient housing solution for compact controllers that require high-density front connection technology. The 18-pos. front connector makes contact directly on the PCB. With a module width of just 12 mm, the ME-IO Slim is particularly space-saving.

Main features

18-pos. front connection technology
Module width: 12 mm
Couplers and CPU housings
Color: light gray (similar to RAL 7035)
8-pos. module communication
6-pos. supply connector in the head station
Status display without separate light guide

Your Advantages

Simple module assembly with two side panels and one DIN rail fixing lever
High connection density with 18-pos. connector with 5 mm pitch
Ideal for price-sensitive applications due to the simple design and predefined module layout
Machinable flaps in the CPU module allow application-specific customization
Easy cabling in the module due to preprinted 18-pos. front connector

To the product list

Configurable upper parts for Push-in connection

For electronics housings for building automation

With the new upper housing parts from the BC modular series, you benefit from the convenient operation of the Push-in connection technology on the front of the housing. Configure your own customized housing solution equipped with Push-in PCB terminal blocks from the SPT-THR series.

Main features

DIN rail housing for use in distribution boards in accordance with DIN 43880
Widths: 35.6 mm, 53.6 mm, 71.6 mm, 107.6 mm, and 161.6 mm
Color: light gray (similar to RAL 7035)
Up to 24 positions: 1.5 mm² per housing chamber
Up to 8 positions: 2.5 mm² per housing chamber
Prepared for use with the KNX bus

Your Advantages

Housings tailored for SPT-THR enable fast device development and optimal protection for the electronics
Individual configuration of each housing chamber for diverse applications in building automation
Standard-compliant housing and installation dimensions for use in distribution boards
Easily create the right item for you: use our intuitive online configurator

To the product list

Watch video

Push-in PCB terminal blocks

For electronics housings for building automation

For the first time, Push-in PCB terminal blocks are available for the BC 17,8 (1 HP). With the PCB terminal blocks from the FKDSO 1,5 and FKDSO 2,5 series, you can implement future-proof applications in building automation with up to 16 positions per module.

Main features

Up to 16 positions in an overall width of 17.8 mm (1 HP)
Currents up to 22 A
3- and 4-pos. PCB terminal blocks can be combined in one upper part
Conductor cross-sections up to 1.5 mm² (FKDSO 1,5) and 2.5 mm² (FKDSO 2,5)
3.5 mm pitch (FKDSO 1,5) and 5 mm pitch (FKDSO 2,5)

Your Advantages

Coordinated housing and connection system for faster device development
Tool-free, time-saving Push-in connection
Orthogonal alignment of the terminal block with the PCB for optimum accessibility in DIN-rail-mounted devices
Defined contact force ensures that contact remains stable over the long term
Intuitive operation with color-coded actuating push button

To the product list

Flexible PCB holder system

For PCBs of different sizes

The evaluation (EVA) board holder for UM-BASIC and UM-PRO is a flexibly adjustable holder system for accommodating PCBs of various sizes by means of latching or screw connection. The system can be mounted on a UM-BASIC/-PRO 122 profile from Phoenix Contact.

Main features

Accommodation of various PCB sizes
Compatible with UM-BASIC/-PRO 122
Can be moved on profile
Color: light gray (similar to RAL 7035)
Several PCBs can be combined

Your Advantages

Easy mounting and removal of PCBs
Low-cost integration of PCBs of different sizes
A large PCB surface in a small installation space
Flexible combination of PCBs of different sizes

To the product list

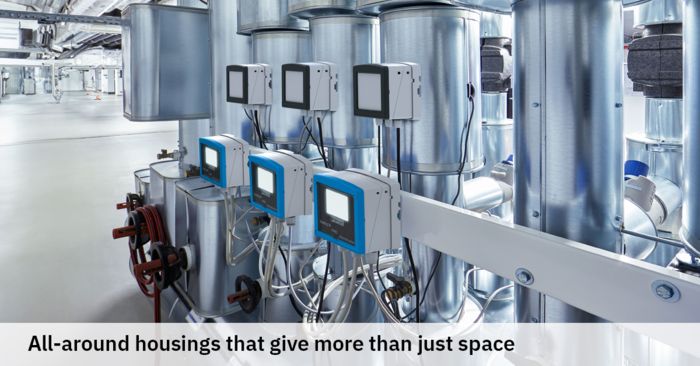

Monitoring Case System (MCS)

For sensor and IoT/IIoT applications

Phoenix Contact offers a well-designed housing for diverse electronics with its new MCS series. It is sure to impress at all stages, from installation of the PCB and simple mounting to maintenance of the device. Modular in design, the housing offers exceptional practicality.

Main features

Three sizes each in two versions: IP40 and IP65/IP67 (additionally with seal and pressure equalization element)
Temperature range: -40°C … +85°C
Impact resistance: IK07
Material: PA with GF (UL94 V0)
Colors: light gray (RAL 7035), covers also available in yellow (RAL 1018), blue (RAL 5015), and black (RAL 9005)

Your Advantages

Convenient operation during device installation and maintenance thanks to optional hinges
Flexible mounting thanks to the optional adapter plate
Safe operation with the right degree of protection
Individualized product selection due to the modular system
Optimized PCB installation: installation of the PCB in a nearly horizontal orientation is possible due to the angled housing edge

Find out more

Order sample

Watch video

POS series PV system solution

For energy self-sufficient systems

The Pico Off-Grid System (POS) is a PV panel-based, robust solution with multiple performance classes up to 190 Wp. The solution includes a housing, pole mount, and solar panel. Computers, communication units, batteries, and more can be added for autonomous solutions for field use.

Main features

Temperature range for the overall system: -40°C … +85°C
Five OCS housing sizes compatible with this system, wiring ready for connection
Solar panel: solar panels with 36 / 45 high-performance solar cells, monocrystalline cell technology
Pole mount: adjustable tilt angle of the PV panel

Your Advantages

Internationally certified housing system
Different housing sizes can be combined with one holder
Simple one-person mounting of the entire system
Complete system except own electronics
Simple supply chain

To the product list

Configurable upper parts for Push-in connection

For electronics housings for building automation

Main features

DIN rail housing for use in distribution boards in accordance with DIN 43880
Widths: 35.6 mm, 53.6 mm, 71.6 mm, 107.6 mm, and 161.6 mm
Color: light gray (similar to RAL 7035)
Up to 24 positions: 1.5 mm² per housing chamber
Up to 8 positions: 2.5 mm² per housing chamber
Prepared for use with the KNX bus

Your Advantages

Housings tailored for SPT-THR enable fast device development and optimal protection for the electronics
Individual configuration of each housing chamber for diverse applications in building automation
Standard-compliant housing and installation dimensions for use in distribution boards
Easily create the right item for you: use our intuitive online configurator

To the product list

Watch video

Push-in PCB terminal blocks

For electronics housings for building automation

Main features

Up to 16 positions in an overall width of 17.8 mm (1 HP)
Currents up to 22 A
3- and 4-pos. PCB terminal blocks can be combined in one upper part
Conductor cross-sections up to 1.5 mm² (FKDSO 1,5) and 2.5 mm² (FKDSO 2,5)
3.5 mm pitch (FKDSO 1,5) and 5 mm pitch (FKDSO 2,5)

Your Advantages

Coordinated housing and connection system for faster device development
Tool-free, time-saving Push-in connection
Orthogonal alignment of the terminal block with the PCB for optimum accessibility in DIN-rail-mounted devices
Defined contact force ensures that contact remains stable over the long term
Intuitive operation with color-coded actuating push button

To the product list

Bridge for DIN rail connectors

Making optimum use of installation space

The transmission of data and signals for applications without a necessary output to the PCB can be looped through by a bridge for DIN rail connectors below the module. This enables you to maximize the use of the PCB surface.

Main features

8-position module communication
Available in the widths 18.8, 20, and 25 mm

Your Advantages

Can be integrated into device applications based on ME-IO and ICS housings
Increased maximum PCB surface
Connection of the positions in the field with FMC connectors

To the product list

Connector for 8-position DIN rail connectors

Module communication over several levels

Some applications also require data and signals from the module communication beyond the module network, for example, in the case of a line feed. Here, input and output connectors for the 8-position DIN rail connector connect modules over several levels. They can be used on the left, right, and center.

Main features

8-position module communication
Available as input and output
End bracket function

Your Advantages

Input and output of the 8-position bus connection in the module network with ME-IO and ICS housings
Optimum use of space with ordered cable routing
Easy marking with a large printing area

To the product list

PCB terminal blocks in two pitches

For ICS series electronics housings

The new PCB terminal blocks in two pitches provide additional connection options for ICS series electronics housings. Choose between screw or Push-in connection versions of the new terminal blocks for your device solution.

Main features

For ICS overall widths of 20, 25, and 50 mm
Push-in spring connection and screw connection
Pitch: 3.5 and 5 mm
Alignment left and right

Your Advantages

Simple handling in just a few steps
Fixed wiring and a reduced number of individual parts
Choice between different pitches and connection methods
One partner for everything: the right components for your device solution

To the product list

Large-volume OCS series outdoor housings

Three larger housing versions available

The OCS products are robust, large-volume outdoor housings designed for electronics that can also operate in extreme ambient conditions. With the three new housing versions, adding to the current sizes in the range, more are available with more space for the electronics.

Main features

Six standard sizes each with two cover versions
Temperature range: -40 to +80°C (short-term 120°C)
Approvals: UL 508A and EN 62208
Degrees of protection: IP66/IP68/IP69, IEC 60529 or NEMA 250, type 4X, 12, 13, 6P
Impact strength: Class IK10, EN 50102
Optional accessories for wall or mast mounting

Your Advantages

Internationally certified housing system
Special plastic enables safe continuous operation
Provides protection against the ingress of jet water
Withstands even heavy mechanical strain
Space for several electronic components

To the product list

Two employees look at the product navigator on a tablet, with various product overlays above it

Product navigator Get an overview of our comprehensive portfolio

Quickly find clear information about PCB terminal blocks, connectors, and electronic housings for device connections. The product navigator helps you by splitting the range into the various product groups.

Discover the device connection portfolio

Configurator for electronics housings

Create your electronics housing for the field or indoor application: Select the desired housing series, the corresponding lower part, and the cover. Add the appropriate connection technology and the process is complete.

Start with the configuration of your desired electronics housing series

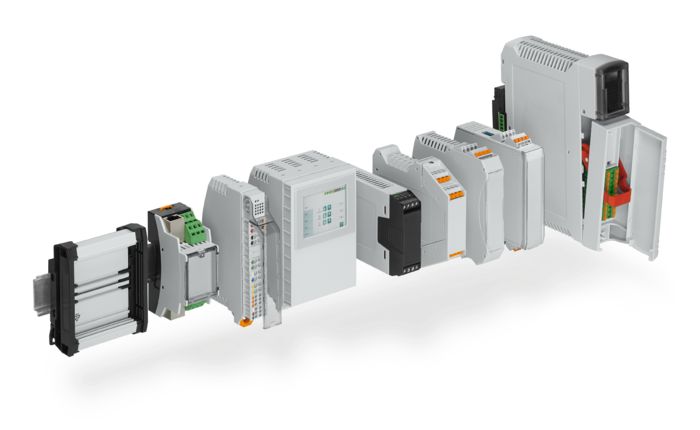

Housing systems for control cabinet applications DIN rail housings are the ideal packaging for your electronics. They protect the installed PCBs, can be easily mounted on DIN rails, and offer perfectly integrated interfaces for transmitting signals, data, and power.

Interactive image map: Module made up of different DIN rail housings

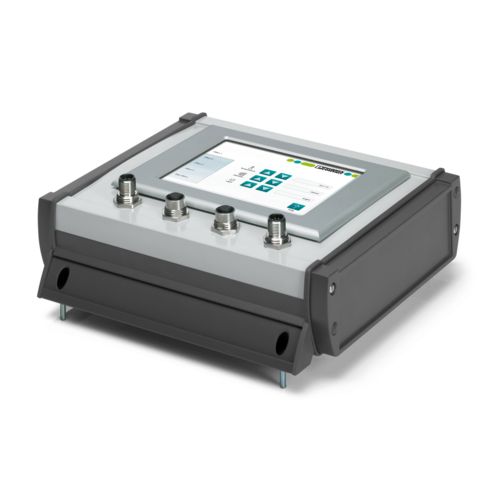

UM-BASIC/UM-PRO extruded profile housings

Not a millimeter wasted on the DIN rail. Extruded profiles are cut to customer-specific lengths and are available in lengths from 30 to 1,000 mm.

Find out more.

BC modular housings

BC housings are suitable for direct wall mounting or for use in distribution boards in accordance with DIN 43880.

Find out more.

ME-IO multifunctional housings

Tailor-made electronics modules, such as controllers and I/O modules, can be easily assembled with their modular design.

Find out more.

EH basic housings

With the EH housing system, designing universal device applications could not be simpler. A range of seven overall widths, two heights, and three cover versions provide over 100 possible combinations.

Find out more.

ME modular housings

Design your device using our easy-to-install modular system.

Find out more.

ME-MAX modular housings

With a function-oriented design and overall widths ranging from 12.5 to 90 mm, ME MAX offers tailor-made solutions for your electronics.

Find out more.

ICS modular housings

The solutions made possible by the ICS modular housing system are as varied as the requirements for future-oriented automation devices.

Find out more.

ME-PLC multifunctional housings

Multifunctional electronics housings from the ME-PLC series are ideal for applications that require a large installation space and connection technology on the front.

Find out more.

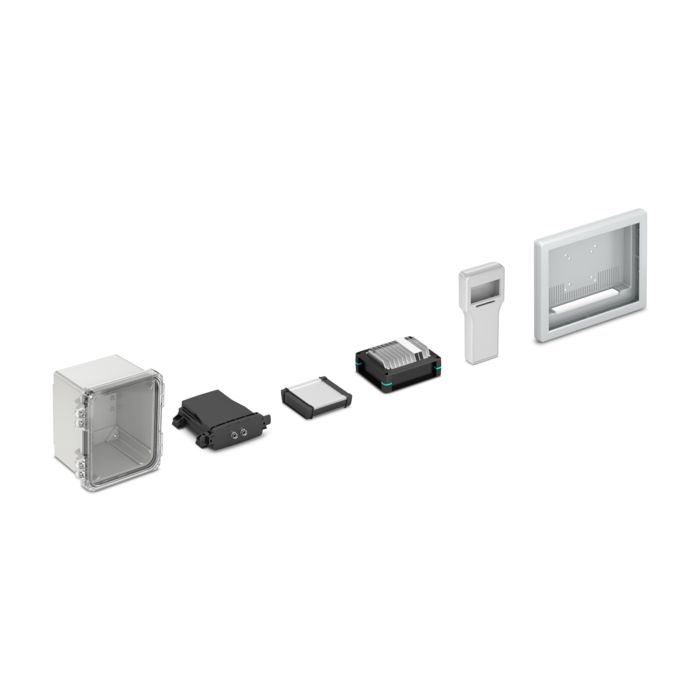

Housing systems for field applications Click on one of the spots for more information on the respective housing series.

Interactive image map: Housing systems for field applications

OCS outdoor housings

OCS series electronics housings are the ideal choice for autonomous device systems in extreme environments. The certified housings made from polycarbonate are lightweight, resistant, and permanently and reliably protect your electronics against humidity, high temperatures, UV radiation, and mechanical strain.

Find out more

ECS outdoor housings

Robust outdoor housings of the ECS series are the ideal solution for protecting sensitive electronics used in indoor and outdoor applications against dust, dirt, and water.

Find out more

HC-ALU profile housings

A stable aluminum profile and IP65 degree of protection: Two reasons why the HC-ALU series excels.

Find out more

UCS universal housings

Universal housings of the UCS series are the ideal solution for embedded systems. The IP40 housings reliably protect PCBs in standard form factor from external influences. Removable side panels allow modular housing solutions in custom heights.

Find out more

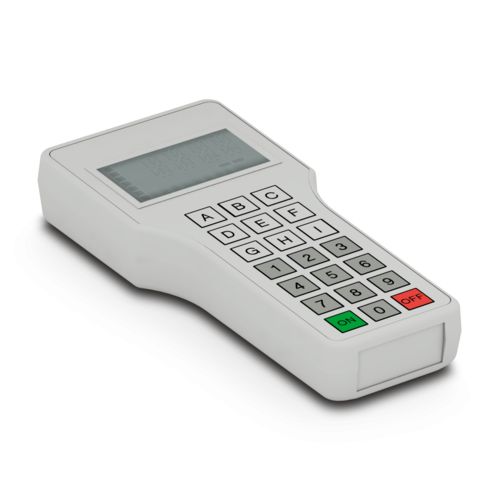

Handheld HCS housings

Ergonomic handheld housings from the HCS series are ideal for portable operating panels for measuring and inspection technology and for scanners or identification devices.

Find out more

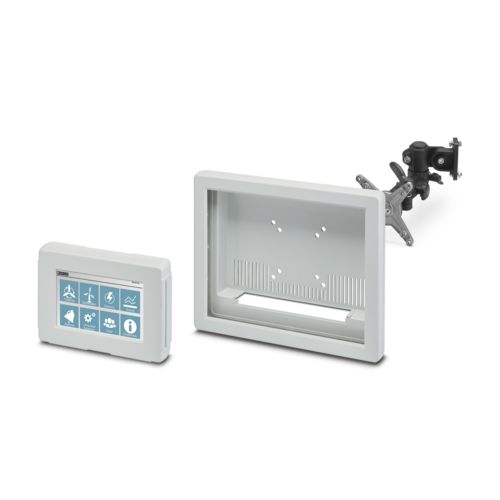

DCS display carriers

Display carriers from the DCS series integrate TFT displays of different sizes. They reliably protect mobile and stationary electronics from mechanical stress as well as dust and splash water.

Find out more

Services and extensions for electronics housings

A module of individually tailored electronics housings in various colors

Customer-specific electronics housings

Benefit from individualization through mechanical processing, design-in adaptation, and printing, as well as customer-specific heatsinks.

More information on customer-specific electronics housings

Customer and employee examining the visualization of a product in the development phase

New developments for your device design

Develop new tailor-made device connections and electronics housings: The Phoenix Contact Solutions Center provides you with support from the initial idea, through conception, right through to realization.

Develop your tailor-made solution

Thermal management during device development

Passive heatsinks enable the finished devices to be used in thermally demanding applications.

More about thermal management

Marking solutions on electronics housings

Marking solutions for electronics production

Gain an overview of the complete marking program for electronics production.

Download the brochure

Customer-specific electronics housings

From mechanical processing with state-of-the-art milling machines, through tool inserts in the existing master tool, to the customized design individual housing components, we offer you the perfect process for a cost-effective implementation of your housing variant.

More information on customer-specific electronics housings

E-paper

Overview of the electronics housings portfolio

Discover housings for the DIN rail and outdoor use and learn how flexibly you can adapt electronics housings to your individual needs.

Open the e-paper

Electronics housings of the ME MAX series

Technical principles of electronics housings Solutions for DIN rail applications

Electronics housings are an elementary part of a device. They determine its appearance and protect the electronics from external influences. In addition, they enable assembly in superordinate units. Device manufacturers must therefore pay attention to many details, and not only in the design, but also in the choice of housing when it comes to materials and quality testing. This brochure provides you with all the details.

Learn more about the technical principles of electronics housings.
