SAC-2P-MICFR/.../... - Sensor/actuator cable

1547148

Sensor/actuator cable, 2-position, free cable end, on Socket angled 1/2"-20UNF, coding: C, cable length: Free input (0.2 ... 40.0 m)

Product details

Trade restriction
CE note	The products are offered exclusively for export outside the EU and the European Economic Area.

Application	Standard
Number of positions	2
No. of cable outlets	1
Shielded	no
Coding	C
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Flammability rating according to UL 94	HB
Seal material	NBR
Material of grip body	TPU, hardly inflammable, self-extinguishing
Contact material	CuSn
Contact surface material	Ni/Au
Contact carrier material	TPU GF
Material for screw connection	Brass, nickel-plated

Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	250 V AC
	250 V DC
Nominal current I_N	4 A
Test voltage	2500 V

Mechanical data
Insertion/withdrawal cycles	≥ 100

Status display	no
Status display present	no

Connection 1
Type	free cable end
Connection 2
Type	Socket angled 1/2"-20UNF
Number of positions	2
Coding type	C

Cable length	Free input (0.2 ... 40.0 m)

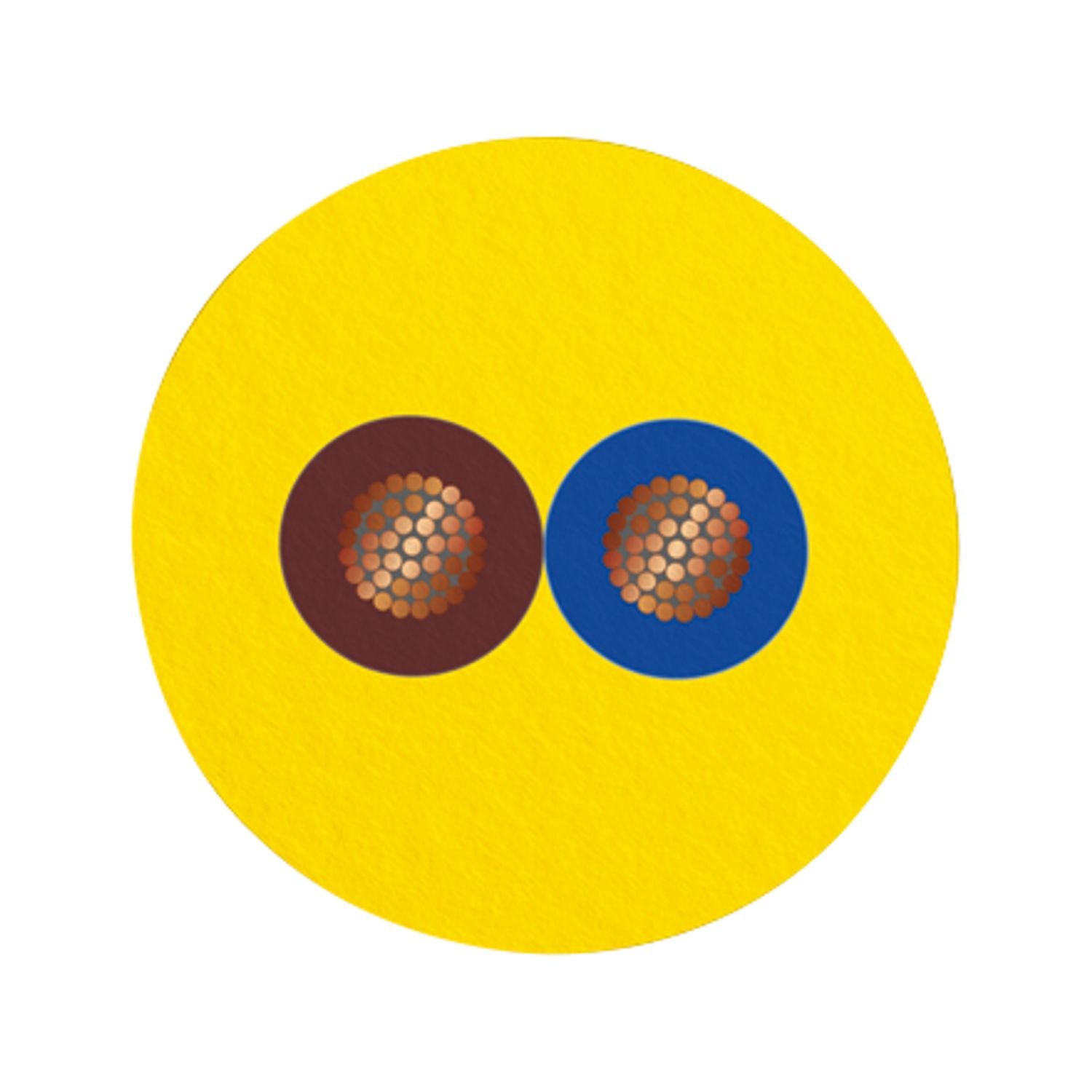

PVC yellow 105 °C [542]
Cable weight	32 kg/km
UL AWM Style	2517 (105 °C / 300 V)
Number of positions	2
Shielded	no
Cable type	PVC yellow 105 °C [542]
	PVC yellow 105 °C 542
Conductor structure signal line	42x 0.10 mm
AWG signal line	22
Conductor cross section	2x 0.34 mm²
Wire diameter incl. insulation	1.55 mm ±0.05 mm
External cable diameter	4.90 mm ±0.15 mm
Outer sheath, material	PVC
External sheath, color	yellow
Conductor material	Bare Cu litz wires
Material wire insulation	PVC
Single wire, color	brown, blue
Thickness, insulation	≥ 0.38 mm (Core insulation)
Thickness, outer sheath	≥ 0.76 mm
Overall twist	2 wires, twisted
Max. conductor resistance	58 Ω/m (at 20 °C)
Insulation resistance	≥ 100 MΩ*km (at 20 °C)
Nominal voltage, cable	≤ 300 V
Test voltage	≥ 3000 V
Flame resistance	According to DIN EN 60332-1-2
Ambient temperature (operation)	-25 °C ... 105 °C (Cable)
	-5 °C ... 105 °C (Cable, flexible installation)

Ambient conditions
Degree of protection	IP65
	IP67
	IP68
Ambient temperature (operation) (male connector/female connector)	-25 °C ... 90 °C (Plug / socket)

Commercial data

Item number	1547148
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	BF17
Product key	AF1EAA
Weight per piece (including packing)	22.22 g
Weight per piece (excluding packing)	22.22 g
Customs tariff number	85444290
Country of origin	US

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
keine
	300 V	4 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
keine
	300 V	4 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Easy and safe: 100 % electrically tested plug-in components

Adapted: 1/2"-20UNF connectors with C-coding for the North American market

ECLASS-13.0	27060311
ECLASS-15.0	27060311

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
