RIF-0-BSC/ 1 - Relay base

2901872

RIF-0... relay base, for miniature power relay with 1 N/O contact or identical solid-state relays, screw connection, for mounting on NS 35/7,5

This product needs further products for operation. Mandatory accessories

Product details

Product type	Relay socket
Product family	RIFLINE complete

Nominal voltage U_N	250 V AC/DC (Contact side)
Nominal current I_N	max. 8 A (Depends on application/assembly)

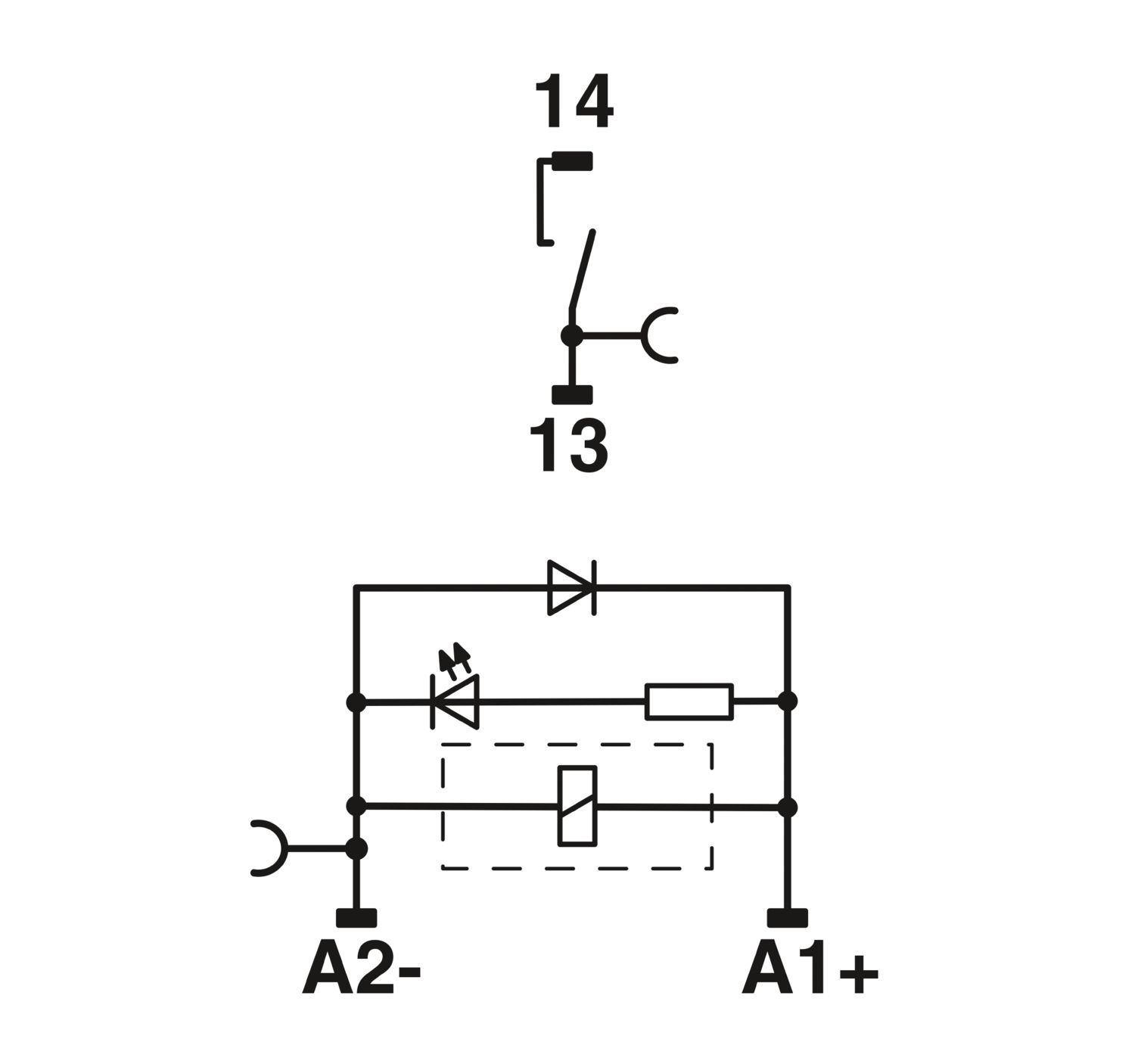

Protective circuit	Freewheeling diode

Input voltage range	12 V DC ... 24 V DC

Connection method	Screw connection
Stripping length	7 mm
Conductor cross section rigid	0.5 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)	0.5 mm² ... 1.5 mm²
Conductor cross section flexible	0.5 mm² ... 2.5 mm²
	0.5 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
	0.5 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)	0.5 mm² ... 1.5 mm²
	0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG	20 ... 12 (solid)
	20 ... 14 (flexible)
Tightening torque	0.5 Nm ... 0.6 Nm

Width	6.2 mm
Height	84 mm
Depth	68 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V2 (Housing)

Ambient conditions
Ambient temperature (operation)	-40 °C ... 85 °C (Depends on application/assembly)
Ambient temperature (storage/transport)	-40 °C ... 85 °C

Corrosive gas test
Identification	ISA-S71.04. G3 Harsh Group
	EN 60068-2-60

Mounting type	DIN rail mounting
Mounting position	any

Commercial data

Item number	2901872
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	C465
Product key	DK6511
Catalog page	Page 283 (C-5-2019)
GTIN	4046356732994
Weight per piece (including packing)	21.4 g
Weight per piece (excluding packing)	21.9 g
Customs tariff number	85366990
Country of origin	CN

Classifications

Approvals

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

ECLASS-12.0	27371603
ECLASS-13.0	27371603

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	fa473390-bb48-42f0-9053-b3414311268f
