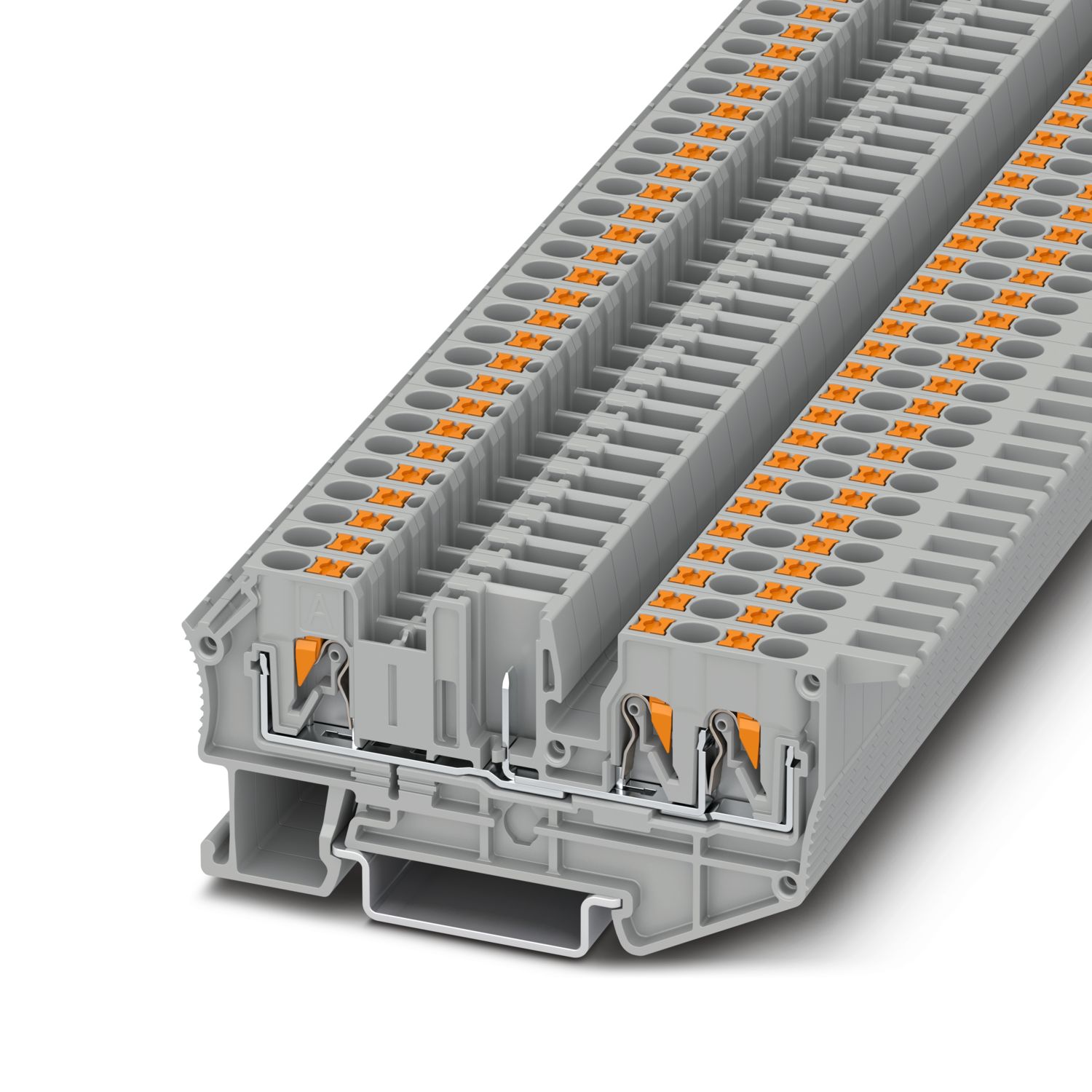

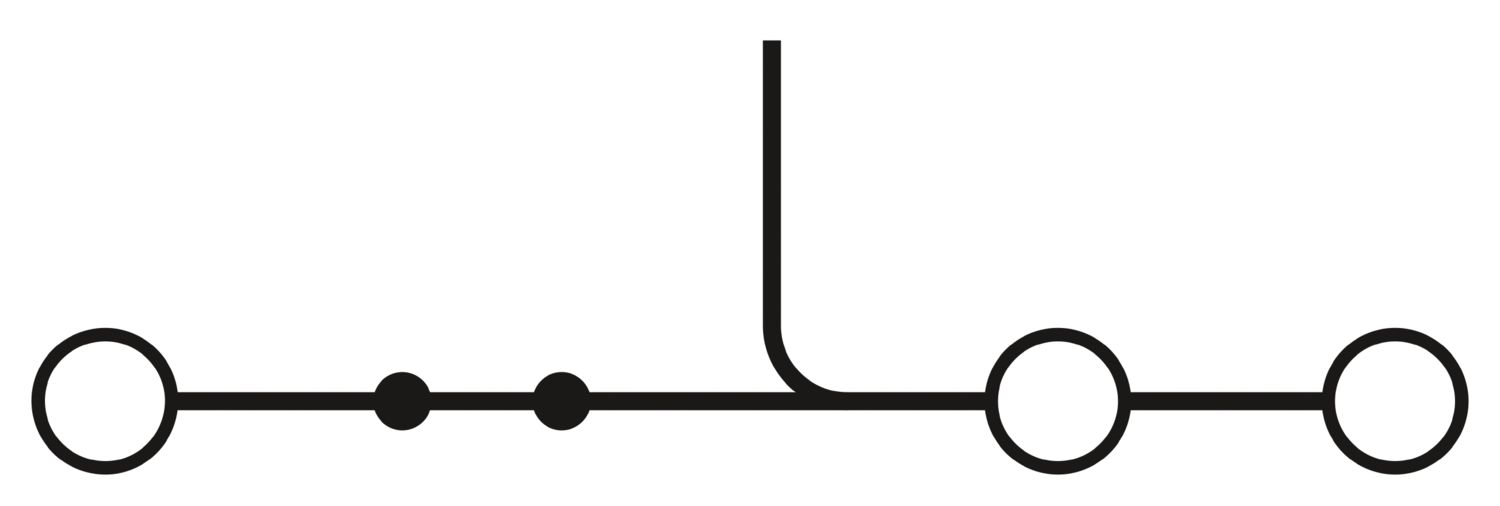

PT 4/S-QUATTRO/1P - Feed-through terminal block

1107578

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, Thermal continuous current I_th: 24 A, connection method: Push-in / plug connection, cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Product details

General	The max. load current must not be exceeded by the total current of all connected conductors. Current and voltage are determined by the plug used.

Product type	Plug-in terminal block
Number of rows	1

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	0.77 W

Stripping length	8 mm ... 10 mm
Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
Thermal continuous current I_th	24 A
Nominal current	24 A
Maximum load current	24 A (with 6 mm² conductor cross section, rigid)
Nominal voltage	800 V
Connection cross sections directly pluggable
Conductor cross section rigid	0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 2.5 mm²

Width	6.2 mm
Height	84.5 mm
Depth	36.8 mm
Depth on NS 35/7,5	36.7 mm
Depth on NS 35/15	44.4 mm

Color	gray (RAL 7042)
Insulating material	PA

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Short-time withstand current 1.5 mm²	0.18 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Attachment on the carrier
DIN rail/fixing support	NS 35
Test force setpoint	1 N
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	0.964 (m/s²)²/Hz
Acceleration	0.58g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 61984

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	1107578
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE02
Product key	BE511X
GTIN	4063151008338
Weight per piece (including packing)	10.7 g
Weight per piece (excluding packing)	9.526 g
Customs tariff number	85369010
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	20 A	26 - 12
Use group C
	600 V	20 A	26 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	800 V	24 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	800 V	24 A		0.5 - 2.5

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	20 A	26 - 12
Use group C
	600 V	20 A	26 - 12
Use group F
	800 V	20 A	26 - 12

Environmental product compliance

Compatible products

Accessories

Your advantages

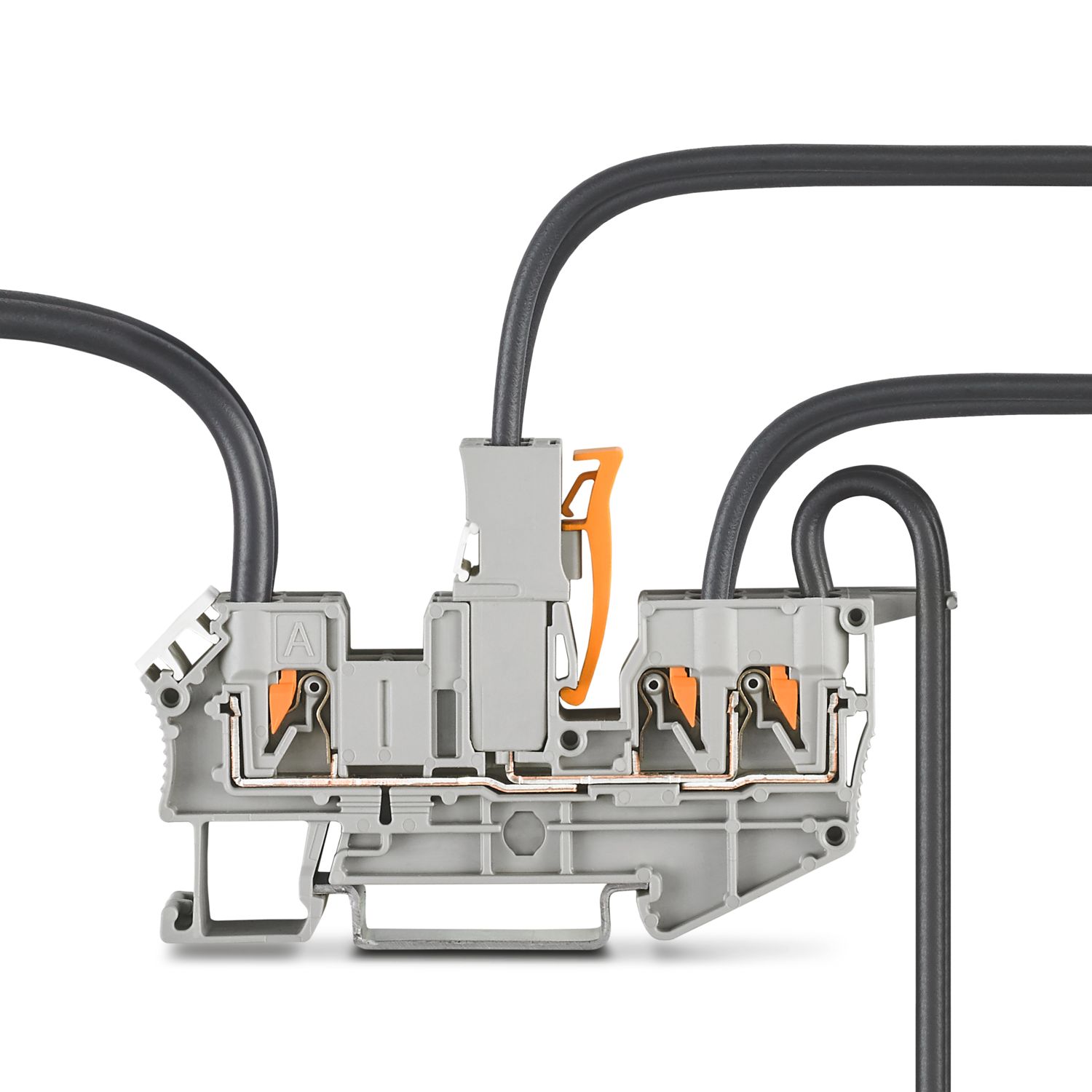

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

The plug-in potential pick-off in the middle of the terminal block can be used for testing and system diagnostics.

Use of 4 mm² Push-in COMBI connectors (32 A) or CP 4 crimp contact connector housings (10 A).

Automatically produced cable harnesses can be used.

Coding accessories from the COMBI series prevent incorrect connection or mismatching when using several connectors.

High vibration resistance with optional latching and strain relief accessories.

Double bridge shaft for additional potential distribution or test accessories can be used.

ECLASS-13.0	27250117
ECLASS-15.0	27250117

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PT 4/S-QUATTRO/1P - Feed-through terminal block

1107578

Product details

ECLASS

ETIM

UNSPSC

CSA

IECEE CB Scheme

VDE Zeichengenehmigung

cULus Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PT 4/S-QUATTRO/1P - Feed-through terminal block 1107578

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FBS 2-6 - Plug-in bridge 3030336

FBS 3-6 - Plug-in bridge 3030242

FBS 4-6 - Plug-in bridge 3030255

FBS 5-6 - Plug-in bridge 3030349

FBS 6-6 - Plug-in bridge 1008238

FBS 10-6 - Plug-in bridge 3030271

FBS 20-6 - Plug-in bridge 3030365

FBSR 2-6 - Plug-in bridge 3033715

FBSR 3-6 - Plug-in bridge 3001594

FBSR 4-6 - Plug-in bridge 3001595

FBSR 5-6 - Plug-in bridge 3001596

FBSR 10-6 - Plug-in bridge 3033716

FBSRH 2-6 - Short-circuit connector 3033812

FBS 2-6 BU - Plug-in bridge 3036932

FBS 3-6 BU - Plug-in bridge 3036945

FBS 4-6 BU - Plug-in bridge 3036958

FBS 5-6 BU - Plug-in bridge 3036961

FBS 10-6 BU - Plug-in bridge 3032198

FBS 20-6 BU - Plug-in bridge 3032208

FBS 50-6 BU - Plug-in bridge 3032211

RB ST (2,5/4)-1,5/S - Reducing bridge 3214356

RB ST 6-(2,5/4) - Reducing bridge 3030860

RB ST 16-(2,5/4) - Reducing bridge 3030886

RB ST 35-(2,5/4) - Reducing bridge 3030899

RB ST (2,5/4)-1,5 - Reducing bridge 3038943

RB UT 6-ST(2,5/4) - Reducing bridge 3047264

RB UT 35-ST(2,5/4) - Reducing bridge 3047280

RB UT 10-ST(2,5/4) - Reducing bridge 3047086

RB UT 16-ST(2,5/4) - Reducing bridge 3047099

RB PTPOWER 35-ST(2,5/4) - Reducing bridge 3030900

PC - Coding star 3040588

CP 4/2 - Connector housing 1066559

CP 4/3 - Connector housing 1066560

CP 4/4 - Connector housing 1066561

CP 4/5 - Connector housing 1066562

CP 4/6 - Connector housing 1066563

CP 4/8 - Connector housing 1066564

CP 4/10 - Connector housing 1066565

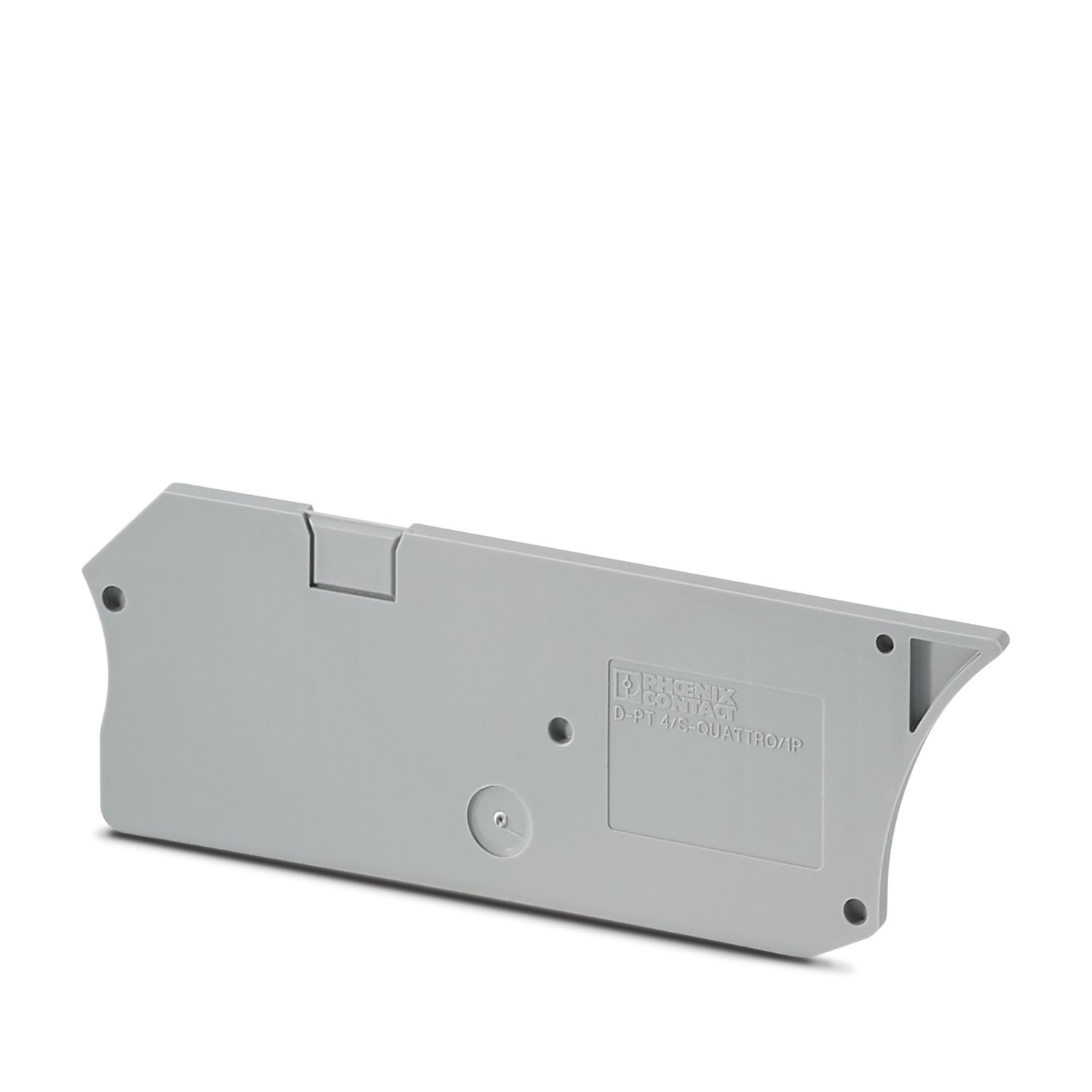

D-PT 4/S-QUATTRO/1P - End cover 1107580
