Cable housing - KGG-MC 1,5/ 4
1834369

Cable housing, pitch: 3.81 mm, number of positions: 4, dimension a: 17.63 mm, color: green


Product Details




Product type Cable housing
Number of positions 4
Pitch 3.81 mm

Color green
Flammability rating according to UL 94 HB
Insulating material group I
Insulating material ABS

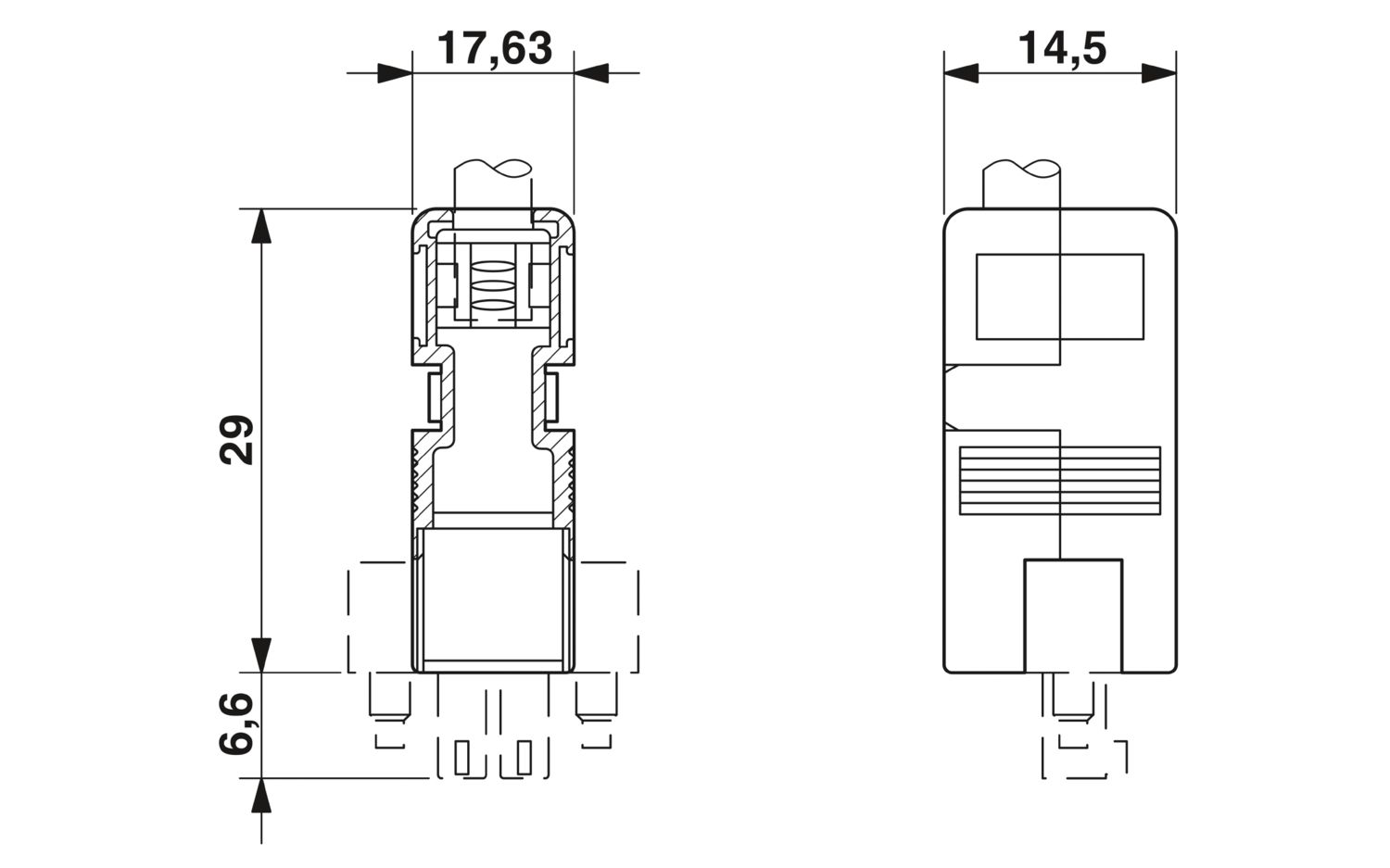

Dimensional drawing
Width 14.5 mm
Height 35.6 mm
Pitch 3.81 mm

Item number 1834369
Packing unit 1 pc
Minimum order quantity 10 pc
Sales Key A01
Product Key AAHZDB
Catalog Page Page 242 (C-1-2013)
GTIN 4017918051884
Weight per Piece (including packing) 4.65 g
Weight per Piece (excluding packing) 4.4 g
Customs tariff number 85389099
Country of origin PL


ECLASS

ECLASS-10.0.1 27440392
ECLASS-9.0 27440392
ECLASS-11.0 27460402

ETIM

ETIM 8.0 EC002943

UNSPSC

UNSPSC 21.0 39121400

EAC

Approval ID: B.01687

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
