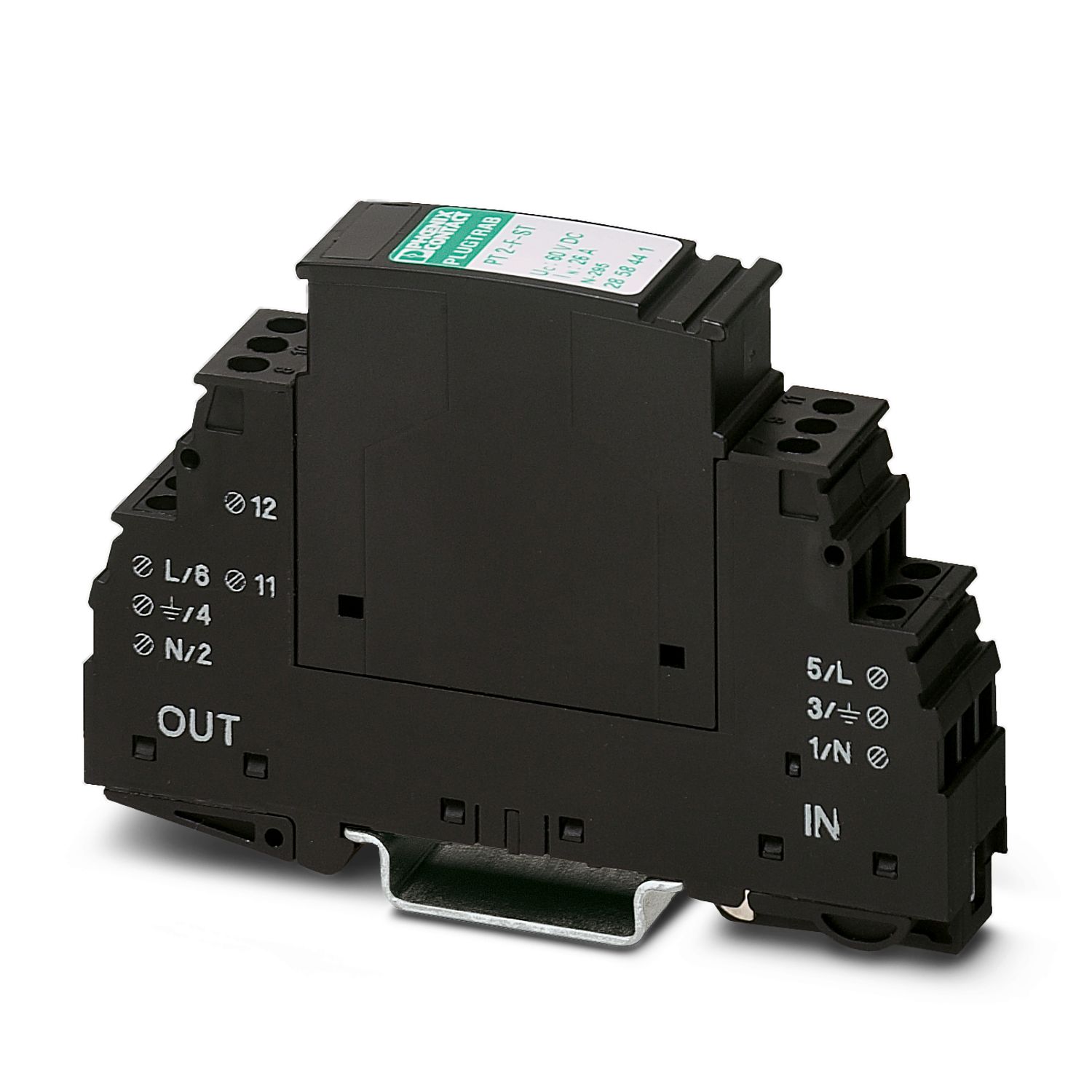

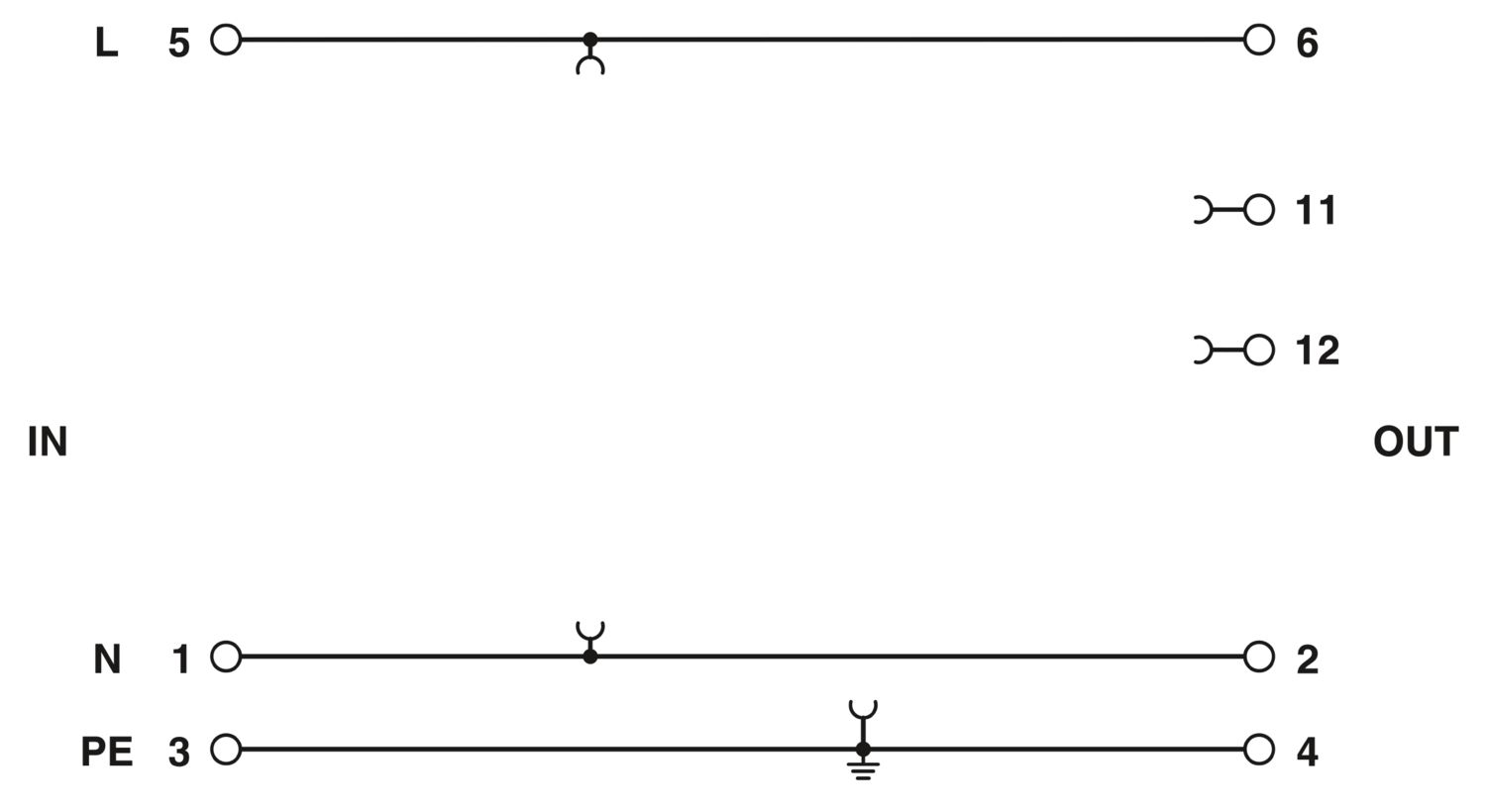

Type 3 surge protection base element - PT-BE/FM
2839282

Base element for protective plug PT, for mounting on NS 35/7.5 and NS 35/15, housing width: 17.5 mm


Product Details




Type Base element, DIN rail mounting
Product type Base element
Number of positions 3
Surge protection fault message Remote indication contact
Insulation characteristics
Overvoltage category III
Pollution degree 2
IEC test classification III
T3
EN type T3
Number of ports One

Connection name Remote fault indicator contact
Switching function N/C contact

Connection method Screw connection
Screw thread M3
Tightening torque 0.8 Nm
Conductor cross section flexible 0.2 mm² ... 2.5 mm²
Conductor cross section solid 0.2 mm² ... 4 mm²
Conductor cross section AWG 24 ... 12

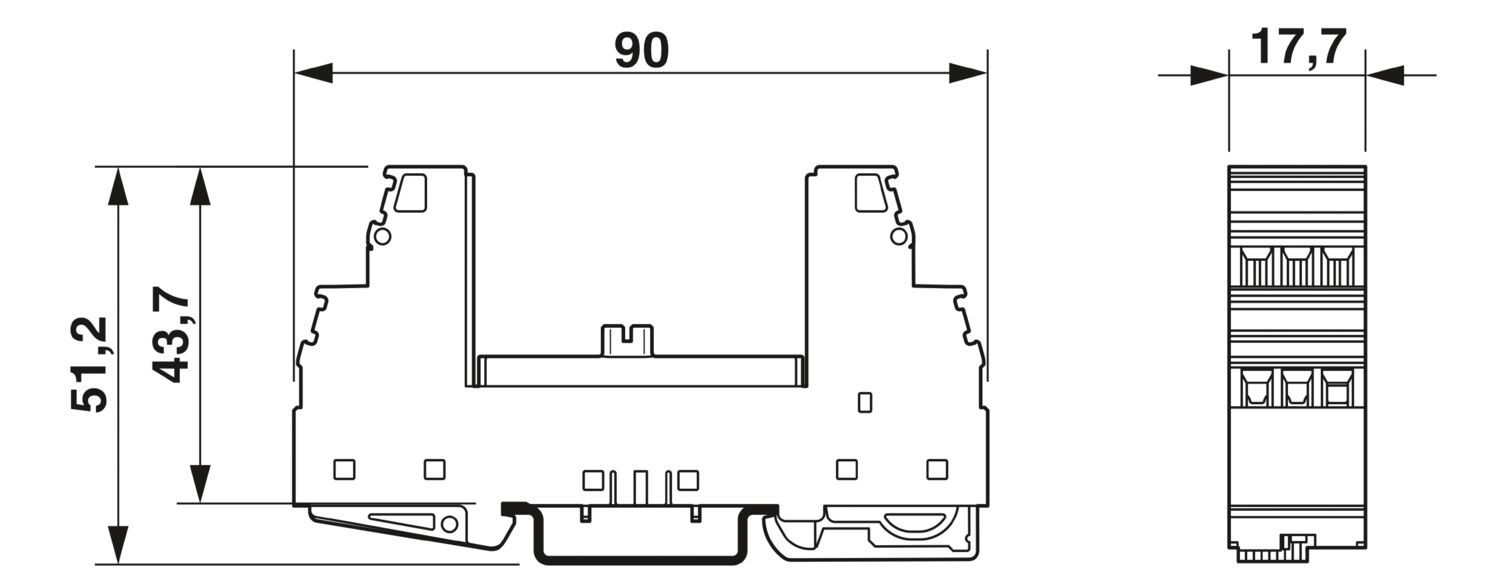

Dimensional drawing
Width 17.7 mm
Width 17.7 mm
Height 90 mm
Height 90 mm
Depth 51.2 mm
Depth 51.2 mm
Horizontal pitch 1 Div.
Complete module width 17.7 mm
Complete module height 90 mm
Complete module depth 65.5 mm

Color jet black RAL 9005
Flammability rating according to UL 94 V-0
CTI value of material 600
Insulating material PA 6.6-FR
Material group I
Housing material PA 6.6-FR

Mechanical data
Open side panel No

Nominal voltage UN 230 V AC (TN-S)
230 V AC (TT)
Nominal frequency fN 50 Hz (60 Hz)
Maximum continuous voltage UC 264 V AC
Rated load current IL 26 A (30 °C)
Short-circuit current rating ISCCR 1.5 kA AC
Max. backup fuse with branch wiring depends on the plug used

Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -40 °C ... 80 °C
Ambient temperature (storage/transport) -40 °C ... 80 °C
Altitude ≤ 2000 m (amsl (above mean sea level))
Permissible humidity (operation) 5 % ... 95 %
Shock (operation) 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation) 5g (10 ... 150 Hz/20 cycles/axis/X, Y, Z)

UL specifications
Nominal voltage 240 V DC
Rated load current IL 20 A
Power distribution system Split phase
Nominal frequency 50/60 Hz
SPD Type ACC
UL connection data
Tightening torque 5 lbf-in. ... 7 lbf-in.
Conductor cross section AWG 14 ... 12

Standards/specifications IEC 61643-11
Standards/specifications EN 61643-11

Mounting type DIN rail: 35 mm

Item number 2839282
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key C06
Product Key CL1411
Catalog Page Page 138 (C-4-2019)
GTIN 4017918182502
Weight per Piece (including packing) 48.703 g
Weight per Piece (excluding packing) 45.91 g
Customs tariff number 85363010
Country of origin DE


ECLASS

ECLASS-9.0 27130803
ECLASS-10.0.1 27130803
ECLASS-11.0 27130803

ETIM

ETIM 8.0 EC000472

UNSPSC

UNSPSC 21.0 39121600

cUL Recognized

Approval ID: FILE E 330181

UL Recognized

Approval ID: FILE E 330181

EAC

Approval ID: RU C-DE.*09.B.00169

cUL Recognized

Approval ID: FILE E 340736
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2

UL Recognized

Approval ID: FILE E 340736
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2

cULus Recognized

cULus Recognized


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
