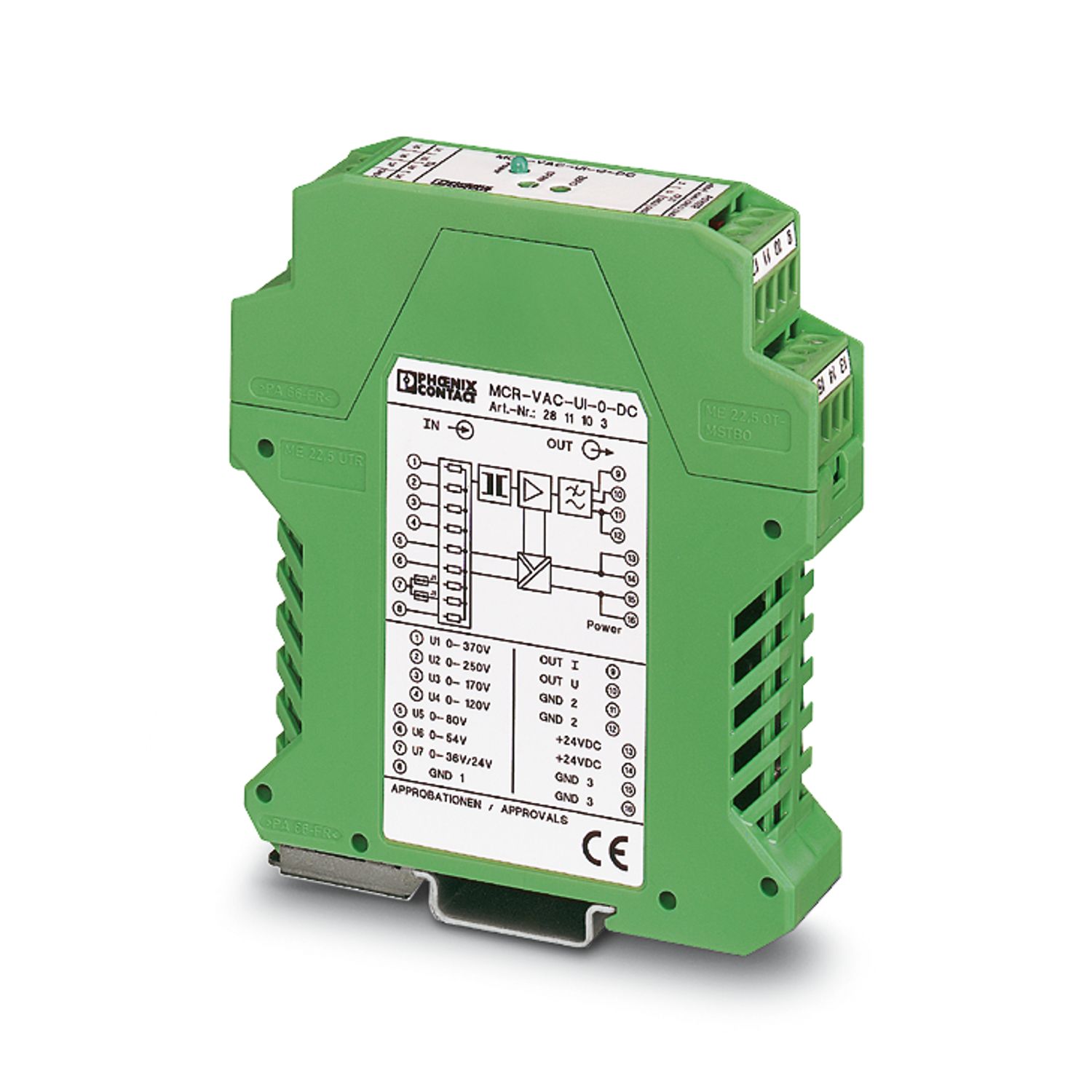

MCR-VAC-UI-O-DC - Voltage measuring transducers - 2811103

Product properties

Product type	Voltage transducer
Insulation characteristics
Overvoltage category	III
Pollution degree	2

Electrical properties

Alignment span	± 20 %
Alignment zero	± 20 %
Rated insulation voltage	300 V DC
Frequency measuring range	45 Hz ... 400 Hz
Maximum power dissipation for nominal condition	0.8 W
Test voltage output/power supply	1 kV (50 Hz, 1 min.)
Test voltage input/output	3.3 kV (50 Hz, 1 min.)
Test voltage input/power supply	3.3 kV (50 Hz, 1 min.)
Step response (10-90%)	250 ms
Temperature coefficient, typical	0.02 %/K (50/60 Hz)
Maximum transmission error	< 1.5 % (of final value)
Supply
Supply voltage range	18.5 V DC ... 30.2 V DC
Max. current consumption	< 45 mA

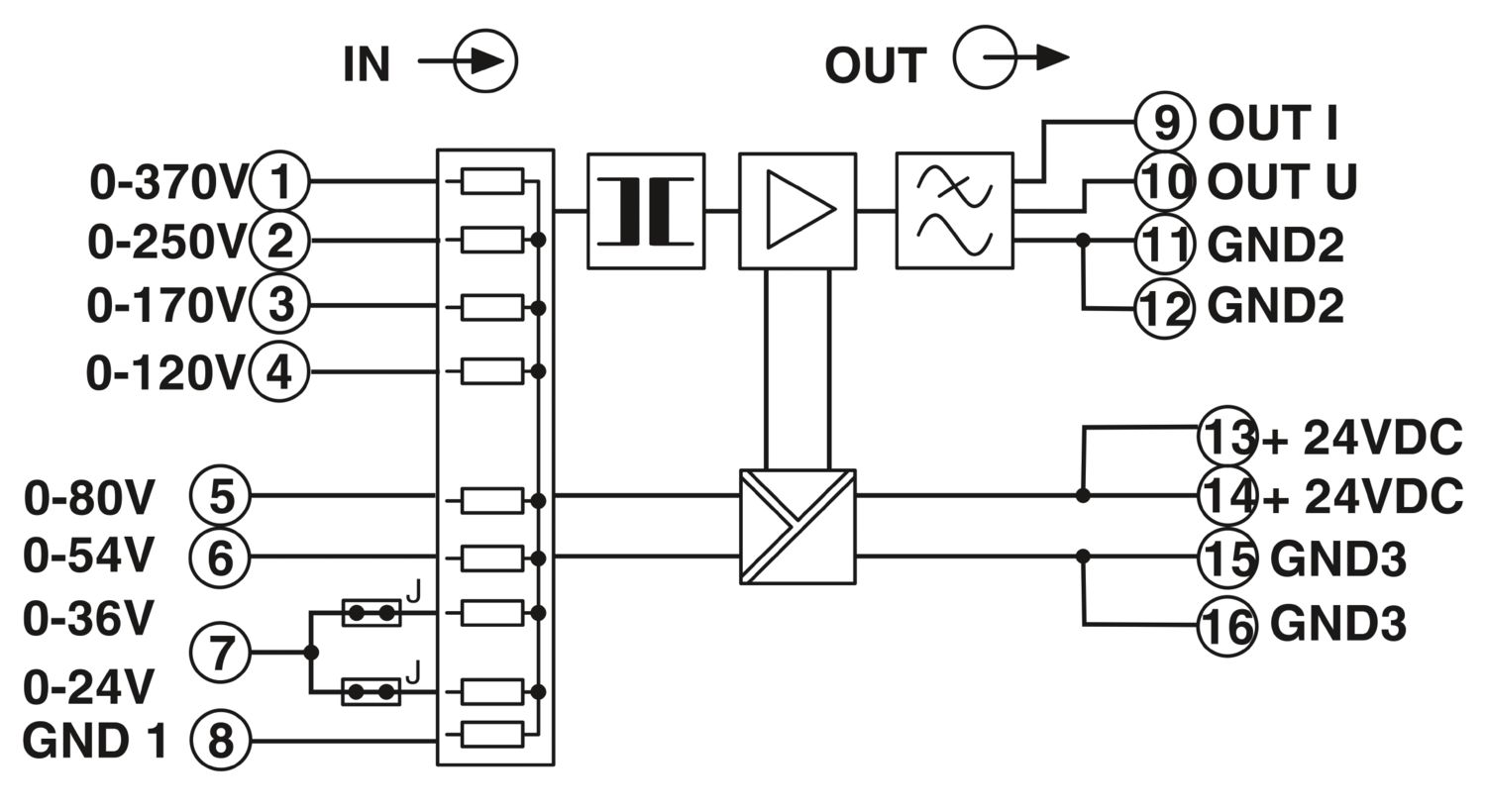

Input data

Measurement
Description of the input	0 V - 370 V input
Configurable/programmable	Yes
Input voltage range	0 V ... 370 V AC
Maximum input voltage	440 V (ungrounded)
Maximum input voltage		250 V (to earth)
Input resistance of voltage input	370 kΩ
Impulse form	AC voltage
Measurement
Description of the input	0 V - 250 V input
Input voltage range	0 V ... 250 V AC
Input resistance of voltage input	250 kΩ
Measurement
Description of the input	0 V - 170 V input
Input voltage range	0 V ... 170 V AC
Input resistance of voltage input	170 kΩ
Measurement
Description of the input	0 V - 120 V input
Input voltage range	0 V ... 120 V AC
Input resistance of voltage input	120 kΩ
Measurement
Description of the input	0 V - 80 V input
Input voltage range	0 V ... 80 V AC
Input resistance of voltage input	80 kΩ
Measurement
Description of the input	0 V - 54 V input
Input voltage range	0 V ... 54 V AC
Input resistance of voltage input	54 kΩ
Measurement
Description of the input	0 V - 36 V input
Input voltage range	0 V ... 36 V AC
Input resistance of voltage input	36 kΩ
Measurement
Description of the input	0 V - 24 V input
Input voltage range	0 V ... 24 V AC
Input resistance of voltage input	24 kΩ

Output data

Signal: Voltage output
Voltage output signal	0 V ... 10 V
Max. voltage output signal	15 V
Load/output load voltage output	> 10 kΩ
Ripple	< 50 mV_PP
Signal: Current output
Current output signal	0 mA ... 20 mA
	4 mA ... 20 mA
Max. current output signal	30 mA
Load/output load current output	< 500 Ω
Ripple	< 50 mV_PP

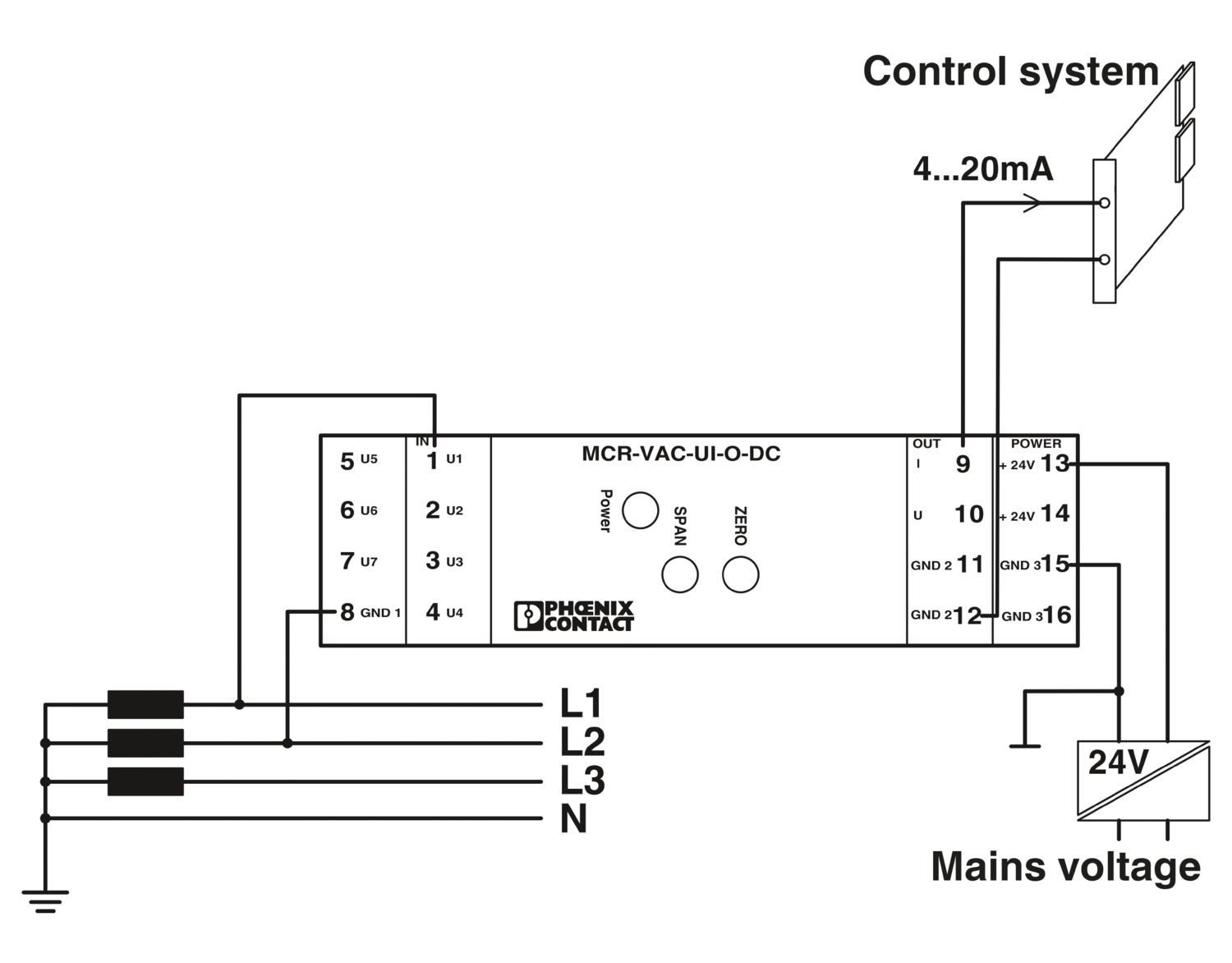

Connection data

Connection method	Pluggable screw connection
Connection technology	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 14

Dimensions

Material specifications

Color	green (RAL 6021)
Housing material	Polyamide PA non-reinforced

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C (non-condensing)
Altitude	< 2000 m

Approvals

EMC data

Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2
Noise emission
Standards/regulations	EN 61000-6-4

Mounting

Item number	2811103
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	CK4
Product key	CMMB11
Catalog page	Page 236 (C-7-2013)
GTIN	4017918125400
Weight per piece (including packing)	204.5 g
Weight per piece (excluding packing)	204.5 g
Customs tariff number	85437090
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Hexahydromethylphthalic anhydride (CAS: n/a)
		Lead (CAS: 7439-92-1)
