HC-D-TA-PG16-PLR-BK
-
Adapter
1411353
Plastic thread adapter with bayonet lock, for EVO housing series D, for Pg16 screw connections.
Product details
| Product type | Thread adapter |
| Type of the screw connection | Pg16 |

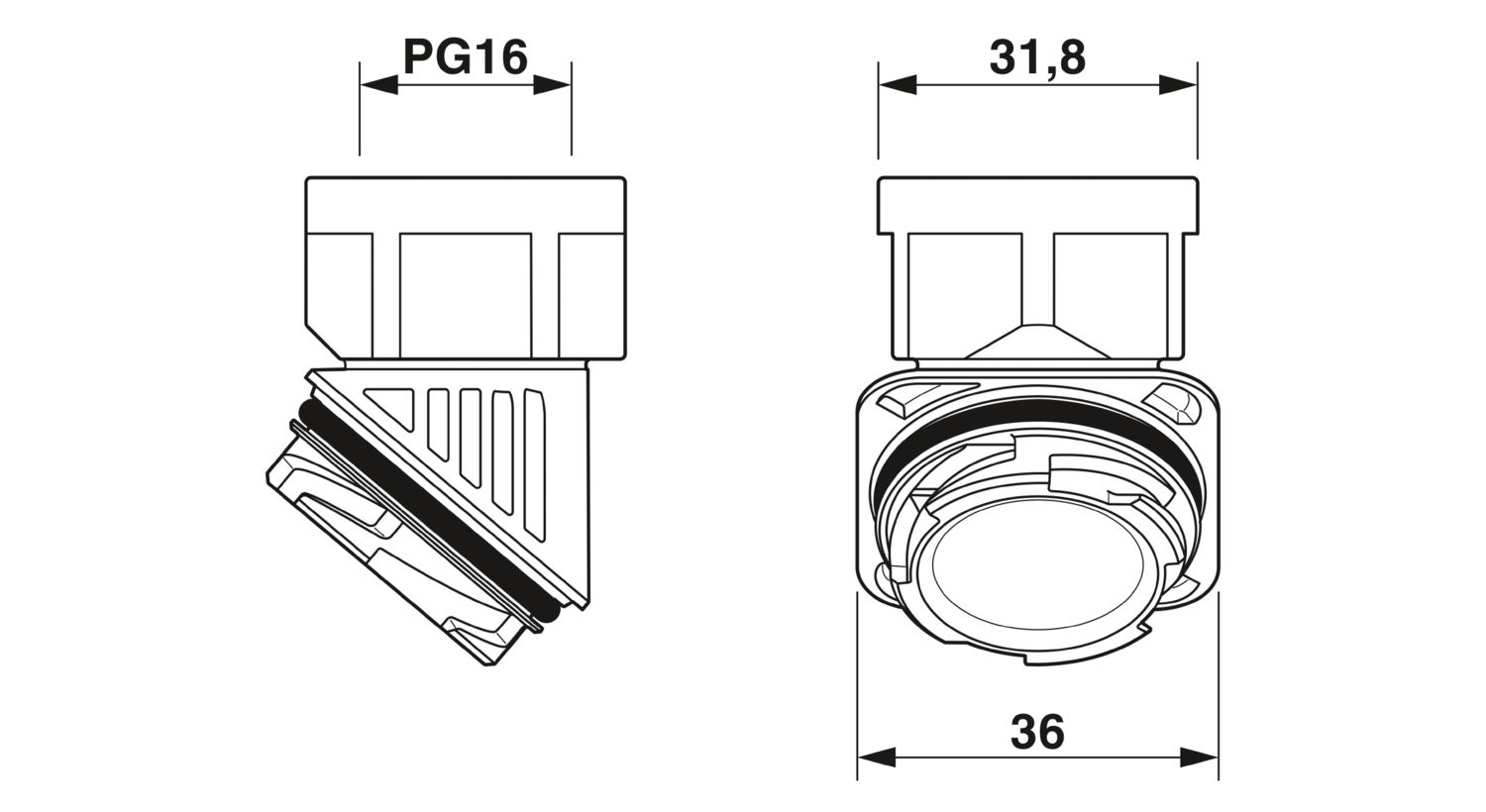

| Dimensional drawing |
|
| Thread type on seal side | Pg16 |
| Internal dimensions | |
| Length of internal thread | 11 mm |
| Flammability rating according to UL 94 | V2 |
| Seal material O-ring | NBR |
| Housing material | PA |
| Mechanical data | |
| Type of the screw connection | Pg16 |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | Bayonet locking max. 3x can be removed |
| The plastic thread adapter does not establish an electrical connection between the cable gland and connector housing. For this reason, only plastic cable protection systems or plastic cable glands may be used. |
