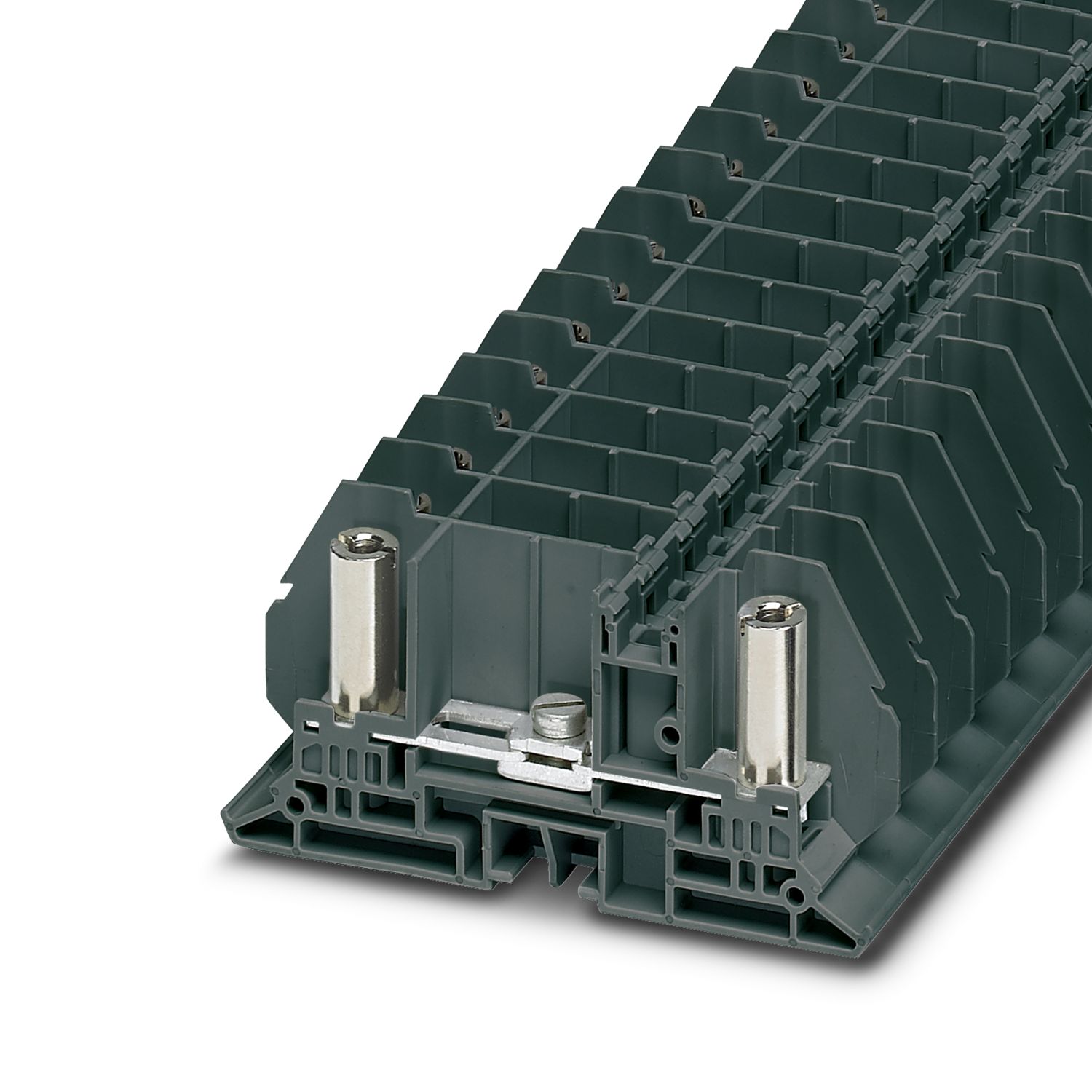

Test disconnect terminal block, nom. voltage: 800 V, nominal current: 50 A, 1 level, connection method: Bolt connection, Rated cross section: 10 mm2, mounting: direct screw connection, color: dark gray
Product details
Product type
Bolt connection terminal block
Pitch
13 mm
Number of connections
2
Number of rows
1
Potentials
1
Insulation characteristics
Overvoltage category
III
Degree of pollution
2
Rated surge voltage
6 kV
Number of connections per level
2
Nominal cross section
6 mm²
Tightening torque disconnect slide
1.2 ... 1.4 Nm
1 level
Stripping length
The stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standard
IEC 60947-7-1
Nominal current
50 A
Maximum load current
50 A (with 10 mm² conductor cross section)
Nominal voltage
800 V
Nominal cross section
10 mm²
Cable lug connection DIN 46234:1980-03
Connection in acc. with standard
DIN 46234:1980-03
Cross section
0.5 mm² ... 10 mm²
Cross section range AWG
26 ... 8 (converted acc. to IEC)
Hole diameter
5.3 mm
Width
11 mm
Bolt diameter
5 mm
Screw thread
M5
Tightening torque
2 ... 2.2 Nm
Connection in acc. with standard
DIN 46237:1970-07
Cross section
1 mm² ... 6 mm²
Cross section range AWG
20 ... 10 (converted acc. to IEC)
Hole diameter
5.3 mm
Width
10 mm
Bolt diameter
5 mm
Tightening torque
2 ... 2.2 Nm
Identification color of ring cable lugs : red
1 mm²
Identification color of ring cable lugs : blue
2.5 mm²
Identification color of ring cable lugs : yellow
6 mm²
Width
20.75 mm
End cover width
10 mm
Height
39.7 mm
Pitch
13 mm
Color
dark gray
Flammability rating according to UL 94
V2
Insulating material group
I
Insulating material
PA
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))
125 °C
Relative insulation material temperature index (Elec., UL 746 B)
125 °C
Surge voltage test
Test voltage setpoint
9.8 kV
Result
Test passed
Temperature-rise test
Requirement temperature-rise test
Increase in temperature ≤ 45 K
Result
Test passed
Test passed
Short-time withstand current 10 mm²
1.2 kA
Result
Test passed
Power-frequency withstand voltage
Test voltage setpoint
2 kV
Result
Test passed
Mechanical data
Open side panel
Yes
Mechanical strength
Result
Test passed
Needle-flame test
Time of exposure
30 s
Result
Test passed
Oscillation/broadband noise
Specification
DIN EN 50155 (VDE 0115-200):2018-05
Spectrum
Long life test category 2, bogie-mounted
Frequency
f1 = 5 Hz to f2 = 250 Hz
ASD level
6.12 (m/s²)²/Hz
Acceleration
3.12g
Test duration per axis
5 h
Test directions
X-, Y- and Z-axis
Shocks
Specification
DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape
Semi-sinusoidal
Acceleration
30g
Shock duration
18 ms
Number of shocks per direction
3
Test directions
X-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Ambient temperature (operation)
-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Connection in acc. with standard
IEC 60947-7-1
Mounting type
direct screw connection
Item number
3059595
Packing unit
50 pc
Minimum order quantity
50 pc
Sales key
BE4
Product key
BEM433
GTIN
4046356501385
Weight per piece (including packing)
99.99 g
Weight per piece (excluding packing)
99.99 g
Country of origin
IN
ECLASS
ECLASS-13.0
27250101
ETIM
ETIM 9.0
EC000897
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)
Lead(CAS: 7439-92-1)
