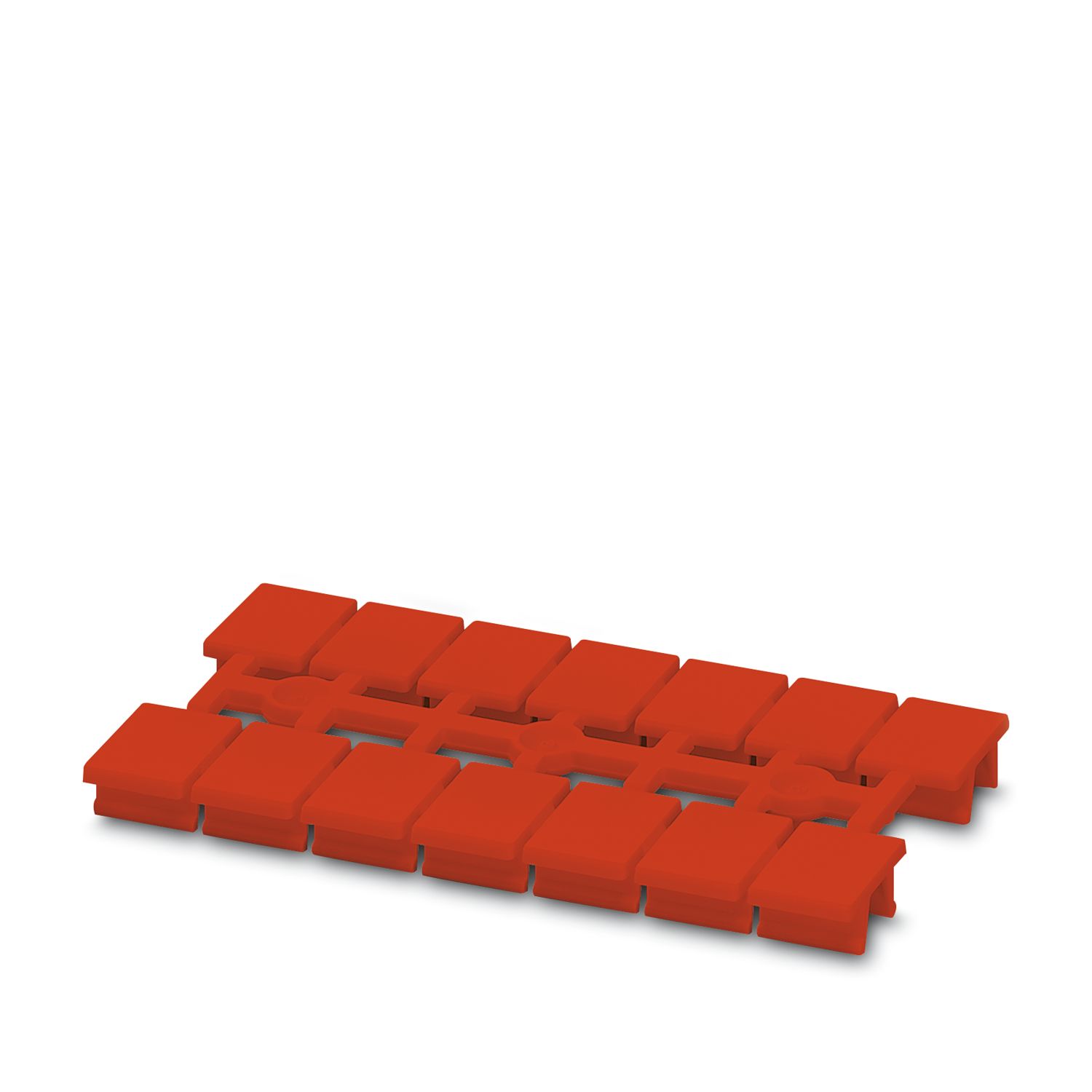

UM-TM (8X10) RD - Marker for terminal blocks - 0833154

Product properties

Product type	Terminal marking
Pitch	8.2 mm
Type	high
Marking
Number of individual labels	14
Number of individual labels per row	7
Number of marker strips	2

Dimensions

Material specifications

RoHS compliant	yes
Color	flame red (RAL 3000)
Material	PC
Flammability rating according to UL 94	V2
Components	free from silicone, halogen, and cadmium

Environmental and real-life conditions

Test for substances that would hinder coating with paint or varnish
Result	Test passed
UV resistance
Specification	ISO 4892-2:2013-03 (following)
Result	Test passed
Test duration	96 h
Wipe resistance of inscriptions
Specification	IEC 61010-1:2010-06
Specification		DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]	Test passed
n-Hexane [CAS No. 110-54-3]	Test passed
Water + Petroleum ether [CAS No. 64742-82-1]	Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification	DIN 50018:2013-05
Result	Test passed
Climate level	AHT 1.0 S
Cycles	2
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-40 °C ... 120 °C

Standards and regulations

Wipe resistance	DIN EN 61010-1 (VDE 0411-1)

Mounting

Item number	0833154
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	BG2
Product key	BG211M
GTIN	4046356986281
Weight per piece (including packing)	2.389 g
Weight per piece (excluding packing)	2.15 g
Customs tariff number	39269097
Country of origin	PL

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
