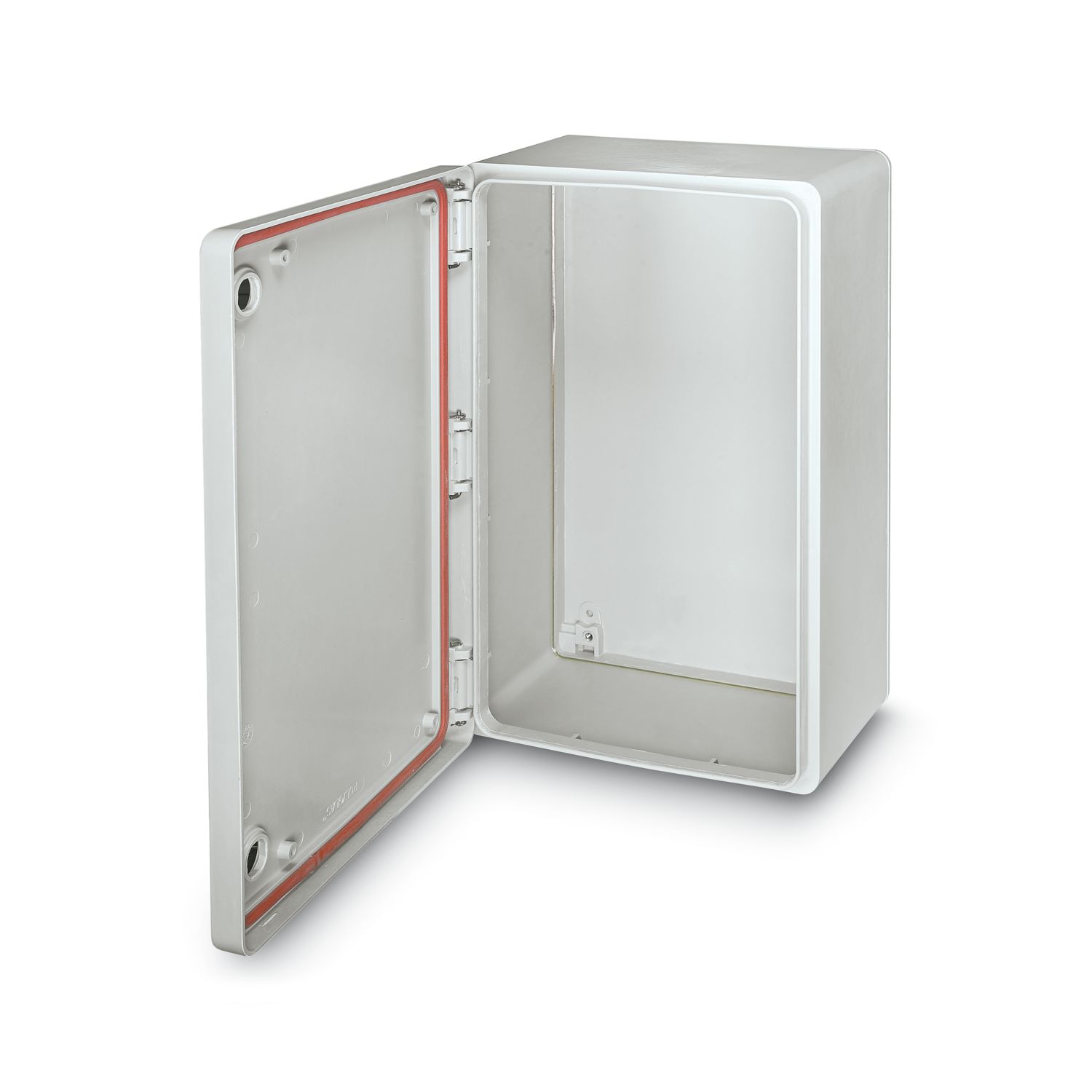

C PE A 400X600X250
-
Junction box
0899366
Junction box, material: Polyester fiberglass reinforced, squirrell grey RAL 7000, 405 mm x 605 mm x 252 mm, type of locking: Door
Product details
| General | Mounting panel required |
| Product type | Terminal box |
| Type | Empty enclosure with door |
| Manufacturer product number | 21.40 60 00 0 |
| Insulation characteristics | |
| Protection class | II |
| Dimensional drawing |
|
| Width | 405 mm |
| Height | 605 mm |
| Depth | 252 mm |
| Clearance width, maximum DIN rail length | 565 mm |
| Color | squirrell grey RAL 7000 |
| Material | Polyester fiberglass reinforced |
| Flammability rating according to UL 94 | V0 |
| Seal material | Chloroprene |
| Components | halogen-free |
| General | |
| Type of locking (GRP) | Door Door lock not supplied as standard |
| Degree of protection (IP code) | |
| Degree of protection | IP66 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Assembly note | External fixing clips |
| External fixing clip not supplied as standard | |
| Direct DIN rail mounting | no |
