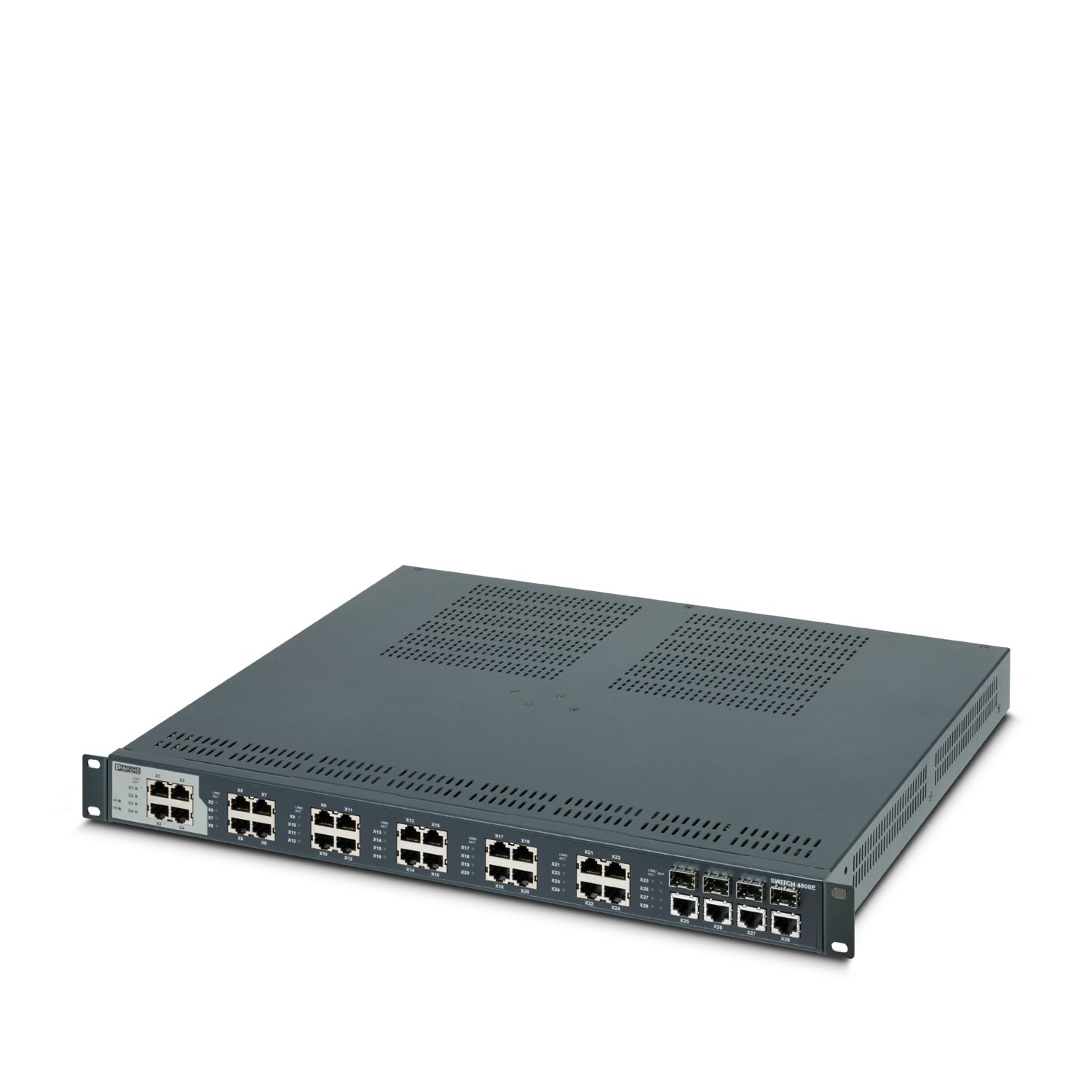

FL SWITCH 4824E-4GC - Industrial Ethernet Switch

2891072

Rack-mount managed Ethernet switch meets IEC 61850-3 and IEEE 1613. Provides 24 RJ45 ports at 10/100 Mbps and four gigabit combo ports (10/100/1000 Mbps RJ45 connection; 1000 Mbps fiber optic connection requires 1000 Mbps SFP module)

This product needs further products for operation. Mandatory accessories

Free download available. Downloads

Product details

Product description

Width	442 mm
Height	44 mm
Depth	375 mm

Note on application
Note on application	Only for industrial use
Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Mounting type	Rack mount, includes brackets

Ethernet (RJ45)
Connection method	RJ45
Note on the connection method	Auto negotiation and autocrossing
Transmission speed	10/100 Mbps
Transmission physics	Ethernet in RJ45 twisted pair
Transmission length	100 m
No. of channels	24 (RJ45 ports)
Ethernet (RJ45/FO combo)
Connection method	SFP/RJ45
Note on the connection method	Auto negotiation and autocrossing (RJ45 interface)
Transmission speed	10/100/1000 Mbps
Transmission physics	Ethernet RJ45 (10/100/1000 Mbps) or SFP (1000 Mbps)
No. of channels	4 (Combo ports)

Product type	Switch
Product family	Managed Switch 4000
Type	Block design
MTTF	17.2 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
	278 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
	269.5 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
Switch functions
Basic functions	Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Redundancy	ERR (Extended ring redundancy)
Status and diagnostic indicators	LEDs: U_S1, U_S2 (redundant voltage supply), link and activity per port
Security functions
Basic functions	Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts

Current consumption	359 mA (115 V AC from FL SWITCH 4800E-P5)
Transmission medium	Copper
	FO
Supply
Power supply connection	From FL SWITCH 4800E-P...
Inrush current	18.8 A (48 V DC from FL SWITCH 4800E-P1)
	20.7 A (115 V AC from FL SWITCH 4800E-P5)
Current consumption	359 mA (115 V AC from FL SWITCH 4800E-P5)

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	5 % ... 95 % (non-condensing)
Air pressure (operation)	57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Air pressure (storage/transport)	57 kPa ... 108 kPa (up to 4850 m above mean sea level)

Standard designation	Ambient conditions
Standards/specifications	IEC 61850-3

Noise immunity	IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005
Noise emission
Standards/regulations	EN 61000-6-4

Functionality
Basic functions	Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts

Status display	LEDs: U_S1, U_S2 (redundant voltage supply), link and activity per port

Commercial data

Item number	2891072
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DNN
Product key	DNN125
Catalog page	Page 320 (C-6-2019)
GTIN	4046356764360
Weight per piece (including packing)	5,037 g
Weight per piece (excluding packing)	3,601 g
Customs tariff number	85176200
Country of origin	TW

Classifications

Approvals

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

Network structure according to IEC 61850

IEEE 1613

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	15(a), 6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-10 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	01bc8e3a-2db8-4dbb-87ac-e7ac142e491b

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FL SWITCH 4824E-4GC - Industrial Ethernet Switch

2891072

Product details

ECLASS

ETIM

UNSPSC

UL Listed

cUL Listed

KC

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FL SWITCH 4824E-4GC - Industrial Ethernet Switch 2891072

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FL SWITCH 4800E-P1B - Power module 1312459

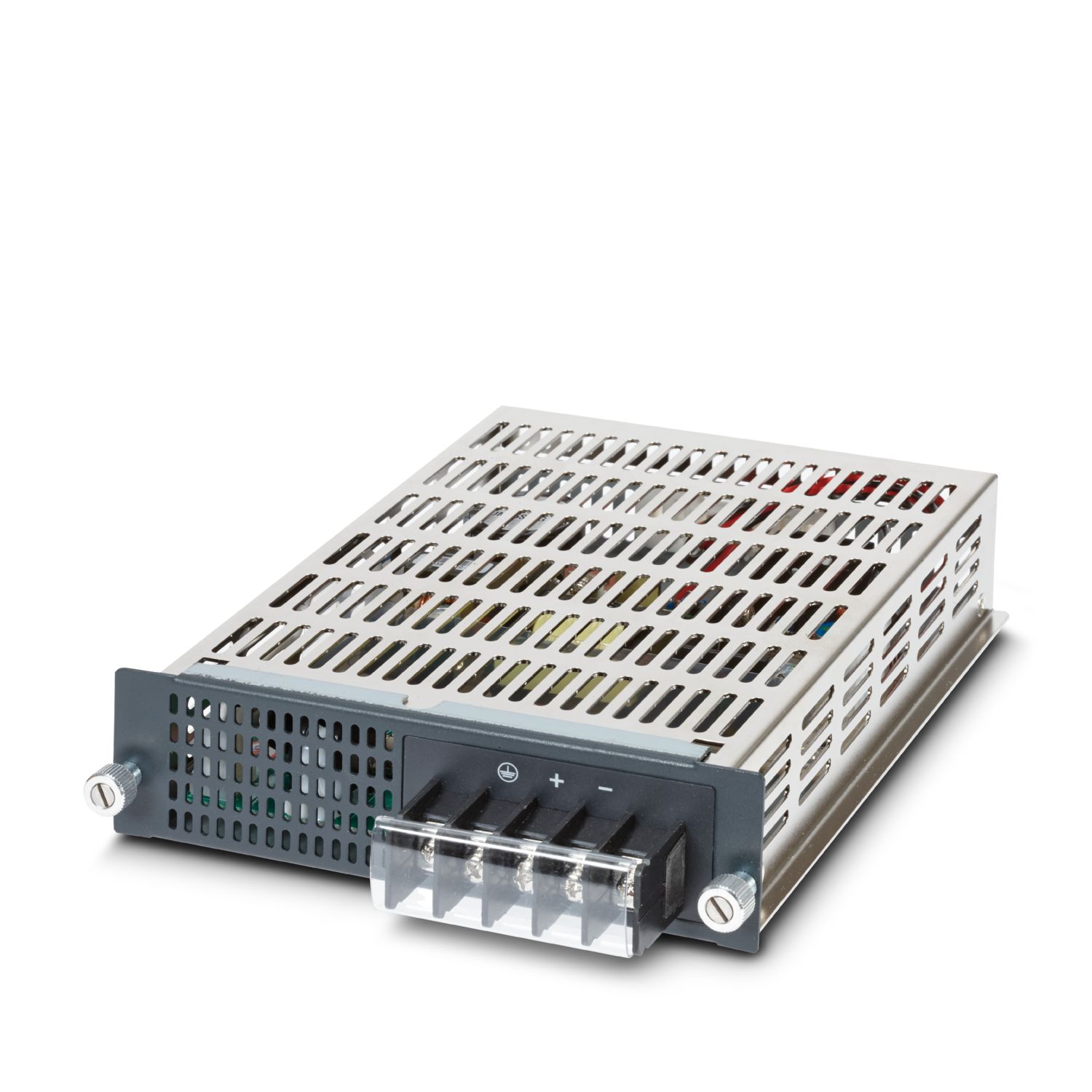

FL SWITCH 4800E-P5B - Power module 1312448
