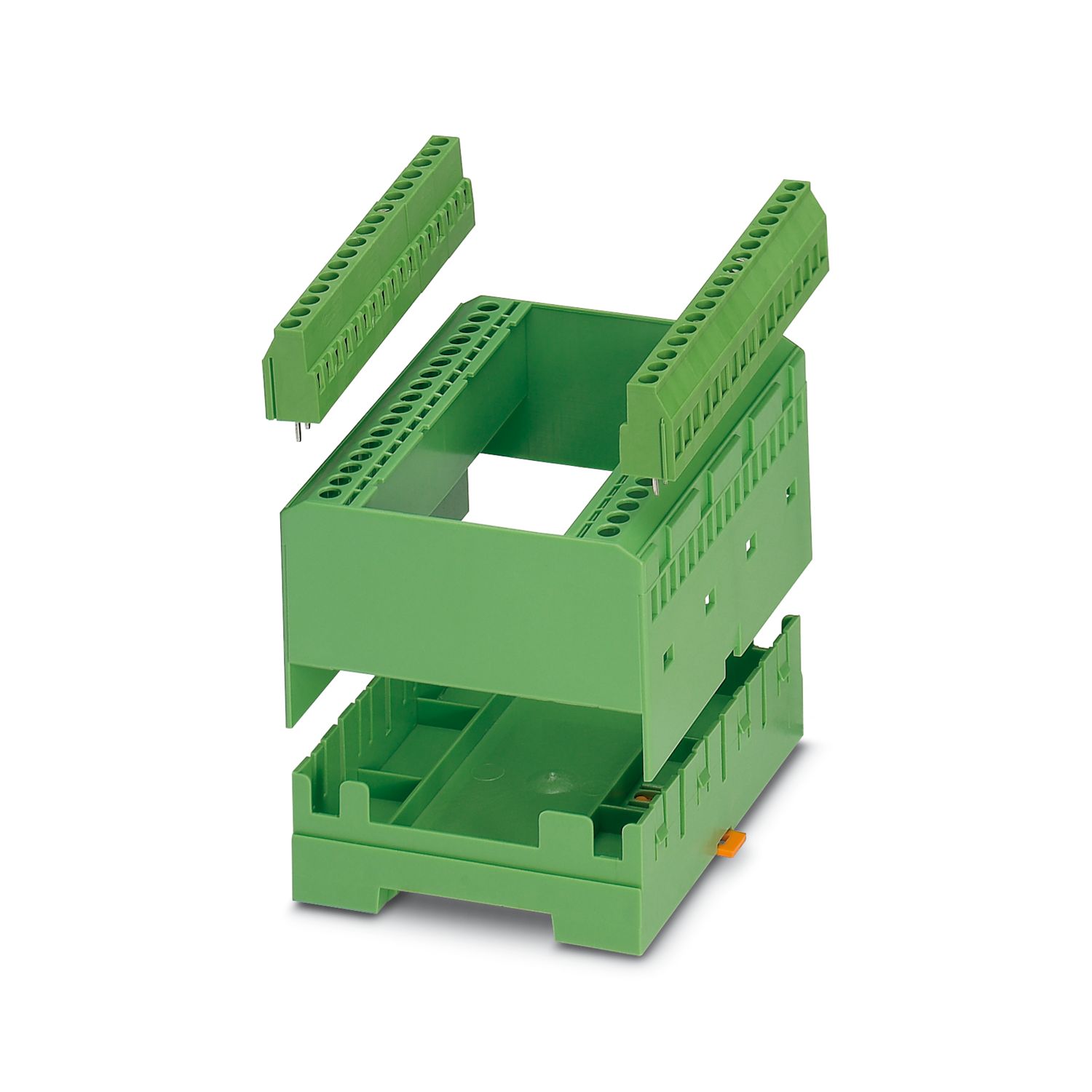

EMG 90-LG/SET
-
Electronics housing
2907884
Electronic housing set, consisting of electronic module and printed circuit termination blocks, pitch 5
This product needs further products for operation.
Mandatory accessories
Product details
| Product type | Stackable housing set |
| Housing type | Component housing |
| Product family | EMG...-LG |
| Type | Lower housing part, removable cover as option, connection system integrated |
| Number of positions | 34 |
| Pitch | 5 mm |
| Dimensional drawing |
|
| Width | 90 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 55 mm |
| 83 mm | |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 5 mm |
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate fiber reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail mounting |
