EMG 22-B4
-
Electronics housing
2946146
Custom circuit module, consisting of housing, MKDS 3 connection terminal blocks and PCB
This product needs further products for operation.

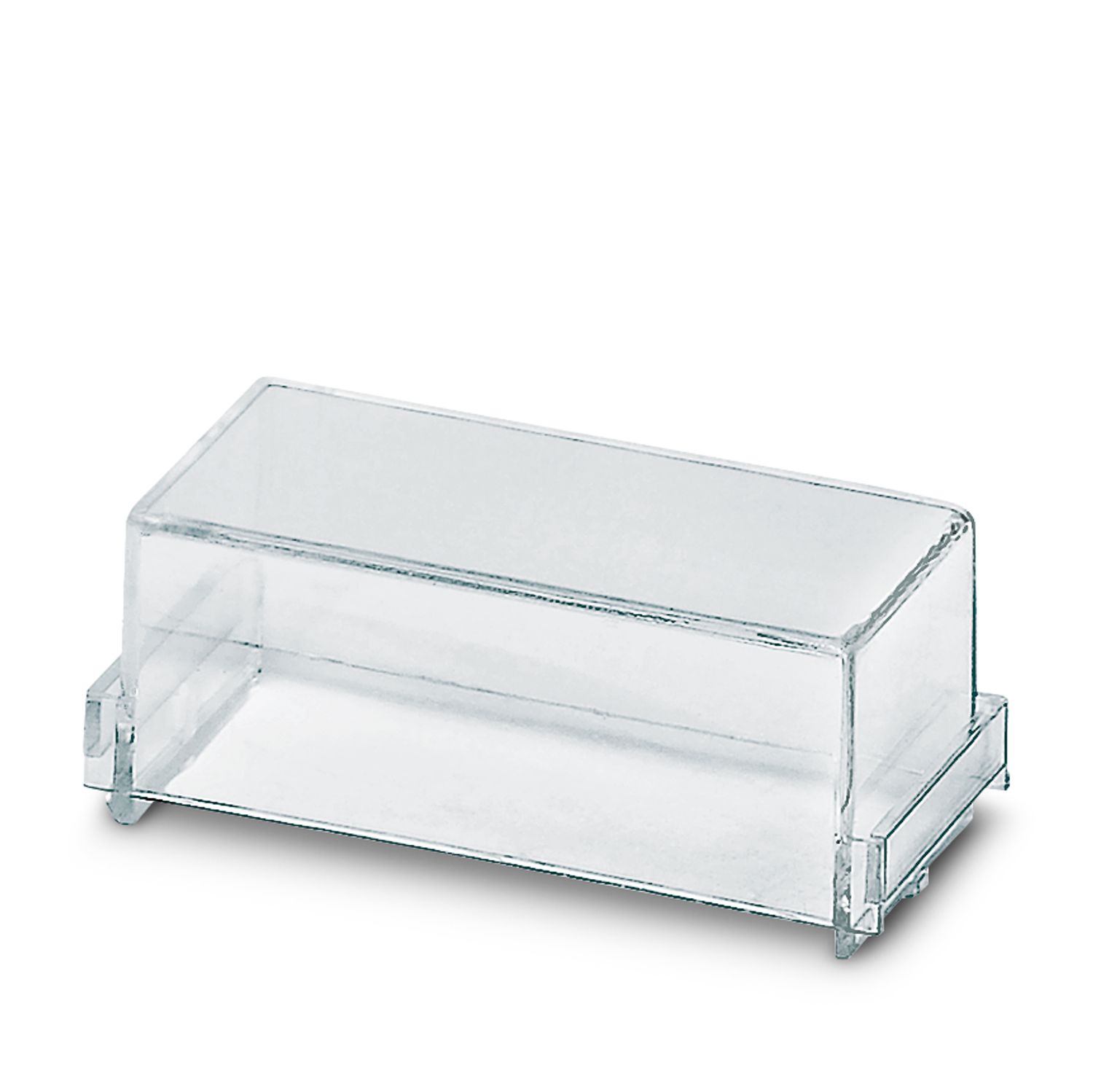

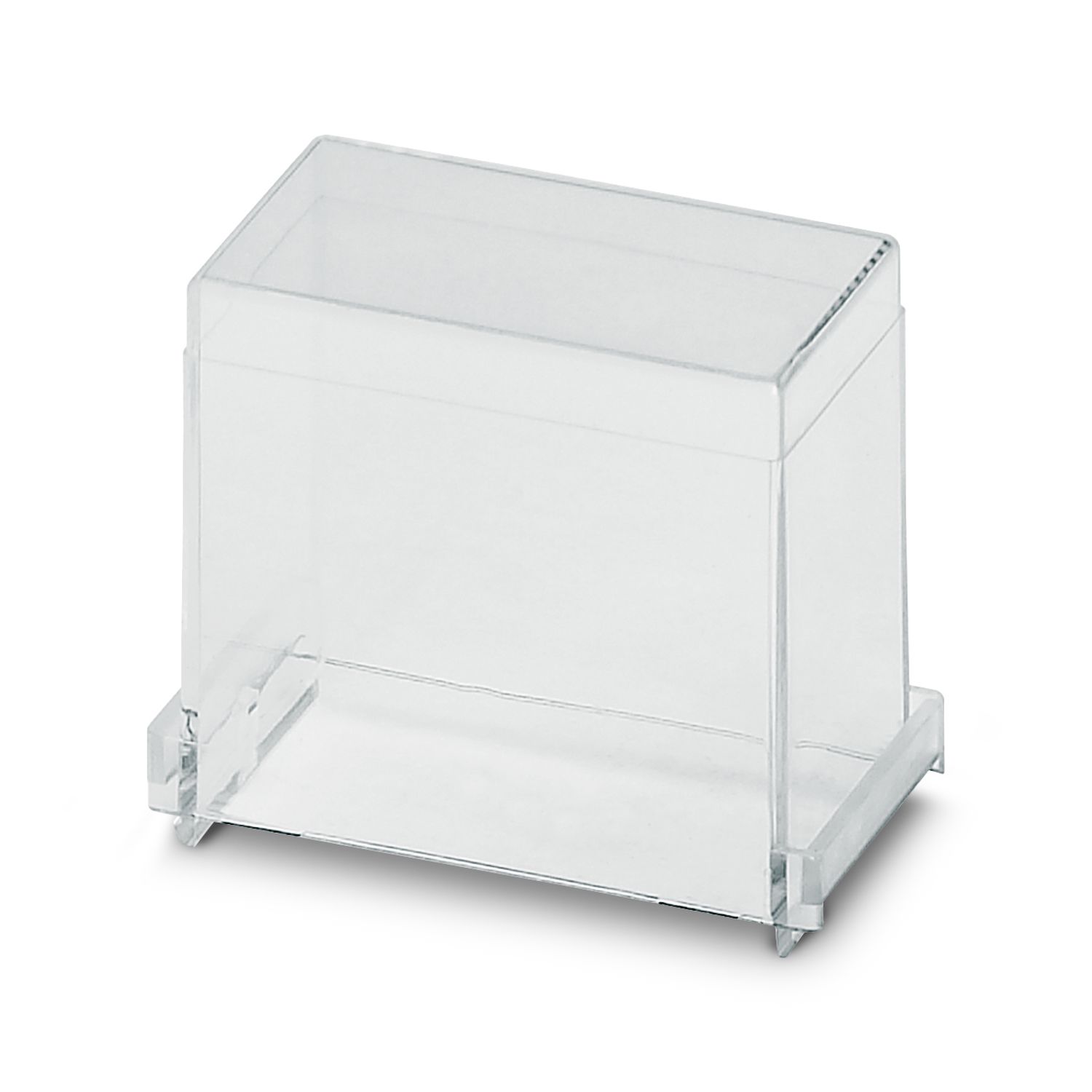

Mandatory accessories
Product details
| Product type | Stackable housing set |
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG |
| Type | Lower housing part, removable cover as option, connection system integrated, PCB integrated |
| Number of positions | 8 |
| Pitch | 5 mm |
| Type | Lower and upper part with universal foot, with PCB and solder tags that are led to the MKDS 3/... connection terminal blocks |

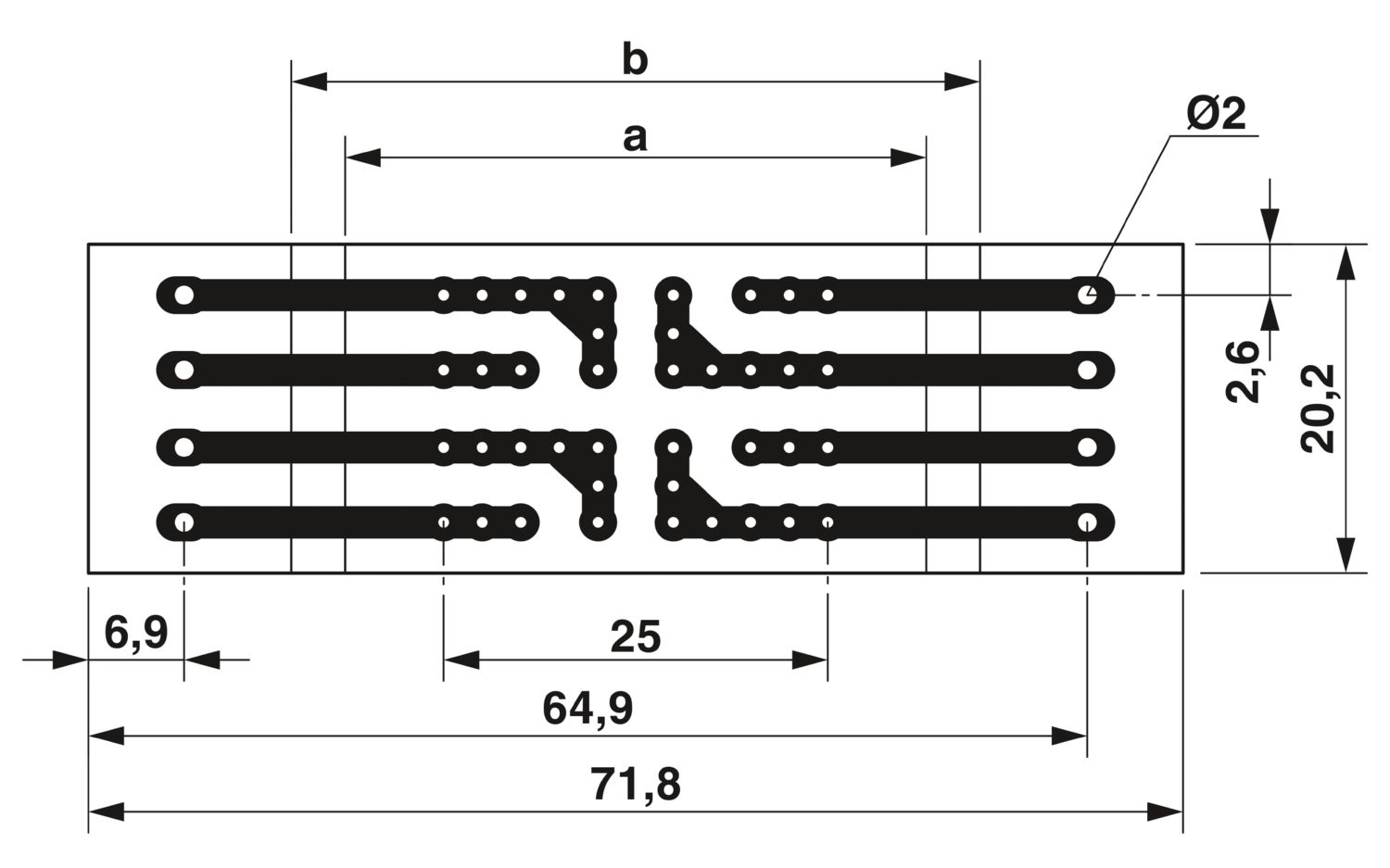

| Dimensional drawing |
|
| Width | 22.5 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 55 mm |
| 83 mm | |
| 100 mm | |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 5 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate, glass-fiber-reinforced |
| Surface characteristics | untreated |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail mounting |
