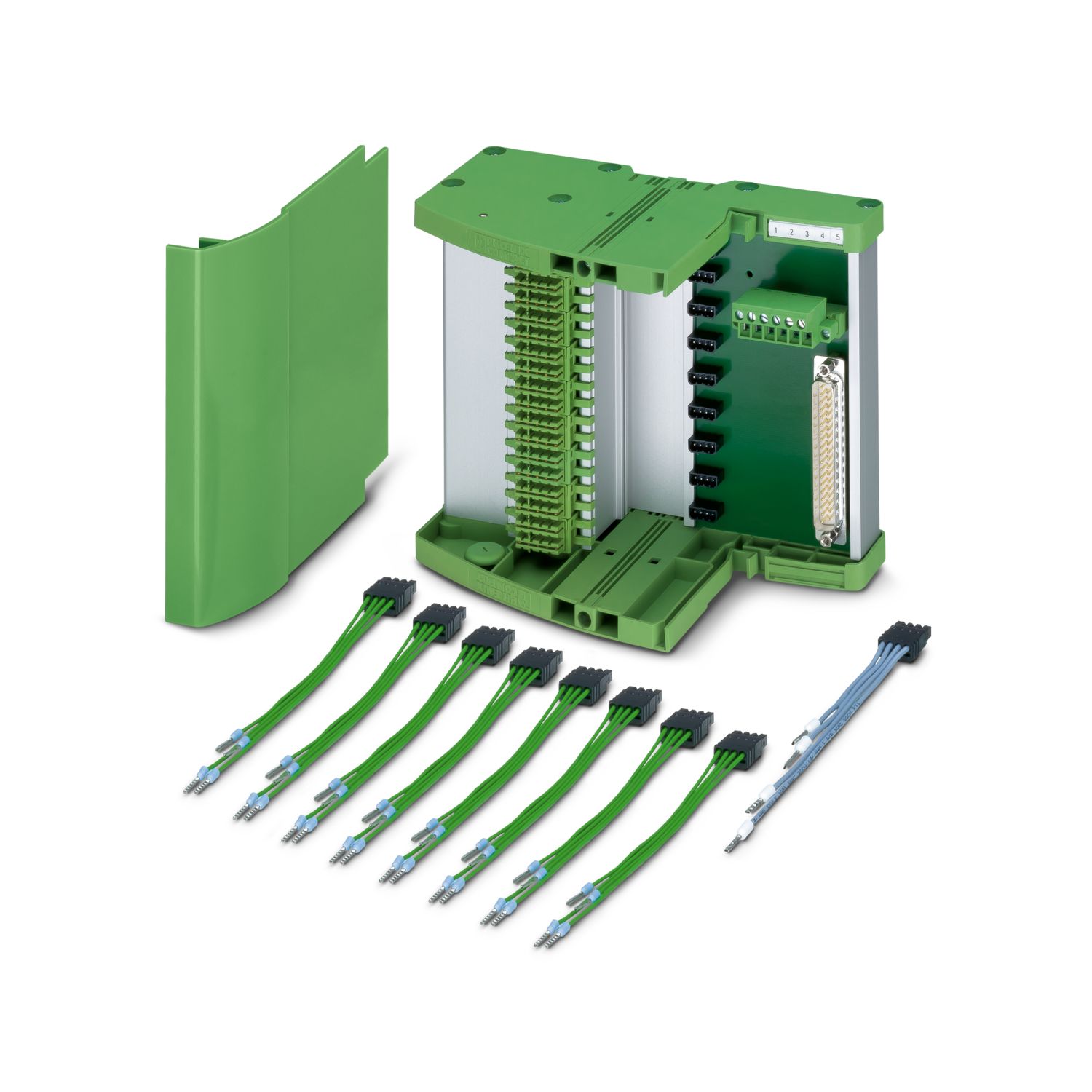

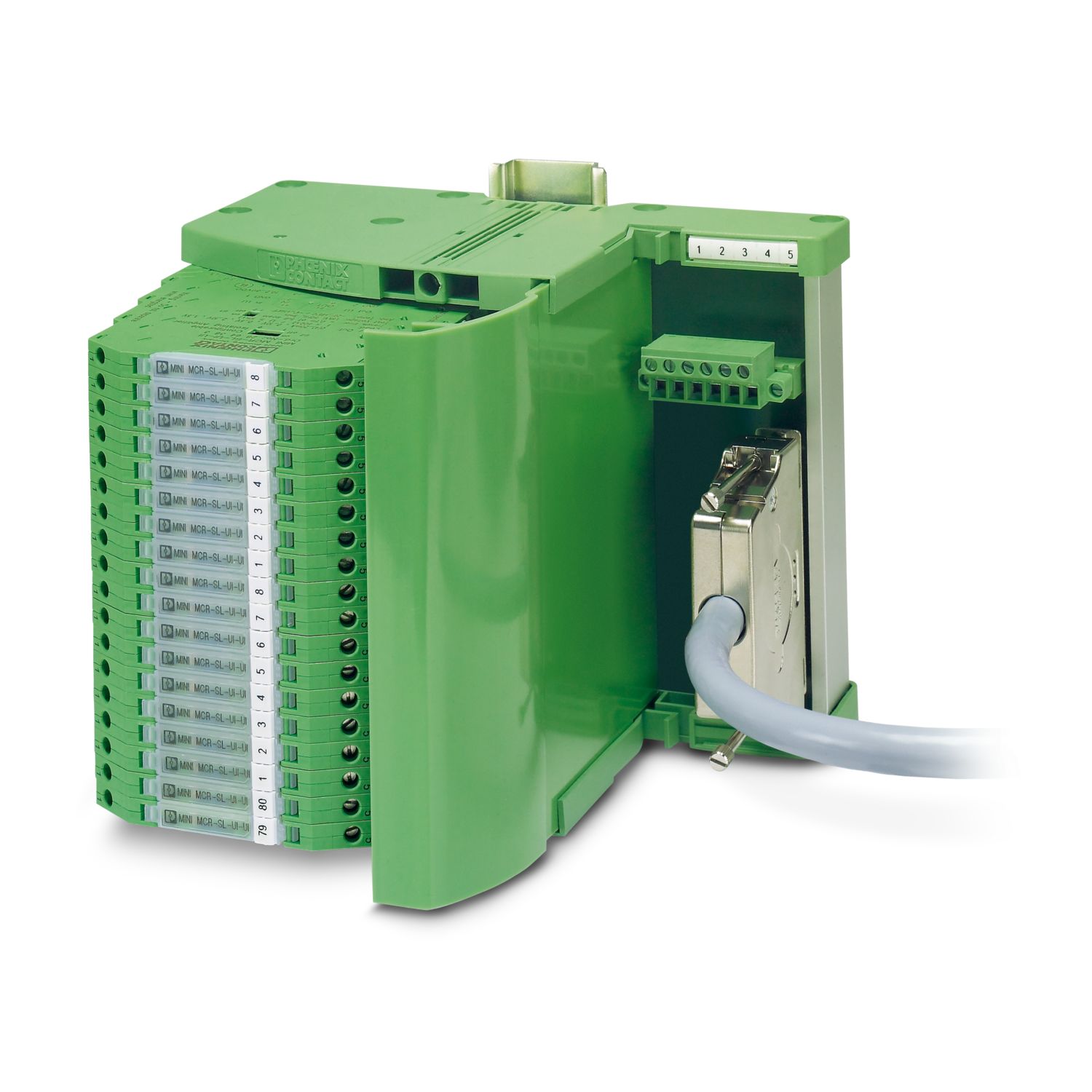

TC-D37SUB-AIO16-M-PS-UNI - Module carrier

2902934

Universal termination carrier for connecting 16 MINI Analog signal conditioners to digital or analog I/O cards, via D-SUB connector, 37-pos. (1:1 connection), with HART multiplexer connection

This product needs further products for operation. Mandatory accessories

Product details

Set consists of

Order information:	2318457 VIP-CAB-FLK14-0,14/... : < 3 m
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product type	Module carrier
Insulation characteristics: Air clearances and creepage distances
Insulation	Basic insulation
Overvoltage category	II
Pollution degree	2

Max. permissible current	23 mA (Signal/channel)
Nominal voltage U_N	< 30 V DC (Per signal/channel)
Air clearances and creepage distances
Rated insulation voltage	50 V
Rated surge voltage	0.5 kV
Supported controller universal
Suitable I/O card	universal
Supply
Designation	Feed-in module
Note	Power supply via 2902958 MINI MCR-SL-PTB-FM power terminal and 2902961 MINI MCR-SL-FM-RC-NC error signaling module.
Fuse	2x 2.5 A on PCB, slow-blow (replaceable)
Input voltage	24 V DC
Input voltage range	19.2 V DC ... 30 V DC
Input current	≤ 2 A
Redundant supply	yes, decoupled from diodes
Polarization and surge protection	Yes
Output name	Switching output
Contact switching type	1 N/C contact (alarm = open)
Maximum switching voltage	30 V DC (50 mA)

Power supply
Connection method	Screw connection
Stripping length	7 mm
Number of connections	1
Number of positions	6
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	D-SUB pin strip
Number of connections	1
Number of positions	37
X11
Connection method	IDC/FLK pin strip
Number of connections	1
Number of positions	14
Note	For connecting 16 HART devices to HART multiplexers
X12
Connection method	IDC/FLK pin strip
Number of connections	1
Number of positions	14
Note	For connecting a second TC-D37SUB-AIO16-M-PS-UNI (additional 16 HART channels)

Status display	2 x red LED (error)
	2x green LEDs (PWR1 and PWR2)

Width	136 mm
Height	170 mm
Depth	159.5 mm

Flammability rating according to UL 94	V0

Ambient conditions
Degree of protection	IP00
Ambient temperature (operation)	-20 °C ... 60 °C (Please observe module specifications)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	2g, according to IEC 60068-2-6

ATEX
Identification	 II 3 G Ex nA IIC T4 Gc X
UKCA Ex (UKEX)
Identification	 II 3 G Ex nA IIC T4 Gc
Certificate	PxCIF21UKEX2902933X
UL, USA/Canada
Identification	UL 61010 Listed
	Class I, Div. 2, Groups A, B, C, D T4
	Class I, Zone 2, Group IIC

Air clearances and creepage distances
Standards/regulations	EN 60664-1

Mounting type	DIN rail mounting
Assembly note	No end clamp
Mounting position	vertical, horizontal

Commercial data

Item number	2902934
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	CK2
Product key	DK273W
Catalog page	Page 172 (C-5-2019)
GTIN	4046356697798
Weight per piece (including packing)	1,190.1 g
Weight per piece (excluding packing)	1,190.1 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

Mechanically decoupled, passive PCB

Robust aluminum profile with integrated DIN rail

Side parts with integrated end clamps

D-SUB pin strip system connection, 37-pos. (1:1 connection)

Simple or redundant supply (decoupled from diode, protected against polarity reversal) and monitoring function implemented via separate DIN rail module

Interface for connection to HART multiplexer

Cable sets for signal connection are supplied as standard and do not have to be ordered separately

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	4e5aa170-520c-4778-9564-694c8ae193a0

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TC-D37SUB-AIO16-M-PS-UNI - Module carrier

2902934

Product details

ECLASS

ETIM

UNSPSC

UL Listed

cUL Listed

cUL Listed

UL Listed

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TC-D37SUB-AIO16-M-PS-UNI - Module carrier 2902934

Product details

TC-C-2MIN-AI-05061516 - Cable set 2905224

TC-C-PTB1-AI-SET1 - Cable set 2905217

ME 6,2 TBUS-2 1,5/5-ST-3,81 GY - DIN rail bus connector 2695439

ECLASS

ETIM

UNSPSC

Compatible products

MINI MCR-SL-PTB-FM - Power terminal block 2902958

MINI MCR-SL-FM-RC-NC - Monitoring block 2902961

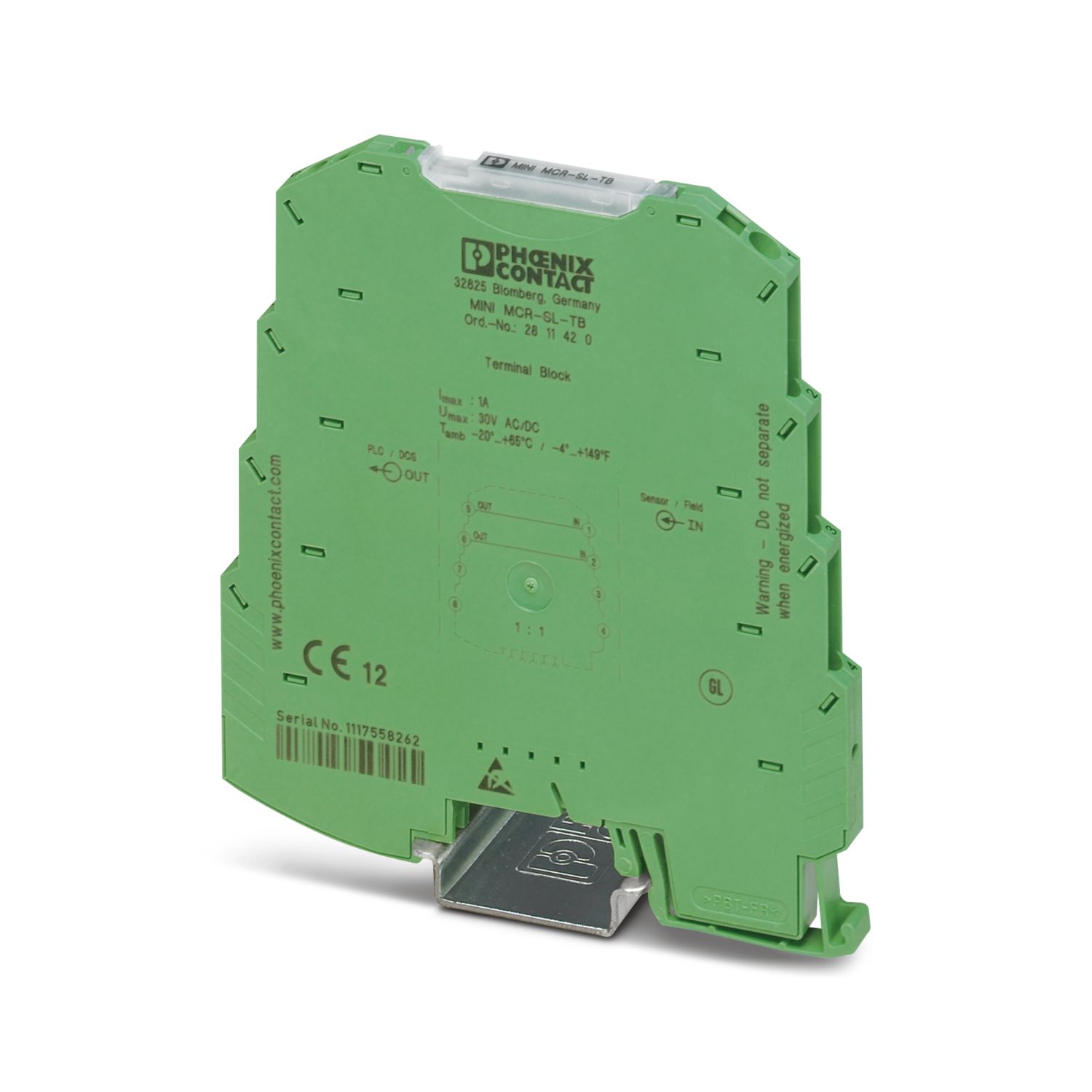

MINI MCR-SL-TB - Feed-through terminal block 2811420

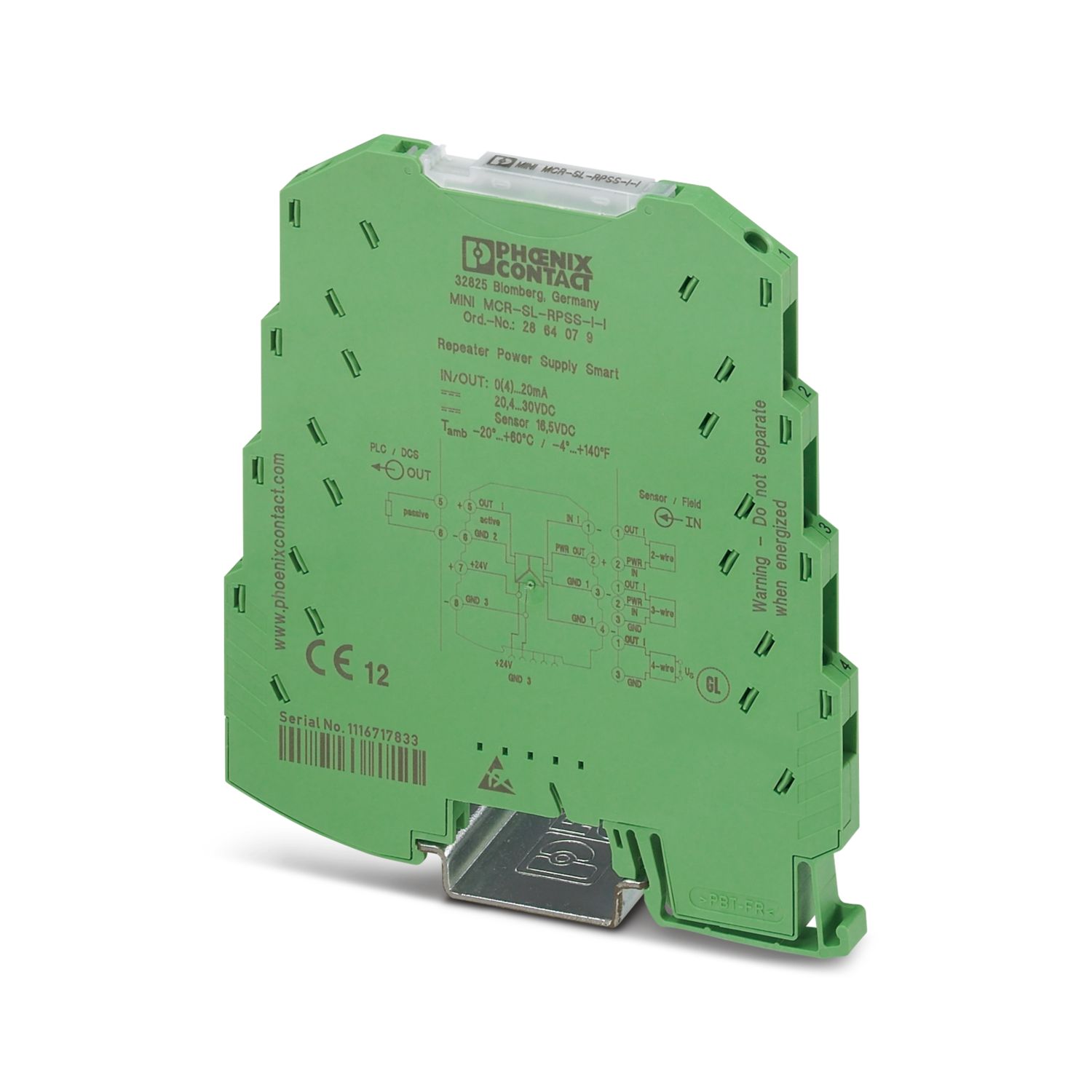

MINI MCR-SL-RPSS-I-I - Repeater power supply 2864079

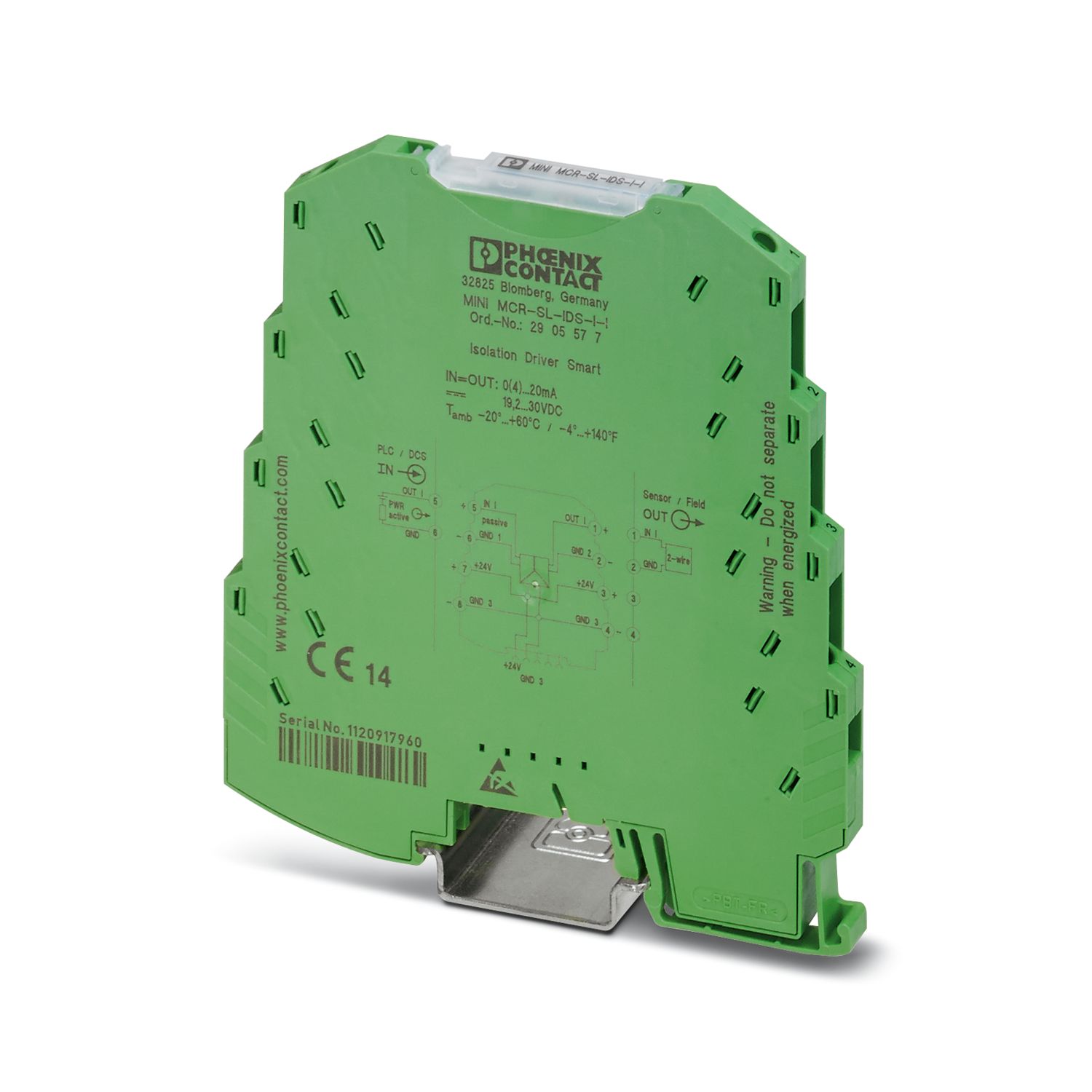

MINI MCR-SL-IDS-I-I - Output signal conditioner 2905577
