HC-M-B16-MFH-B-CI
-

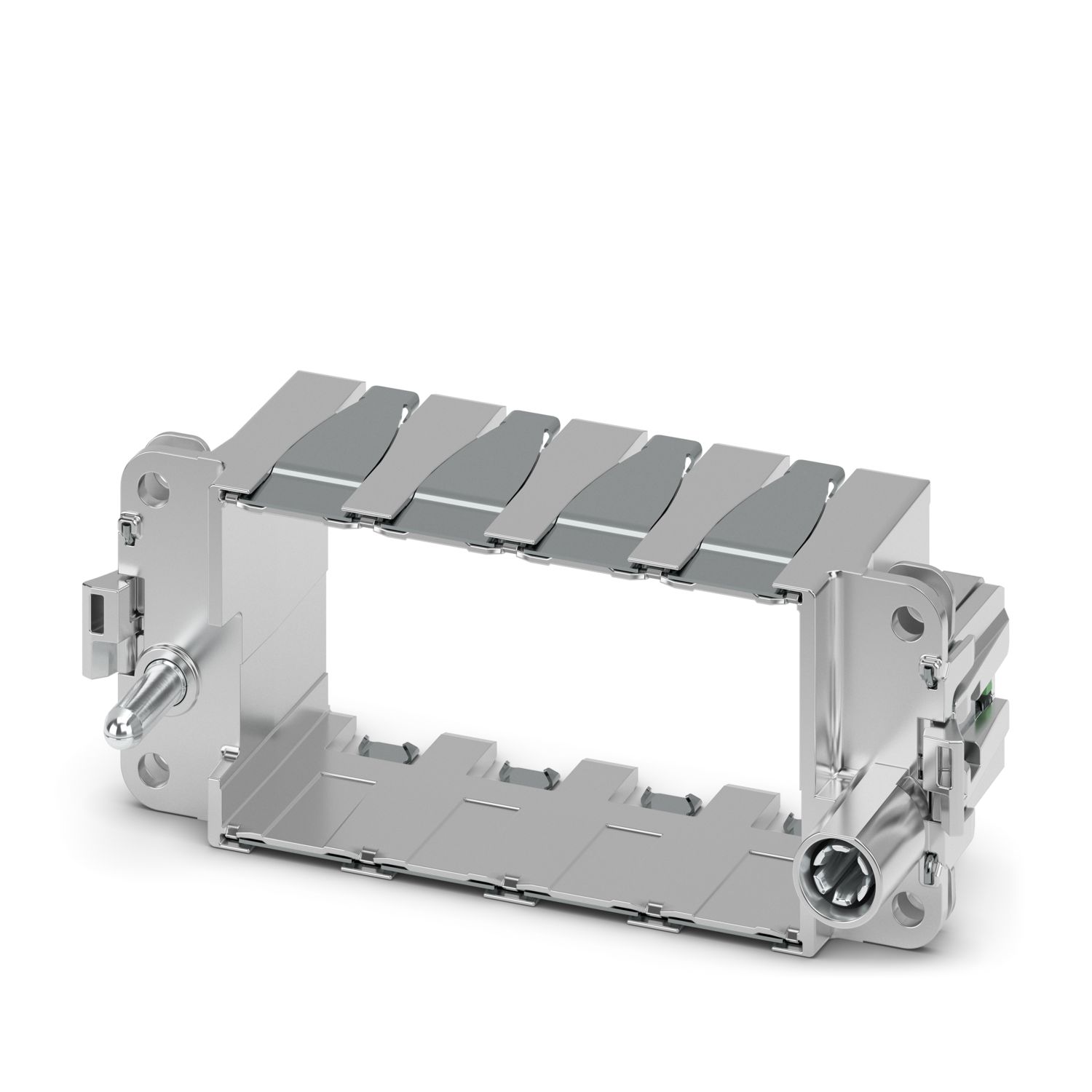

Module carrier frame
1721378
Module carrier frame, size: B16, type : for the panel mounting side (a, b, c, ...), 0.5 mm2 ... 6 mm2, application: Module carrier frame
Product details
| General | Connectors may be operated only when there is no load/voltage. |
| Product type | Module carrier frame |
| Series | HC-M-B |
| HC-M-02 | |
| HC-M-03 | |
| HC-M-03/04 | |
| HC-M-04 | |
| HC-M-05 | |
| HC-M-06 | |
| HC-M-08 | |
| HC-M-08-GBIT | |
| HC-M-12 | |
| HC-M-17 | |
| HC-M-20 | |
| HC-M-25 | |
| HC-M-DSUB | |
| HC-M-EMV | |
| HC-M-HV | |
| HC-M-HS | |
| HC-M-00 | |
| Application | Module carrier frame |
| Type | B16 |
| Number of module slots | 4 |
| Frame type | Module carrier frame |
| Conductor connection | |
| Conductor cross section | 0.5 mm² ... 6 mm² (for PE conductor) |

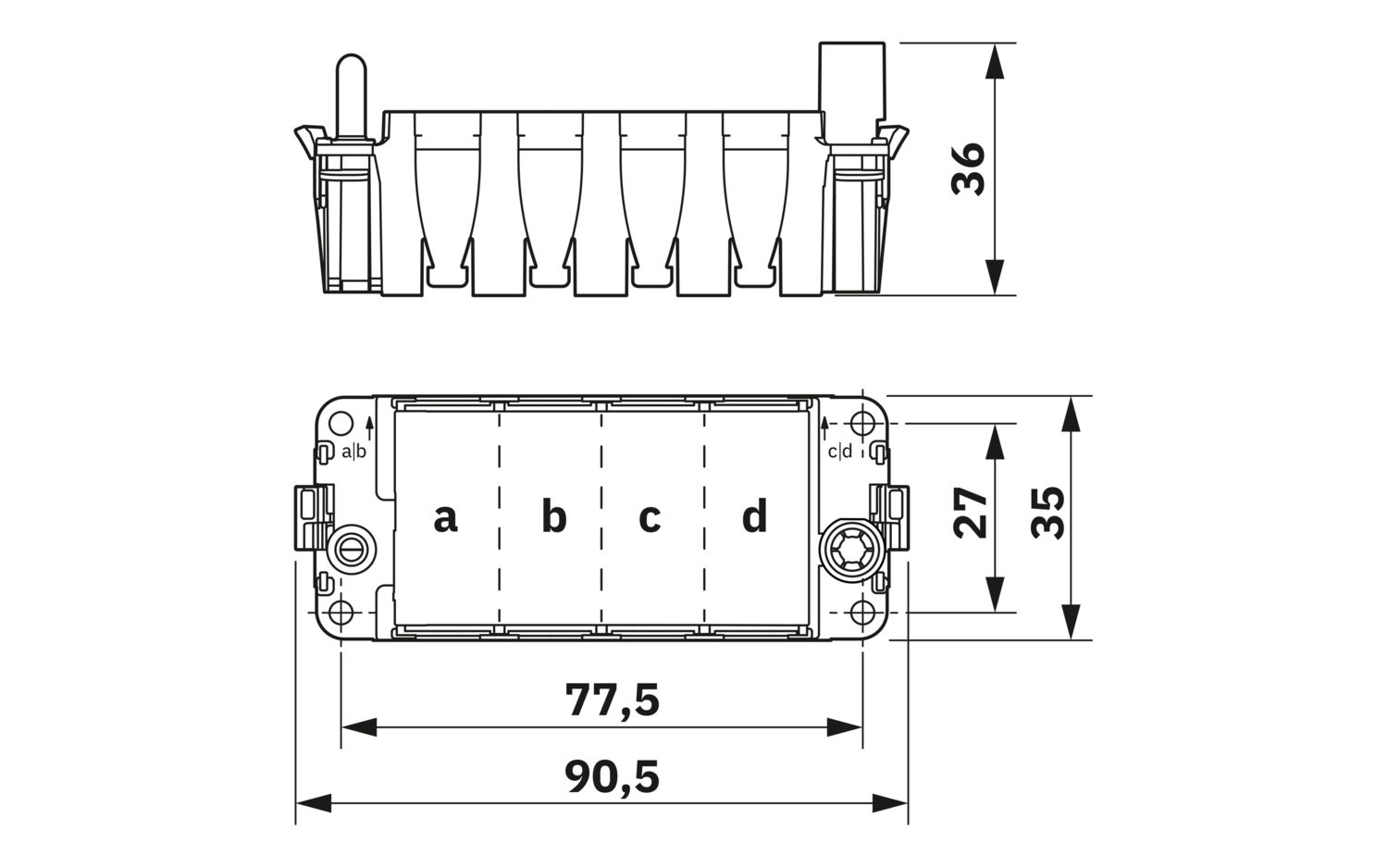

| Dimensional drawing |
|
| Width | 34.9 mm |
| Height | 36 mm |
| Length | 84.5 mm |
| Contact carrier material | Die-cast zinc alloy |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| tool-free snap-in into all plastic and metal housings of the HEAVYCON STANDARD and EVO series, and into metal housings of the HEAVYCON ADVANCED series |
Your advantages
Significant time savings and improved handling: Consistent and easy tool-free installation and mounting with Push-in connection technology and innovative Click-in latching
Tool-free installation and mounting of the PE connection with Push-in connection technology
Shortest installation time compared to other connection technologies
Quick and effortless wiring, in particular when space is tight
Secure installation: Audible and tangible latching of the contact inserts in the connector housing
Reliable connection: The Click-in contact insert latches into the housing creating a shock- and vibration-resistant connection in accordance with DIN EN 61373
Easy integration: Click-in contact inserts fit in all plastic and metal housings of the HEAVYCON STANDARD and EVO series
Safe wiring and operation with color-coded actuators
Shock and vibration-resistant in accordance with DIN EN 61373
