SD-WMTBS (NU) CC
-
Wire marking tag
0826527
Wire marking tag, international color code, horizontal: Numbers, mounting type: slide-on, cable diameter: > 16 mm, text field height: 2.6 mm, text field width: 4.3 mm
Product details
Product type | Labeled conductor marker |
Type | Marking strip/label |
Marking | |
Printing direction | horizontal |
Printing | Numbers |
Mounting type | slide-on |
Color | international color code |
Material | Polyvinyl chloride |
Flammability rating according to UL 94 | V2 |
Components | Free from silicone and cadmium |
Test for substances that would hinder coating with paint or varnish | |
Result | Test passed |
UV resistance | |
Specification | ISO 4892-2:2013-03 (following) |
Result | Test passed |
Test duration | 96 h |
Wipe resistance of inscriptions | |
Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
Isopropyl [CAS No. 67-63-0] |
Test passed |
n-Hexane [CAS No. 110-54-3] |
Test passed |
Water + Petroleum ether [CAS No. 64742-82-1] |
Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide | |
Specification | DIN 50018:2013-05 |
Result | Test passed |
Climate level | AHT 2.0 S |
Cycles | 2 |
Salt spray test | |
Specification | DIN EN 60068-2-11:2000-02 |
Result | Test passed |
Test duration | 96 h |
Ambient conditions | |
Ambient temperature (operation) | -30 °C ... 60 °C |
Recommended ambient temperature (storage/transport) | 23 °C |
Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
Width | 4.3 mm |
Length | 11.3 mm |
External dimensions | |
Outside diameter | > 10 mm ... 136 mm |
Text field | |
Text field width | 4.3 mm |
Text field height | 2.6 mm |
Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
General | Please specify the required marking with order: Minimum order per imprint: 1 packing unit |
Item number | 0826527 |
Packing unit | 100 pc |
Minimum order quantity | 100 pc |
Sales key | BG2 |
Product key | BG2322 |
Catalog page | Page 245 (C-3-2019) |
Weight per piece (including packing) | 333 g |
Weight per piece (excluding packing) | 333 g |
Customs tariff number | 39269097 |
Country of origin | SE |
ECLASS
ECLASS-13.0 | 27281102 |
ETIM
ETIM 9.0 | EC001530 |
UNSPSC
UNSPSC 21.0 | 39131500 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes (No exemptions) |
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
Compatible products
Your advantages

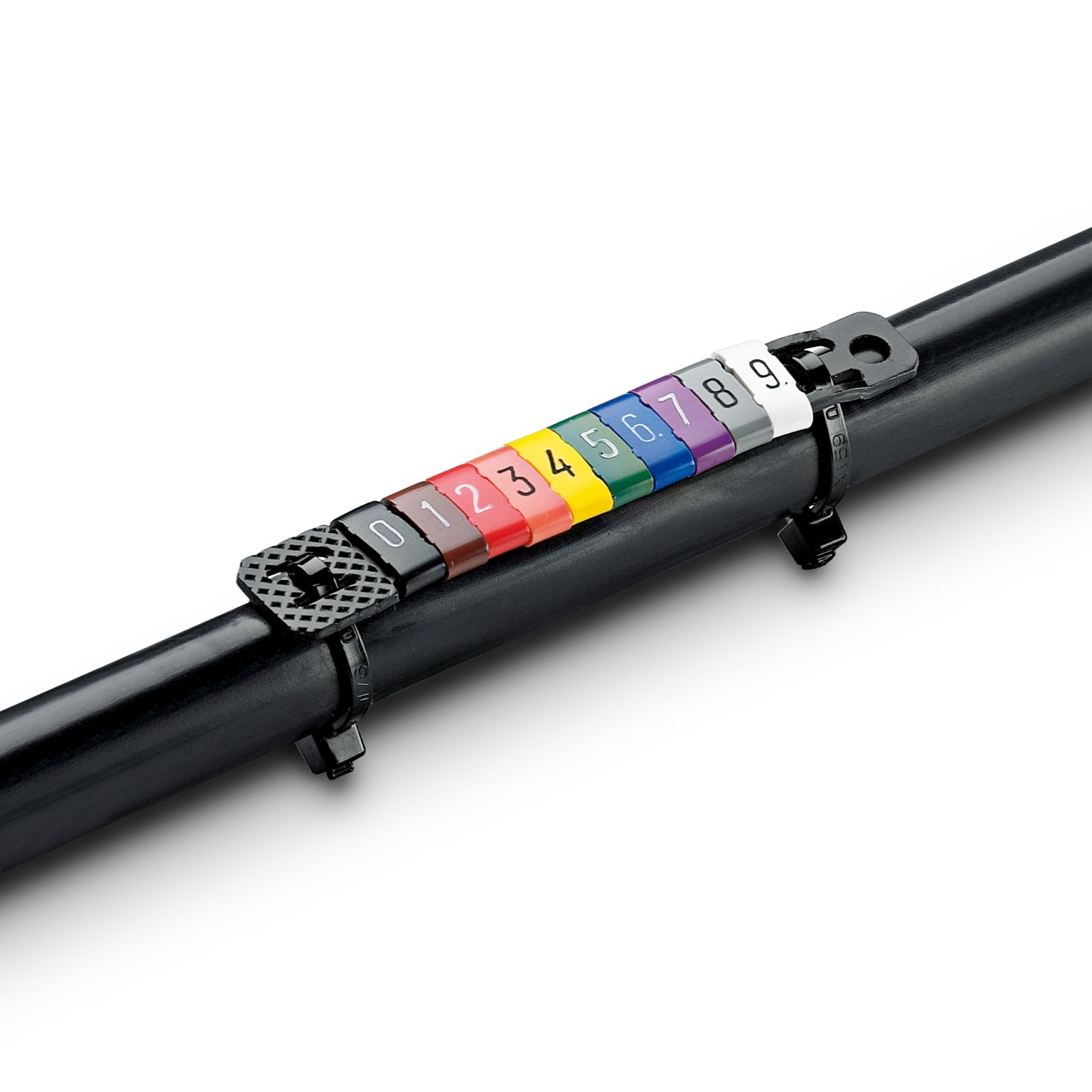

The printed individual markers are pushed onto the corresponding holders
Cable markers for marking cables and conductors with larger cross sections
