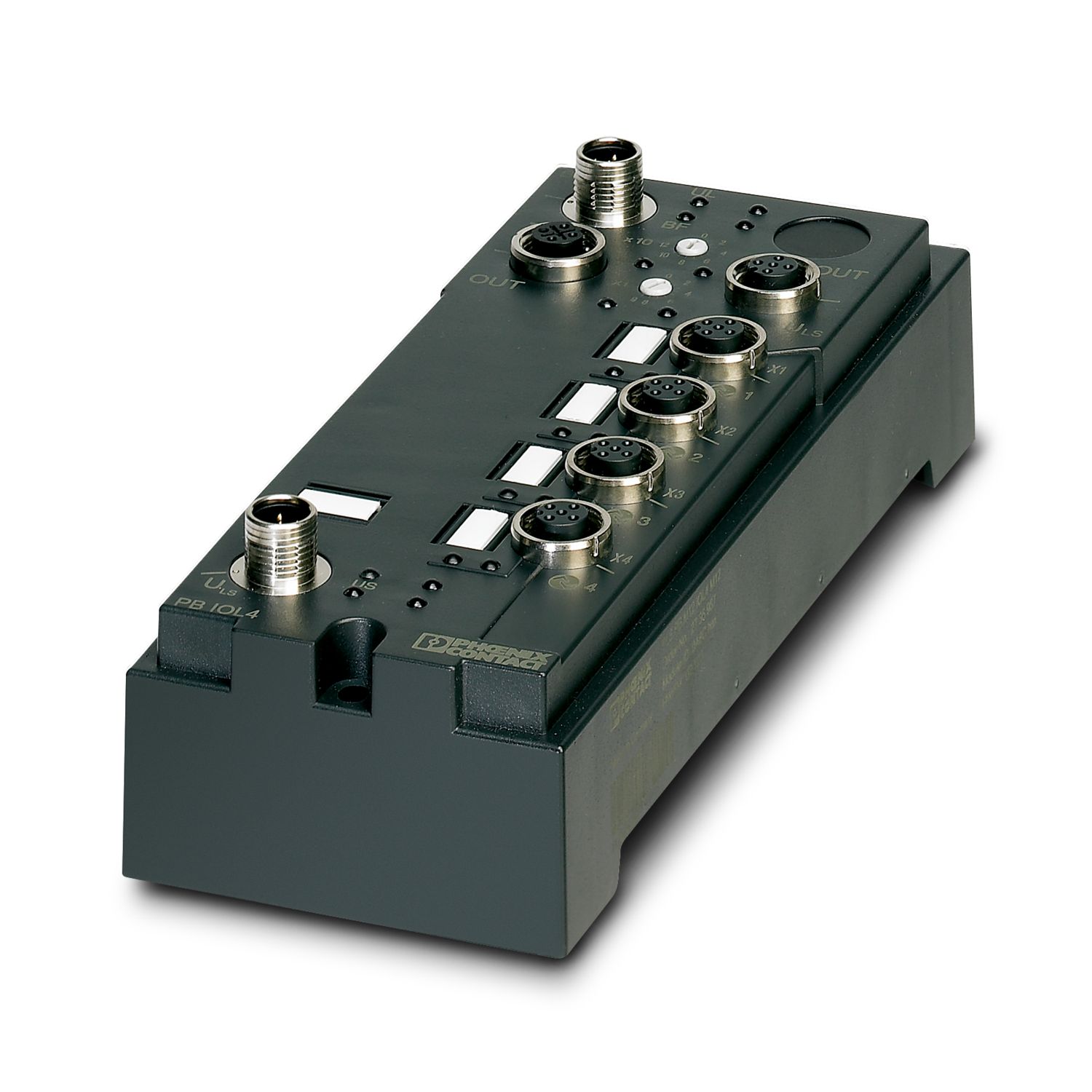

I/O component - FLS PB M12 IOL 4 M12 2736987

The local bus device has 4 IO-Link ports of 200 mA. Functions: parallel processing of service and process data, 500 kbaud/2 Mbaud selection, short-circuit and overload protection, 800 mA nominal current, M12 fast connection technology.

Product Details

The terminal is designed for use within an Inline station.The terminal is used to operate IO-Link-compatible sensors and actuators (devices). It is also used to acquire digital signals.IO-Link is the standard for consistent communication from the controller to the lowest field level. In IO-Link communication, the process data is forwarded during parallel service data transmission.IO-Link is a point-to-point connection between an IO-Link port and the sensor or actuator. IO-Link technology uses the familiar signal technology of the 0 V and 24 V binary interface in order to transmit data using pulse modulation. IO-Link offers full backward compatibility with standard sensors/actuators.Using this terminal, IO-Link-compatible devices from any manufacturer can be operated on INTERBUS, PROFIBUS, and PROFINET.

No. of channels 4
Potentials
Voltage supply UL 24 V DC
Power supply at UL max. 4 A
Current consumption from UL typ. 75 mA (At 500 kBaud)
Current consumption from UL max. 100 mA (At 500 kBaud)
Voltage supply US 24 V DC
Power supply at US max. 4 A
Current consumption from US typ. 25 mA (plus power supply for sensors)
Current consumption from US max. 825 mA
Supply: IO-Link
Nominal current for every IO-Link port 200 mA
Nominal current per device 800 mA
Protective circuit Overload protection; Electronics in the device
Protective circuit Short-circuit protection; Electronics in the device
Permissible cable length < 20 m
Supply: Module electronics
Connection method M12 connector
Designation UL
Supply voltage 24 V DC
Supply voltage range 18 V DC ... 30 V DC (including ripple)

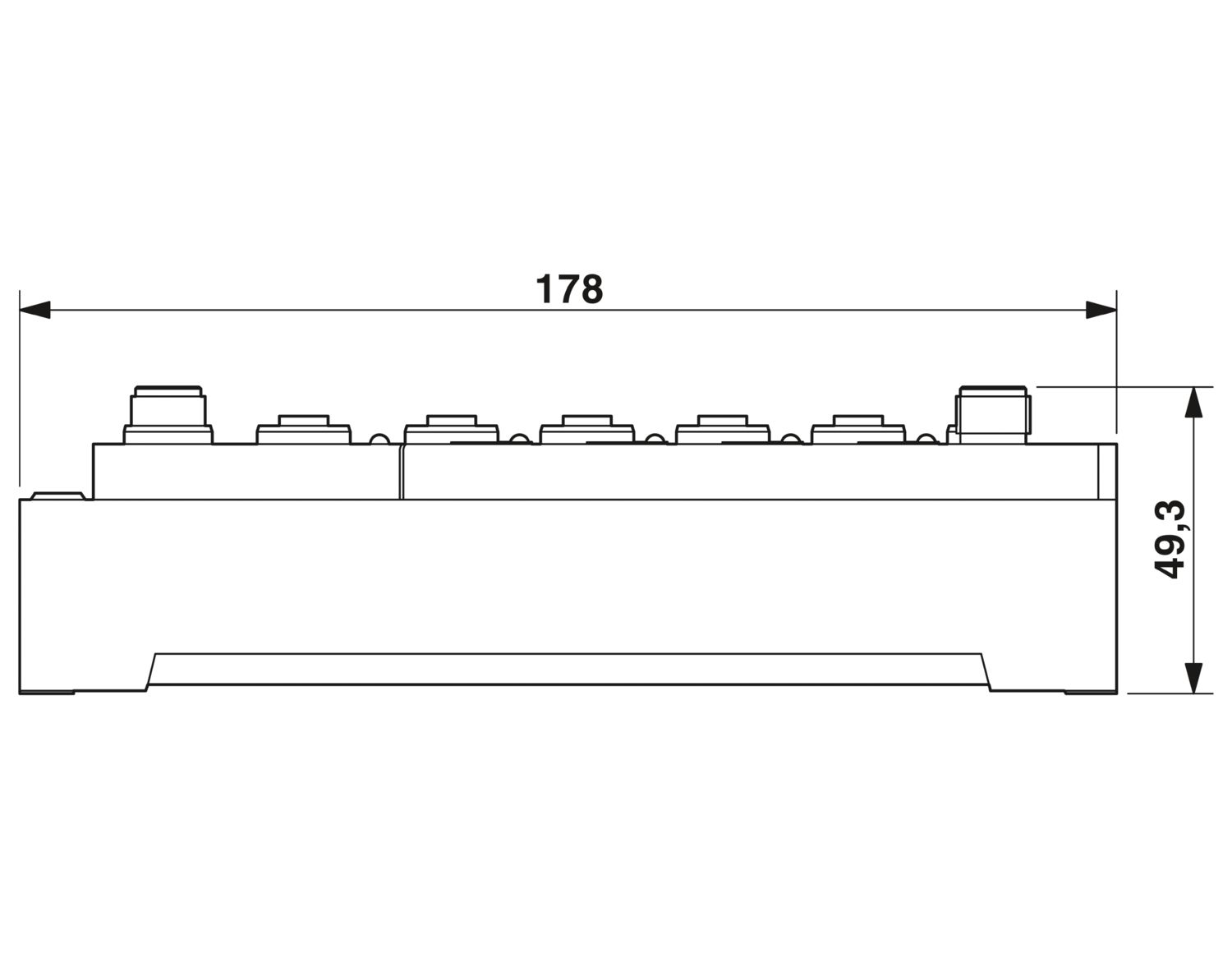

Dimensional drawing
Width 70 mm
Height 178 mm
Depth 49.3 mm
Drill hole spacing 168 mm
Digital
Number of outputs max. 4
Nominal current per channel 200 mA (INominal)
Maximum total current consumption 0.8 A (observe derating)
Limitation of the voltage induced on circuit interruption approx. -1 V
Protective circuit Free-wheeling diode; Integrated per channel
Color anthracite
Mounting type Wall mounting
PROFIBUS DP
Connection method M12 connector, B-coded
Designation connection point Copper cable
Number of positions 5
Transmission speed 9.6 kbps ... 12 Mbps (Automatic baud rate detection)
Transmission physics PROFIBUS-DP-compliant copper cable
Address area assignment 1 ... 126, adjustable

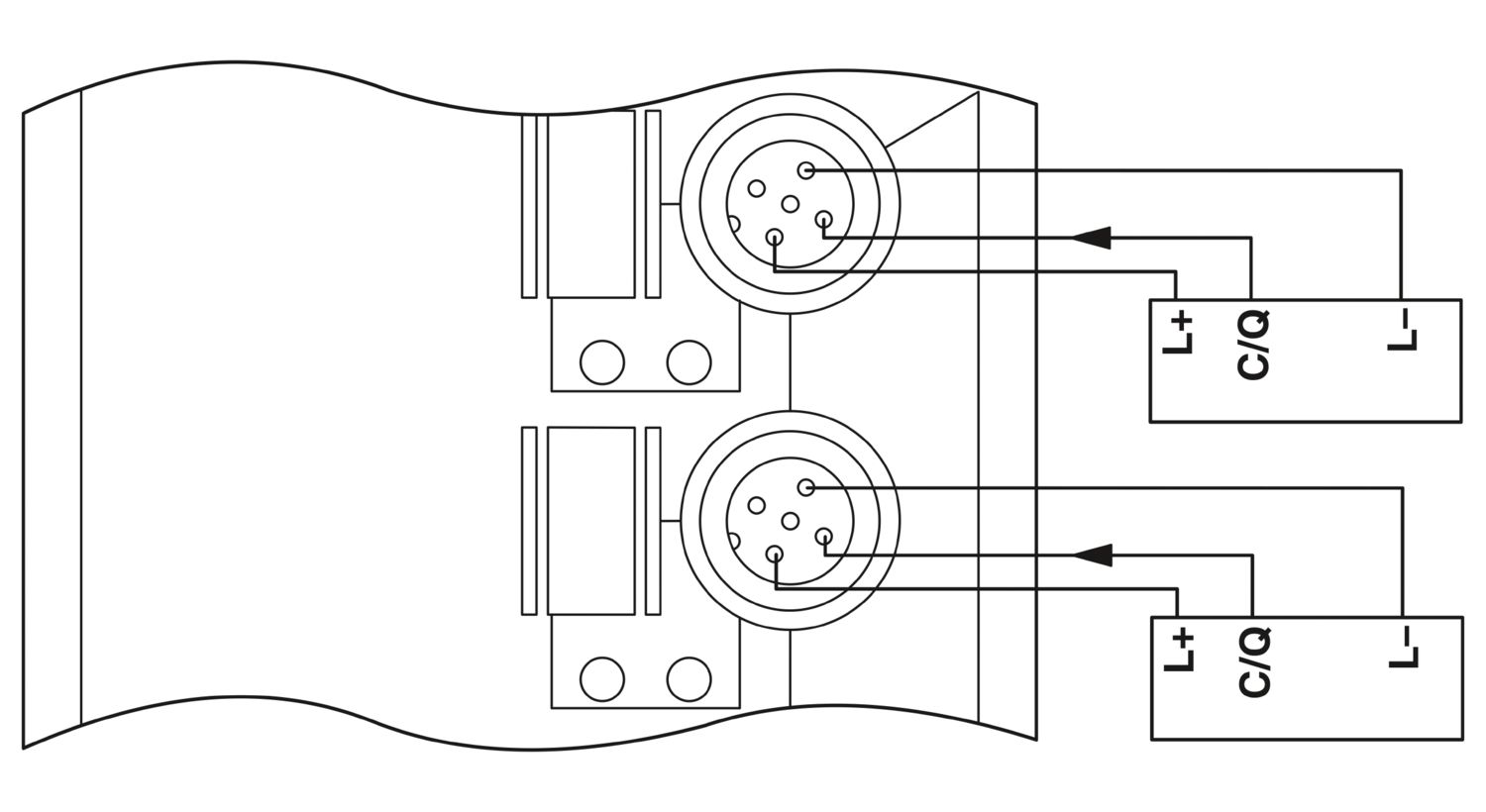

IO-Link
Input filter time typ. 3 ms
Protective circuit Reverse polarity protection
Number of ports 4
Connection method M12 connector
Connection technology 3-wire
Digital
Connection technology 3-wire
Number of inputs max. 4
Nominal input current 8 mA (at 24 V DC)
Signal delay < 3 ms (ton, typical)
Signal delay 3 ms (toff, typical)
Permissible cable length < 20 m
Ambient temperature (operation) -25 °C ... 60 °C
Degree of protection IP65/IP67
Air pressure (operation) 80 kPa ... 106 kPa (up to 2000 m above sea level)
Ambient temperature (storage/transport) -25 °C ... 85 °C
Permissible humidity (storage/transport) 95 %
Connection method M12 connector
Conductor cross section, rigid
Conductor cross section, solid [AWG]
Conductor cross section, flexible
Conductor cross section, flexible [AWG]
Conductor cross section AWG
Environmental Product Compliance
China RoHS Environmentally friendly use period: unlimited = EFUP-e
China RoHS No hazardous substances above threshold values
Type Block design
No. of channels 4
Order Key 2736987
Packing unit 1 pc
Minimum order quantity 1 pc
Note Made to Order (non-returnable)
Catalog Page Page 270 (C-8-2015)
GTIN 4046356147323
Weight per Piece (including packing) 351.5 GRM
Weight per Piece (excluding packing) 280.0 GRM
Customs tariff number 85389099

Compatible Products

Circular connector (cable-side)
SACC-M12FSB-5CON-PG9 SH AU / 1507777

Circular connector (cable-side)
SACC-M12MSB-5CON-PG9 SH AU / 1507764

Data cable preassembled
SAC-2P-10,0-910/M12FSB / 1507311

Data cable preassembled
SAC-2P-15,0-910/M12FSB / 1507324

Data cable preassembled
SAC-2P- 2,0-910/M12FSB / 1507298

Data cable preassembled
SAC-2P- 5,0-910/M12FSB / 1507308

Data cable preassembled
SAC-2P-M12MSB/ 0,3-910/M12FSB / 1507340

Data cable preassembled
SAC-2P-M12MSB/ 0,5-910/M12FSB / 1507353

Data cable preassembled
SAC-2P-M12MSB/ 1,0-910/M12FSB / 1507366

Data cable preassembled
SAC-2P-M12MSB/10,0-910 / 1507269

Data cable preassembled
SAC-2P-M12MSB/10,0-910/M12FSB / 1507395

Data cable preassembled
SAC-2P-M12MSB/15,0-910 / 1507272

Data cable preassembled
SAC-2P-M12MSB/15,0-910/M12FSB / 1507405

Data cable preassembled
SAC-2P-M12MSB/ 2,0-910 / 1507243

Data cable preassembled
SAC-2P-M12MSB/ 2,0-910/M12FSB / 1507379

Data cable preassembled
SAC-2P-M12MSB/ 5,0-910 / 1507256

Data cable preassembled
SAC-2P-M12MSB/ 5,0-910/M12FSB / 1507382

Distributor with cable
SAC-4P-M12Y/2X0,3-PUR/M12FS VP / 1510722

Plug for cable screw gland
PROT-M12 / 1680539

Plug for cable screw gland
PROT-MS SCO / 1553129

Sensor/actuator cable
SAC-4P-10,0-186/M12FS / 1509500

Sensor/actuator cable
SAC-4P-15,0-186/M12FS / 1509513

Sensor/actuator cable
SAC-4P- 2,0-186/M12FS / 1509487

Sensor/actuator cable
SAC-4P- 5,0-186/M12FS / 1509490

Sensor/actuator cable
SAC-4P-M12MS/ 0,3-186/M12FS / 1509526

Sensor/actuator cable
SAC-4P-M12MS/ 0,5-186/M12FS / 1509539

Sensor/actuator cable
SAC-4P-M12MS/ 1,0-186/M12FS / 1509542

Sensor/actuator cable
SAC-4P-M12MS/10,0-186 / 1509461

Sensor/actuator cable
SAC-4P-M12MS/10,0-186/M12FS / 1509571

Sensor/actuator cable
SAC-4P-M12MS/15,0-186 / 1509474

Sensor/actuator cable
SAC-4P-M12MS/15,0-186/M12FS / 1509584

Sensor/actuator cable
SAC-4P-M12MS/ 2,0-186 / 1509445

Sensor/actuator cable
SAC-4P-M12MS/ 2,0-186/M12FS / 1509555

Sensor/actuator cable
SAC-4P-M12MS/ 5,0-186 / 1509458

Sensor/actuator cable
SAC-4P-M12MS/ 5,0-186/M12FS / 1509568

T-distributor
SAC-M12T/2XM12 PB DP / 1507780

Terminal marking
ZBF 12:UNBEDRUCKT / 0809735

Terminal resistor
SAC-5P-M12MS PB TR / 1507803

Your advantages

Flexible power supply concept
Short-circuit and overload protection
Diagnostic and status indicators
Directly accessible address encoding switch
Consistent connection via M12 connectors
