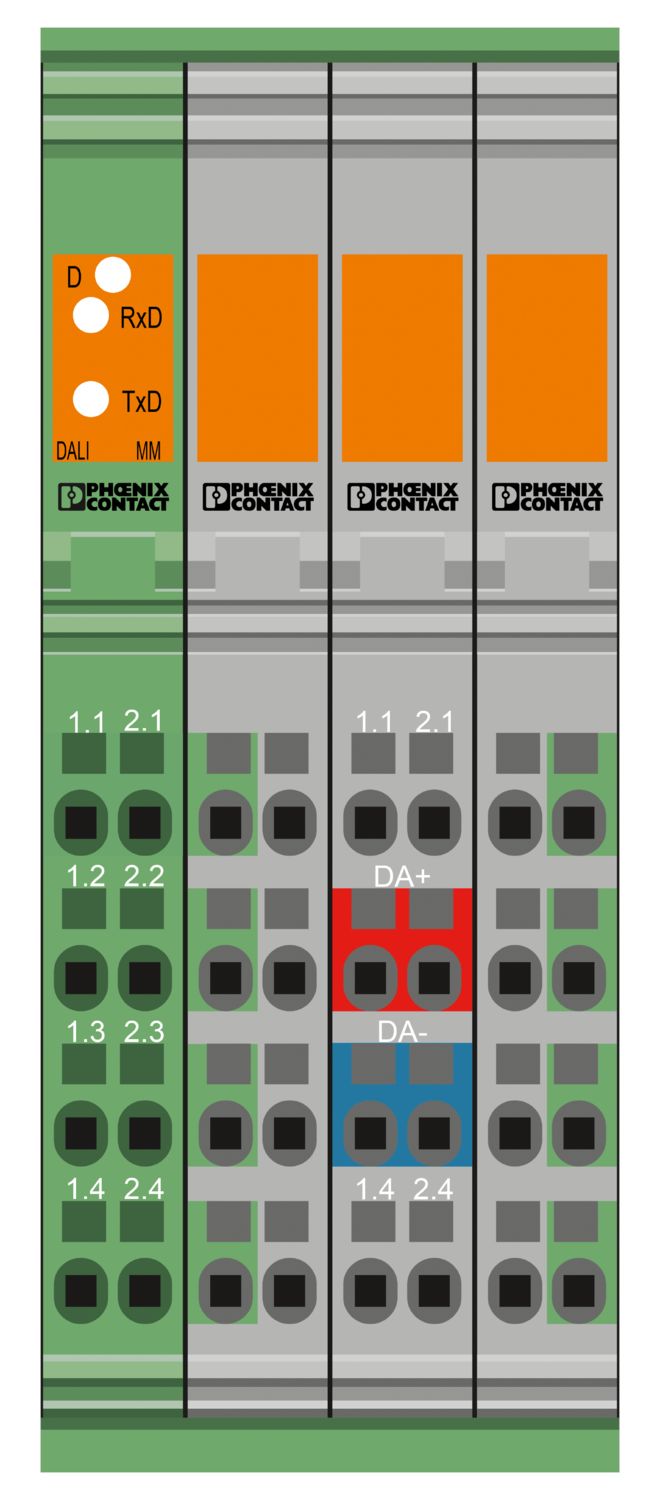

IB IL DALI MM-V2-PAC - Communication module

1199811

Inline, DALI master, Multi-master-capable, integrated DALI power supply unit, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields

Free download available. Downloads

Product details

Product description

Width	48.8 mm
Height	119.8 mm
Depth	71.5 mm
Note on dimensions	Housing dimensions

Note on application
Note on application	Only for industrial use

Inline local bus
Connection method	Inline data jumper
Transmission speed	500 kbps

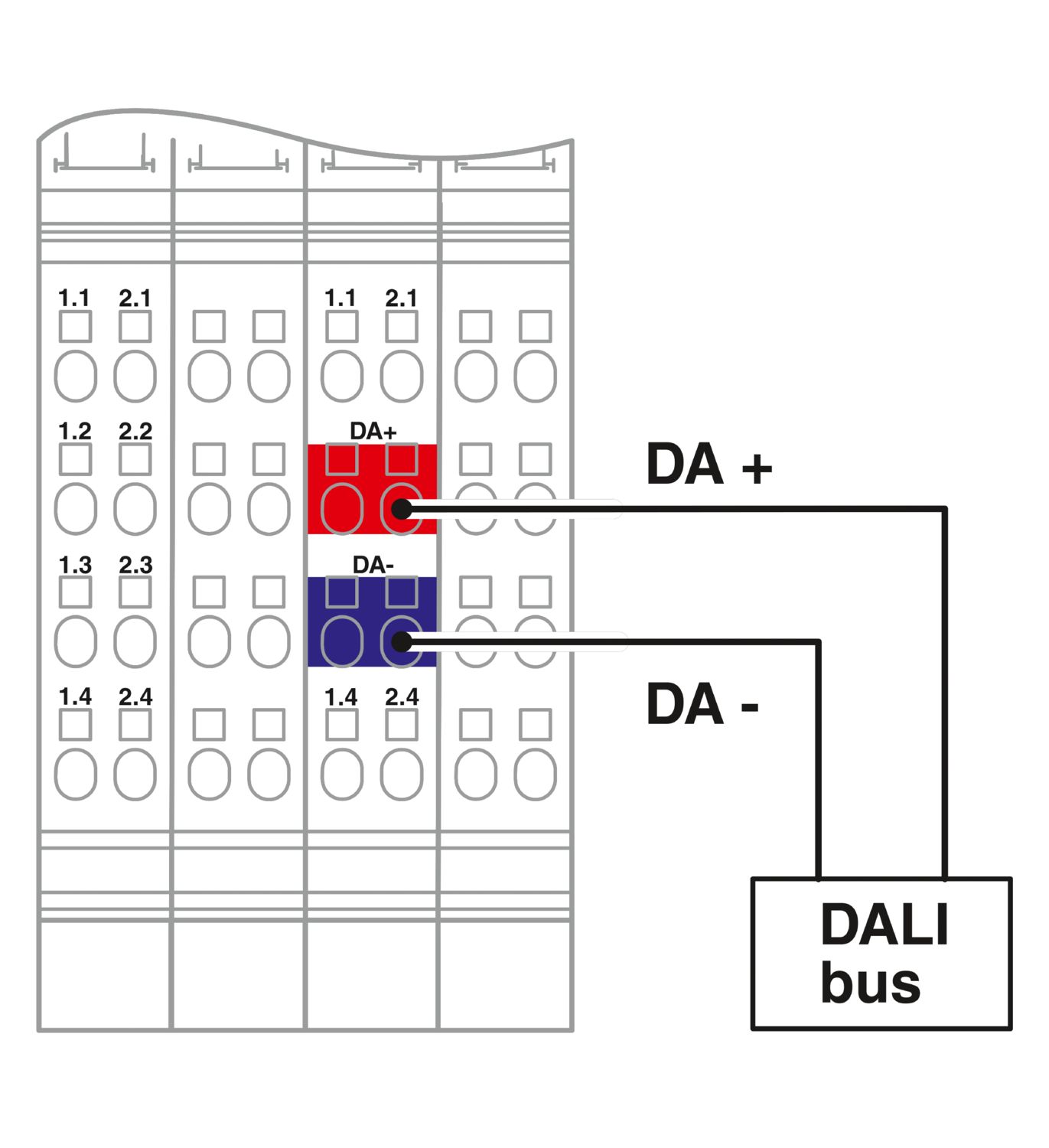

Fieldbus: DALI
Designation	DALI
Connection method	Inline connector
Supply voltage	typ. 15 V DC (Bus voltage)
Output current with short-circuit	max. 250 mA
Current carrying capacity	max. 220 mA (Bus load)
Transmission speed	1200 bps
Type of protection	Bus protected up to 250 V AC, maximum

Module
ID code (dec.)	191
ID code (hex)	BF
Length code (hex)	06
Length code (dec)	06
Process data channel	96 bit
Input address area	12 Byte
Output address area	12 Byte
Register length	96 bit

Product type	I/O component
Product family	Inline
Type	modular
Scope of supply	including Inline connectors and marking fields
Special properties	Multi-master-capable
	integrated DALI power supply unit
Diagnostics messages	Yes No I/O error; DALI-specific error at application level

Potentials
Power consumption	3.5 W (The amount of power dissipation is heavily dependent on the bus activity, which is only influenced by the terminal itself to a limited extent. The maximum power dissipation is reached when other devices occupy the DALI bus with minimum pauses and the terminal itself does not transmit, and at the same time the DALI current of 220 mA is used in full.)
Potentials: Communications power (U_L)
Supply voltage	7.5 V DC (via voltage jumper)
Current draw	max. 75 mA
Potentials: Main circuit supply (U_M)
Supply voltage	24 V DC (via voltage jumper)
Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw	max. 230 mA
Electrical isolation/isolation of the voltage ranges
Test voltage: 7.5 V supply (bus logic)/24 V supply (I/O), and functional ground (FE)	500 V AC, 50 Hz, 1 min
Test voltage: 7.5 V supply (bus logic)/DALI bus	1.5 kV AC, 50 Hz, 1 min
Test voltage: 24 V supply (I/O)/DALI bus	1.5 kV AC, 50 Hz, 1 min

Connection technology
Connection name	Inline connector
Conductor connection
Connection method	Spring-cage connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.08 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16
Stripping length	8 mm
Inline connector
Connection method	Spring-cage connection
Conductor cross section, rigid	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible	0.08 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16
Stripping length	8 mm

Ambient conditions
Ambient temperature (operation)	-25 °C ... 55 °C
Degree of protection	IP20
Air pressure (operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	10 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)	10 % ... 95 % (according to DIN EN 61131-2)

Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Mounting type	DIN rail mounting

Commercial data

Item number	1199811
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	DRHABA
GTIN	4063151262341
Weight per piece (including packing)	214.3 g
Weight per piece (excluding packing)	180 g
Customs tariff number	85389091
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section mm²
Use group B
Factory wiring	300 V	11 A	22 - 18
	300 V	3.6 A	22 - 18
Use group D
Factory wiring	300 V	10 A	22 - 18
	300 V	3.6 A	22 - 18

Environmental product compliance

Compatible products

Accessories

Your advantages

DALI master with integrated DALI bus supply

Suitable for both single and multi-master operation

Certified in accordance with DALI-2 standard (single- and multi-client)

Supports the DALI 2 standard

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
