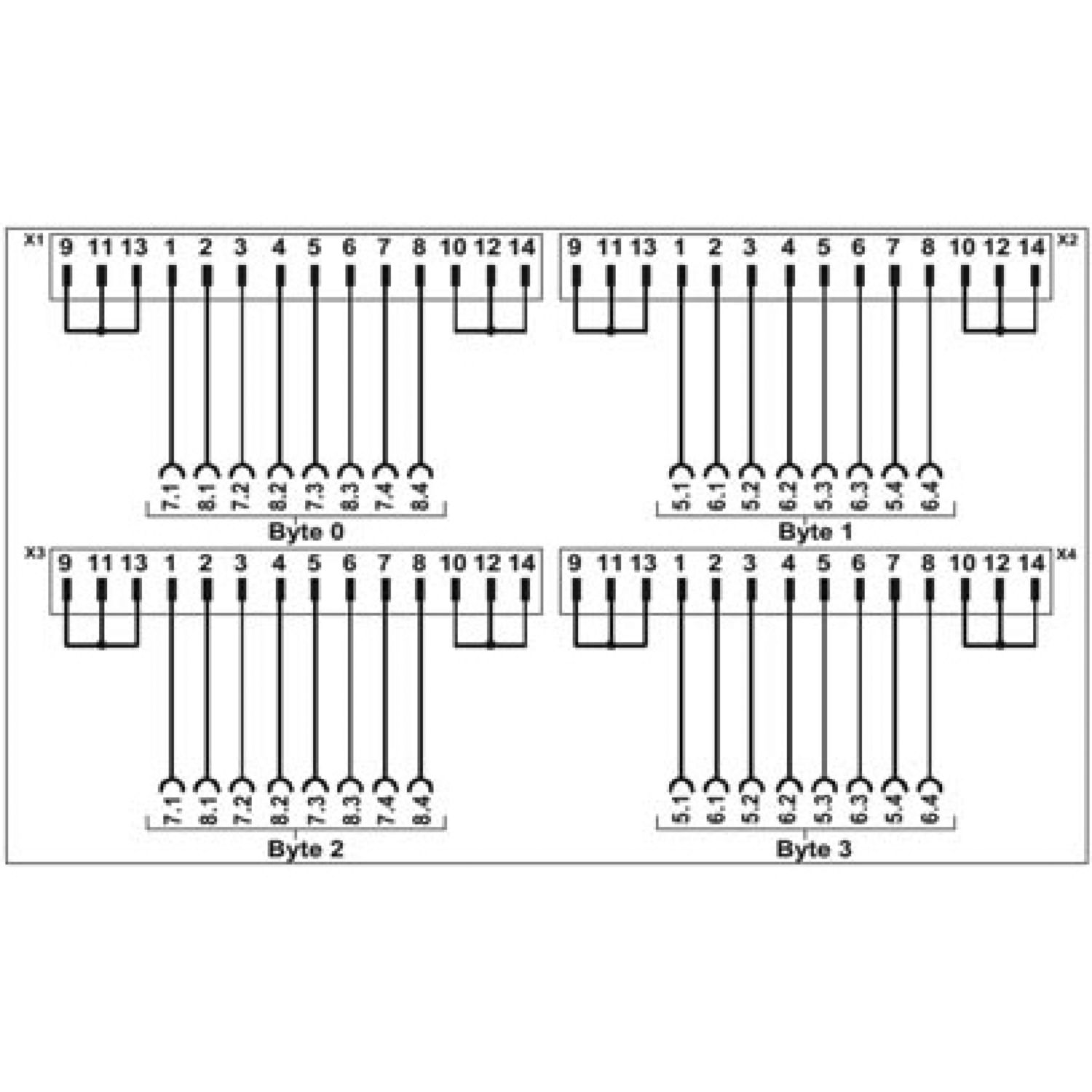

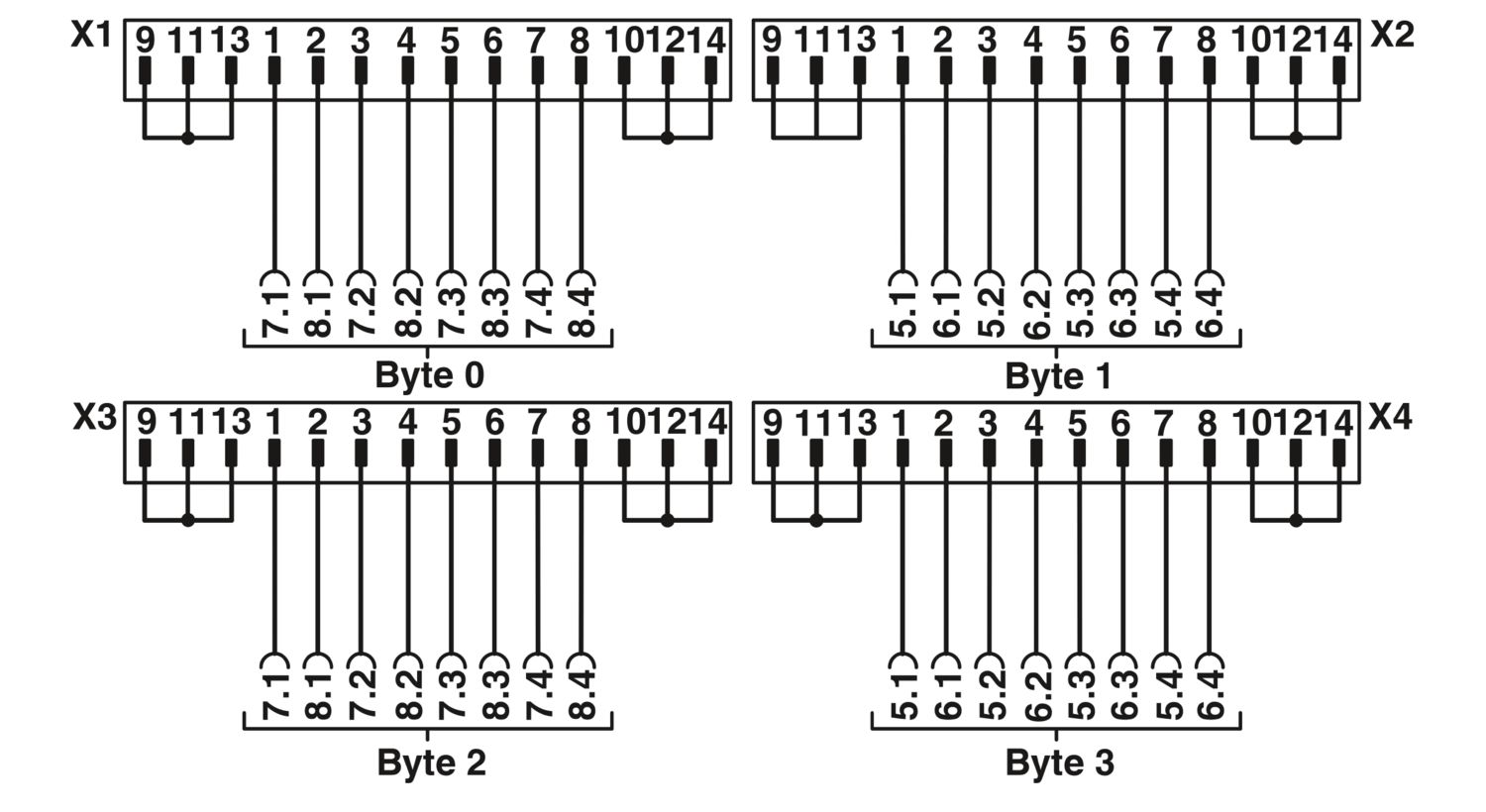

VARIOFACE front adapter for Inline modules, for transferring 32 (4 x 8) digital signals.
Product details
Product type
Front adapter
Product family
VARIOFACE
Insulation characteristics: Air clearances and creepage distances
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Operating voltage (DC)
≤ 60 V DC
Current (per branch)
≤ 1 A
Air clearances and creepage distances
Rated insulation voltage
63 V
Rated surge voltage
0.6 kV (1.2/50 μs)
Supported controller PHOENIX CONTACT Inline
Suitable I/O card
IB IL 24 DI 32/HD-PAC
IB IL 24 DO 32/HD-PAC
IB IL 24 DI 32/HD-NPN-PAC
Connection 1 (control level)
Connection method
Plug-in connection
Number of connections
1
Number of positions
32
Connection 2 (field level)
Connection in acc. with standard
IEC 60603-13
Connection method
IDC/FLK pin strip
Number of connections
4
Number of positions
14
Insertion/withdrawal cycles
> 50
Pitch
2.54 mm
Item dimensions
Width
44 mm
Height
66.5 mm
Depth
33.85 mm
Ambient conditions
Degree of protection (Module)
IP20
Degree of protection (Installation location)
≥ IP54
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 50 °C
Altitude
≤ 2000 m
Air clearances and creepage distances
Standards/regulations
EN IEC 60664-1
Mounting type
Plug-in mounting
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Item number
2302777
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
CK2
Product key
DK231P
Catalog page
Page 486 (C-5-2019)
GTIN
4017918929466
Weight per piece (including packing)
69.2 g
Weight per piece (excluding packing)
44.67 g
Customs tariff number
85369010
Country of origin
DE
ECLASS
ECLASS-13.0
27242292
ETIM
ETIM 9.0
EC002584
UNSPSC
UNSPSC 21.0
32151600
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
