A-INL-NPT1/2-P-BK
-
Counter nut
1411237
Counter nut, for threads 1/2"-NPT, color: jet black RAL 9005
Product details
| Product type | Flat nut |
| Thread type | 1/2"-NPT |

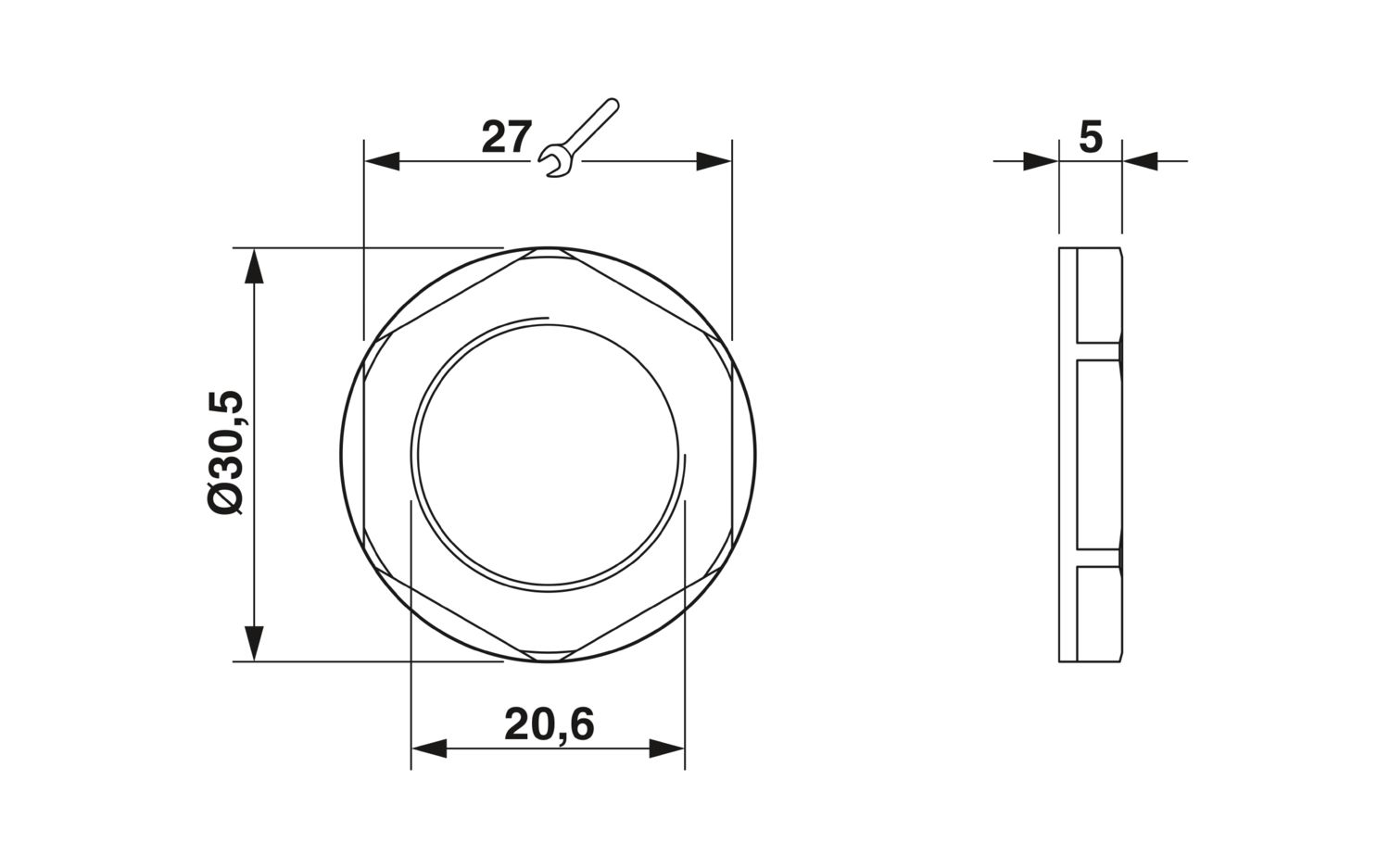

| Dimensional drawing |
|
| Length | 5 mm |
| Diameter | 20.6 mm |
| Connecting thread diameter | 20.6 mm |
| Wrench size, counter nut | 27 mm |
| Hexagon angular dimension | 30.5 mm |
| Thread type connection side | 1/2"-NPT |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Halogen-free | yes |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
