A-INL-M40-P-BK
-
Counter nut
1411218
Counter nut, for threads M40 x 1.5, color: jet black
Product details
| Product type | Flat nut |
| Thread type | M40 |

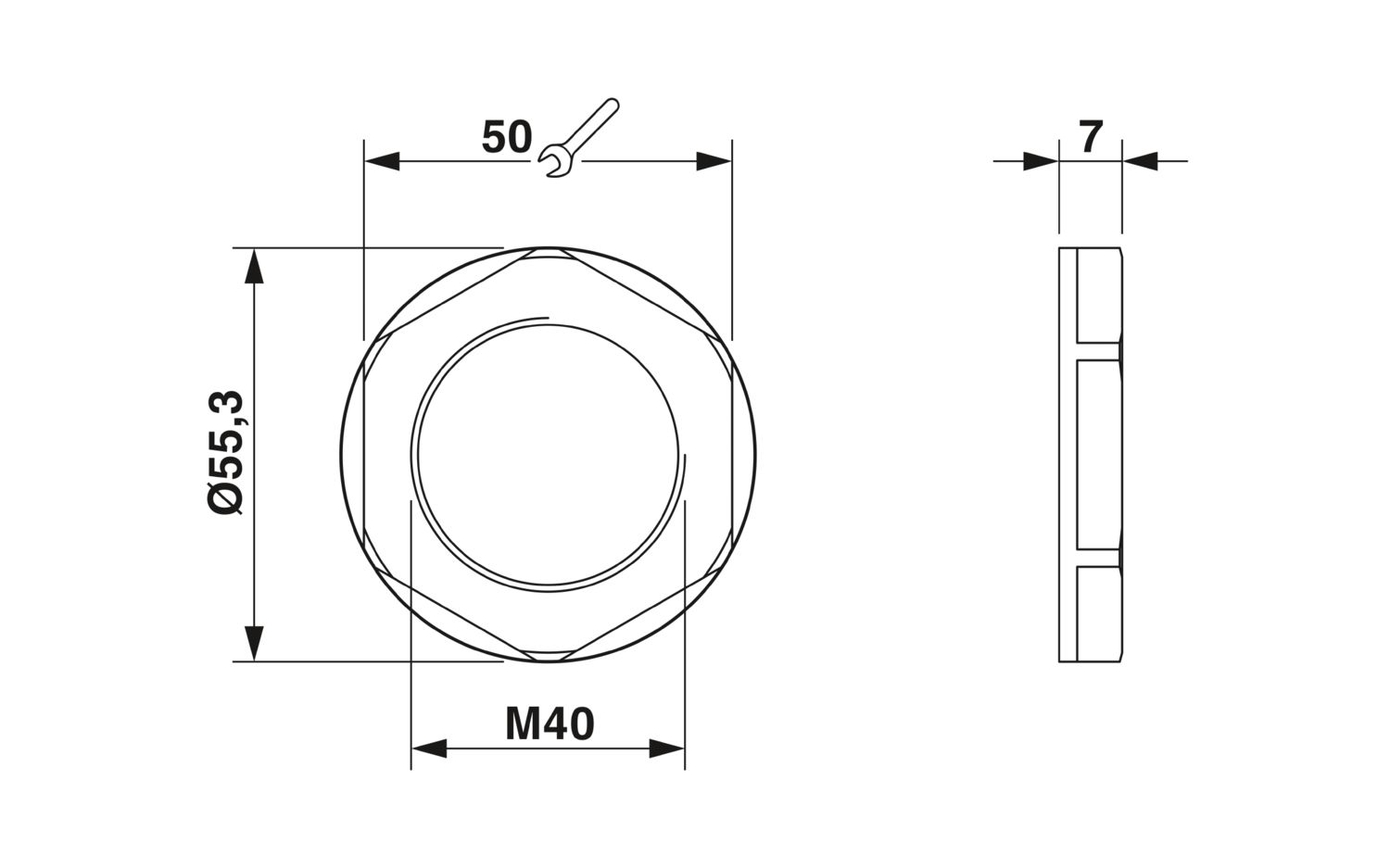

| Dimensional drawing |
|
| Length | 7 mm |
| Diameter | 40 mm |
| Connecting thread diameter | 40 mm |
| Wrench size, counter nut | 50 mm |
| Hexagon angular dimension | 55.3 mm |
| Thread type connection side | M40 x 1.5 |
| Thread pitch | 1.5 mm |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Halogen-free | yes |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
