AI-XL 2,5-12 BU
-
Ferrule
3201987

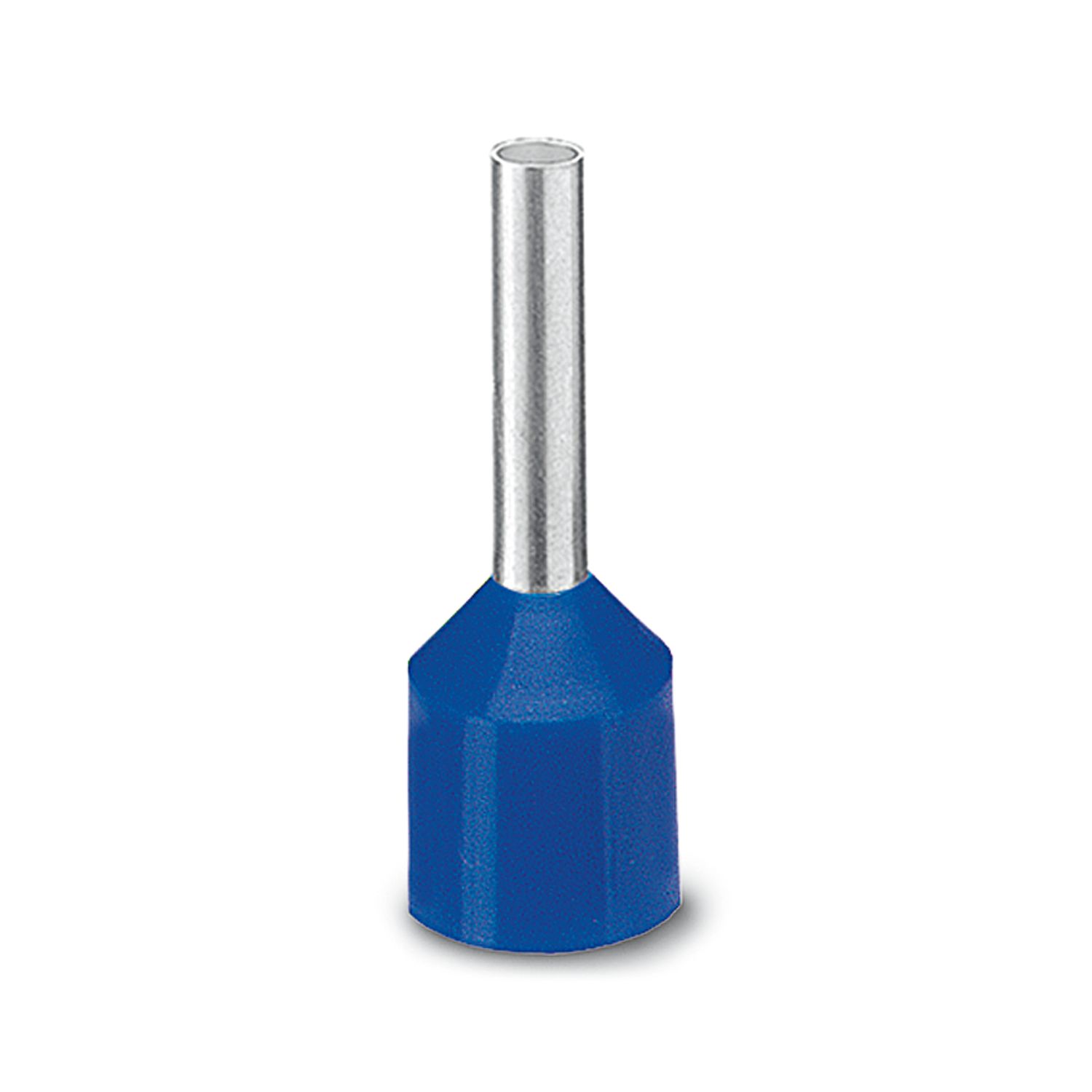

Ferrule, Length contact range: 12 mm, sleeve length: 21.5 mm, color: blue
Product details
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | Suitable for short-circuit-proof cables (NSGAFÖU) due to the significantly increased collar diameter |
| UL certified | |
| Made from soft tin-plated electrolytic copper | |
| Correspond to the requirements of UL 486F | |
| Plastic collar made of polypropylene | |
| Halogen-free | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG max. | 14 |
| Stripping length | 17 mm |
| Dimensional drawing |
|
| Sleeve length | 21.5 mm |
| Length contact range | 12 mm |
| Maximum stripping length | 17 mm |
| Ferrule diameter | 2.3 mm |
| Sleeve wall thickness | 0.15 mm |
| Insulating collar thickness | 0.3 mm |
| Inner dimensions of the insulating collar | 7.9 mm |
| Color | blue (RAL 5015) |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| Technical data | |
| Sleeve length | 21.5 mm |
| Ambient conditions | |
| Optimum ambient temperature (storage/transport) | 23.00 °C 50.00 % Storage in a dry and dark place in the original packaging is recommended |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
| Design according to standard | Color code in accordance with DIN 46228-4, UL 486F-E |
Your advantages
Previous methods of achieving correct conductor insulation are much more time consuming
These ferrules can be used for short-circuit-proof cables
