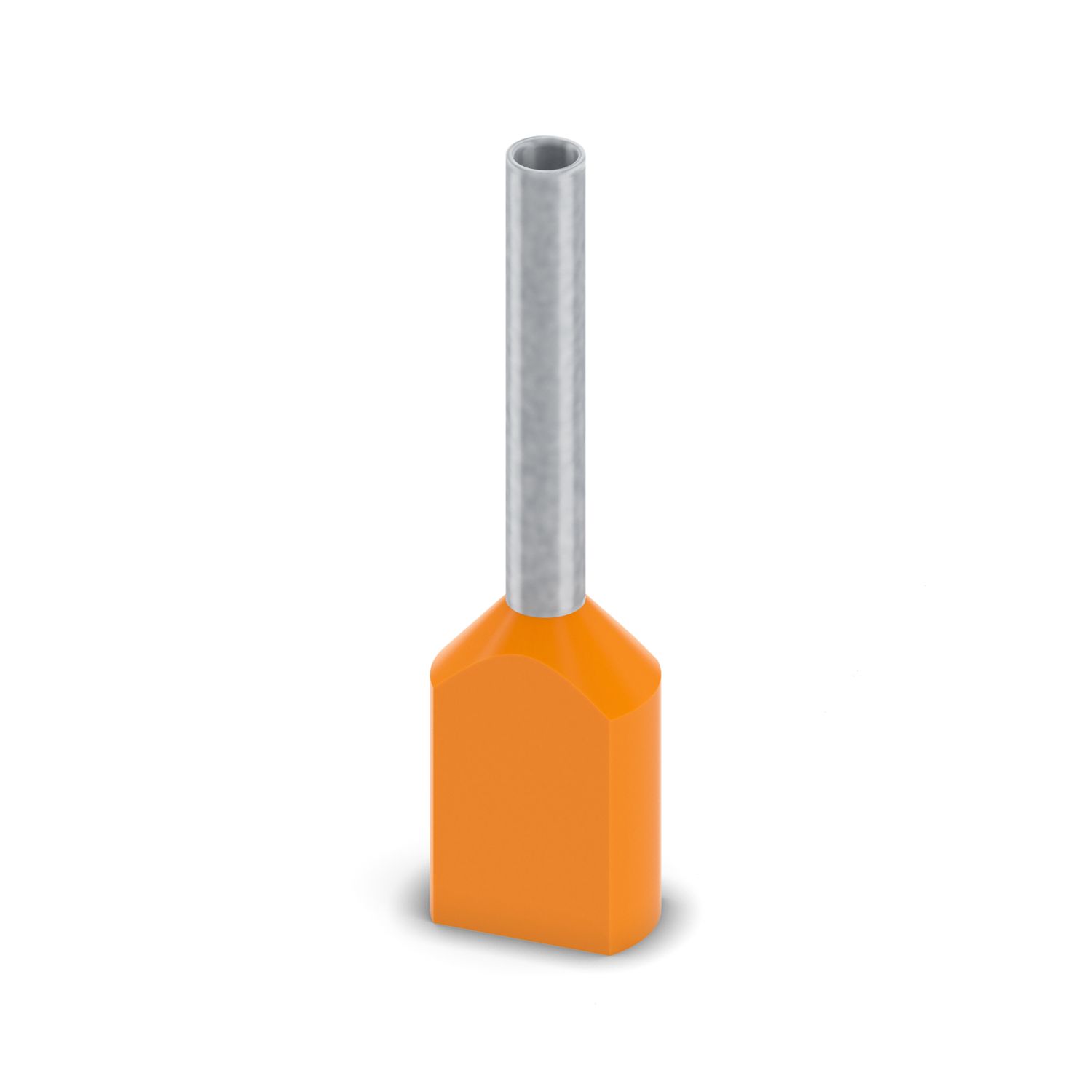

AI-TWIN 2X 0,5 - 10 OG
-
Ferrule
2100016
Ferrule, Length contact range: 10 mm, sleeve length: 17 mm, color: orange
Product details
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | Made from soft tin-plated electrolytic copper |
| Correspond to the requirements of UL 486F | |
| Plastic collar made of polypropylene | |
| Halogen-free | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross section flexible max. | 0.5 mm² |
| Conductor cross section AWG max. | 20 |
| Stripping length | 13 mm |
| Dimensional drawing |
|
| Sleeve length | 17 mm |
| Length contact range | 10 mm |
| Maximum stripping length | 13 mm |
| Ferrule diameter | 1.5 mm |
| Sleeve wall thickness | 0.15 mm |
| Insulating collar thickness | 0.25 mm |
| Inner dimensions of the insulating collar | 2.5 mm |
| Color | orange (RAL 2003) |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| Technical data | |
| Sleeve length | 17 mm |
| Design according to standard | DIN 46228-4, UL 486F-F |
Your advantages
These special ferrules allow chain bridges to be set up with ease
The TWIN ferrules provide a practical way of crimping two conductors in one ferrule
Different versions of the individual TWIN ferrules can be selected for specific applications
