AI-GB 1-10 RD-20000
-
Ferrule
2100097

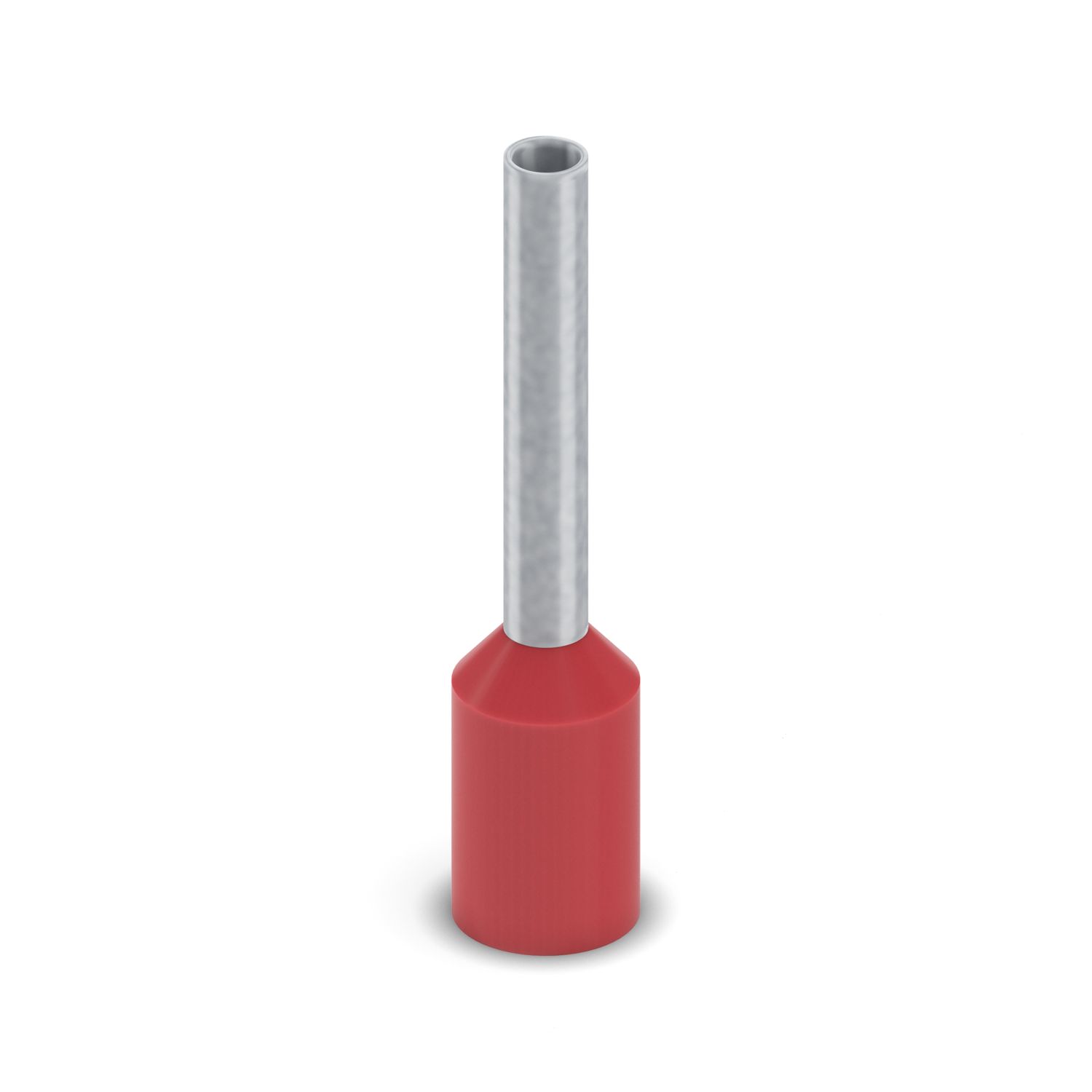

Ferrule, Length contact range: 10 mm, sleeve length: 16 mm, color: red
Product details
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | Suitable for AWG/multi-standard cables due to the increased diameter of the insulating collar |
| UL certified | |
| Made from soft tin-plated electrolytic copper | |
| Correspond to the requirements of UL 486F | |
| Plastic collar made of polypropylene | |
| Halogen-free | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross section flexible max. | 1 mm² |
| Conductor cross section AWG max. | 18 |
| Stripping length | 13 mm |
| Dimensional drawing |
|
| Sleeve length | 16 mm |
| Length contact range | 10 mm |
| Maximum stripping length | 13 mm |
| Ferrule diameter | 1.5 mm |
| Sleeve wall thickness | 0.15 mm |
| Insulating collar thickness | 0.3 mm |
| Inner dimensions of the insulating collar | 3.4 mm |
| Color | red (RAL 3001) |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| Technical data | |
| Sleeve length | 16 mm |
| Design according to standard | Color code in accordance with DIN 46228-4, UL 486F-E |
Your advantages
Due to the increased diameter of the insulating collar, this type of ferrule is specifically used with AWG cables
These ferrules enable practical crimping of conductors with increased insulation
