E/TB EI - End bracket
E/TB EI
-
End bracket
1386861

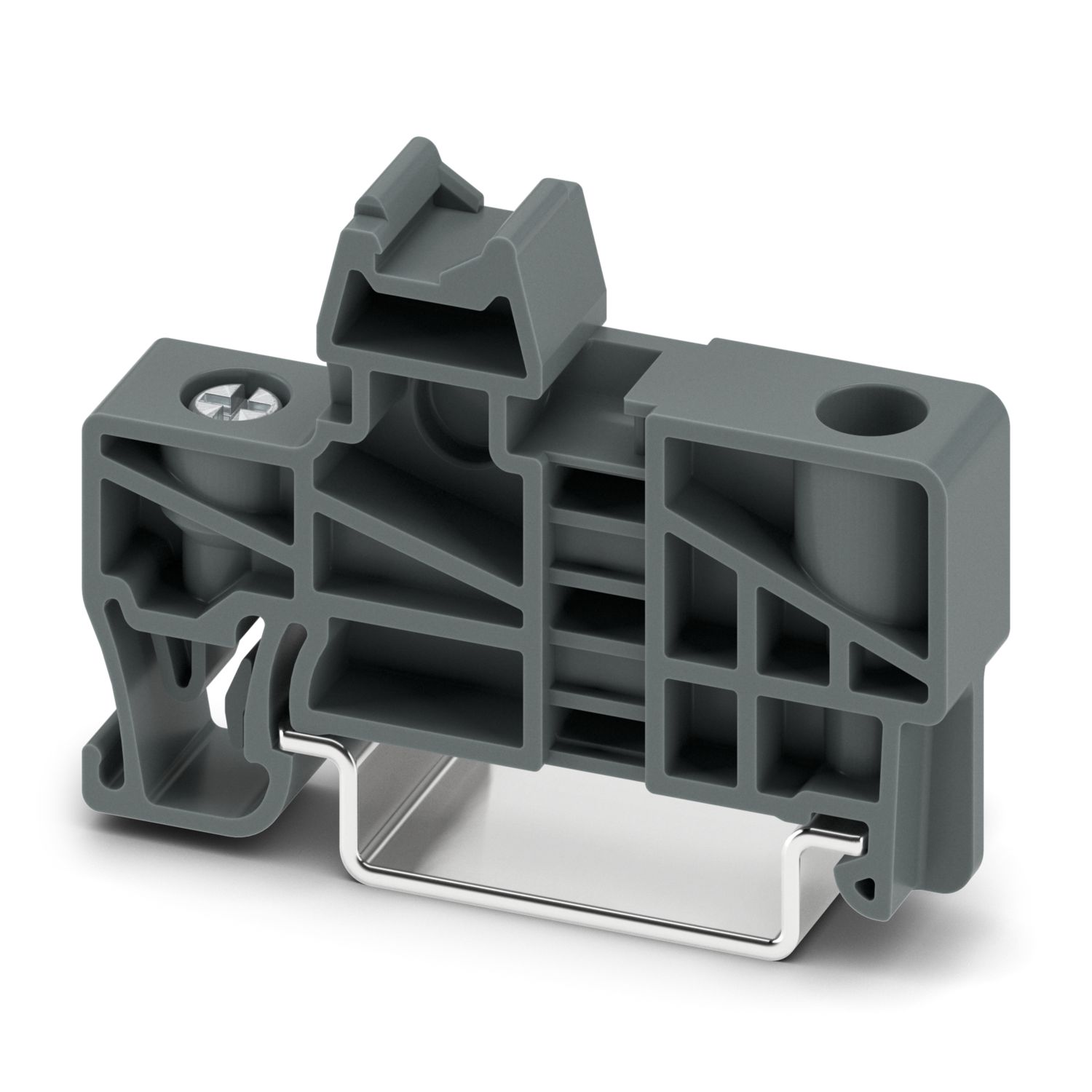

End bracket, material: PA, mounting type: NS 35/7,5, NS 35/15, color: dark gray
Product details
Expand all
Collapse all
Technical data
Connection data
Tightening torque
0.5 ... 0.6 Nm
Dimensions
Width
9.5 mm
Height
35.3 mm
Length
50.5 mm
Material specifications
Color
traffic grey B (RAL 7043)
Material
PA
Flammability rating according to UL 94
V0
Static insulating material application in cold
-60 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)
-60 °C ... 110 °C
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Mounting
Mounting type
NS 35/7,5
NS 35/15
Commercial data
Item number
1386861
Packing unit
50 pc
Minimum order quantity
50 pc
Sales key
BE7
Product key
BEN111
GTIN
4063151857660
Weight per piece (including packing)
22.22 g
Weight per piece (excluding packing)
22.22 g
Country of origin
IN
Classifications
ECLASS
ECLASS-13.0
27250302
ECLASS-15.0
27250302
ETIM
ETIM 9.0
EC001041
UNSPSC
UNSPSC 21.0
39121400
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
UBE + ES/KMK 3
-
Marker carriers
1004089
NS 32 PERF 2000MM-VPE 10
-
DIN rail perforated
1201002
NS 32 UNPERF 2000MM-VPE 10
-
DIN rail, unperforated
1201015
NS 35/ 7,5 PERF 2000MM
-
DIN rail perforated
0801733
NS 35/ 7,5 UNPERF 2000MM
-
DIN rail, unperforated
0801681
NS 35/ 7,5 WH PERF 2000MM
-
DIN rail perforated
1204119
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10
-
DIN rail, unperforated
1204122
NS 35/ 7,5 AL UNPERF 2000MM
-
DIN rail, unperforated
0801704
NS 35/ 7,5 ZN PERF 2000MM
-
DIN rail perforated
1206421
NS 35/ 7,5 ZN UNPERF 2000MM
-
DIN rail, unperforated
1206434
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10
-
DIN rail, unperforated
0801762
NS 35/ 7,5 CAP
-
End cap
1206560
NS 35/15 PERF 2000MM
-
DIN rail perforated
1201730
NS 35/15 UNPERF 2000MM
-
DIN rail, unperforated
1201714
NS 35/15 WH PERF 2000MM
-
DIN rail perforated
0806602
NS 35/15 WH UNPERF 2000MM-VPE 10
-
DIN rail, unperforated
1204135
NS 35/15 AL UNPERF 2000MM
-
DIN rail, unperforated
1201756
NS 35/15 ZN PERF 2000MM
-
DIN rail perforated
1206599
NS 35/15 ZN UNPERF 2000MM
-
DIN rail, unperforated
1206586
NS 35/15 CU UNPERF 2000MM-VPE 10
-
DIN rail, unperforated
1201895
NS 35/15 CAP
-
End cap
1206573
NS 35/15-2,3 UNPERF 2000MM-VPE 10
-
DIN rail, unperforated
1201798
ZB 6:UNBEDRUCKT
-
Zack marker strip
1051003
ZB 6 CUS
-
Zack marker strip
0824992
ZB 6,LGS:FORTL.ZAHLEN
-
Zack marker strip
1051016
ZB 6,QR:FORTL.ZAHLEN
-
Zack marker strip
1051029
ZB 6,LGS:GLEICHE ZAHLEN
-
Zack marker strip
1051032
ZB 6,LGS:L1-N,PE
-
Marker for terminal blocks
1051414
ZB 6,LGS:U-N
-
Marker for terminal blocks
1051430
UC-TM 6
-
Marker for terminal blocks
0818085
UC-TM 6 CUS
-
Marker for terminal blocks
0824589
UCT-TM 6
-
Marker for terminal blocks
0828736
UCT-TM 6 CUS
-
Marker for terminal blocks
0829602
