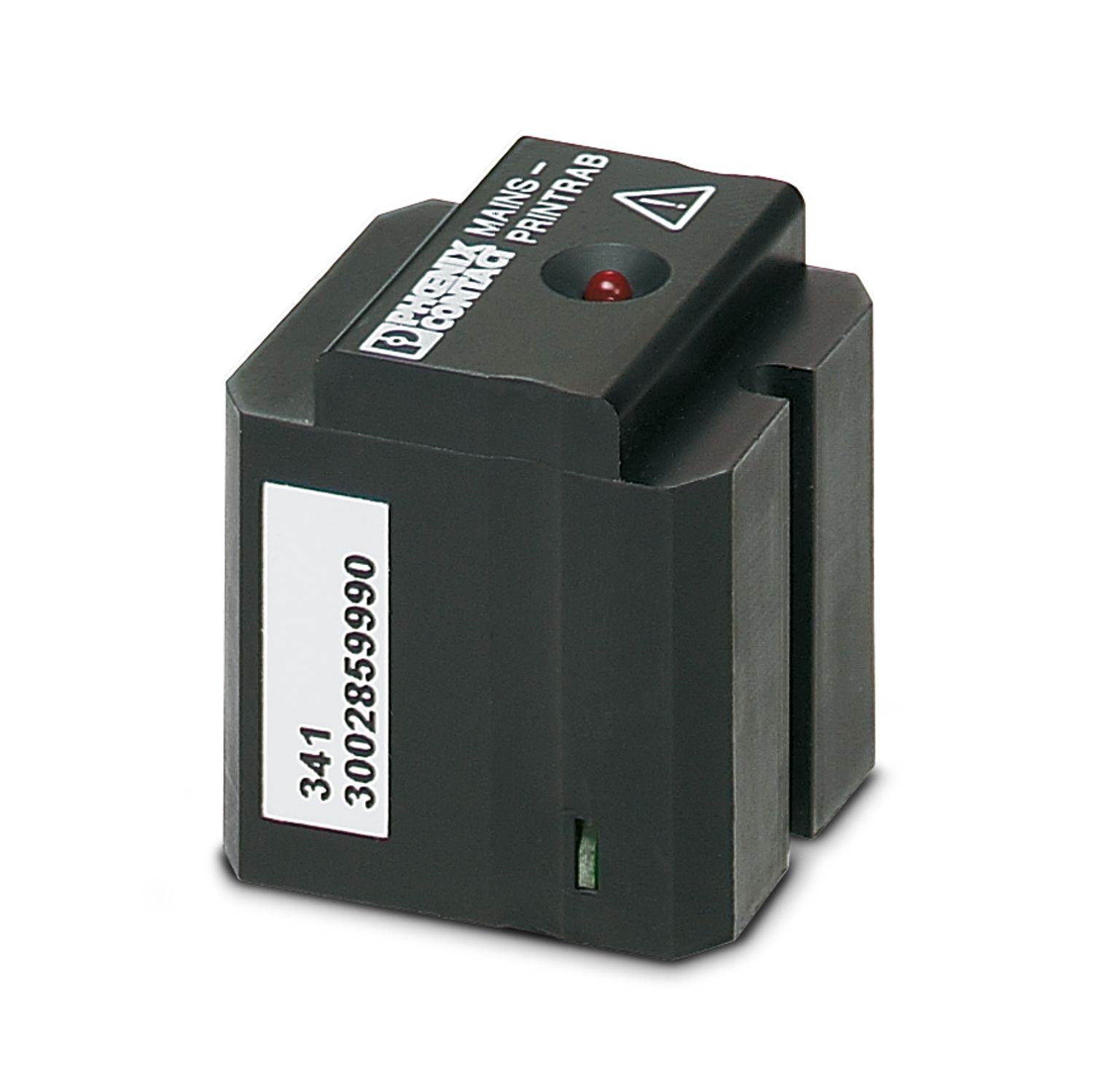

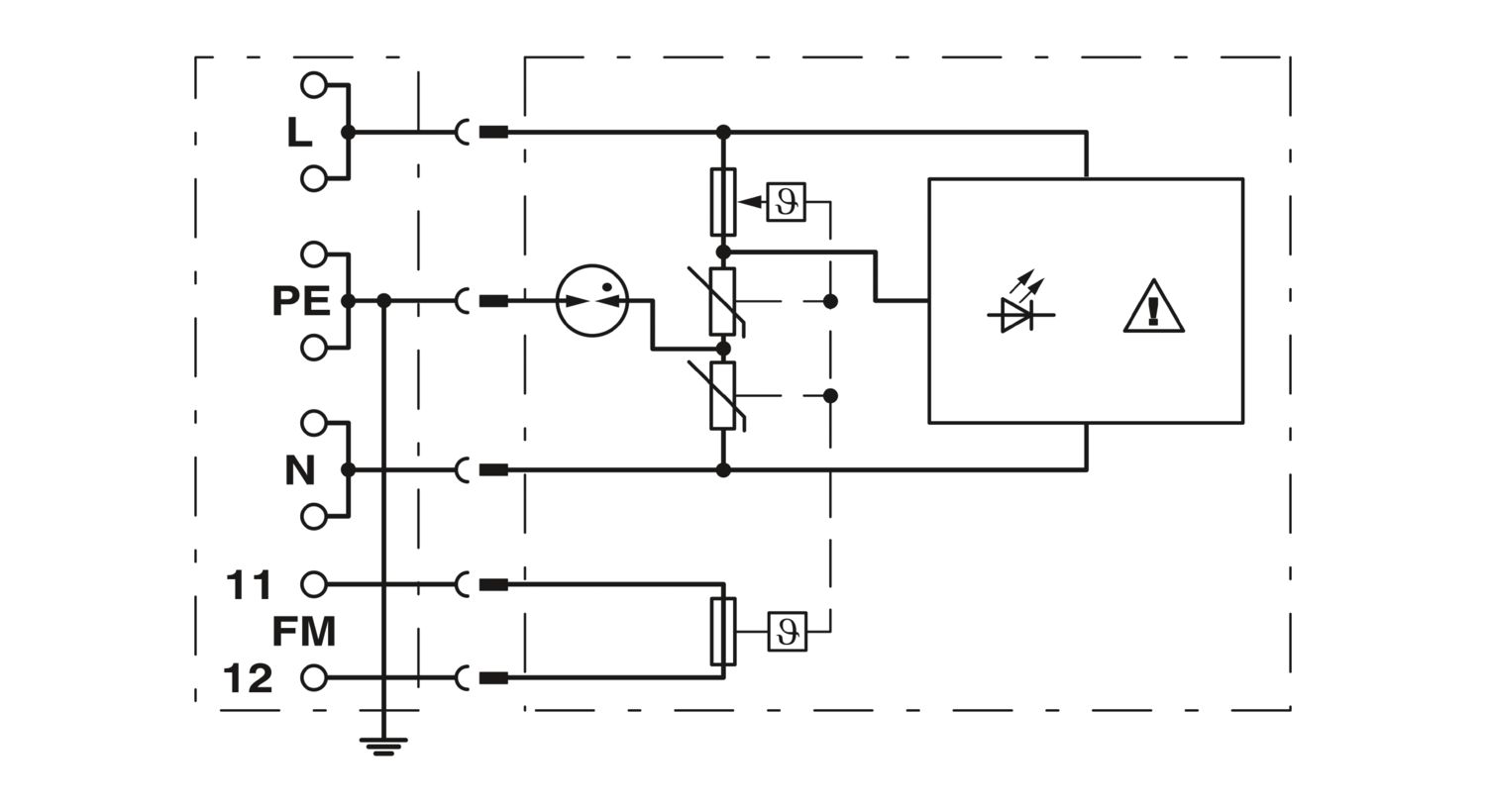

PRT-S-120/FM
-
Type 3 surge protection device
2830618
Equipment protection plug PRT-S with temperature monitoring, visual fault warning and remote indicator contact. Nominal voltage: 120 V
This product needs further products for operation.

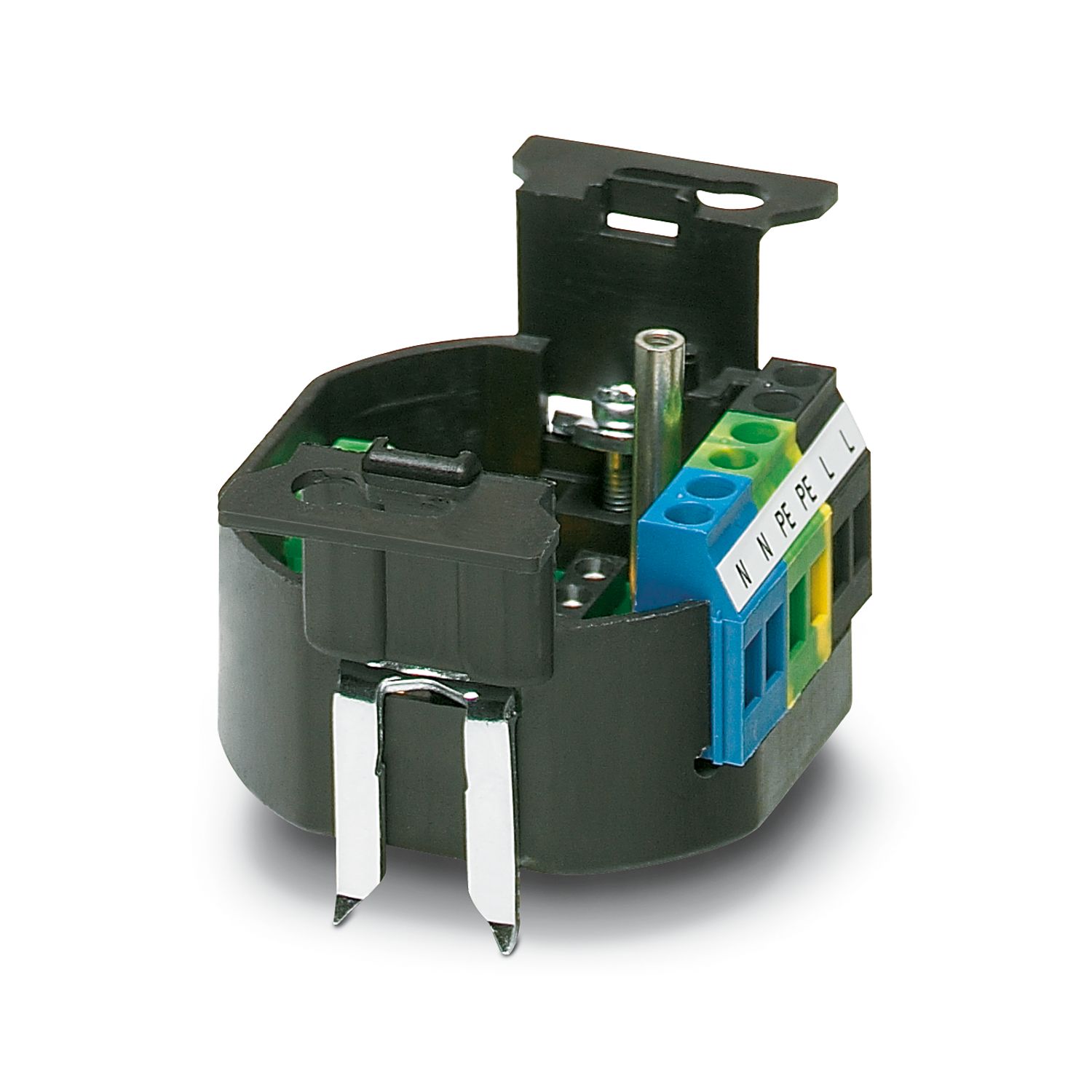

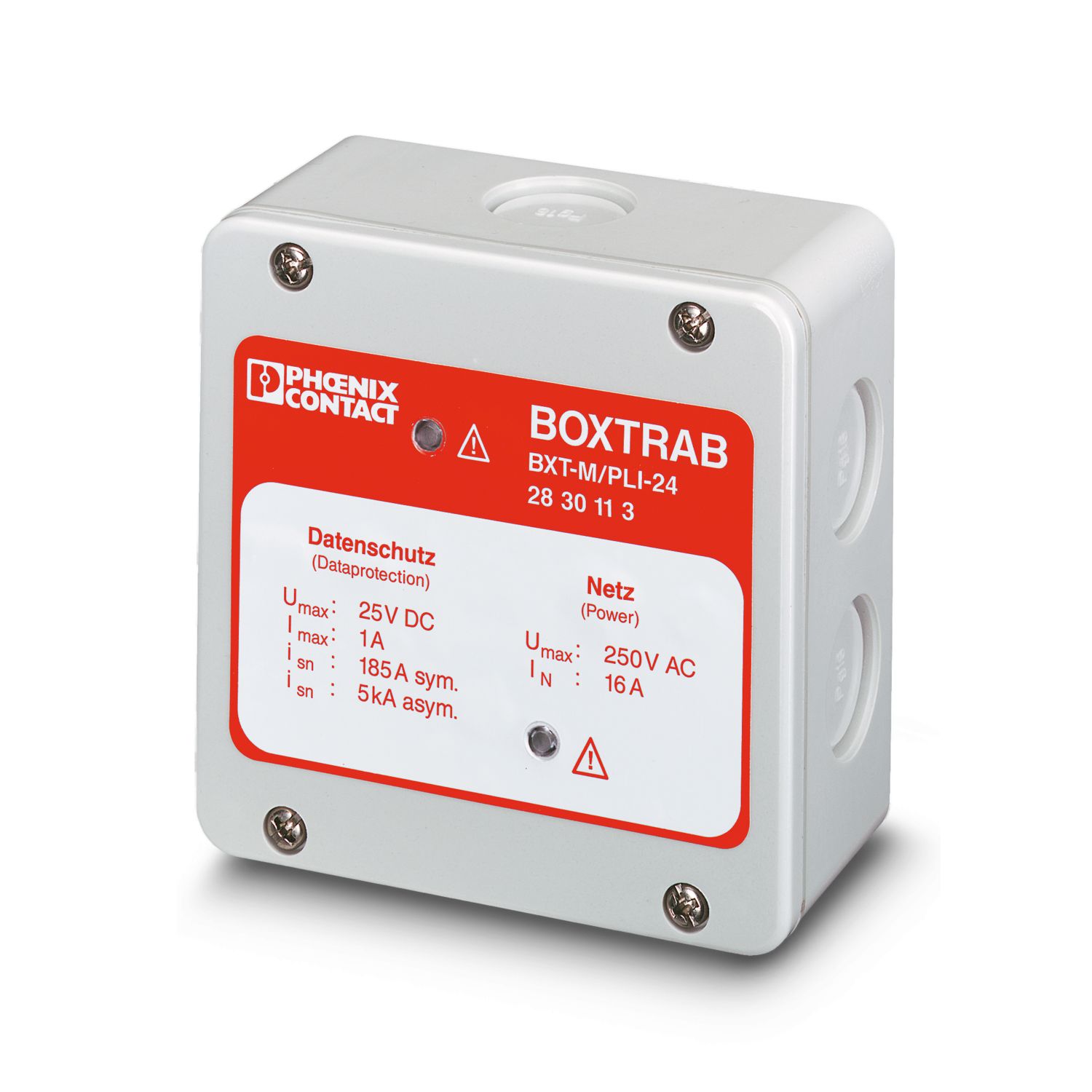

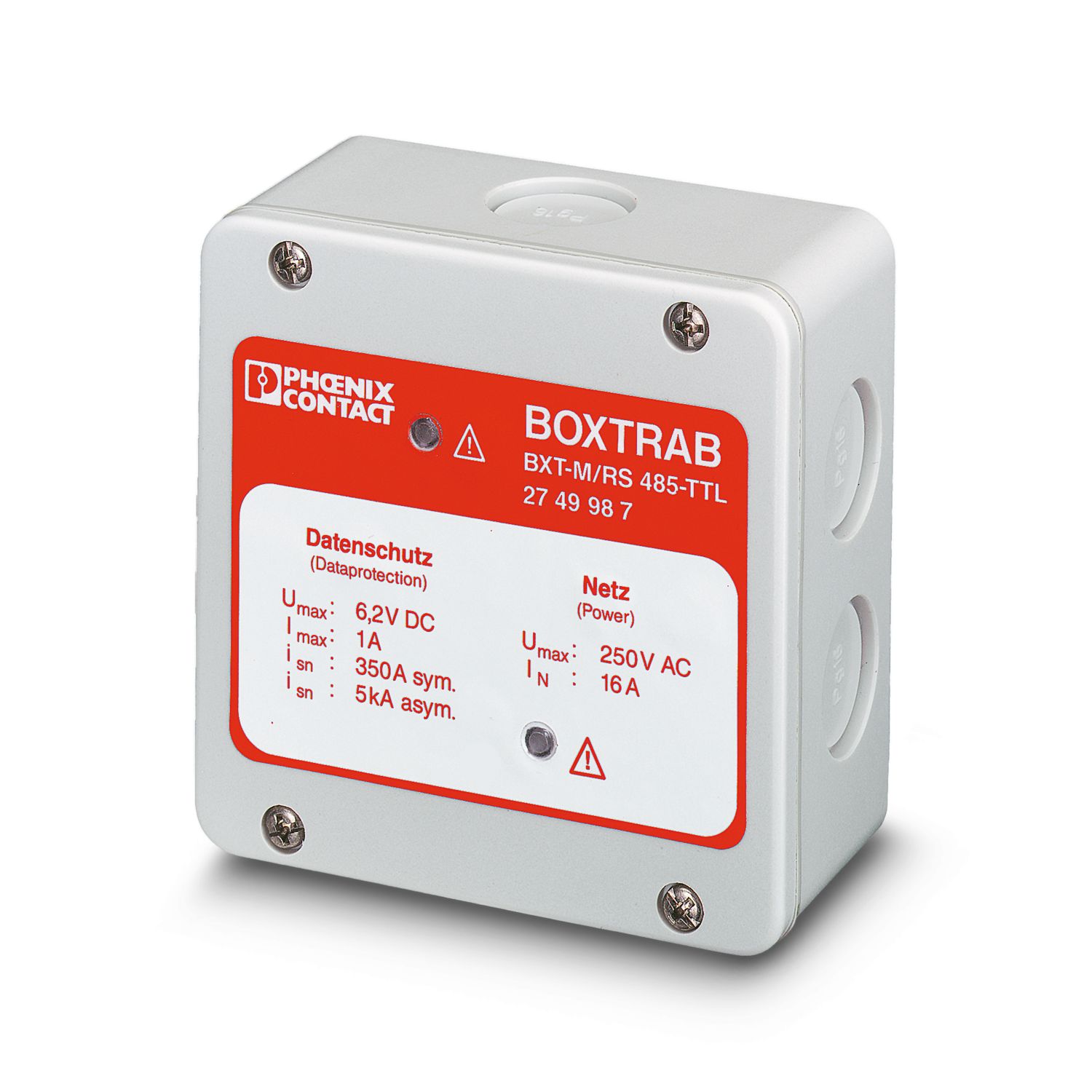

Mandatory accessories
Product details
| Product type | Device protection |
| Product family | PRINTRAB |
| Type | Fitted box module |
| Number of positions | 2 |
| Surge protection fault message | Optical, remote indicator contact |
| IEC test classification | III |
| T3 | |
| EN type | T3 |
| Indicator/remote signaling | |
| Connection name | Remote fault indicator contact |
| Switching function | N/C contact |
| Maximum operating voltage Umax. AC | 250 V AC |
| Max. operating current Imax | 3 A (60 °C) |
| Connection method | PRT plug-in system |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 4 mm² |

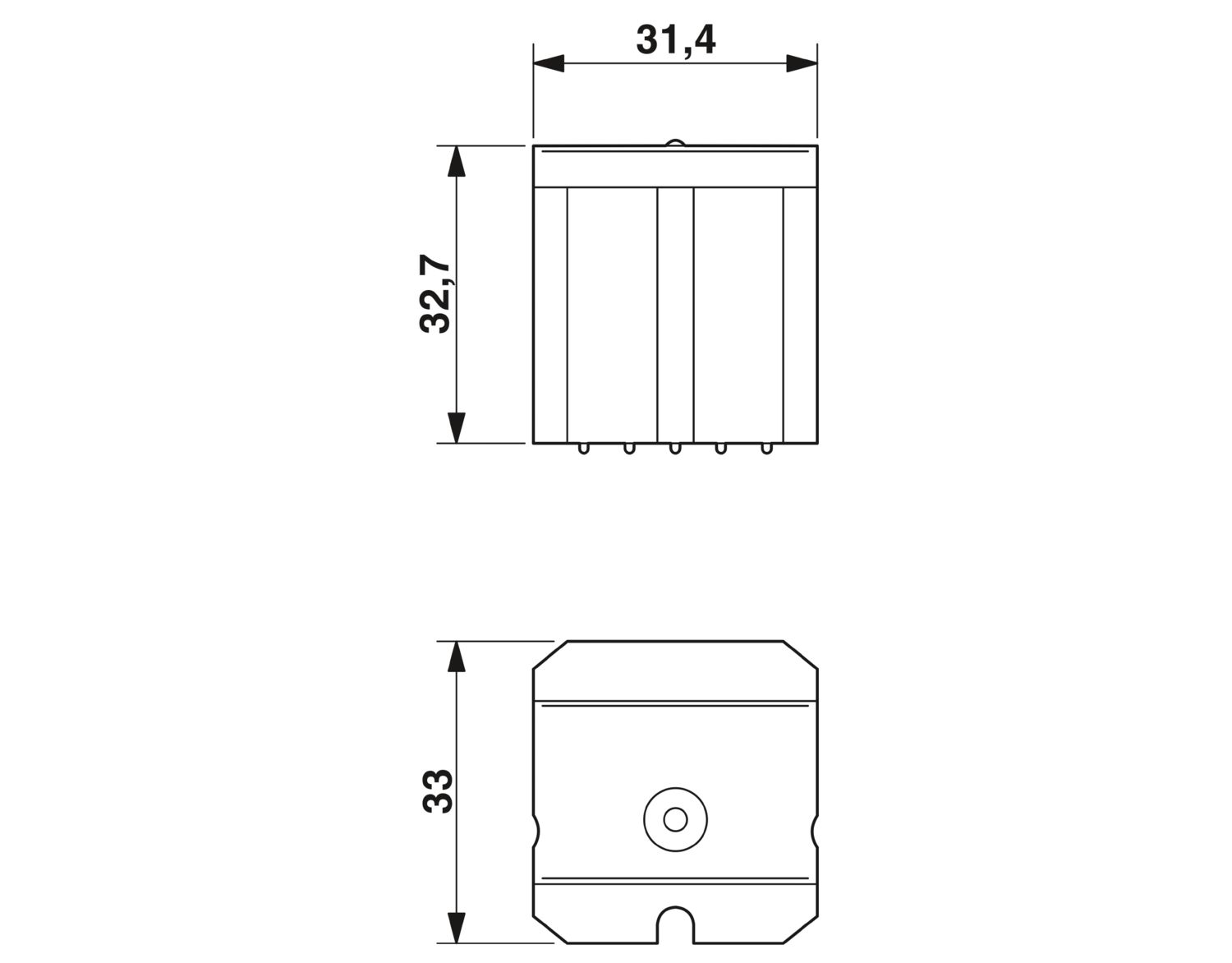

| Dimensional drawing |
|
| Width | 31.5 mm |
| Height | 32.7 mm |
| Depth | 33 mm |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
| Direction of action | 1L-N & N-PE |
| Nominal frequency fN | 50 Hz |
| 60 Hz | |
| Maximum continuous operating voltage UC (L-N) | 150 V AC |
| Maximum continuous operating voltage UC (L-PE) | 150 V AC |
| Rated load current IL | 10 A (CSA) |
| Protective conductor current IPE | ≤ 1 µA |
| Operating effective current IC at UC | ≤ 2.3 mA |
| Nominal discharge current In (8/20) µs | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-N) | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 1.5 kA |
| Maximum discharge current Imax (8/20) µs (L-N) | 4.5 kA |
| Maximum discharge current Imax (8/20) µs (L-PE) | 4.5 kA |
| Energy absorption symmetrical | 40 J |
| Enery absorption, asymmetrical | 20 J |
| Voltage protection level Up (L-N) | ≤ 600 V |
| Voltage protection level Up (L-PE) | ≤ 800 V |
| Voltage protection level Up (N-PE) | ≤ 800 V |
| Residual voltage at In | ≤ 610 V |
| ≤ 330 V | |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Response time tA (N-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gL/C) |
| Ambient conditions | |
| Degree of protection | IP40 |
| Ambient temperature (operation) | -25 °C ... 75 °C |
| Air clearances and creepage distances | |
| Standards/regulations | VDE 0110-1 / IEC 60664-1 |
| Standards | |
| Standards/regulations | IEC 61643-1 |
| EN 61643-11/A11 | |
| IEC 61643-1 | |
| EN 61643-11/A11 | |
| Standards/specifications | IEC 61643-1 |
| Note | 2005 |
| Standards/specifications | EN 61643-11/A11 |
| Note | 2007 |
| Mounting type | UP/channel installation |
