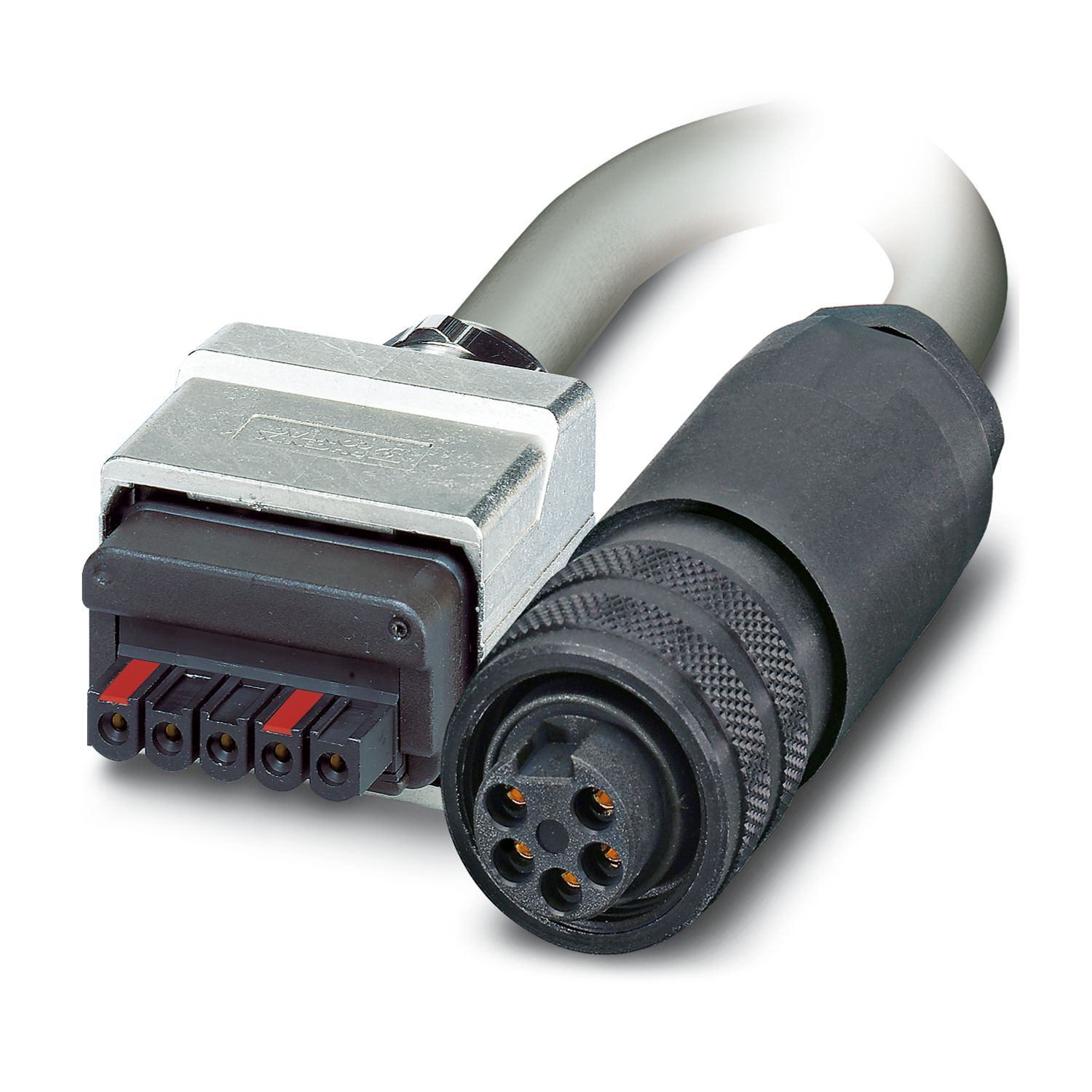

VS-P1220-P1226-C1021/... - Cable

VS-P1220-P1226-C1021/... - Cable

1609248

Cable, degree of protection: IP65, number of positions: 5, material: Zinc die-cast/PBT, PROFINET/power

Product details

Expand all Collapse all

Technical data

Notes

General	This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA)

Product properties

Product type	Data cable preassembled
Sensor type	PROFINET/power
Number of positions	5
Shielded	no

Electrical properties

Rated voltage (III/3)	24 V
Rated current	16 A (at 20 °C)
Transmission medium	Copper

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	≥ 50

Material specifications

Seal material	NBR
Housing material	Zinc die-cast/PBT
Cable seal material	TPE
Contact material	Copper alloy
Contact surface material	Gold over nickel
Contact carrier material	PA/PUR
Outer sheath, material	PVC
Conductor material	Bare Cu litz wires

Connector

Connection 1
Type	Plug straight MSTB
Locking type	Push Pull
Degree of protection	IP65
Connection 2
Type	Plug straight 7/8"-UNF
Degree of protection	IP65

Cable/line

PVC gray [PVC]
Shielded	no
Cable type	PVC gray
Cable type (abbreviation)	PVC
External cable diameter	8.1 mm
Outer sheath, material	PVC
External sheath, color	silver-grey RAL 7001
Conductor material	Bare Cu litz wires
Conductor cross section	1.5 mm²
Smallest bending radius, fixed installation	40 mm
Smallest bending radius, movable installation	150 mm

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65
		IP67
		IP65
Ambient temperature (operation)	-40 °C ... 70 °C (cable, fixed installation)
		-5 °C ... 70 °C (Cable, flexible installation)
		Plug / socket

Commercial data

Item number	1609248
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	ABN
Product key	ABNOIA
Customs tariff number	85444290
Country of origin	DE
