CRIMPFOX-P CC 0.75 L - Crimping pliers

1064998

Crimping pliers, for COMBICON crimp connectors with cross section: 0.14 ... 0.75 mm². Unlockable pressure lock, precise parallel crimping, front entry, B crimp, incl. 2 positioning aids

Product type	Crimping tool
Compression	B crimp
Product property	Symmetrical crimping shape due to parallel pliers movement
	Marked die stations
Crimping position 1
Max. cross section	0.34 mm²
AWG max	22
Crimping position 2
Max. cross section	0.5 mm²
AWG max	20
Crimping position 3
Max. cross section	0.75 mm²
AWG max	18
Crimping position 4
Min. cross section	0.14 mm²
Max. cross section	0.25 mm²
AWG min	26
AWG max	24

Conductor connection
Cross section range, metric	0.14 mm² ... 0.75 mm²
Cross section range AWG	26 ... 18

Length	233 mm

Color	black

Item number	1064998
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	BH3
Product key	BH3136
Catalog page	Page 430 (C-3-2019)
GTIN	4055626722979
Weight per piece (including packing)	530.7 g
Weight per piece (excluding packing)	530.7 g
Customs tariff number	82032000
Country of origin	SE

Compatible products

Accessories

Your advantages

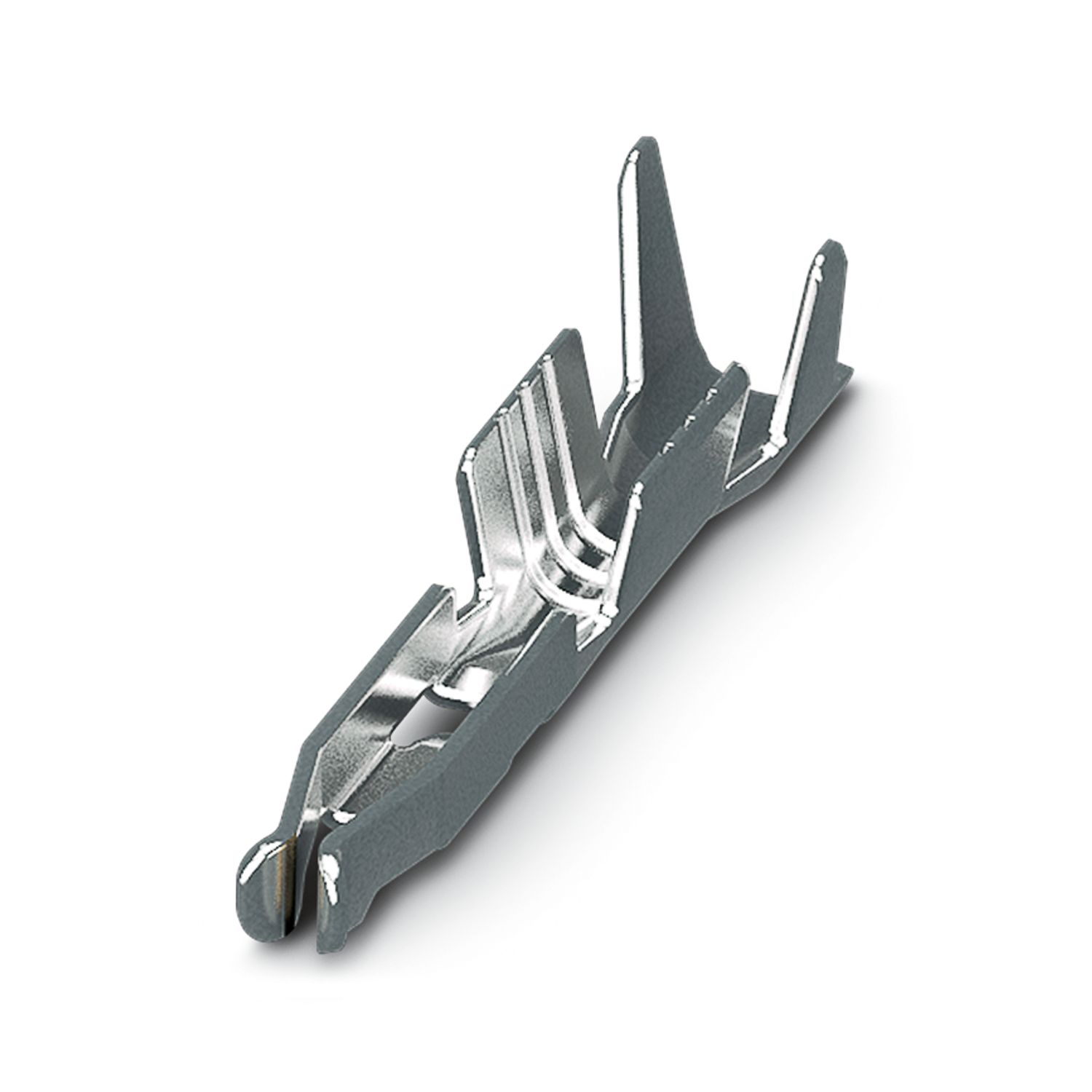

Female crimp contact PTCM-MP-P...

Female crimp contact MCC 0,5-MP...

Precision-manufactured dies ensure consistently high levels of quality during contact processing

Parallel motion sequences of the dies for symmetrical and optimum crimping results

PTCM-MP-PI... male crimp contact

High crimping force with low manual force

Marked die stations for precise processing of corresponding cross sections

EU RoHS
Fulfills EU RoHS substance requirements	Not applicable (No electrical and electronic equipment (EEE), cannot be used in EEE)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
